Elstar EM500 Upright Back Bar

£927.00

+vat

Brand:

SKU: 31572

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock

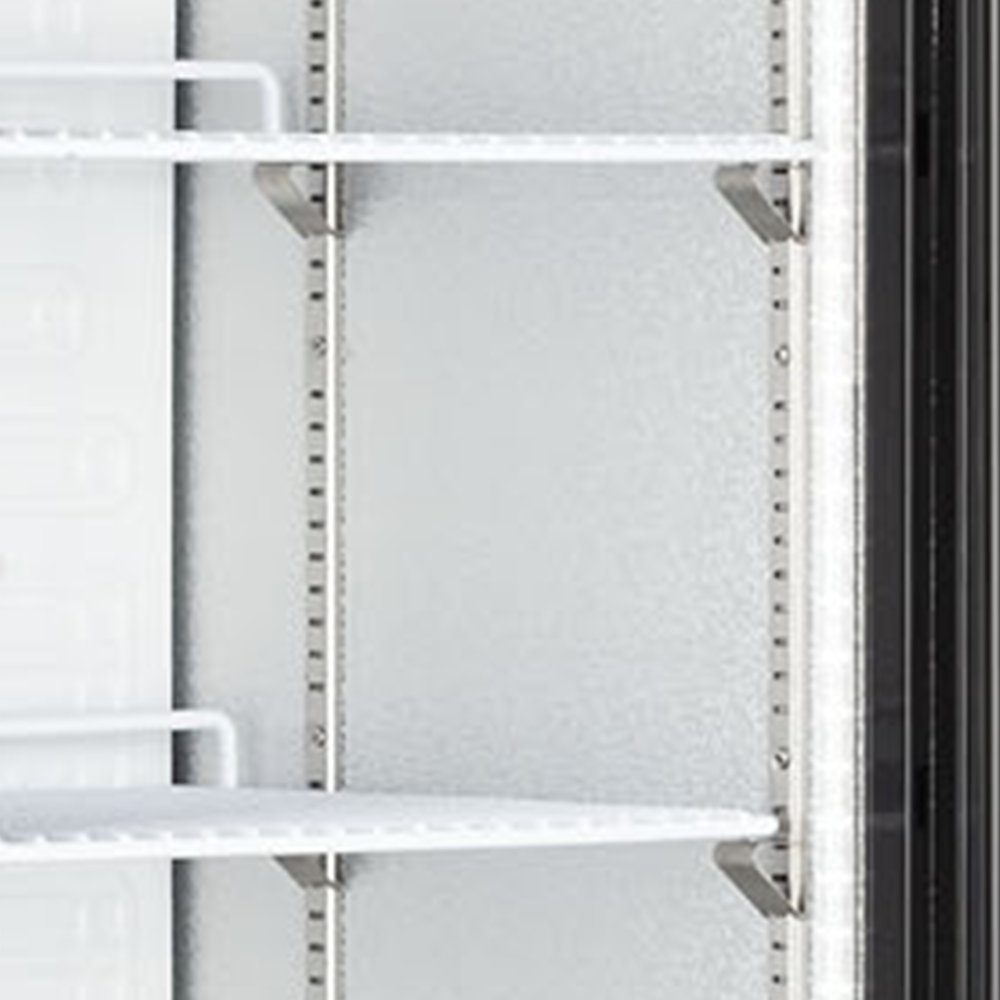

  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Door not reversible
  • Replaceable door gasket

Product description

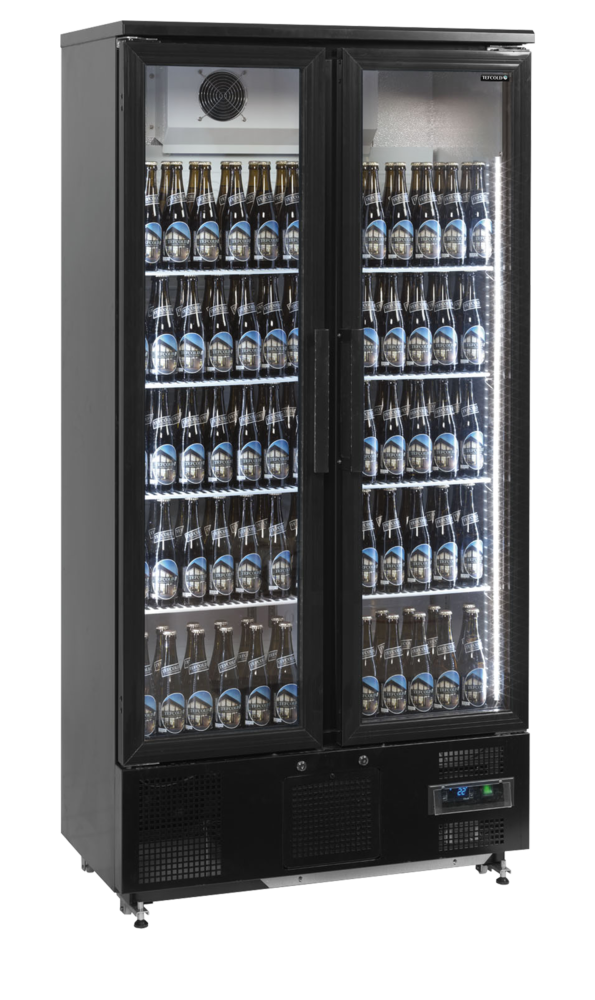

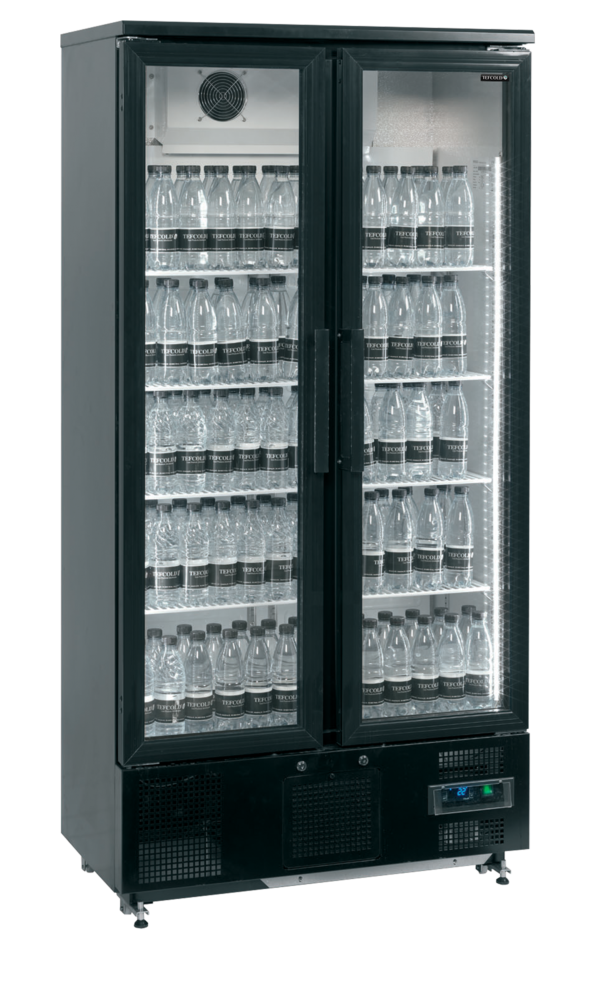

Ideal for the pub or bar that wants to increase display capacity of cooled bottled drinks and cans while keeping the refrigeration footprint as low as possible. The EM upright range of back bar coolers come in single or double door options. Vertical LED interior lighting helps to illuminate the product and create an attractive display. The fan assisted refrigeration system ensures even and rapid cooling over the whole cabinet and an energy efficient refrigeration system helps keep running costs low.

The Elstar EM500 is an upright back-bar cooler with two hinged glass doors and 490 litres net capacity, running +2 to +8 °C on R600a with automatic electric defrost, rated energy class C at 1598.7 kWh a year from a standard 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H920 x 520 x 1872 mmWidth920 mmDepth520 mmGross / net weight139 / 125 kgGross weight139 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elstarsite
GTIN / EAN 5708181991623site
Product code 31572site
Sub title Upright Back Barcatalogue
Type Back Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 520 mmsite
External (W×D×H) 920 × 520 × 1872 mmcatalogue
External W × D × H 920 x 520 x 1872 mmsite
Gross / net weight 139 / 125 kgsite
Gross weight 139 kgcatalogue
Height 1872 mmsite
Internal (W×D×H) 855 × 424 × 1437 mmcatalogue
Internal W × D × H 855 x 424 x 1437 mmsite
Packed (W×D×H) 975 × 570 × 2028 mmcatalogue
Packed W × D × H 975 x 570 x 2028 mmsite
Width 920 mmsite

Capacity4

Display area 0.85 m²site
Doors 2catalogue
Gross volume 600 litrescatalogue
Shelves 8catalogue

Performance8

Climate class 4site
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 120 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1095 kWh/yearsite
Energy consumption 4.38 kWh/24hsite
Energy efficiency index 29 %site
Input power 250 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Blacksite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 420*337site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this back bar fridge earns its place

The Elstar EM500 is an upright back-bar cooler with two hinged glass doors, built to hold and display bottled and canned drinks behind a busy bar. Gross volume is 600 litres, 490 litres net, giving 0.85 m² of glazed display in a single tall cabinet with a black exterior and a hammered-aluminium interior. The upright format puts stock at eye level while keeping a small floor footprint.

It runs +2 to +8 °C with automatic electric defrost, holding drinks at serving temperature through a busy service. Energy class C at 1598.7 kWh a year is about £400 a year at 25p/kWh, and it draws 250 W. At 56 dB it is a working back-bar cooler rather than a front-of-house quiet unit.

The cabinet's interior measures 855 × 424 × 1437 mm (W×D×H) and it weighs 139 kg gross, so plan delivery and siting for a heavy upright — packed it stands 2028 mm tall. It plugs into a standard 13 A / 220–240 V supply and cools with R600a hydrocarbon refrigerant on a 120 g charge.

BEFORE YOU BUY

Questions, answered straight

600 litres gross and 490 litres net, with 0.85 m² of glass display across two hinged doors.

+2 to +8 °C, with automatic electric defrost.

Energy class C at 1598.7 kWh a year, about £400 a year at 25p/kWh, drawing 250 W.

The interior is 855 × 424 × 1437 mm (W×D×H) and it weighs 139 kg gross; packed height is 2028 mm, so plan access and handling.

It runs at 56 dB, which suits a working back bar rather than a quiet dining room.

A standard 13 A / 220–240 V supply and R600a on a 120 g charge. For servicing or spares call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 855 x 424 x 1437 mm
External Dimension (WxDxH): 920 x 520 x 1872 mm
Packed Dimension (WxDxH): 975 x 570 x 2028 mm

Cooling and Functions

Type of Defrost: Automatic, electric
Refrigerant: R600a
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.38 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1095 kWh/year m³
EEI: 29 %
Input Power: 250 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 139 / 125 kg
Gross / Net Volume: 600 / 490 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.85 m² m²

Design and Material

Shelf Dimensions: 420*337
Max load on Shelves: 196 kg/m²
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the Elstar EM500 Upright Back Bar then please get in touch.
