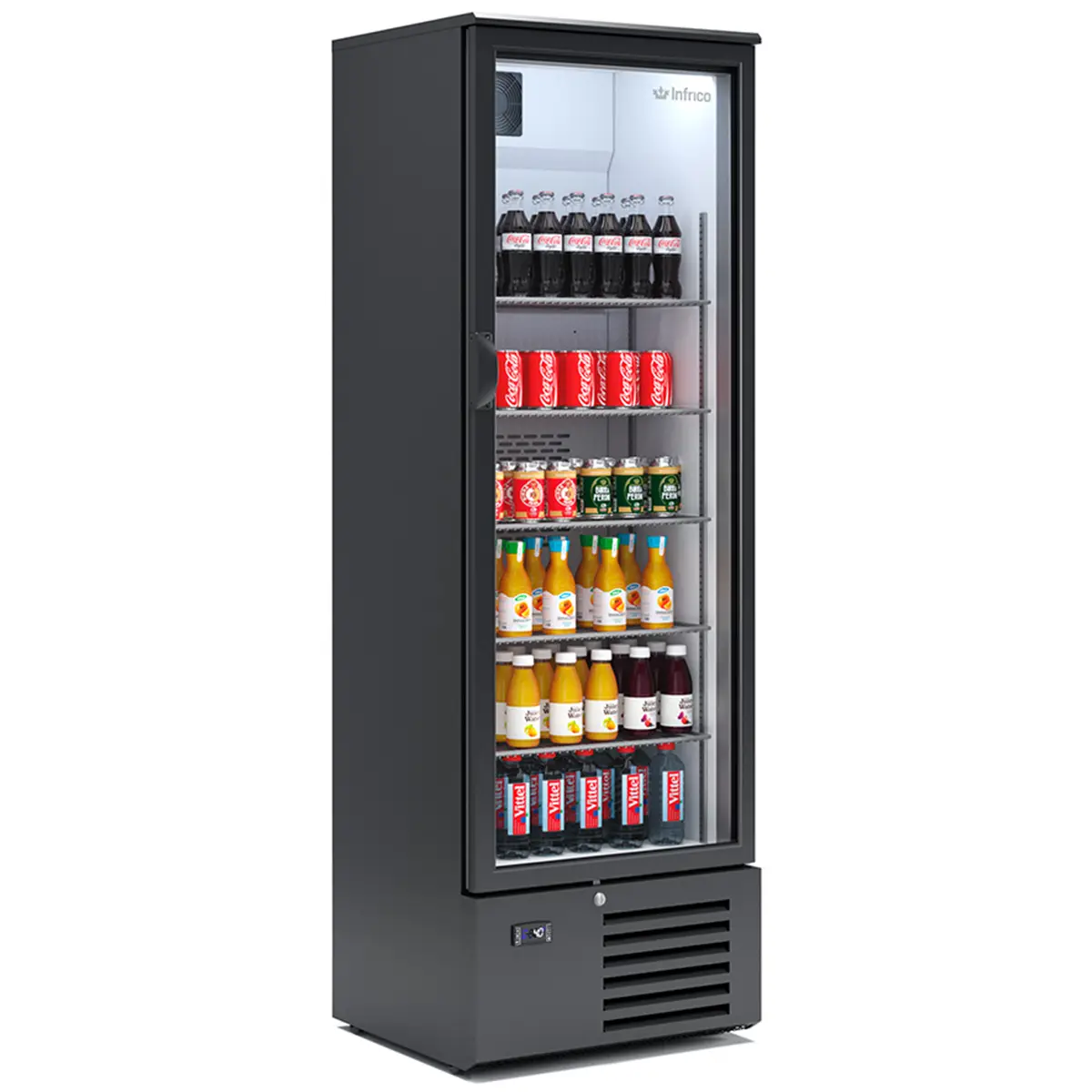

INFRICO Upright Single Hinged Glass Door Bottle Cooler ZX10

£1,249.20

+vat

Brand:

SKU: ZX10

Product summary

Size: 600 x 520 x 1800

Product description

  • Laminated exterior and interior
  • Internal illumination
  • Wider spaced finner condenser for minimum maintenace
  • 5 shelves
  • Lock as standard
  • Can be built in
  • Double glazed glass doors and adjustable feet
  • Replaceable door gaskets

The Infrico ZX10 is an upright single hinged glass-door back bar bottle cooler measuring 600 × 520 × 1800 mm (W×D×H), running on natural R290 refrigerant with automatic defrost and a climate class 4 rating for warm bar environments.

SPECIFICATION 24 facts · tap for all External W × D × H600 x 520 x 1800Width600 mmDepth520 mmHeight1800 mmGross weight110 kgVoltage / frequency380W

Manufacturer documents2

Identity3

Brand INFRICOsite
Product code ZX10site
Type Back Bar Fridgescatalogue

Size & weight6

Depth 520 mmsite
External (W×D×H) 600 × 520 × 1800 mmcatalogue
External W × D × H 600 x 520 x 1800site
Gross weight 110 kgcatalogue
Height 1800 mmsite
Width 600 mmsite

Capacity2

Doors 1catalogue
Gross volume 324 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temperature displaysite
Cooling type Fan Assistedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +4C/+12Csite

Power & energy3

Input power 13amp supplysite
Rated input 380 Wcatalogue
Voltage / frequency 380Wsite

Build & fittings2

Exterior finish Charcoal with black doorsite
Shelves 5site
THE WORKING VIEW

Why this back bar fridge earns its place

The Infrico ZX10 is an upright single-door bottle cooler built for the back bar. The hinged glass door puts chilled bottles and cans on show while keeping them behind glass, so front-of-house stock stays visible and to hand through a busy service. At 600 mm wide it is a slim, single-door unit designed to line up behind the bar without eating the run.

Day to day it runs on automatic defrost, so there is no manual defrost routine to remember — the cabinet clears itself and holds its cycle without staff intervention. It carries a climate class 4 rating, which means it is built to keep temperature in warm rooms, the kind of ambient a working bar reaches on a busy night. The refrigerant is R290, a natural hydrocarbon with a low global warming potential.

On installation, the cabinet is 600 mm wide, 520 mm deep and 1800 mm tall, and weighs 110 kg. The narrow 600 mm footprint slots into a back bar line, while the 1800 mm height brings the display up to eye level for the customer side. Check the 520 mm depth and the door swing against your bar layout, and plan a delivery route that takes the full height and the 110 kg weight into account.

BEFORE YOU BUY

Questions, answered straight

It is an upright, floor-standing cooler at 1800 mm tall, not an under-counter unit. It is designed to stand behind the bar and display stock at eye level rather than tuck beneath the counter.

The cabinet is 600 mm wide and 520 mm deep, a slim single-door footprint made to line up in a back bar run. Check the depth and door swing against your layout before you commit the space.

The ZX10 runs on R290, a natural hydrocarbon refrigerant with a low global warming potential.

No. The ZX10 uses automatic defrost, so there is no manual routine for staff to run — the cabinet manages its own defrost cycle.

Yes. It carries a climate class 4 rating, meaning it is built to hold temperature in warm ambient conditions such as a busy bar.

Yes. We handle servicing and breakdown support for the coolers we supply — call the team on 01792 732702 to book a visit or talk an issue through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 600 x 520 x 1800

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Fan Assisted
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +4C/+12C °C
Input Power: 13amp supply
Voltage / Frequency: 380W

Measures and Content

Temperature Range: +4C/+12C °C
Climate Class: 4
Gross / Net Volume: 324 Bottles l

Design and Material

Shelves Number & Type: 5
Exterior Finish: Charcoal with black door

INFRICO Upright Single Hinged Glass Door Bottle Cooler ZX10 Product Data

If you have any questions about the INFRICO Upright Single Hinged Glass Door Bottle Cooler ZX10 then please get in touch.
