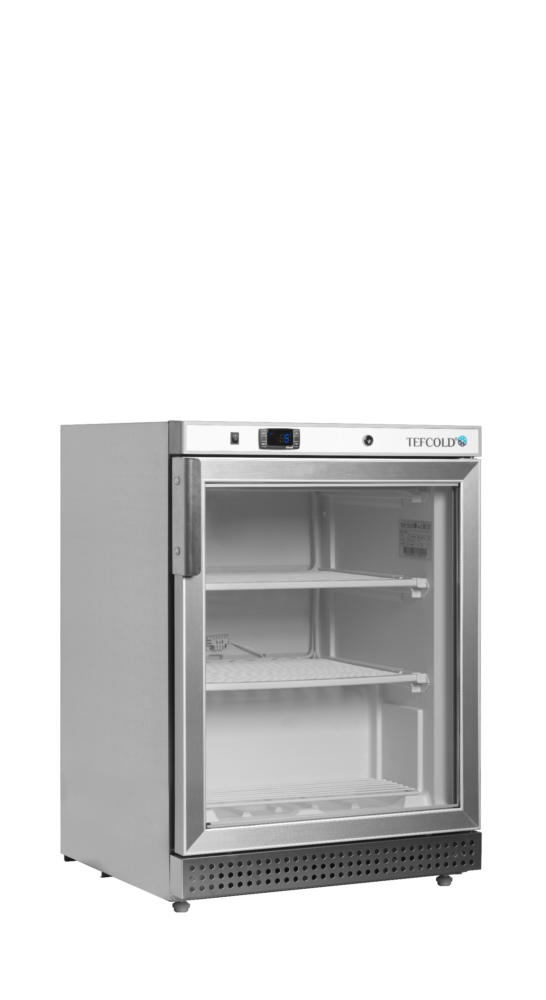

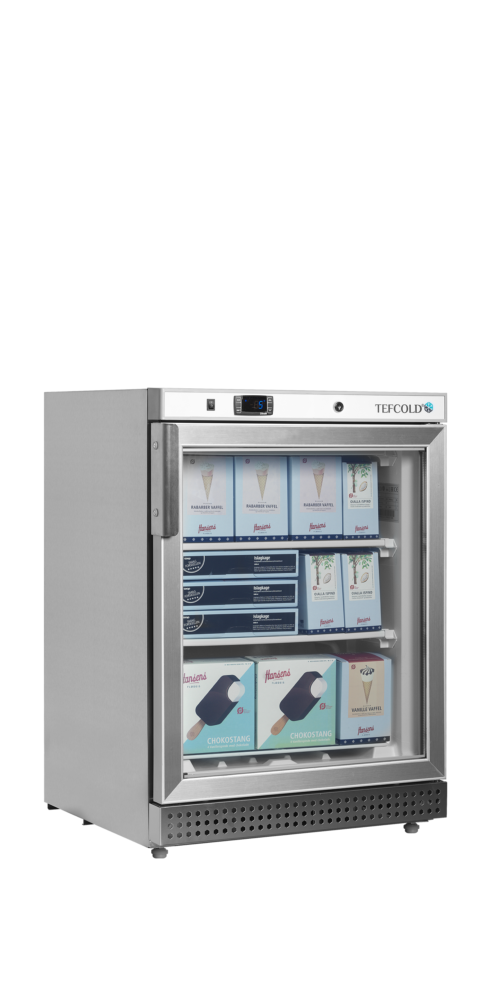

TEFCOLD UF200SG Glass Door Display Freezer

£891.00 £567.00

+vat

- +

Brand:

SKU: 33859

Energy Arrow

Product summary

  • Stainless steel cabinet
  • Heated glass door
  • Electronic thermostat
  • Lock
  • Fixed freezing shelves
  • LED interior light
  • Adjustable feet with rollers to rear

Product description

This excellent range of glass door display freezers is available in stainless steel or white finish. These static freezers have fixed shelves featuring a digital temperature display and controller. Excellent for display of ice cream or other frozen foods. There is a matching chiller to go with the unit.

Sale!
SPECIFICATION 49 facts · tap for all External W × D × H600 x 585 x 855 mmWidth600 mmDepth585 mmGross / net weight52 / 47 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994334site
Product code 33859site
Sub title Glass Door Display Freezercatalogue
Type Undercounter Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 855 mmcatalogue
External W × D × H 600 x 585 x 855 mmsite
Gross / net weight 52 / 47 kgsite
Gross weight 52 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 484 × 470 × 620 mmcatalogue
Internal W × D × H 484 x 470 x 620 mmsite
Packed (W×D×H) 690 × 650 × 910 mmcatalogue
Packed W × D × H 690 x 650 x 910 mmsite
Width 600 mmsite

Capacity4

Display area 0.26 m²site
Doors 1catalogue
Gross volume 200 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 50 gsite
Temperature range -24 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2001 kWh/yearsite
Energy consumption 5.48 kWh/24hsite
Energy efficiency index 40 %site
Input power 270 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 2 rollerssite
Exterior finish SS430site

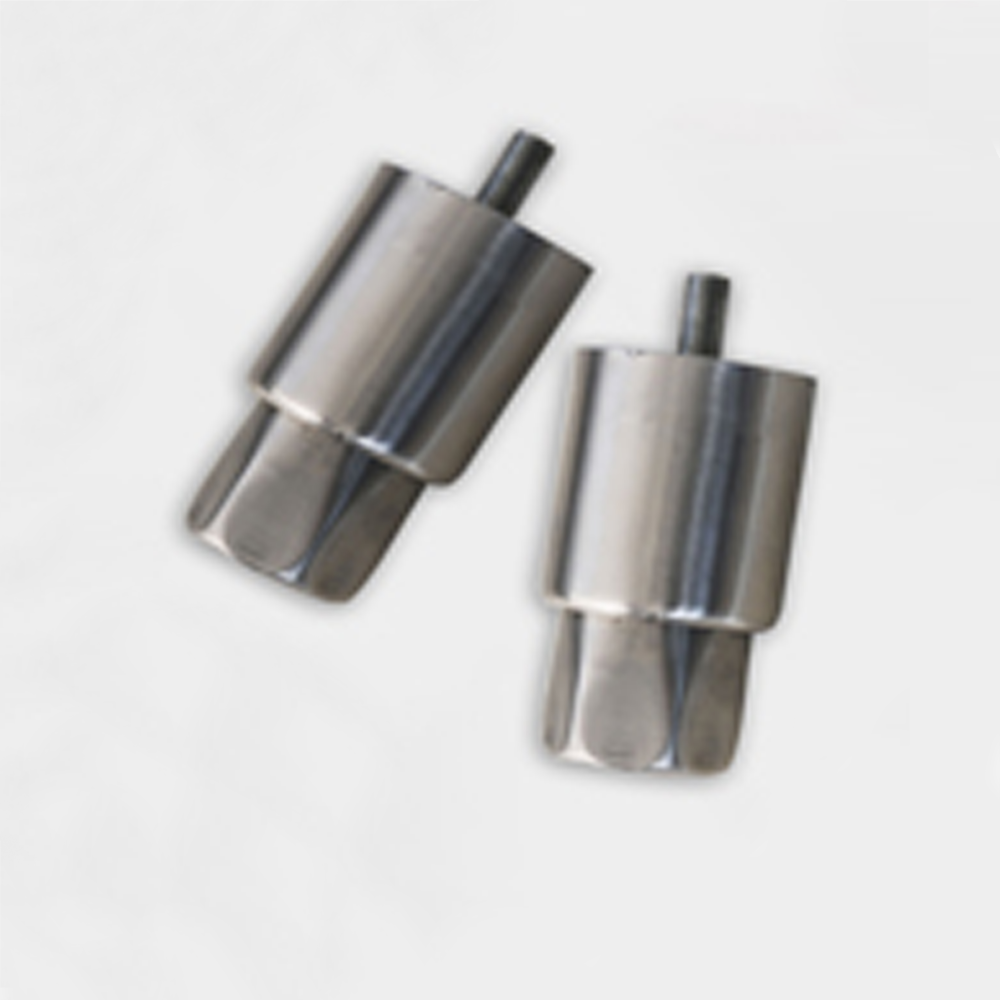

Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 110site
Reversible doors Nosite
Shelf dimensions 490 x 380 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this undercounter display freezer earns its place

The UF200SG is a compact undercounter display freezer built to present frozen stock at the point of sale rather than tuck it away in a back store. It carries 200 litres of gross volume across 0.26 m² of display area, with two fixed freezing shelves inside a white ABS interior, so ice cream, frozen ready meals or novelties sit at counter height where customers reach for them.

Day to day it runs a -24 to -10 °C band on static cooling, with defrost handled manually and an electronic controller keeping the set point steady. It is rated at climate class 4, so it holds temperature in warm trading areas, and at 40 dB it is quiet enough to sit close to a serving counter without dominating the room.

The cabinet measures 600 × 585 × 855 mm (W×D×H) and weighs 52 kg gross, 47 kg net, so a single trolley move and a normal doorway both cope with it. It draws from a standard 13 A, 220–240 V supply, meaning no special electrics — a nearby socket is enough. Net usable freezer capacity is 120 litres.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 600 × 585 × 855 mm (W×D×H), so it slots into a standard undercounter run. It weighs 52 kg gross and runs off a normal 13 A, 220–240 V socket, so no dedicated electrics are needed.

It holds a -24 to -10 °C band, deep enough for frozen retail and foodservice stock. Cooling is static and the set point is held by an electronic controller.

It is rated at 2000.2 kWh a year, which works out at about £500 a year at 25p/kWh. It sits in energy class D.

Gross volume is 200 litres and net usable capacity is 120 litres, arranged over two fixed freezing shelves and 0.26 m² of display area.

No — defrost is manual, so you clear it down periodically. Cooling is static and the interior is white ABS for easy wiping.

Yes. Craven Cooling handles installation and servicing across the range — call 01792 732702 to arrange a visit or ask about a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 484 x 470 x 620 mm
External Dimension (WxDxH): 600 x 585 x 855 mm
Packed Dimension (WxDxH): 690 x 650 x 910 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 50 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.48 kWh/24h
Temperature Range: -24 to -10 °C
Annual Energy Consumption: 2001 kWh/year m³
EEI: 40 %
Input Power: 270 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -24 to -10 °C
Climate Class: 4
Gross / Net Weight: 52 / 47 kg
Gross / Net Volume: 200 / 120 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.26 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 490 x 380 mm
Max load on Shelves: 110 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: SS430
Interior Finish: SS430
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF200SG Glass Door Display Freezer then please get in touch.
