TEFCOLD UF200VG Glass Door Display Freezer

£632.00

+vat

Brand:

SKU: 33863

Energy Arrow

Product summary

  • Heated glass door

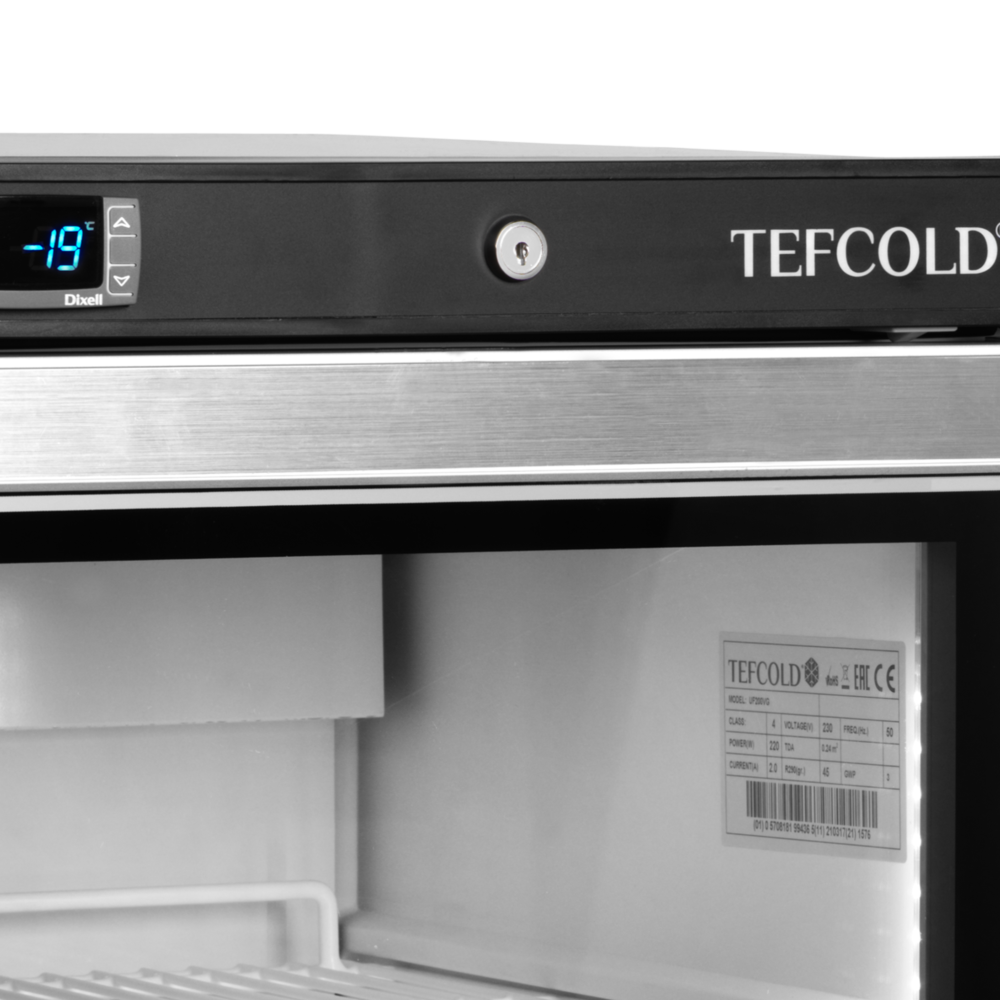

  • Electronic thermostat
  • Automatic defrost
  • Lock
  • Adjustable shelves
  • LED interior light
  • Ventilated cooling
  • Adjustable feet with rollers to rear

Product description

The UF-VG range of display freezers is the ventilated version of our white glass door freezers. It comes in a variety of sizes and offers great flexibility with adjustable shelves. The effective ventilated refrigeration system ensures an even temperature throughout the cabinet. The temperature can be set on an easy-to-use digital thermostat display. Defrost happens automatically.

The TEFCOLD UF200VG is an undercounter display freezer holding -24 to -10 °C with 120 litres of usable space across three white wire shelves, rated energy class D at 2266.7 kWh a year, in a 600 × 595 × 850 mm white cabinet on a 13-amp supply.

SPECIFICATION 49 facts · tap for all External W × D × H600 x 585 x 855 mmWidth600 mmDepth585 mmGross / net weight52 / 47 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994365site
Product code 33863site
Sub title Glass Door Display Freezercatalogue
Type Undercounter Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 855 mmcatalogue
External W × D × H 600 x 585 x 855 mmsite
Gross / net weight 52 / 47 kgsite
Gross weight 52 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 484 × 470 × 620 mmcatalogue
Internal W × D × H 484 x 470 x 620 mmsite
Packed (W×D×H) 690 × 650 × 910 mmcatalogue
Packed W × D × H 690 x 650 x 910 mmsite
Width 600 mmsite

Capacity4

Display area 0.24 m²site
Doors 1catalogue
Gross volume 200 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 45 gsite
Temperature range -24 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2268 kWh/yearsite
Energy consumption 6.21 kWh/24hsite
Energy efficiency index 46.5 %site
Input power 150 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 110site
Reversible doors Nosite
Shelf dimensions 490 x 380 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this undercounter display freezer earns its place

The UF200VG is an undercounter display freezer sized to sit under a counter or stand alone in a compact footprint. It gives 120 litres of usable space (200 litres gross) across three white wire shelves, with a 0.24 m² display area for showing frozen stock at the point of sale. The white cabinet and white ABS interior keep it clean and bright in a customer-facing position.

It holds a -24 to -10 °C band with static cooling and an electronic controller, cold enough for frozen display and storage. Climate class 4 rates it for standard ambient trading conditions. On the energy label it is rated class D at 2266.7 kWh a year — about £567 a year at 25p/kWh, worth factoring into siting and use.

The cabinet measures 600 × 595 × 850 mm (W×D×H), fitting a standard undercounter gap, and weighs 47 kg empty (52 kg gross); it packs to 690 × 650 × 910 mm for delivery. It runs off a standard 13-amp socket at 220–240 V / 50 Hz, so no special electrics are needed.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 600 mm wide, 595 mm deep and 850 mm high, sized for a standard undercounter gap. It packs to 690 × 650 × 910 mm, so check the delivery route as well as the final position.

A -24 to -10 °C band with static cooling and an electronic controller, cold enough for frozen display and storage. Climate class 4 rates it for standard ambient trading conditions.

Rated energy class D at 2266.7 kWh a year, it works out around £567 a year at 25p/kWh. Frozen display cabinets draw more than chilled ones; actual cost varies with tariff, ambient temperature and openings.

Usable capacity is 120 litres (200 litres gross) across three white wire shelves, with a 0.24 m² display area for showing frozen stock.

No. It runs on a standard 13-amp socket at 220–240 V / 50 Hz, so any standard plug will do. It weighs 47 kg empty.

Yes — call 01792 732702 to arrange servicing or repair. It has an electronic controller and static cooling.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 484 x 470 x 620 mm
External Dimension (WxDxH): 600 x 585 x 855 mm
Packed Dimension (WxDxH): 690 x 650 x 910 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.21 kWh/24h
Temperature Range: -24 to -10 °C
Annual Energy Consumption: 2268 kWh/year m³
EEI: 46.5 %
Input Power: 150 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -24 to -10 °C
Climate Class: 4
Gross / Net Weight: 52 / 47 kg
Gross / Net Volume: 200 / 120 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.24 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 490 x 380 mm
Max load on Shelves: 110 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF200VG Glass Door Display Freezer then please get in touch.
