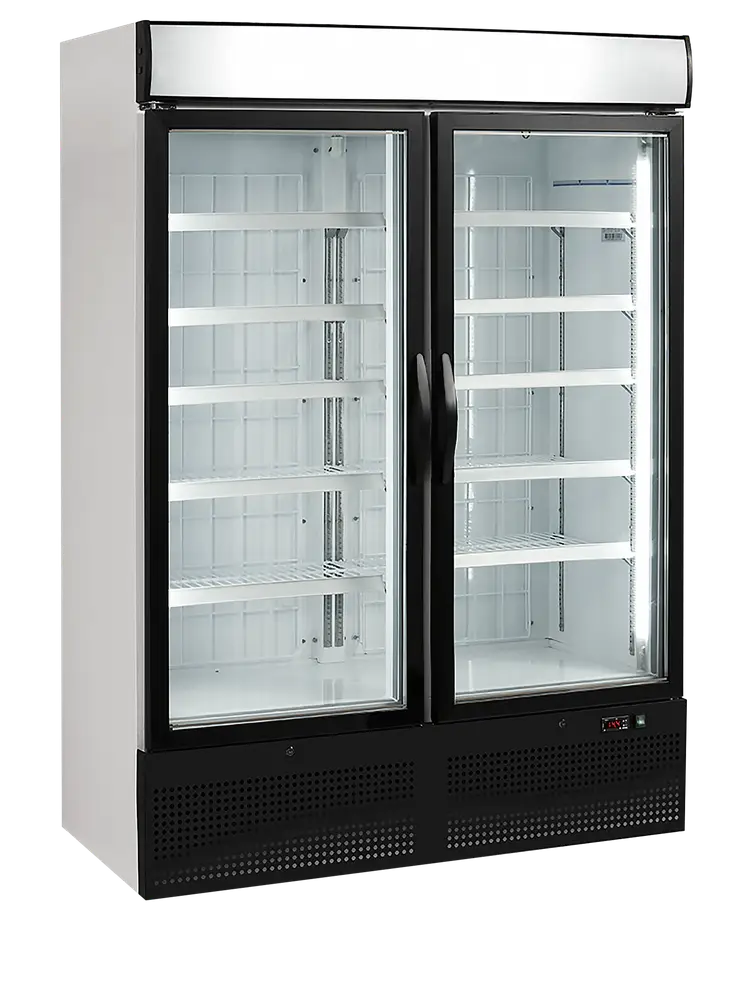

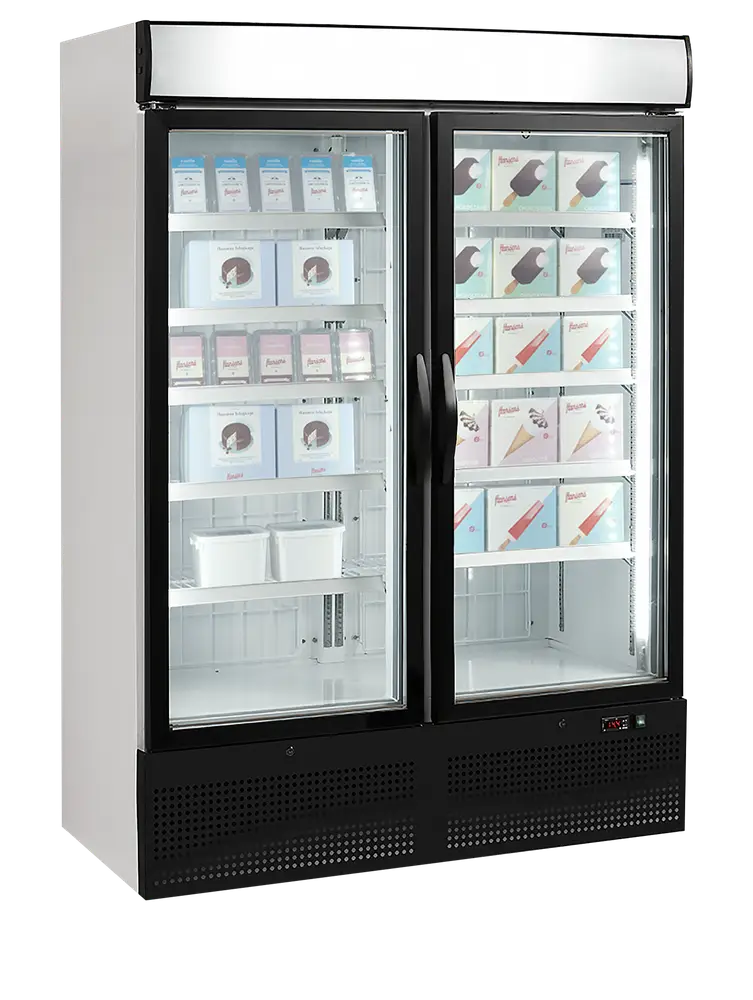

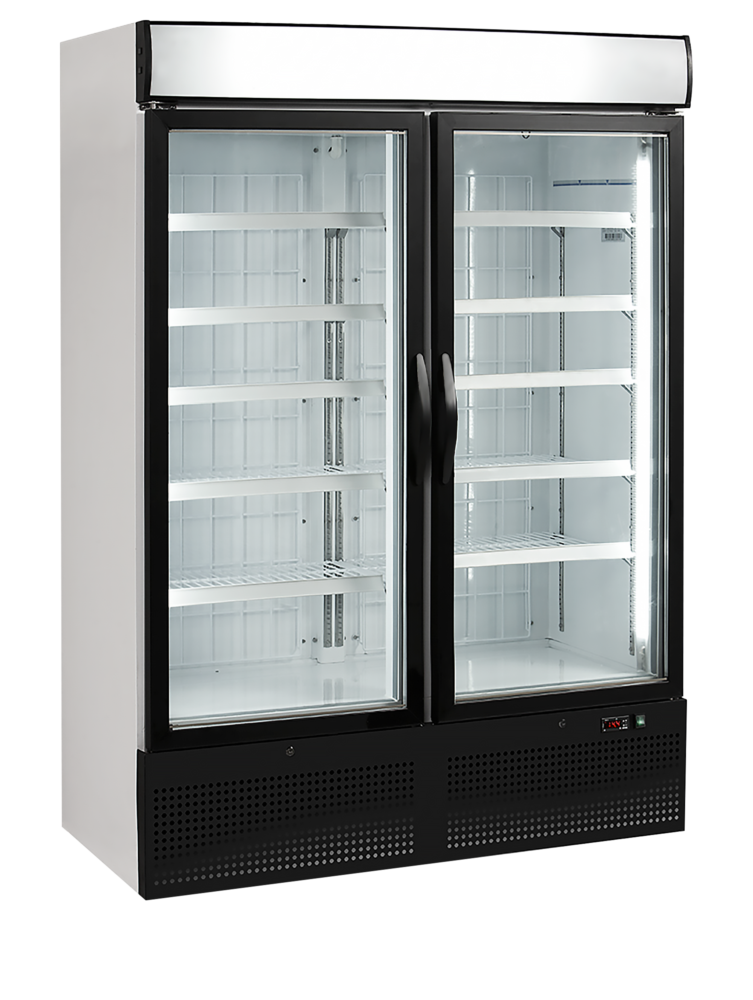

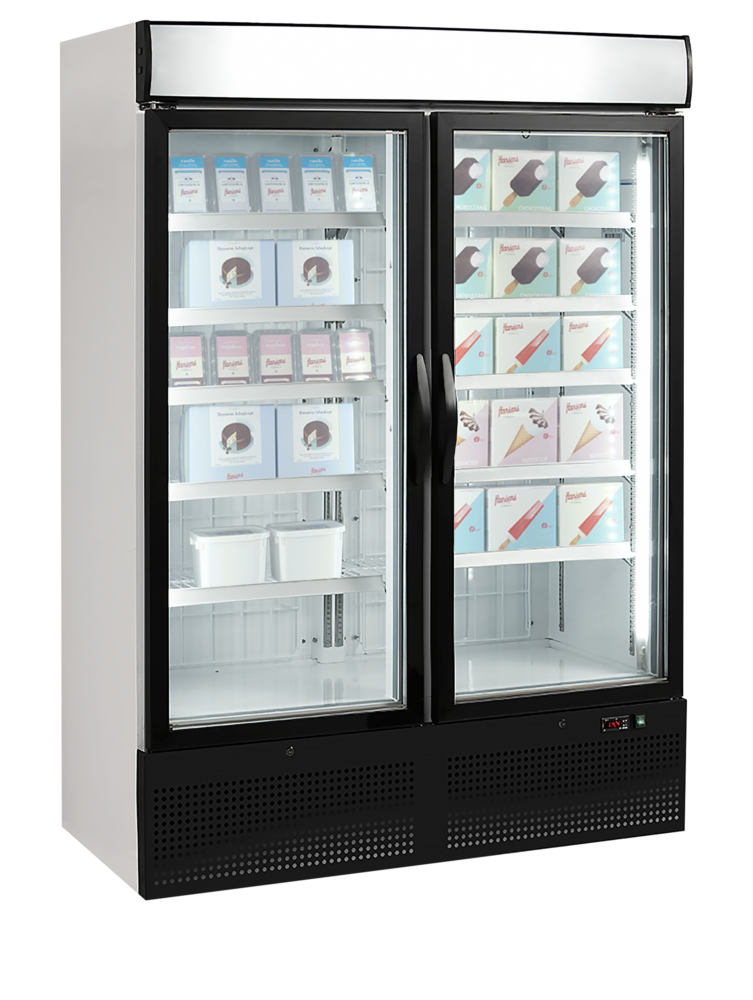

TEFCOLD NF5000G Glass Door Display Freezer

£2,650.00 £1,602.00

+vat

- +

Brand:

SKU: 20097

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Rollers and adjustable feet
  • Adjustable shelves
  • Epos Ticket Strips
  • LED interior light with switch
  • Digital controller and temperature display
  • Self-closing hinged glass doors

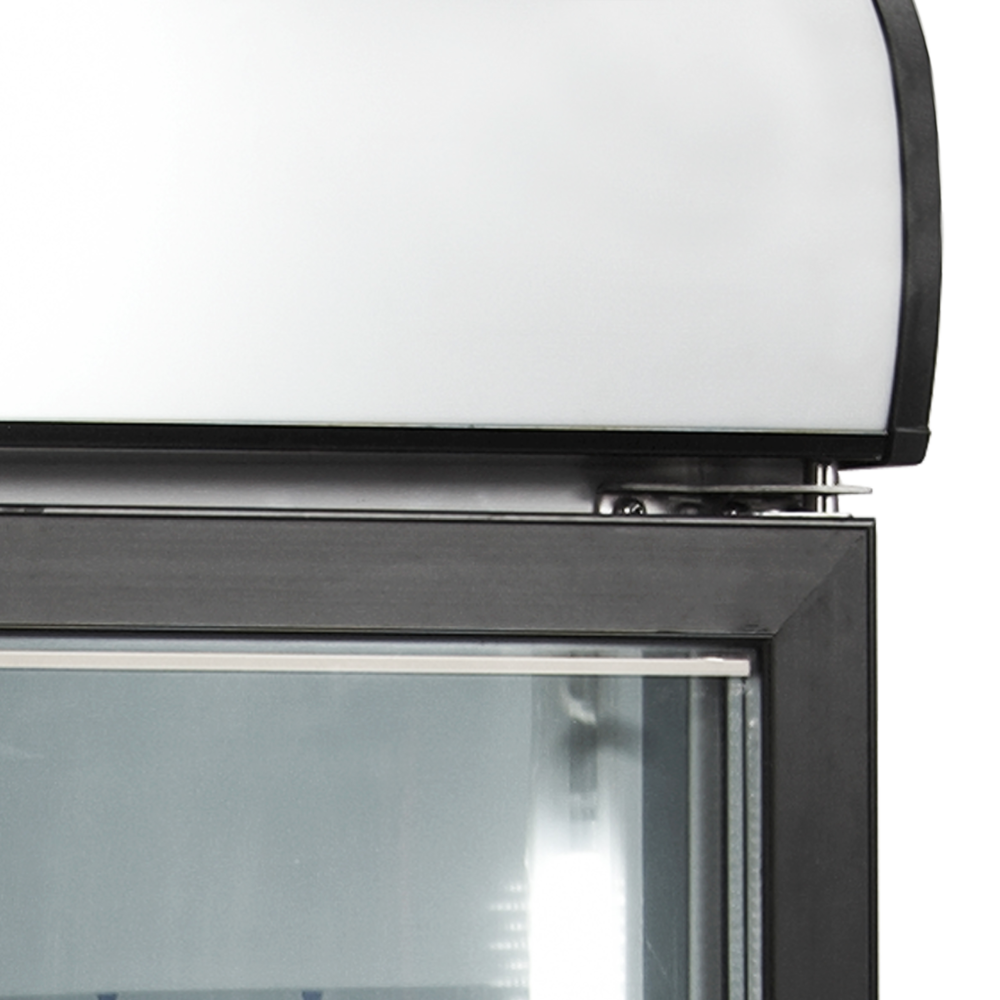

  • LED Light canopy with switch
  • Anti-mist glass
  • Replaceable door gasket

Product description

Sale!
SPECIFICATION 49 facts · tap for all External W × D × H1370 x 720 x 2020 mmWidth1370 mmDepth720 mmGross / net weight263 / 258 kgGross weight263 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181358327site
Product code 20097site
Sub title Glass Door Display Freezercatalogue
Type Double Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 720 mmsite
External (W×D×H) 1370 × 720 × 2020 mmcatalogue
External W × D × H 1370 x 720 x 2020 mmsite
Gross / net weight 263 / 258 kgsite
Gross weight 263 kgcatalogue
Height 2020 mmsite
Internal (W×D×H) 1250 × 570 × 1331 mmcatalogue
Internal W × D × H 1250 x 570 x 1331 mmsite
Packed (W×D×H) 1420 × 770 × 2150 mmcatalogue
Packed W × D × H 1420 x 770 x 2150 mmsite
Width 1370 mmsite

Capacity4

Display area 1.3 m²site
Doors 2catalogue
Gross volume 1149 litrescatalogue
Shelves 10catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -24 to -12site
Thermometer Yessite

Power & energy6

Annual energy consumption 8586 kWh/yearsite
Energy consumption 23.52 kWh/24hsite
Energy efficiency index 66 %site
Input power 1000 Wsite
Noise level 53 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy D-Shapesite
Castors 4 castorssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light 2 x Vertically LED in door framesite
Reversible doors Nosite
Shelf dimensions 615 x 445 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The NF5000G is frozen retail display at shop-floor scale: 930 litres net — 1,149 litres gross — behind two self-closing heated glass doors, with 1.3 m² of display area putting frozen stock in full view. At 1370 mm wide and 2020 mm tall it anchors an aisle or end bay, and the white finish inside and out keeps the packaging, not the cabinet, in front of the customer. Self-closing doors take care of the one thing busy customers forget.

In operation it holds -24 to -12 °C with ventilated cooling, managed by an electronic controller, and defrost is automatic, so the cabinet looks after itself between cleans. The heated door glass is there to keep the view clear, it runs at 53 dB, and its climate class 4 ambient rating specifies it for warm sales areas. Energy class is F at 8,584.8 kWh a year — about £2,146 a year at 25p/kWh, a number worth running against your own tariff before you buy.

Installation planning is mostly a doorway question. The cabinet measures 1370 × 720 × 2020 mm and weighs 258 kg net, arriving packed at 1420 × 770 × 2150 mm, so measure the narrowest point of the delivery route before ordering. Electrically it is simple: 1,000 W on a 220-240 V/50 Hz supply through a standard 13 A plug, running on R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet itself is 1370 mm wide, 720 mm deep and 2020 mm tall, and it arrives packed at 1420 × 770 × 2150 mm. Measure the narrowest doorway and any tight turns on the route in before ordering — at 258 kg net this is not a cabinet you want to turn around on delivery day.

Net capacity is 930 litres from a 1,149-litre gross volume, with internal dimensions of 1250 × 570 × 1331 mm and 1.3 m² of display area behind the glass.

It is rated energy class F at 8,584.8 kWh a year, which works out at about £2,146 a year at 25p/kWh. That is the honest number for a cabinet this size with glass doors — run it through the energy label decoder against your actual tariff.

No. Despite the size it draws 1,000 W on a 220-240 V/50 Hz supply and runs from a standard 13 A plug.

The operating band is -24 to -12 °C, which covers frozen retail lines, and the climate class 4 rating specifies it for warm ambient sales areas. Defrost is automatic, so frozen stock is not disturbed by manual defrost downtime.

Craven Cooling supplies and services commercial refrigeration across the UK. Call 01792 732702 to arrange servicing or to talk through delivery and siting for the NF5000G.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 570 x 1331 mm
External Dimension (WxDxH): 1370 x 720 x 2020 mm
Packed Dimension (WxDxH): 1420 x 770 x 2150 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 23.52 kWh/24h
Temperature Range: -24 to -12 °C
Annual Energy Consumption: 8586 kWh/year m³
EEI: 66 %
Input Power: 1000 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 53 dB(A)

Measures and Content

Temperature Range: -24 to -12 °C
Climate Class: 4
Gross / Net Weight: 263 / 258 kg
Gross / Net Volume: 1149 / 930 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.3 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 615 x 445 mm
Canopy Type: D-Shape
Feet / Legs: 2 adjustable feet
Castors: 4 castors
Exterior Finish: White
Interior Finish: White
Interior Light: 2 x Vertically LED in door frame
Lock: Yes
If you have any questions about the TEFCOLD NF5000G Glass Door Display Freezer then please get in touch.
