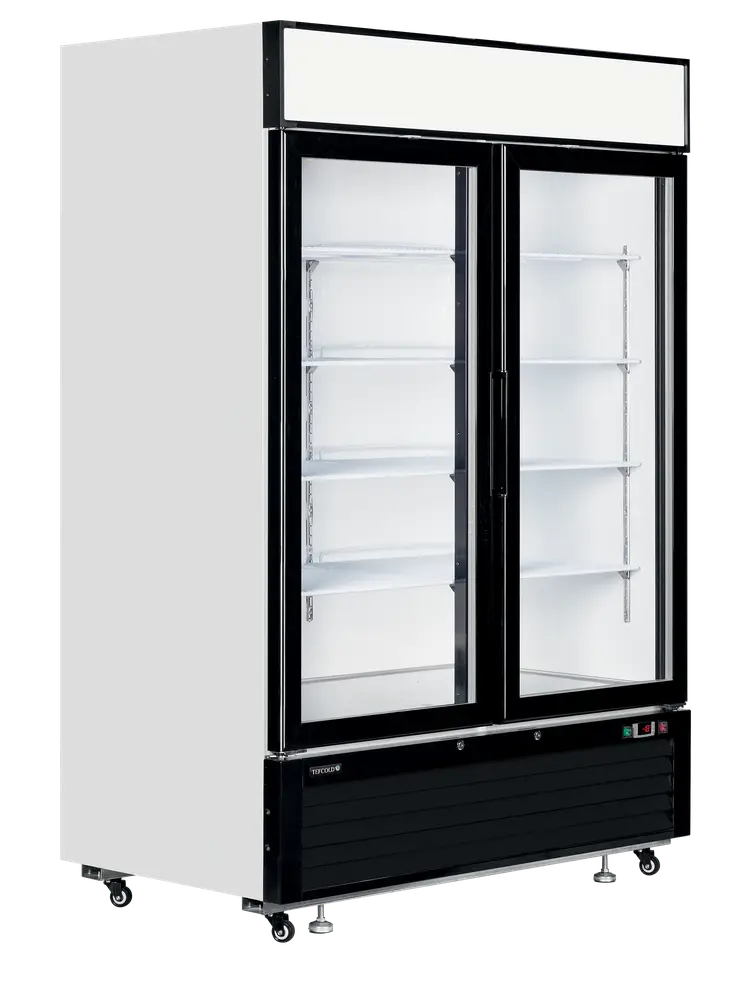

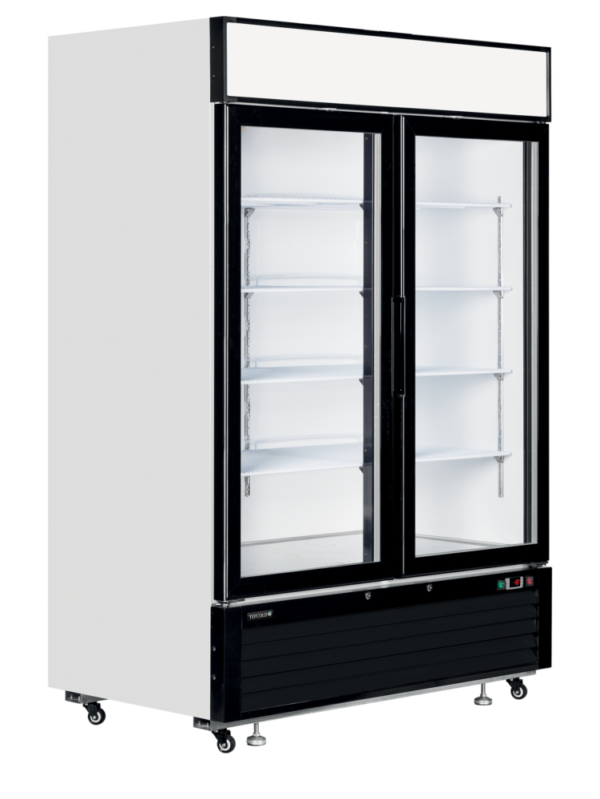

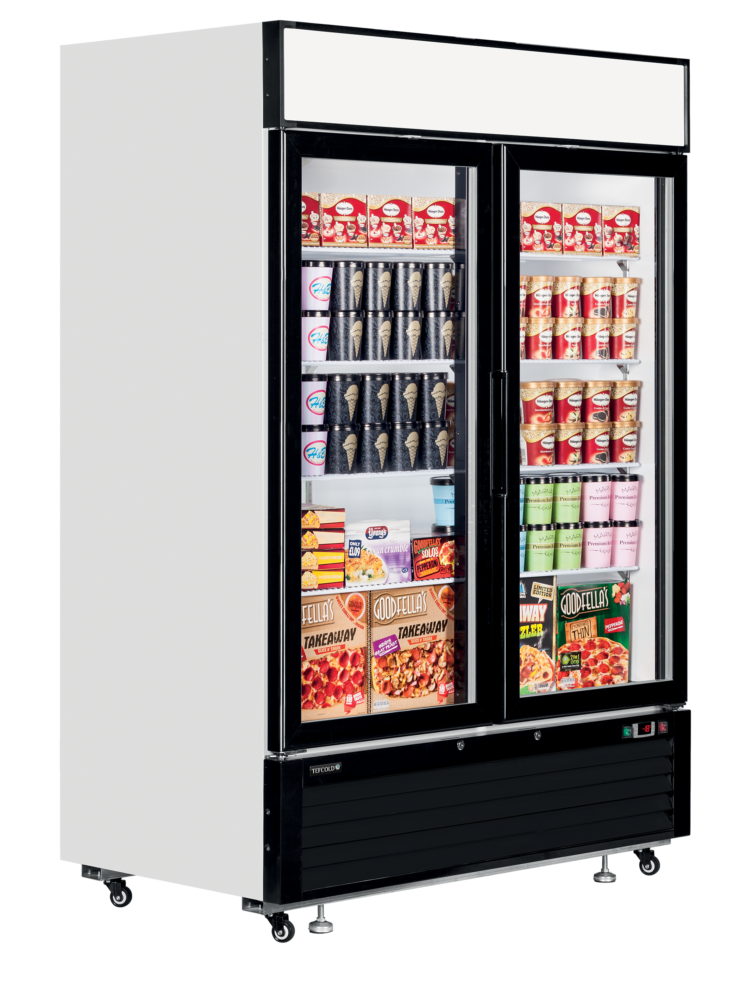

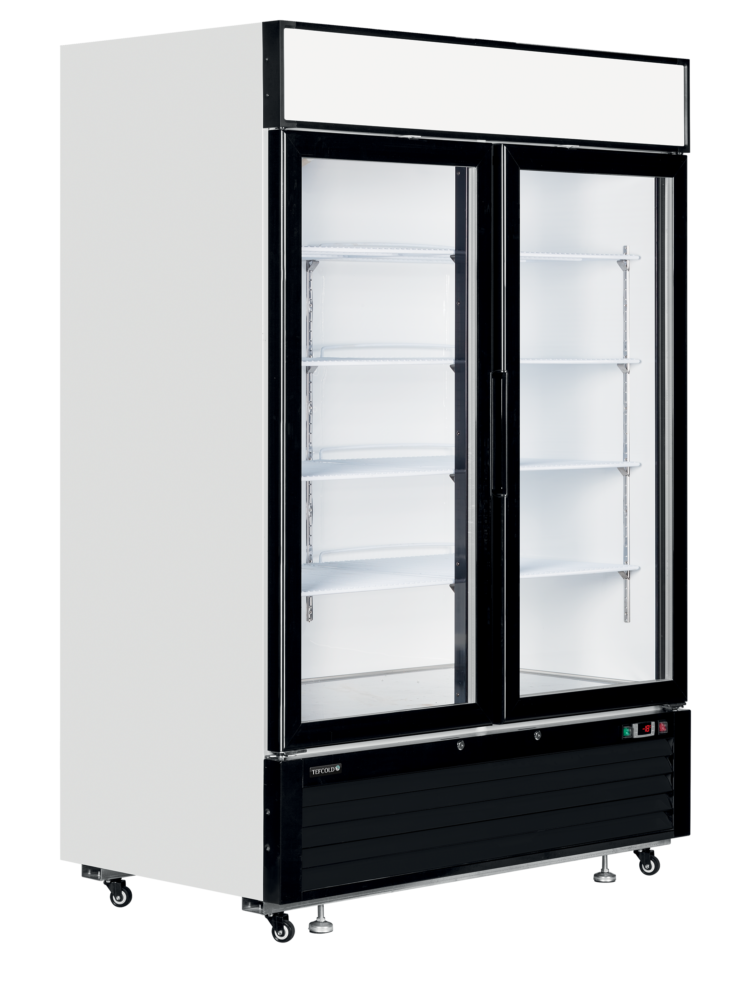

TEFCOLD LGF5000 Glass Door Display Freezer

£1,866.00

+vat

- +

Brand:

SKU: 20270

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

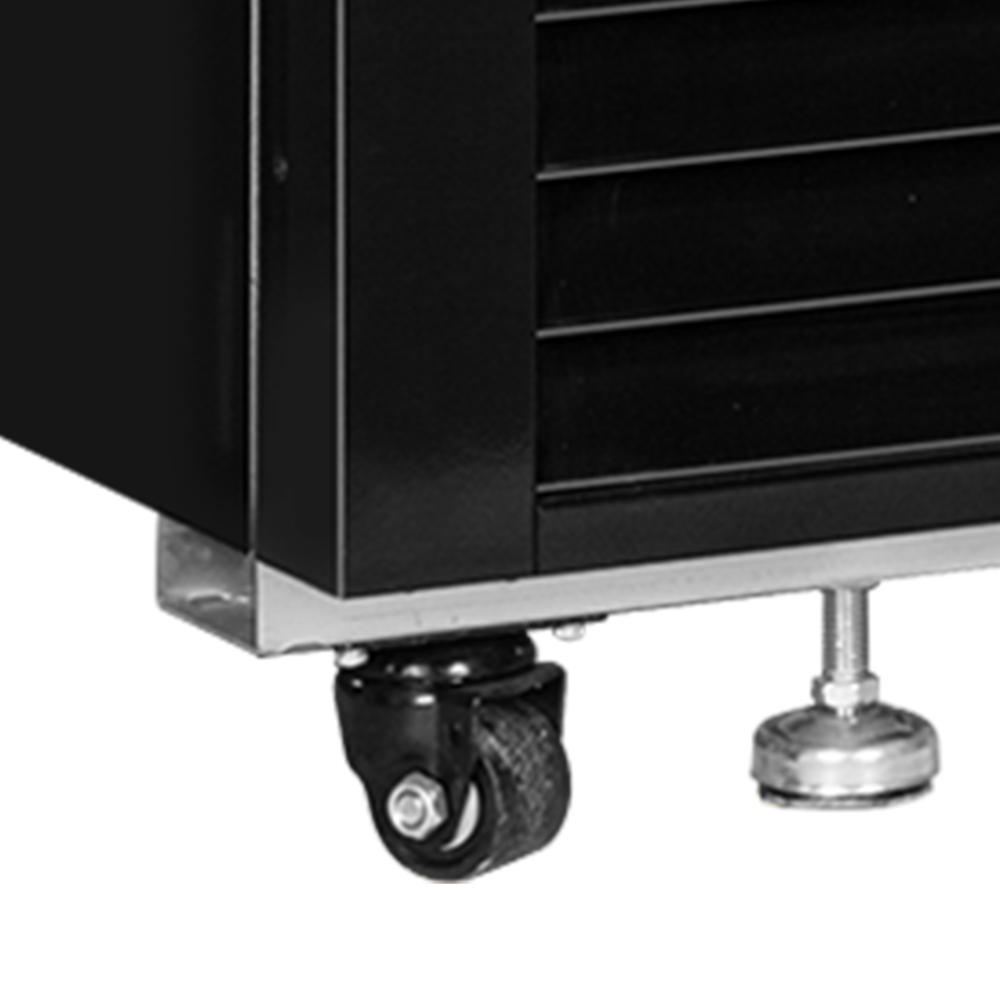

  • Castors and locking feet
  • Self closing doors with stay open feature for ease of loading
  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display
  • Light canopy with switch
  • Heated glass door to prevent condensation
  • Internal stainless steel base

Product description

The LGF range of glass door freezers in white gives you the option of matching single, double and triple door units. Each door has two vertical LED light strips for excellent internal illumination and a large LED light canopy. The carefully designed refrigeration system is energy efficient to keep running costs down.

SPECIFICATION 44 facts · tap for all External W × D × H1382 x 805 x 2065 mmWidth1382 mmDepth805 mmGross / net weight210 / 190 kgGross weight210 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991289site
Product code 20270site
Sub title Glass Door Display Freezercatalogue
Type Double Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 1382 × 805 × 2065 mmcatalogue
External W × D × H 1382 x 805 x 2065 mmsite
Gross / net weight 210 / 190 kgsite
Gross weight 210 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 1262 × 640 × 1520 mmcatalogue
Internal W × D × H 1262 x 640 x 1520 mmsite
Packed (W×D×H) 1430 × 860 × 2210 mmcatalogue
Packed W × D × H 1430 x 860 x 2210 mmsite
Width 1382 mmsite

Capacity4

Display area 1.38 m²site
Doors 2catalogue
Gross volume 1108 litrescatalogue
Shelves 10catalogue

Performance9

Climate class 4site

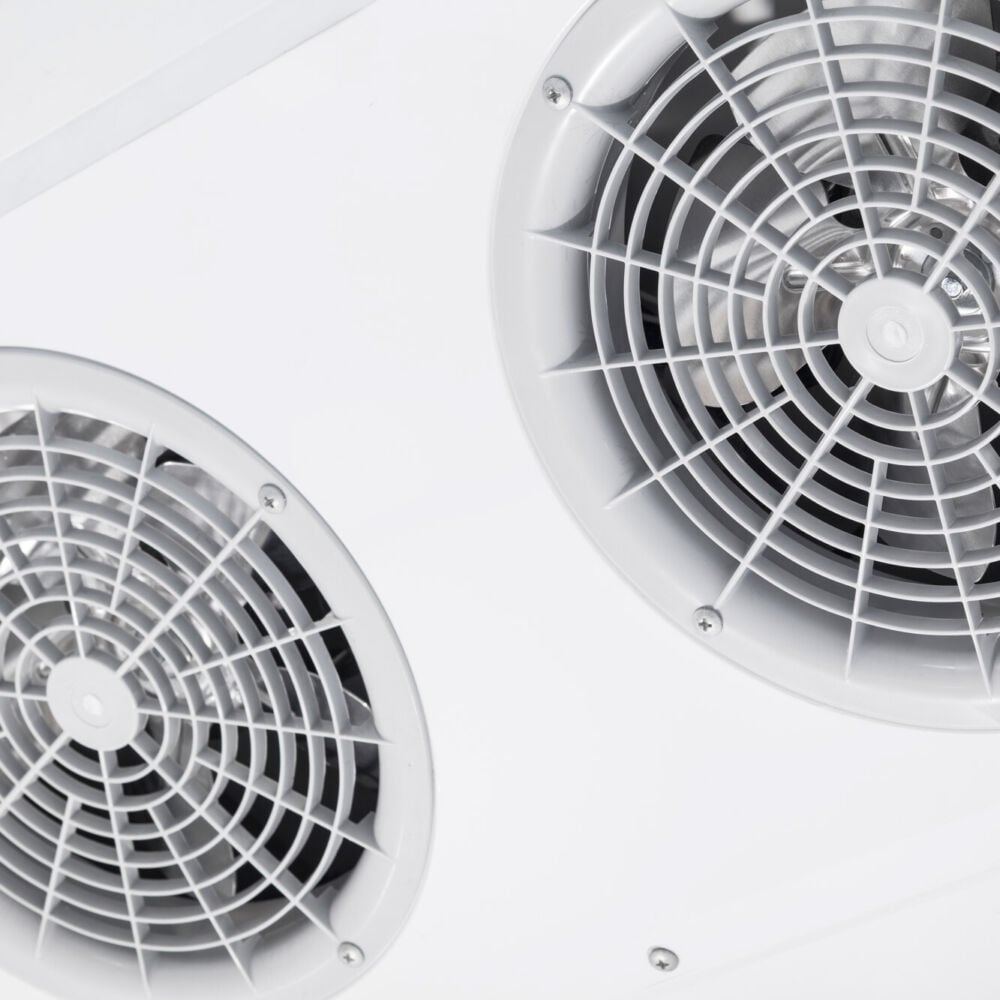

Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -25 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 4660 kWh/yearsite
Energy consumption 12.77 kWh/24hsite
Energy efficiency index 34 %site
Input power 1200 Wsite
Noise level 61 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Interior light 2 x Vertically LED in door framesite
Shelf dimensions 618*622site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The LGF5000 gives frozen stock a full-height, full-width stage: 922 litres net — 1,108 litres gross — behind two hinged glass doors, with 1.38 m² of display area and 10 shelves to organise it by line rather than by pile. At 1382 mm wide and 2065 mm tall it works as an aisle anchor or a wall bay, and the white interior and exterior keep the packaging doing the selling.

Its working band is -25 to -14 °C, with ventilated cooling circulating air through the cabinet. It carries a climate class 4 ambient rating for warm sales areas and runs at 61 dB, so it belongs on the shop floor rather than beside a quiet till. Where it earns its keep is the energy label: class C at 4,661.1 kWh a year — about £1,165 a year at 25p/kWh for 922 litres of glass-fronted frozen display.

Plan the route in before ordering. The cabinet measures 1382 × 805 × 2065 mm and weighs 190 kg net, and it arrives packed at 1430 × 860 × 2210 mm, so the 805 mm depth is the figure to check against your narrowest doorway. Once in position it needs nothing special electrically: 1,200 W on a 220-240 V/50 Hz supply through a standard 13 A plug, running on R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1382 mm wide, 805 mm deep and 2065 mm tall, arriving packed at 1430 × 860 × 2210 mm. The 805 mm depth is the dimension to measure against your narrowest doorway and corridor turns — check it before ordering, not on delivery day.

Net capacity is 922 litres from 1,108 litres gross, spread across 10 shelves, with internal dimensions of 1262 × 640 × 1520 mm and 1.38 m² of display area.

It is rated energy class C at 4,661.1 kWh a year, which works out at about £1,165 a year at 25p/kWh. Run the figure through the energy label decoder against your own tariff for an exact number.

The operating band is -25 to -14 °C with ventilated cooling, and the climate class 4 rating specifies it for warm ambient sales areas. It runs at 61 dB, so site it on the shop floor rather than next to a quiet counter.

No. It draws 1,200 W on a 220-240 V/50 Hz supply and runs from a standard 13 A plug.

Craven Cooling supplies and services commercial refrigeration across the UK. Call 01792 732702 to arrange servicing or to talk through delivery access for the LGF5000.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1262 x 640 x 1520 mm
External Dimension (WxDxH): 1382 x 805 x 2065 mm
Packed Dimension (WxDxH): 1430 x 860 x 2210 mm

Cooling and Functions

Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 12.77 kWh/24h
Temperature Range: -25 to -14 °C
Annual Energy Consumption: 4660 kWh/year m³
EEI: 34 %
Input Power: 1200 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 61 dB(A)

Measures and Content

Temperature Range: -25 to -14 °C
Climate Class: 4
Gross / Net Weight: 210 / 190 kg
Gross / Net Volume: 1108 / 922 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.38 m² m²

Design and Material

Shelf Dimensions: 618*622
Exterior Finish: White
Interior Finish: White
Interior Light: 2 x Vertically LED in door frame
If you have any questions about the TEFCOLD LGF5000 Glass Door Display Freezer then please get in touch.
