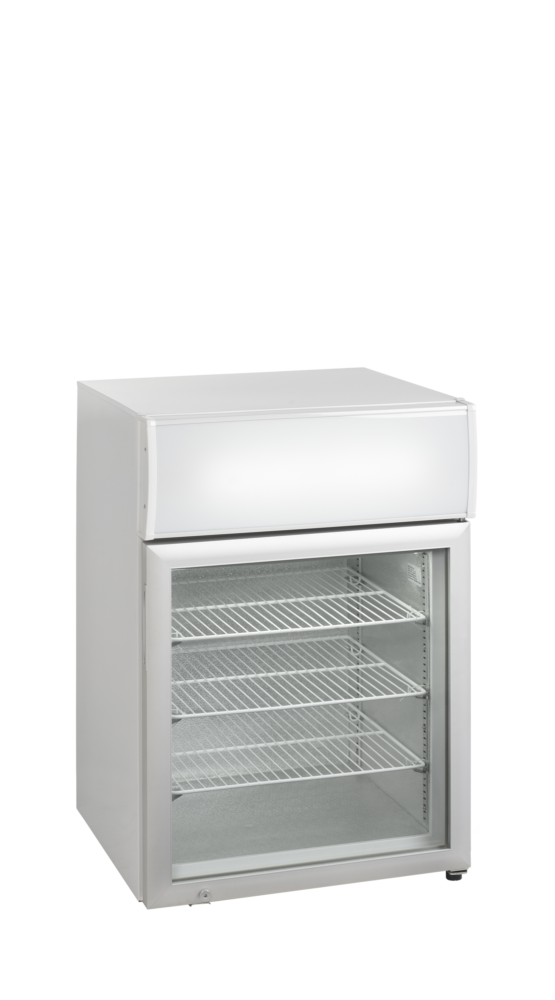

TEFCOLD UF100GCP Glass Door Display Freezer

£531.00

+vat

- +

Brand:

SKU: 20037

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing door
  • LED Light canopy with switch
  • Replaceable door gasket
  • Heated triple glazed door to prevent condensation

Product description

Versatile glass door counter top freezers. The UF-GP and UF-GCP ranges are widely accepted as the best on the market. Popular with many ice cream suppliers, with a small footprint it is ideal for capturing impulse sales. Often used for large and small ice cream tubs as well as other frozen food. A lock is fitted and the unit comes with a switchable light and adjustable shelves as standard. An excellent all round unit.

SPECIFICATION 49 facts · tap for all External W × D × H610 x 555 x 890 mmWidth610 mmDepth555 mmGross / net weight56 / 52 kgGross weight56 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181501570site
Product code 20037site
Sub title Glass Door Display Freezercatalogue
Type Countertop Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 555 mmsite
External (W×D×H) 610 × 555 × 890 mmcatalogue
External W × D × H 610 x 555 x 890 mmsite
Gross / net weight 56 / 52 kgsite
Gross weight 56 kgcatalogue
Height 890 mmsite
Internal (W×D×H) 500 × 430 × 540 mmcatalogue
Internal W × D × H 500 x 430 x 540 mmsite
Packed (W×D×H) 655 × 595 × 965 mmcatalogue
Packed W × D × H 655 x 595 x 965 mmsite
Width 610 mmsite

Capacity4

Display area 0.29 m²site
Doors 1catalogue
Gross volume 116 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 60 gsite
Temperature range -18 to -12site
Thermometer Nosite

Power & energy6

Annual energy consumption 1245 kWh/yearsite
Energy consumption 3.41 kWh/24hsite
Energy efficiency index 25 %site
Input power 300 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy Curvedsite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Yessite
Max load per shelf 122site
Shelf dimensions 488 x 420 / 200 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop freezer earns its place

The Tefcold UF100GCP is a countertop glass-door display freezer for merchandising frozen lines at the point of sale. Behind a single heated hinged glass door sit three white wire shelves and 116 litres gross / 113 litres net of display, across a 0.29 m² display area. The heated door keeps the glass clear of condensation so the product stays visible, and the white cabinet keeps the focus on the frozen stock.

It uses static cooling with a mechanical controller and manual defrost, a straightforward setup for a countertop freezer. Running noise is 45 dB, and it is rated to climate class 4 for warm rooms. At energy class C and 1244.7 kWh a year it costs about £311 a year at 25p/kWh.

The cabinet measures 610 × 555 × 890 mm (W×D×H) with 500 × 430 × 540 mm of internal space, and it ships packed at 655 × 595 × 965 mm. It runs from a standard 13 amp supply on 220-240 V and uses natural R290 refrigerant with a 60 g charge. Its compact footprint sits on a counter or back-bar without a dedicated circuit.

BEFORE YOU BUY

Questions, answered straight

It offers 116 litres gross and 113 litres net across three white wire shelves and a 0.29 m² display area, behind a single heated hinged glass door.

The heated door keeps condensation off the glass so frozen stock stays visible to customers without wiping down.

The cabinet is 610 × 555 × 890 mm (W×D×H), with 500 × 430 × 540 mm inside, so it fits on most counters or back-bars.

At energy class C and 1244.7 kWh a year, it works out at about £311 a year at 25p/kWh, depending on your tariff and room conditions.

No. It runs from a standard 13 amp supply on 220-240 V and uses natural R290 refrigerant.

Defrost is manual, with static cooling and a mechanical controller. For servicing advice call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 500 x 430 x 540 mm
External Dimension (WxDxH): 610 x 555 x 890 mm
Packed Dimension (WxDxH): 655 x 595 x 965 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 60 g
Thermometer: No

Power and Consumption

Energy Consumption: 3.41 kWh/24h
Temperature Range: -18 to -12 °C
Annual Energy Consumption: 1245 kWh/year m³
EEI: 25 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -18 to -12 °C
Climate Class: 4
Gross / Net Weight: 56 / 52 kg
Gross / Net Volume: 116 / 113 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.29 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 488 x 420 / 200 mm
Max load on Shelves: 122 kg/m²
Canopy Type: Curved
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF100GCP Glass Door Display Freezer then please get in touch.
