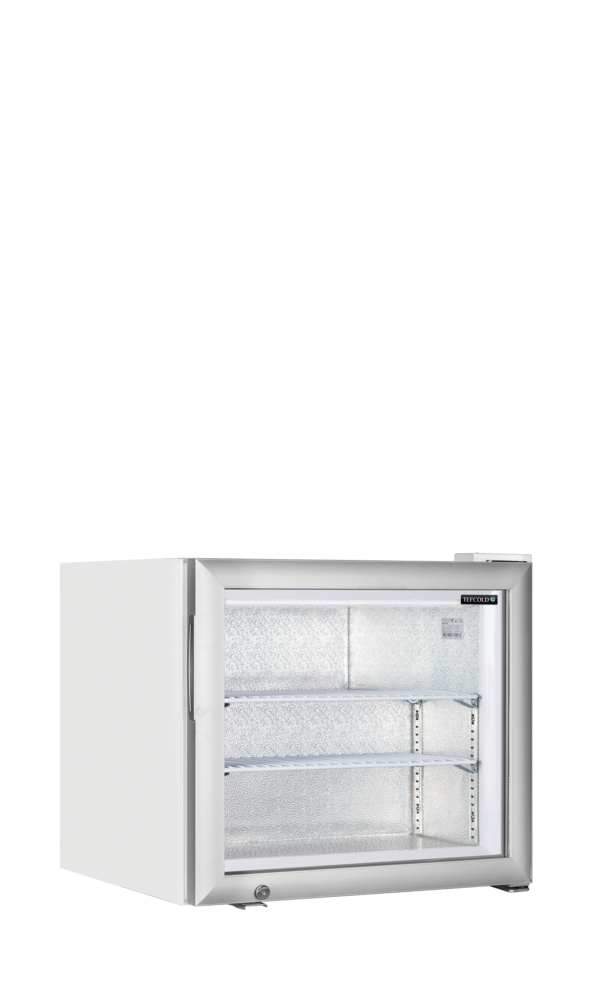

TEFCOLD UF50G Glass Door Display Freezer

£398.00

+vat

Brand:

SKU: 20052

Energy Arrow

Product summary

  • Static cooling
  • Lock

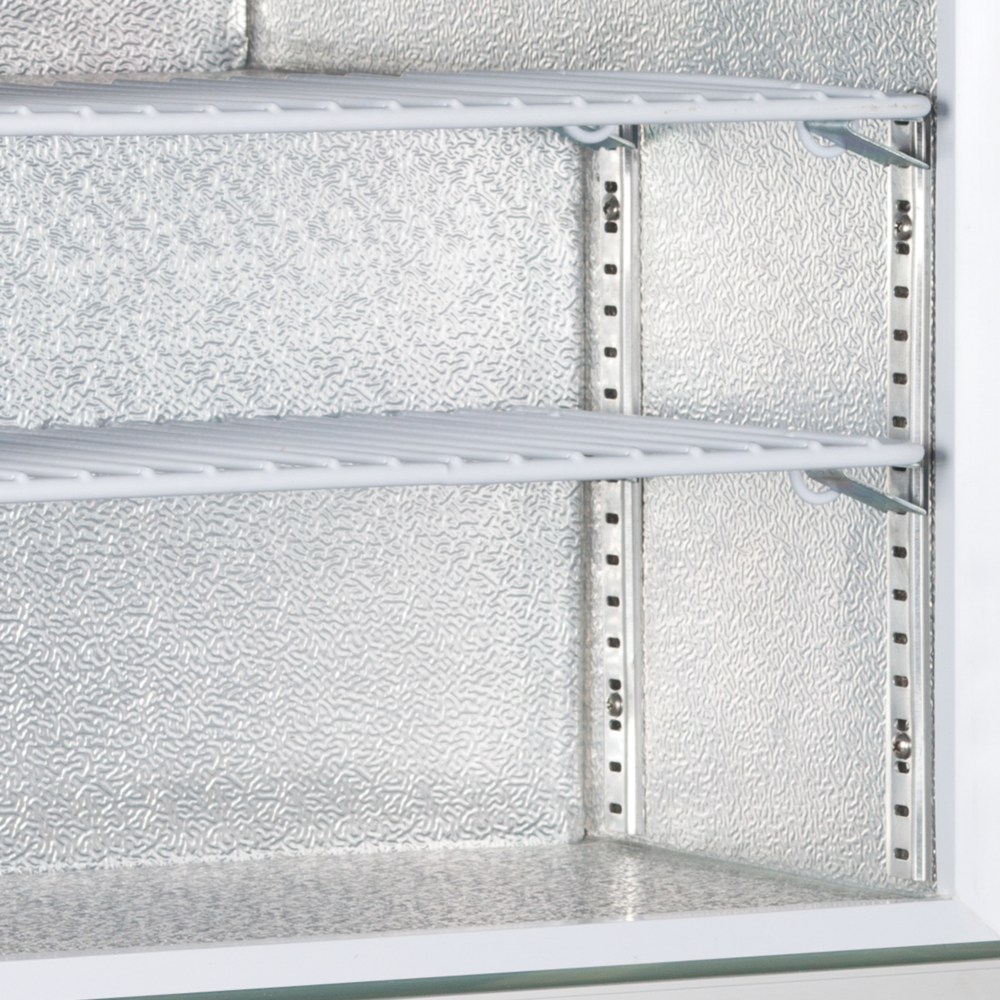

  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing door
  • Replaceable door gasket

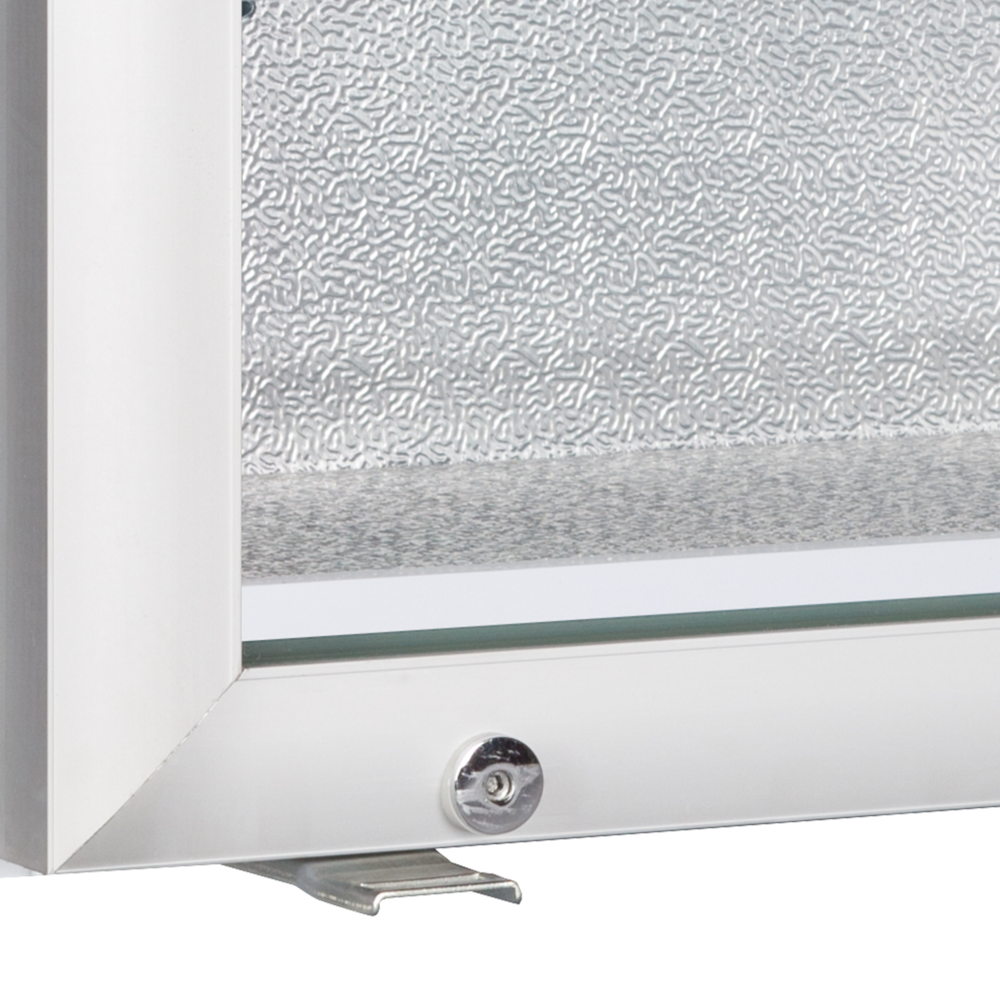

  • Heated triple glazed door to prevent condensation

Product description

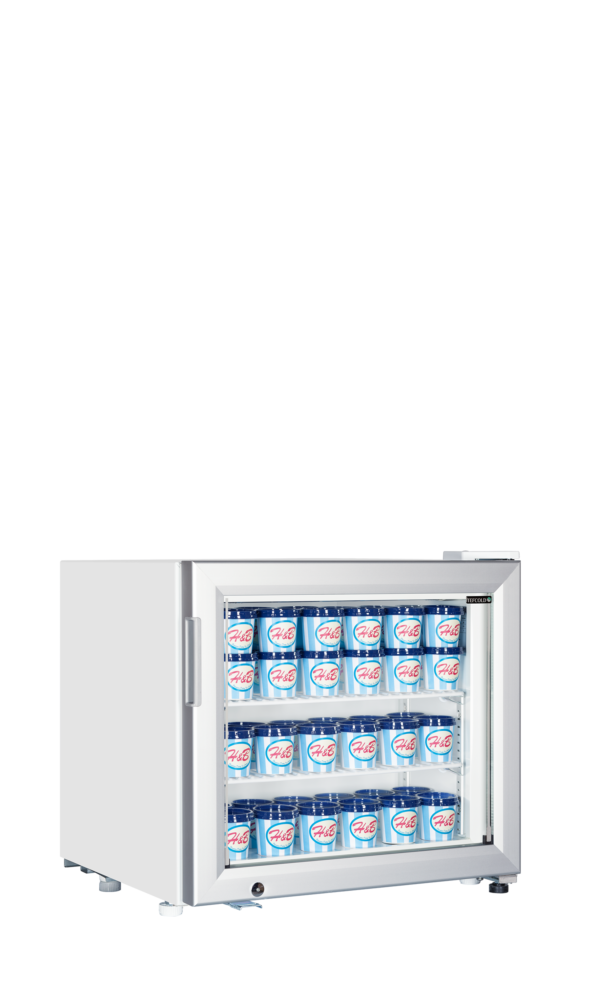

Counter top glass door freezer

The UF-G range are compact and adaptable counter top freezers with a glass door, which is perfect for presenting and selling various frozen foods, such as ice cream tubs and lollies. Its small size makes it a great fit for placement near checkout areas, where it can tempt customers into making impulsive purchases. Additionally, its self-closing door helps to maintain a consistent temperature and preserve the quality of the displayed items. Furthermore, the door glass is heated to help prevent the build-up of condensation, ensuring maximum visibility of the products inside. This unit is fitted with a rear spacer to ensure it is not placed against a wall, to ensure maximum airflow.

The TEFCOLD UF50G is a compact countertop glass door display freezer holding 48 litres net at -24 to -12 °C in a cabinet just 570 mm wide and 520 mm tall — low enough to keep sightlines over the counter — costing about £231 a year to run at 25p/kWh.

SPECIFICATION 47 facts · tap for all External W × D × H570 x 530 x 520 mmWidth570 mmDepth530 mmGross / net weight39 / 34 kgGross weight39 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181501549site
Product code 20052site
Sub title Glass Door Display Freezercatalogue
Type Countertop Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 530 mmsite
External (W×D×H) 570 × 530 × 520 mmcatalogue
External W × D × H 570 x 530 x 520 mmsite
Gross / net weight 39 / 34 kgsite
Gross weight 39 kgcatalogue
Height 520 mmsite
Internal (W×D×H) 450 × 420 × 380 mmcatalogue
Internal W × D × H 450 x 420 x 380 mmsite
Packed (W×D×H) 610 × 560 × 580 mmcatalogue
Packed W × D × H 610 x 560 x 580 mmsite
Width 570 mmsite

Capacity4

Display area 0.23 m²site
Doors 1catalogue
Gross volume 50 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 45 gsite
Temperature range -24 to -12site
Thermometer Nosite

Power & energy6

Annual energy consumption 923 kWh/yearsite
Energy consumption 2.53 kWh/24hsite
Energy efficiency index 21 %site
Input power 154 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Yessite
Shelf dimensions 440 x 210 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop freezer earns its place

The UF50G is the lowest-profile route to frozen impulse sales: 48 litres net — 50 litres gross — behind a heated hinged glass door, in a cabinet that stands just 520 mm tall. That height matters on a counter, because staff and customers still see each other over the top of it. The 0.23 m² display area keeps frozen lines visible at the point of payment, and the white finish inside and out leaves the product to do the talking.

Operation is deliberately simple. It holds -24 to -12 °C on a mechanical controller, cooling is static and defrost is manual, so there is very little to go wrong and nothing electronic to fault. It runs at 45 dB and carries a climate class 4 ambient rating for warm salesrooms. Energy class is C at 923.4 kWh a year, which comes to about £231 a year at 25p/kWh.

Siting it takes minutes. The cabinet measures 570 × 530 × 520 mm and weighs 34 kg net, light enough for one strong pair of hands or an easy two-person lift, and it packs to 610 × 560 × 580 mm for transit. It draws 154 W on a 220-240 V/50 Hz supply through a standard 13 A plug and runs on R290 refrigerant with a 45 g charge.

BEFORE YOU BUY

Questions, answered straight

It measures 570 mm wide, 530 mm deep and 520 mm tall, with 48 litres of net capacity inside. It weighs 34 kg net, so most counters will take it without a second thought.

The operating band is -24 to -12 °C, set on a mechanical controller. It carries a climate class 4 ambient rating.

It is rated energy class C at 923.4 kWh a year, which works out at about £231 a year at 25p/kWh. Power draw is 154 W.

No. It runs from a standard 13 A plug on a 220-240 V/50 Hz supply, drawing 154 W.

Defrost is manual — switch the cabinet off periodically and allow the frost to clear before restarting. Cooling is static, so there are no fans to maintain.

Craven Cooling supplies and services commercial refrigeration across the UK. Call 01792 732702 to arrange servicing or to check the UF50G is the right fit before ordering.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 450 x 420 x 380 mm
External Dimension (WxDxH): 570 x 530 x 520 mm
Packed Dimension (WxDxH): 610 x 560 x 580 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 45 g
Thermometer: No

Power and Consumption

Energy Consumption: 2.53 kWh/24h
Temperature Range: -24 to -12 °C
Annual Energy Consumption: 923 kWh/year m³
EEI: 21 %
Input Power: 154 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -12 °C
Climate Class: 4
Gross / Net Weight: 39 / 34 kg
Gross / Net Volume: 50 / 48 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.23 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 440 x 210 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF50G Glass Door Display Freezer then please get in touch.
