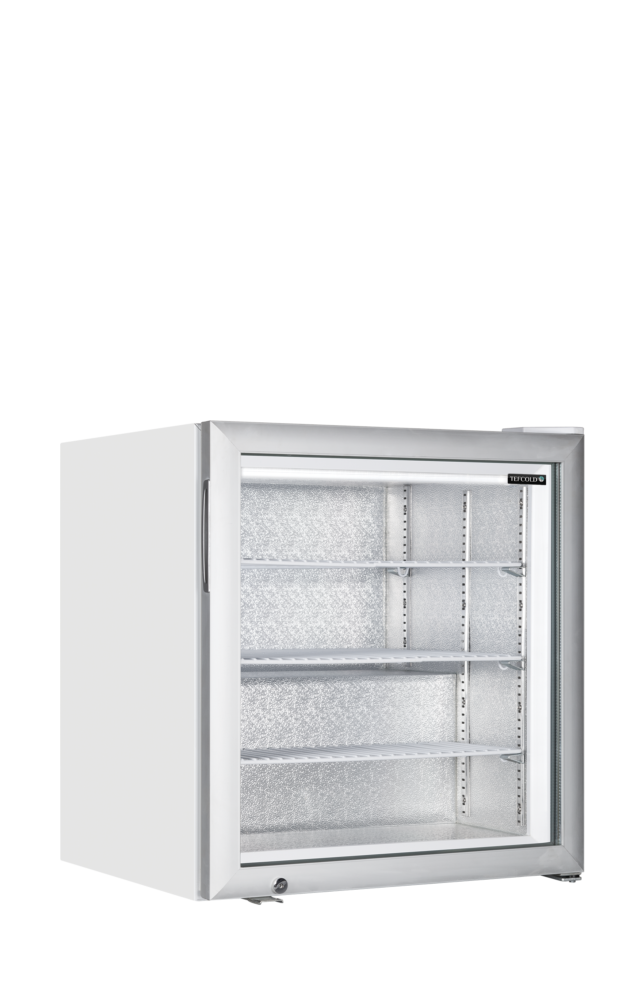

TEFCOLD UF100G Glass Door Display Freezer

£457.00

+vat

- +

Brand:

SKU: 20039

Energy Arrow

Product summary

  • Static cooling
  • Lock

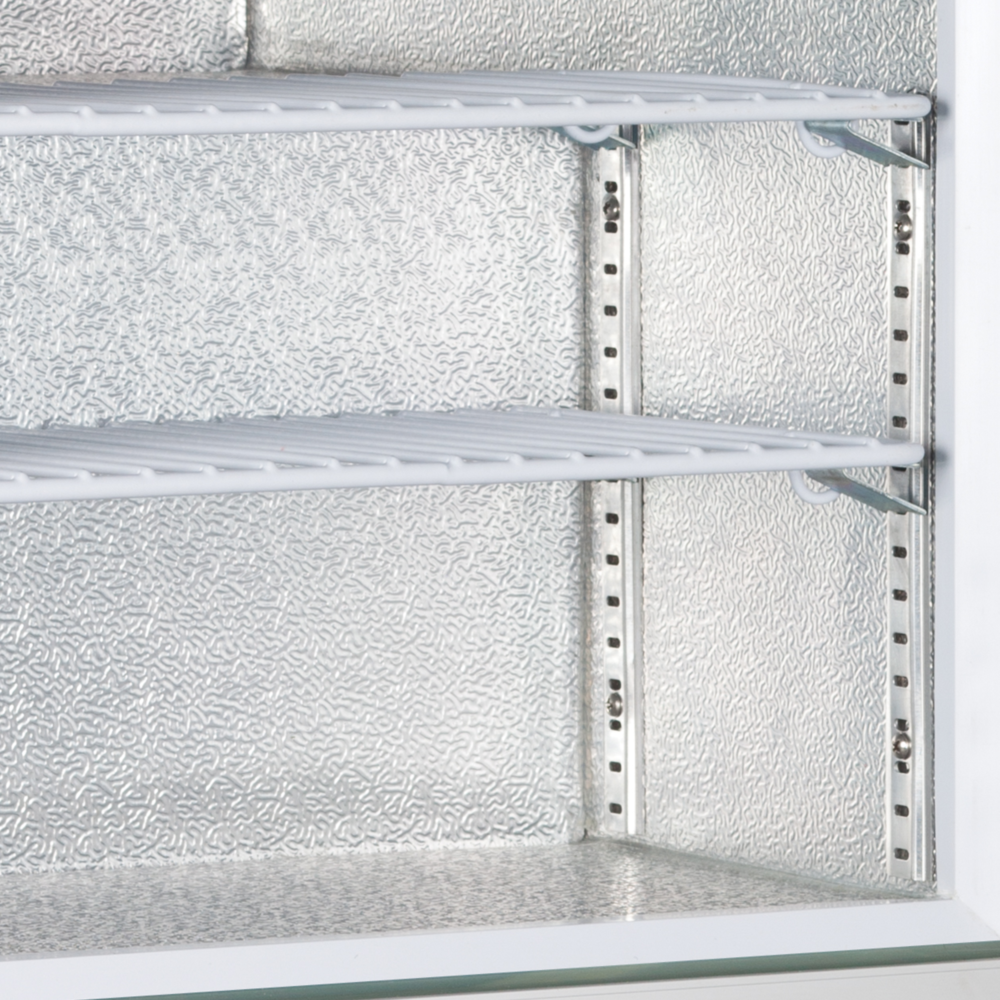

  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing door
  • Replaceable door gasket

Product description

Counter top glass door freezer

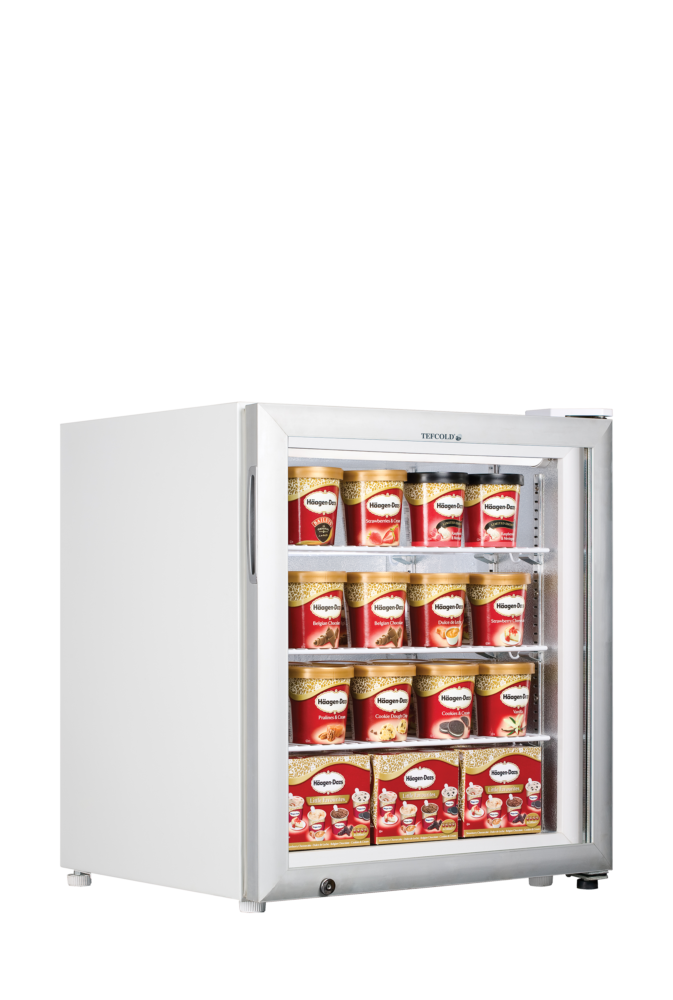

The UF-G range are compact and adaptable counter top freezers with a glass door, which is perfect for presenting and selling various frozen foods, such as ice cream tubs and lollies. Its small size makes it a great fit for placement near checkout areas, where it can tempt customers into making impulsive purchases. Additionally, its self-closing door helps to maintain a consistent temperature and preserve the quality of the displayed items. Furthermore, the door glass is heated to help prevent the build-up of condensation, ensuring maximum visibility of the products inside. This unit is fitted with a rear spacer to ensure it is not placed against a wall, to ensure maximum airflow

SPECIFICATION 47 facts · tap for all External W × D × H610 x 540 x 670 mmWidth610 mmDepth540 mmGross / net weight49 / 44 kgGross weight49 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181501563site
Product code 20039site
Sub title Glass Door Display Freezercatalogue
Type Countertop Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 540 mmsite
External (W×D×H) 610 × 540 × 670 mmcatalogue
External W × D × H 610 x 540 x 670 mmsite
Gross / net weight 49 / 44 kgsite
Gross weight 49 kgcatalogue
Height 670 mmsite
Internal (W×D×H) 500 × 430 × 540 mmcatalogue
Internal W × D × H 500 x 430 x 540 mmsite
Packed (W×D×H) 640 × 600 × 740 mmcatalogue
Packed W × D × H 640 x 600 x 740 mmsite
Width 610 mmsite

Capacity4

Display area 0.27 m²site
Doors 1catalogue
Gross volume 90 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 60 gsite
Temperature range -24 to -12site
Thermometer Nosite

Power & energy6

Annual energy consumption 1159 kWh/yearsite
Energy consumption 3.18 kWh/24hsite
Energy efficiency index 25 %site
Input power 230 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Yessite
Shelf dimensions 485 x 420 / 200 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop freezer earns its place

The UF100G puts frozen stock where customers actually decide: on the counter. Behind its heated hinged glass door sits 88 litres of net capacity — 90 litres gross — with 0.27 m² of display area to keep frozen impulse lines visible at the point of sale. The cabinet is white inside and out, so the product does the selling, and at 610 mm wide by 540 mm deep it takes no floor space at all.

In service it holds -24 to -12 °C, set on a mechanical controller, with static cooling and manual defrost — a deliberately simple arrangement with little to go wrong. The heated glass door is there to keep the viewing glass clear. It runs at 45 dB, carries a climate class 4 ambient rating, and its C energy class translates to 1,160.7 kWh a year — about £290 a year at 25p/kWh.

Installation is as straightforward as commercial freezing gets. The cabinet measures 610 × 540 × 670 mm, weighs 44 kg net, and plugs into a standard 13 A socket, drawing 230 W on a 220-240 V/50 Hz supply. It runs on R290 refrigerant with a 60 g charge. The only siting question is whether the counter can carry 44 kg — most service counters can.

BEFORE YOU BUY

Questions, answered straight

It measures 610 mm wide, 540 mm deep and 670 mm tall, so it sits comfortably on most service counters. At 44 kg net, check the counter can carry the weight before siting it.

The operating band is -24 to -12 °C, adjusted on a mechanical controller. It also carries a climate class 4 ambient rating.

It is rated energy class C at 1,160.7 kWh a year, which works out at about £290 a year at 25p/kWh. Power draw is 230 W.

No. It runs on a 220-240 V/50 Hz supply through a standard 13 A plug, drawing 230 W.

Defrost is manual — switch the cabinet off periodically and let the frost clear before restarting. Cooling is static, so there are no fans to maintain.

Craven Cooling supplies and services commercial refrigeration across the UK. Call 01792 732702 to arrange servicing or to talk the UF100G through before you buy.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 500 x 430 x 540 mm
External Dimension (WxDxH): 610 x 540 x 670 mm
Packed Dimension (WxDxH): 640 x 600 x 740 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 60 g
Thermometer: No

Power and Consumption

Energy Consumption: 3.18 kWh/24h
Temperature Range: -24 to -12 °C
Annual Energy Consumption: 1159 kWh/year m³
EEI: 25 %
Input Power: 230 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -12 °C
Climate Class: 4
Gross / Net Weight: 49 / 44 kg
Gross / Net Volume: 90 / 88 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.27 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 485 x 420 / 200 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF100G Glass Door Display Freezer then please get in touch.
