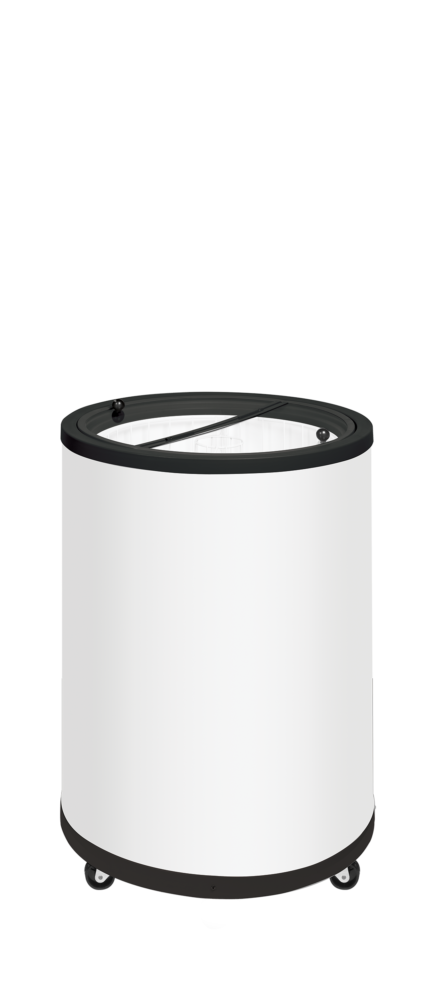

TEFCOLD CF78 Impulse Freezer

£366.00

+vat

Brand:

SKU: 49483

Energy Arrow

Product summary

  • Ideal for branding
  • Fully automatic
  • Static cooling
  • Flip-flop lid
  • Castors
  • Optional divider system

Product description

A compact and easy to move impulse freezer. Great for individually packed lollies and ice creams or even frozen pet food. Ideal for placing near tills to catch the customer’s attention and create impulse purchases. Units can easily be branded by our in-house team to help promote a product or brand – ask for details.

The TEFCOLD CF78 is a compact impulse freezer offering 80 litres gross and 72 litres net of frozen capacity, running on R600a refrigerant with static cooling, manual defrost and a mechanical controller, finished in white with black trim and rated energy class D.

SPECIFICATION 41 facts · tap for all External W × D × H569 x 569 x 830 mmWidth569 mmGross / net weight33 / 29 kgGross weight33 kgVoltage / frequency220-240/50 V/HzInput power100 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181732028site
Product code 49483site
Sub title Impulse Freezercatalogue
Type Impulse Cooler/Freezercatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 569 × 569 × 830 mmcatalogue
External W × D × H 569 x 569 x 830 mmsite
Gross / net weight 33 / 29 kgsite
Gross weight 33 kgcatalogue
Height 830 mmsite
Internal (W×D×H) 455 × 455 × 457 mmcatalogue
Internal W × D × H 455 x 455 x 457 mmsite
Packed (W×D×H) 584 × 584 × 880 mmcatalogue
Packed W × D × H 584 x 584 x 880 mmsite
Width 569 mmsite

Capacity1

Gross volume 80 litrescatalogue

Performance10

Climate class Nsite
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 40 gsite
Temperature range -22 to -14site
Thermometer Nosite

Power & energy6

Annual energy consumption 460 kWh/yearsite
Energy consumption 1.26 kWh/24hsite
Energy efficiency index 48.7 %site
Input power 100 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castors, 1 lockablesite
Divider system Yessite
Exterior finish White with black trimsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this impulse cooler/freezer earns its place

The CF78 is a compact impulse freezer built to put frozen stock in front of customers at the point of sale. It offers 80 litres gross and 72 litres net, a footprint sized for a counter end, aisle cap or checkout position where an extra frozen line drives a spur-of-the-moment buy. The white cabinet with black trim reads cleanly in a retail setting, and the top-opening format keeps stock reachable without a separate door.

It uses static cooling with manual defrost, so plan a periodic defrost into your routine to keep the interior clear of ice build-up. A mechanical controller sets the temperature with a simple dial. Sound output is 45 dB, low enough for a customer-facing position. At energy class D it is rated at 459.9 kWh a year, about £115 a year at 25p/kWh.

The freezer ships packed at 584 × 584 × 880 mm and weighs 33 kg gross, 29 kg net, so it is light enough to reposition as your layout changes. It runs from a standard 13 A supply at 220-240 V, 50 Hz, and uses R600a refrigerant with a 40 g charge. No special installation is needed beyond a nearby socket.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 80 litres and net usable volume is 72 litres. It is sized as a compact impulse cabinet for point-of-sale frozen stock rather than bulk storage.

At energy class D it is rated at 459.9 kWh a year, about £115 a year at 25p/kWh. Your actual figure depends on your tariff and siting.

Sound output is 45 dB, low enough to sit in a customer-facing position such as a counter end or checkout without being intrusive.

Yes. It uses static cooling with manual defrost, so build a periodic defrost into your cleaning routine to keep the interior clear of ice.

It runs from a standard 13 A supply at 220-240 V, 50 Hz, and uses R600a refrigerant with a 40 g charge. No special installation is required beyond a nearby socket.

Yes. Craven Cooling can arrange servicing and support. The cabinet uses R600a refrigerant with a mechanical controller and static cooling. Call our team on 01792 732702 to discuss servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 455 x 455 x 457 mm
External Dimension (WxDxH): 569 x 569 x 830 mm
Packed Dimension (WxDxH): 584 x 584 x 880 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 40 g
Thermometer: No

Power and Consumption

Energy Consumption: 1.26 kWh/24h
Temperature Range: -22 to -14 °C
Annual Energy Consumption: 460 kWh/year m³
EEI: 48.7 %
Input Power: 100 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -22 to -14 °C
Climate Class: N
Gross / Net Weight: 33 / 29 kg
Gross / Net Volume: 80 / 72 l
Max Ambient: +30°C, 55% RH

Design and Material

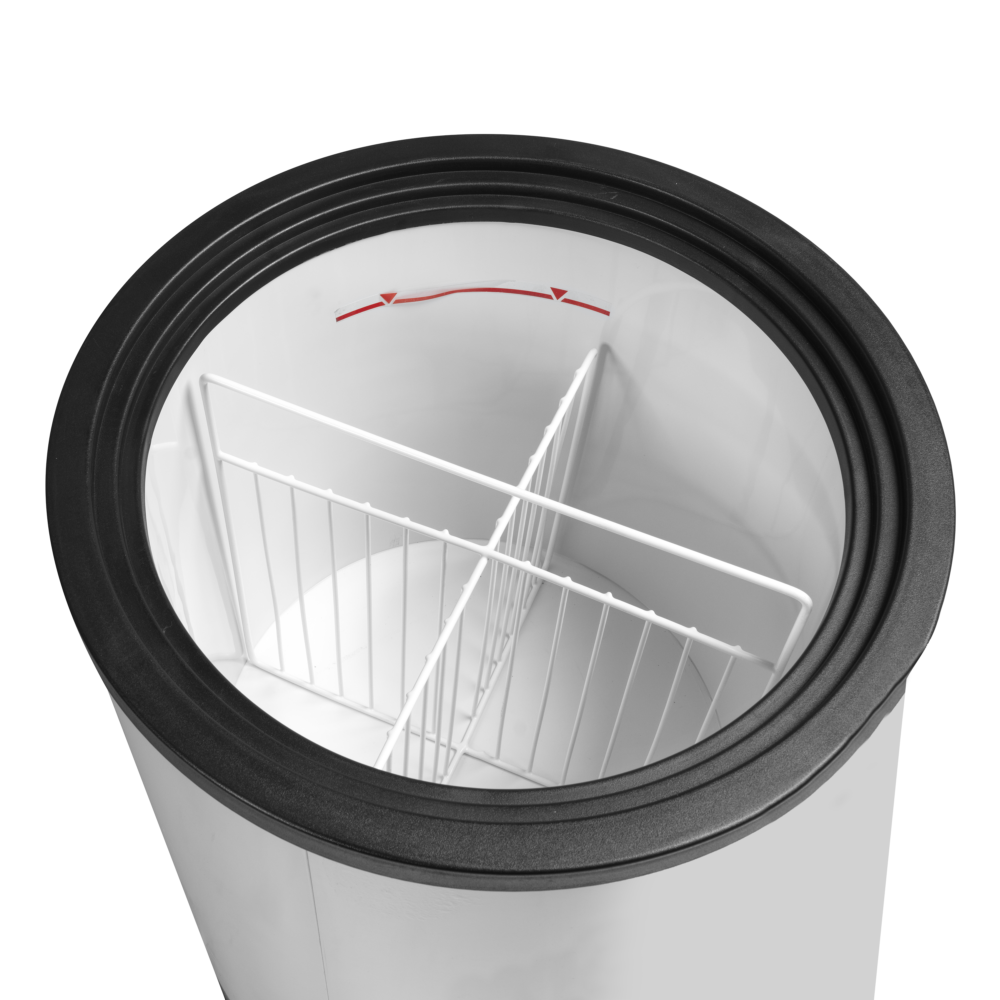

Divider System: Yes

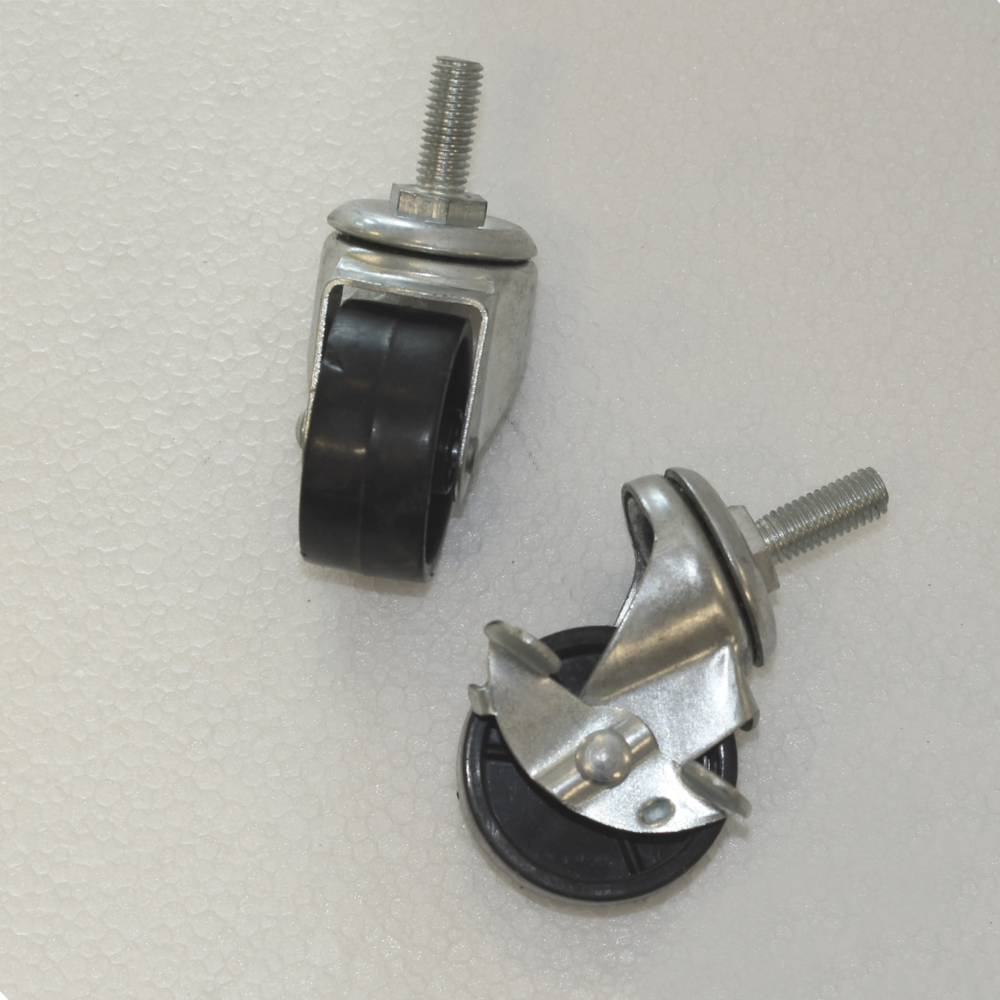

Castors: 4 castors, 1 lockable
Exterior Finish: White with black trim
Interior Finish: White with black trim
Interior Light: No
Lock: No
If you have any questions about the TEFCOLD CF78 Impulse Freezer then please get in touch.
