TEFCOLD EIB-D1020-B1 Black impulse cooler/freezer

£4,298.00

+vat

- +

Brand:

SKU: 69336

Energy Arrow

Product summary

  • Easily switchable between cooler and freezer
  • Temperature Class 3M1/3L1
  • Glass sides for better presentation of products
  • Ventilated cooling
  • LED interior light
  • Sliding glass lids
  • Ticket strip included
  • Controller with Bluetooth and NFC connectivity
  • HACCP compliant data export
  • Stainless steel bumper bars on all four sides
  • Castors, 2 lockable

Product description

Versatile impulse chiller/freezer

The TEFCOLD EIB-D1020-B1 is a black impulse cooler/freezer with a switchable -18 to +5 °C range, 2.93 m² of display area and 427 litres net, running on R290 with ventilated cooling and automatic hot-gas defrost.

SPECIFICATION 43 facts · tap for all External W × D × H2012 x 1010 x 975 mmWidth2012 mmDepth1010 mmGross / net weight415 / 380 kgGross weight415 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181756123site
Product code 69336site
Sub title Black impulse cooler/freezercatalogue
Type Impulse Cooler/Freezercatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1010 mmsite
External (W×D×H) 2012 × 1010 × 975 mmcatalogue
External W × D × H 2012 x 1010 x 975 mmsite
Gross / net weight 415 / 380 kgsite
Gross weight 415 kgcatalogue
Height 975 mmsite
Internal (W×D×H) 1860 × 790 × 300 mmcatalogue
Internal W × D × H 1860 x 790 x 300 mmsite
Packed (W×D×H) 2070 × 1070 × 1155 mmcatalogue
Packed W × D × H 2070 x 1070 x 1155 mmsite
Width 2012 mmsite

Capacity2

Display area 2.93 m²site
Gross volume 640 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -18 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 4526 kWh/yearsite
Energy consumption 12.4 kWh/24hsite
Energy efficiency index 32.29 %site
Input power 1649 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors Wheelssite
Exterior finish Black RAL9005site
Interior light LED Horizontalsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this impulse cooler/freezer earns its place

The EIB-D1020-B1 is a TEFCOLD impulse cooler/freezer finished in black RAL 9005 inside and out, sized to display a large run of frozen or chilled impulse stock. It gives 2.93 m² of display area over 640 litres gross, 427 litres net, so a wide spread of tubs, pouches or grab-and-go lines sits on show at the point of sale.

Temperature is switchable across a -18 to +5 °C range, letting the same cabinet run frozen or chilled as your stock changes. Ventilated cooling and automatic hot-gas defrost keep the load even under an electronic controller. It carries a C energy rating and uses R290 refrigerant; rated noise is 54 dB.

At 4431.1 kWh a year, running cost works out at about £1108 a year at 25p/kWh. The cabinet ships packed at 2070 × 1070 × 1155 mm with an internal opening of 1860 × 790 × 300 mm; net weight is 380 kg, 415 kg gross, so plan handling and siting carefully. It draws 1649 W on a 220-240 V single-phase supply.

BEFORE YOU BUY

Questions, answered straight

Yes. Temperature is switchable across a -18 to +5 °C range, so the cabinet can run frozen or chilled to match your stock.

It uses 4431.1 kWh a year for a C energy rating, about £1108 a year at 25p/kWh. Your actual figure depends on tariff and siting.

It offers 2.93 m² of display area over 640 litres gross and 427 litres net.

It ships packed at 2070 × 1070 × 1155 mm with an internal opening of 1860 × 790 × 300 mm, and weighs 415 kg gross — plan the delivery route, handling and floor loading.

It uses R290 refrigerant and draws 1649 W on a 220-240 V single-phase supply.

Yes — we service what we sell. Call 01792 732702 to arrange installation or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1860 x 790 x 300 mm
External Dimension (WxDxH): 2012 x 1010 x 975 mm
Packed Dimension (WxDxH): 2070 x 1070 x 1155 mm

Cooling and Functions

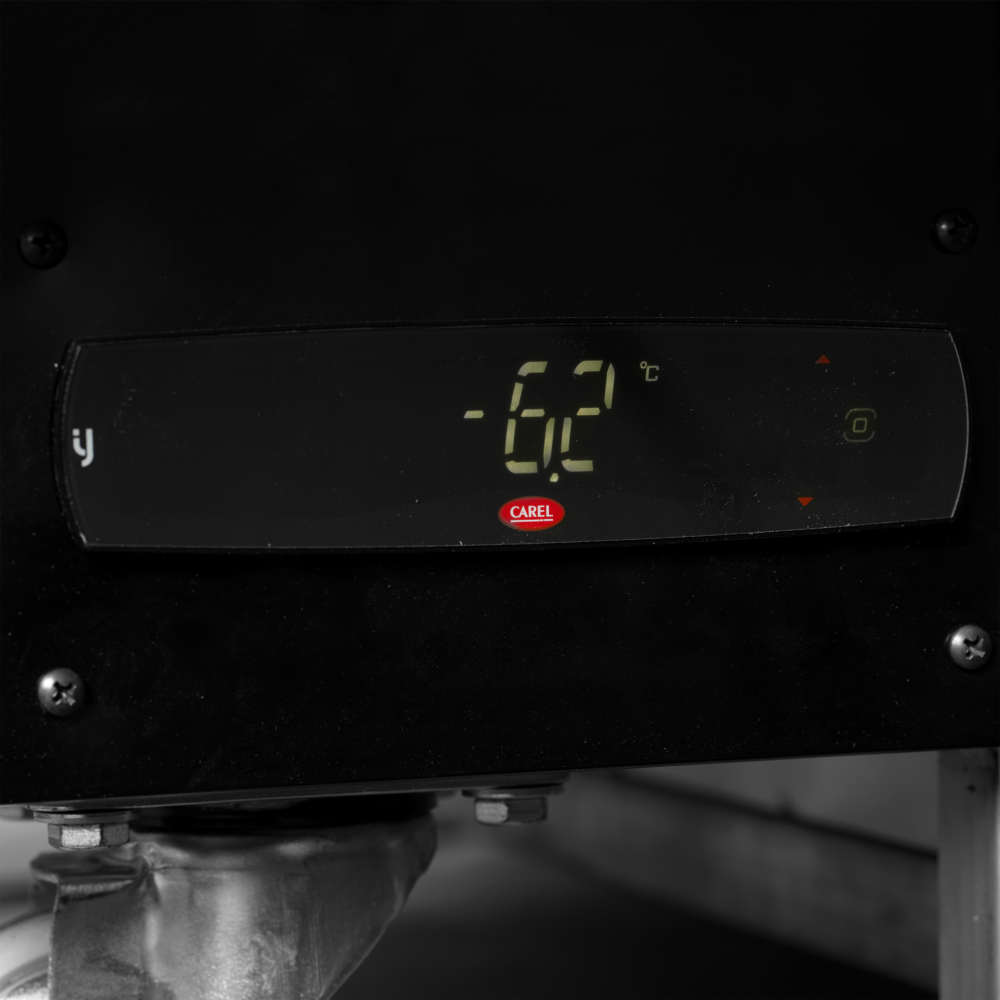

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 12.4 kWh/24h
Temperature Range: -18 to +5 °C
Annual Energy Consumption: 4526 kWh/year m³
EEI: 32.29 %
Input Power: 1649 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: -18 to +5 °C
Climate Class: 3
Gross / Net Weight: 415 / 380 kg
Gross / Net Volume: 640 / 427 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.93 m² m²

Design and Material

Castors: Wheels
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED Horizontal
If you have any questions about the TEFCOLD EIB-D1020-B1 Black impulse cooler/freezer then please get in touch.
