ISA BERMUDA VIEW RV13 Ventilated Scoop Ice Cream Display

£4,882.00

+vat

Brand:

SKU: 19422

Energy Arrow

Product summary

  • High vision display (low front glass)
  • Perfect temperature distribution
  • Heated glass to help prevent condensation
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Digital controller and temperature display
  • Easy access understorage

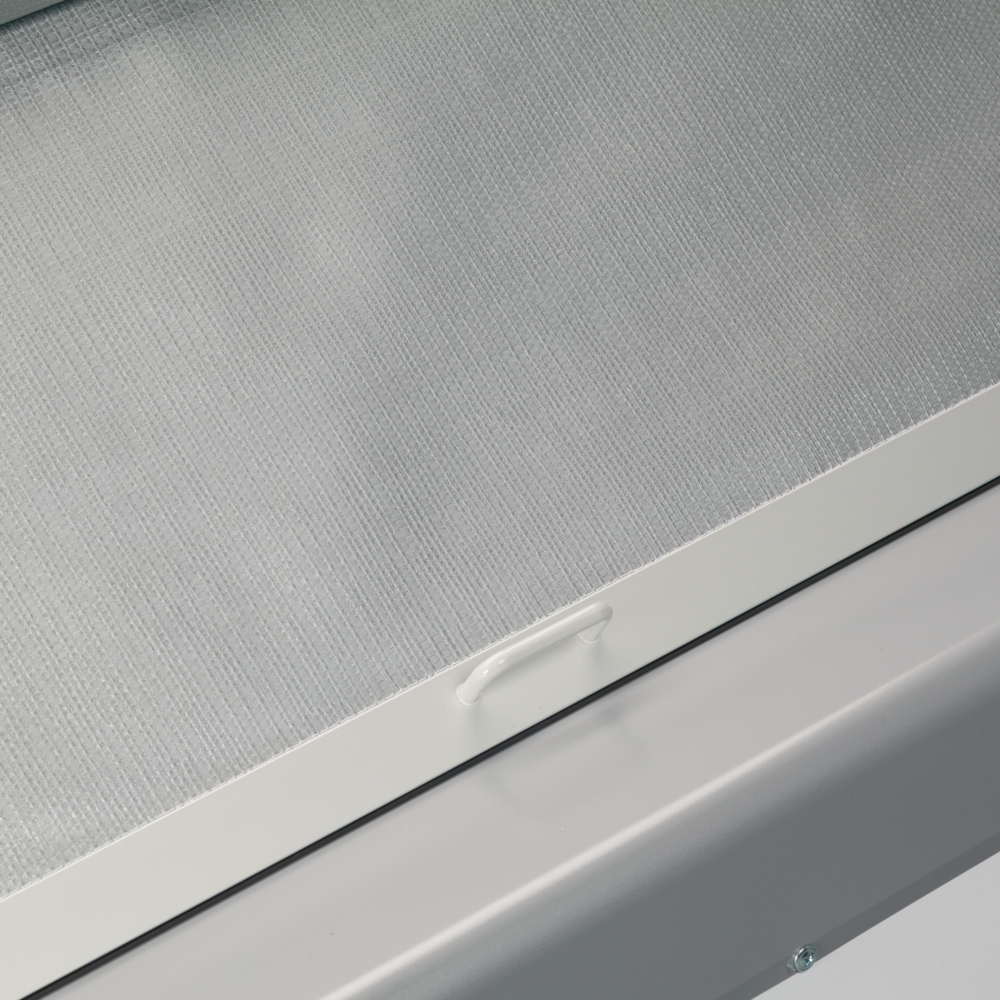

  • Rear night curtain to maintain temperature
  • Ventilated cooling
  • Automatic defrost

Product description

Ventilated 13 scoop ice cream display with under-storage with low front glass

The act of buying ice cream is a visual experience that can be enhanced by providing customers with a clear view of the available options. The Bermuda View cabinet has been designed to improve this experience by lowering the front glass, making the display more visible to both adults and children. Additionally, the unit includes ventilated cooling to maintain a consistent temperature throughout the display, preserving the quality and flavour of the ice cream or gelato. The refrigerated under-storage allows for quick access to additional stock during peak periods, while the heated glass prevents condensation and the castors make the unit easy to move. Finally, the internal LED lighting adds a beautiful illumination to the ice cream, making the Bermuda View a versatile cabinet that can maximise sales for businesses.

The ISA BERMUDA VIEW RV13 is a ventilated scoop ice cream display freezer for parlours and kiosks, presenting 0.84 m² of display with 325 litres net capacity, running from a standard 13 A supply on natural R290 refrigerant with automatic hot-gas defrost.

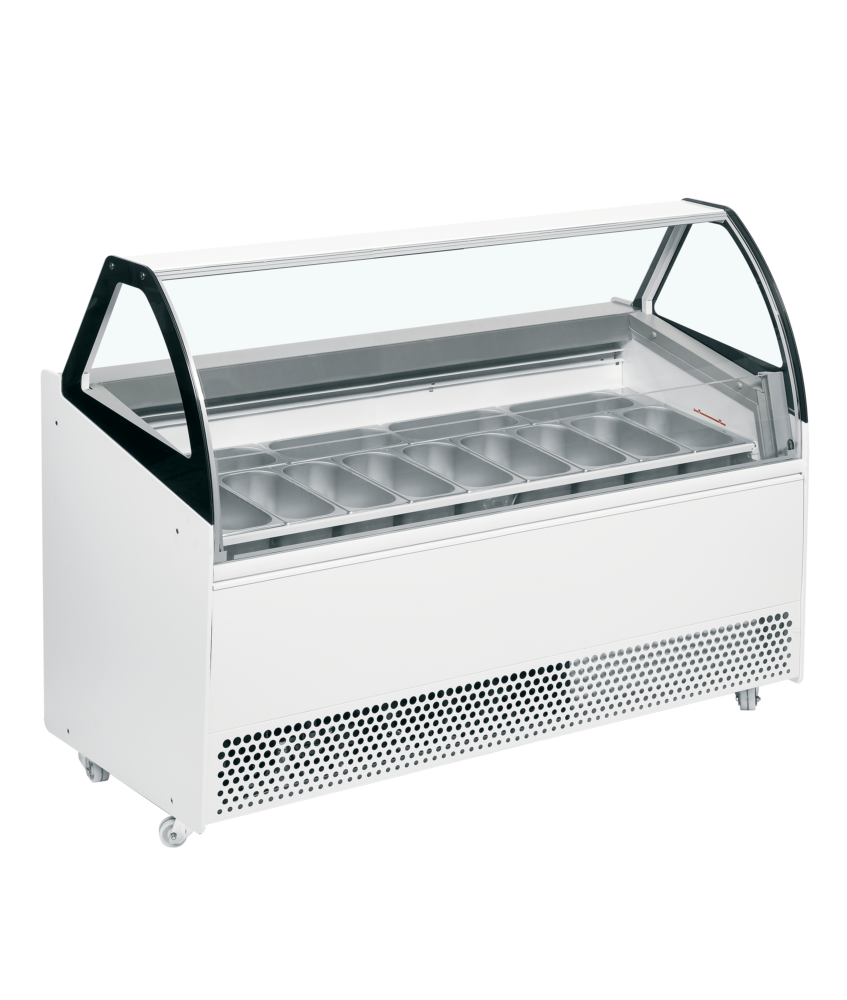

ISA BERMUDA VIEW RV13 Ventilated Scoop Ice Cream Display
ISA BERMUDA VIEW RV13 Ventilated Scoop Ice Cream Display - Image 2
ISA BERMUDA VIEW RV13 Ventilated Scoop Ice Cream Display - Image 3

Downloads

User Manual
Data Sheet
SPECIFICATION 45 facts · tap for all External W × D × H1670 x 814 x 1354 mmWidth1670 mmDepth814 mmGross / net weight255 / 235 kgGross weight255 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents3

Data sheetPDF ›Energy labelPDF ›User manualPDF ›

Identity6

Brand ISAsite
GTIN / EAN 7018101311003site
Product code 19422site
Sub title Ventilated Scoop Ice Cream Displaycatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 814 mmsite
External (W×D×H) 1670 × 814 × 1354 mmcatalogue
External W × D × H 1670 x 814 x 1354 mmsite
Gross / net weight 255 / 235 kgsite
Gross weight 255 kgcatalogue
Height 1354 mmsite
Internal (W×D×H) 1530 × 510 × 210 mmcatalogue
Internal W × D × H 1530 x 510 x 210 mmsite
Packed (W×D×H) 1740 × 860 × 1455 mmcatalogue
Packed W × D × H 1740 x 860 x 1455 mmsite
Width 1670 mmsite

Capacity4

Display area 0.84 m²site
Gross volume 395 litrescatalogue
Serving capacity / 13 Napoli Pans (5L)site
Under-counter storage / 14 Napoli Pans (5L)site

Performance10

Climate class 7site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 2 x 125 gsite
Temperature range -16 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 8322 kWh/yearsite
Energy consumption 22.8 kWh/24hsite
Energy efficiency index 45.1 %site
Input power 1600 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 castorssite
Exterior finish Whitesite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The ISA BERMUDA VIEW RV13 is a ventilated scoop ice cream display freezer for parlours and kiosks that put tubs on show at the front of house. It presents 0.84 m² of display across 395 litres of gross capacity (325 litres net usable), finished in white for a clean serving face on a busy counter.

Cooling is fan-assisted ventilated, with automatic hot-gas defrost that clears the coil without a manual routine. An electronic controller manages operation, rated running noise is 56 dB, and the cabinet carries a climate class 7 rating. It uses natural hydrocarbon R290 refrigerant with a 195 g charge.

Externally it measures 1670 × 814 × 1354 mm (W×D×H) and weighs 235 kg net (255 kg gross), so plan the handling and floor route. It ships packed at 1740 × 860 × 1455 mm, worth checking against your delivery doorway. It runs from a standard 13 A supply drawing 1600 W at 220-240 V.

BEFORE YOU BUY

Questions, answered straight

Defrost is automatic hot-gas, which clears the coil on a cycle without any manual routine. An electronic controller manages operation.

Rated energy use is 8322 kWh a year, which is about £2081 a year at 25p/kWh. It carries energy class D with an energy efficiency index of 45.1%, and draws 1600 W in use.

Fan-assisted ventilated cooling, moving air across the display. It runs on natural hydrocarbon R290 refrigerant with a 195 g charge.

The cabinet is 1670 mm wide installed and ships packed at 1740 × 860 × 1455 mm (W×D×H). It weighs 255 kg gross, so plan lifting and the floor route in advance.

It connects to a standard 13 A supply and draws 1600 W at 220-240 V, 50 Hz.

Yes — our engineers handle installation and servicing; call 01792 732702 to arrange. It uses R290 refrigerant and an electronic controller, both standard for our service team.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1530 x 510 x 210 mm
External Dimension (WxDxH): 1670 x 814 x 1354 mm
Packed Dimension (WxDxH): 1740 x 860 x 1455 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 2 x 125 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.8 kWh/24h
Temperature Range: -16 to -10 °C
Annual Energy Consumption: 8322 kWh/year m³
EEI: 45.1 %
Input Power: 1600 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Temperature Range: -16 to -10 °C
Climate Class: 7
Gross / Net Weight: 255 / 235 kg
Gross / Net Volume: 395 / 325 l
Max Ambient: +35°C, 75% RH
Total Display Area: 0.84 m² m²

Design and Material

Serving Capacity: / 13 Napoli Pans (5L)
Storage capacity (under): / 14 Napoli Pans (5L)

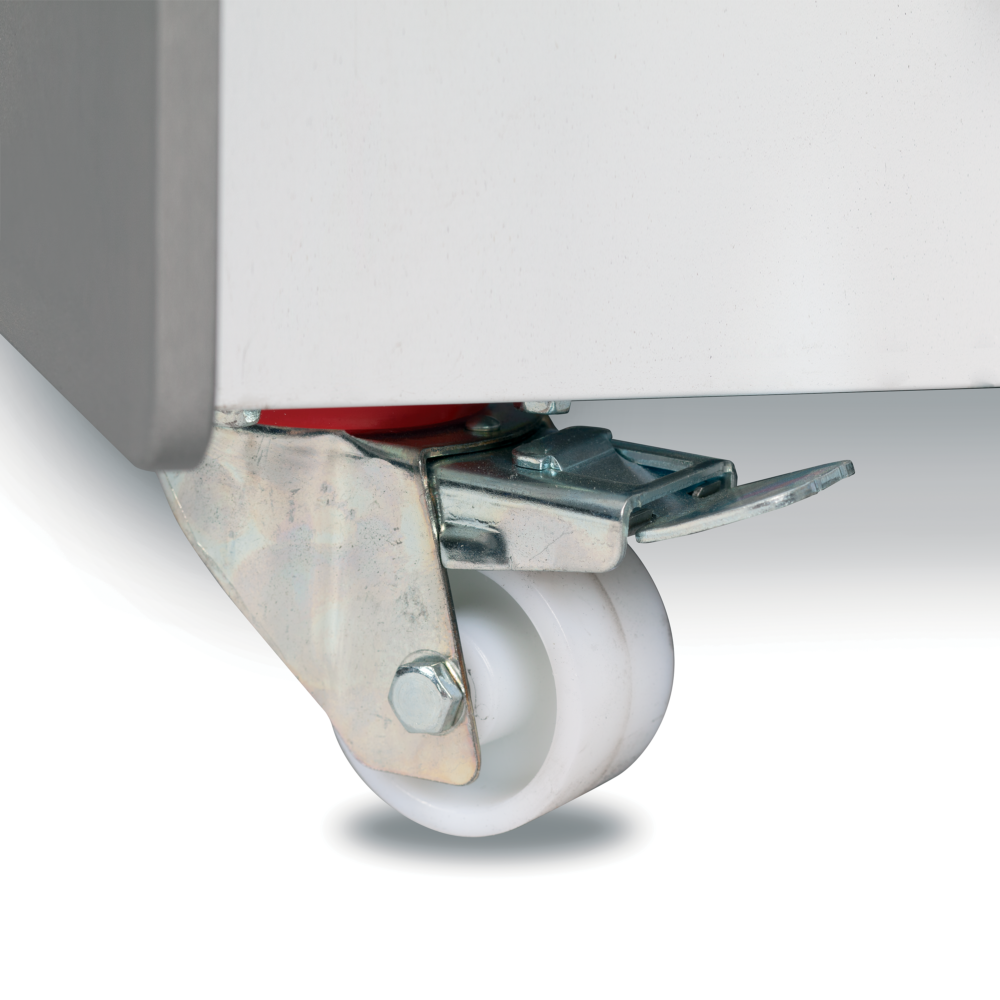

Castors: 4 castors
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: No
