ISA BERMUDA VIEW RV10 Ventilated Scoop Ice Cream Display

£4,298.00

+vat

Brand:

SKU: 20357

Energy Arrow

Product summary

  • High vision display (low front glass)
  • Perfect temperature distribution
  • Heated glass to help prevent condensation
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Digital controller and temperature display

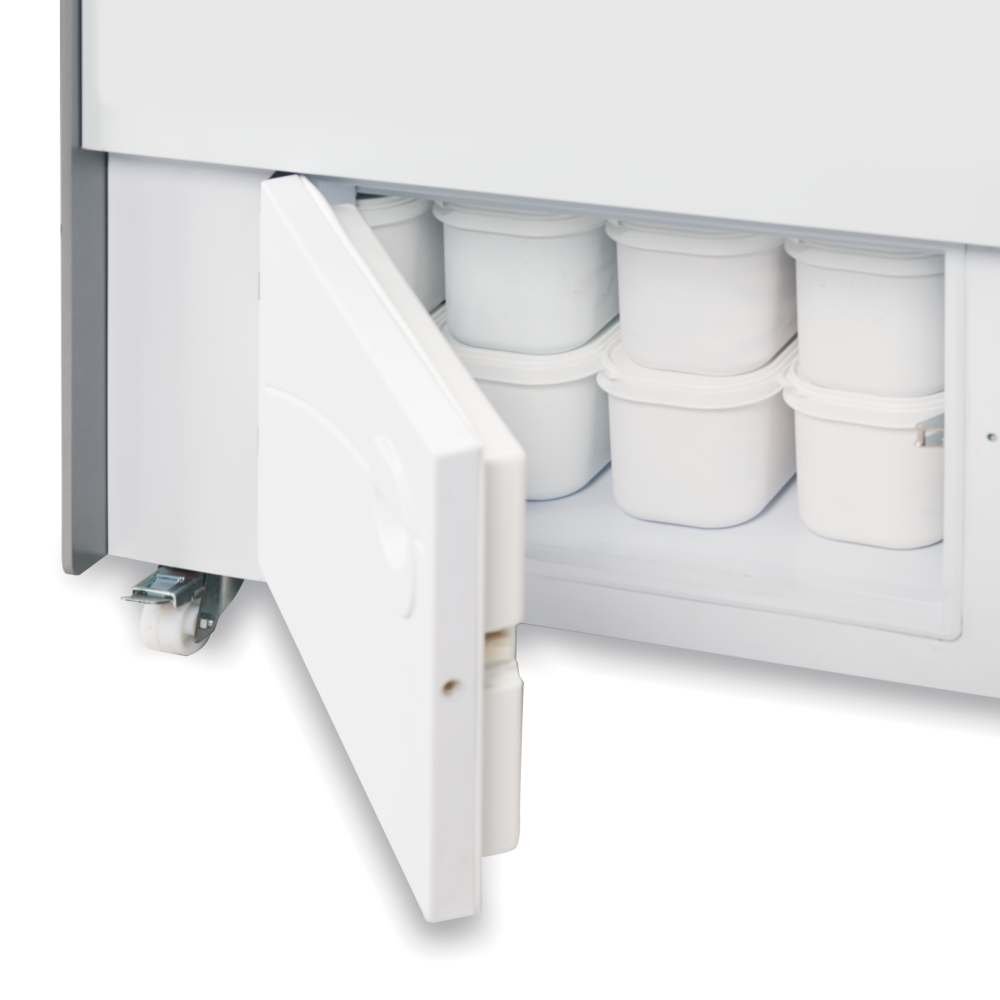

  • Easy access understorage
  • Rear night curtain to maintain temperature
  • Ventilated cooling
  • Automatic defrost

Product description

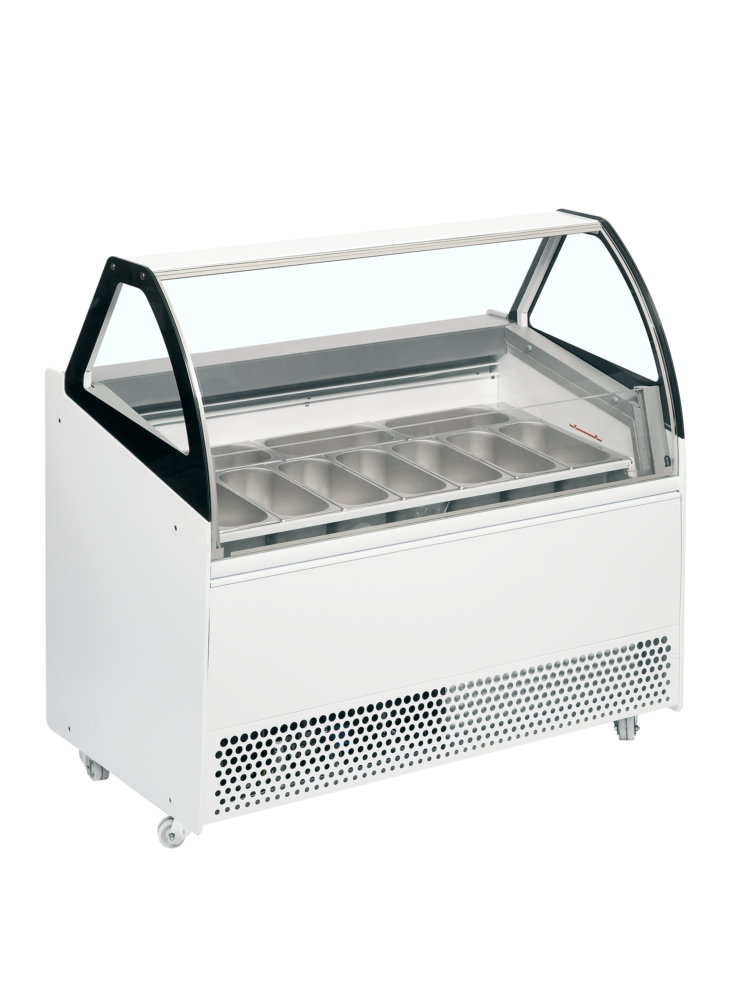

Ventilated 10 scoop ice cream display with under-storage with low front glass

The act of buying ice cream is a visual experience that can be enhanced by providing customers with a clear view of the available options. The Bermuda View cabinet has been designed to improve this experience by lowering the front glass, making the display more visible to both adults and children. Additionally, the unit includes ventilated cooling to maintain a consistent temperature throughout the display, preserving the quality and flavour of the ice cream or gelato. The refrigerated under-storage allows for quick access to additional stock during peak periods, while the heated glass prevents condensation and the castors make the unit easy to move. Finally, the internal LED lighting adds a beautiful illumination to the ice cream, making the Bermuda View a versatile cabinet that can maximise sales for businesses.

The ISA Bermuda View RV10 is a ventilated scoop ice cream display freezer holding -20 to -14 °C across a 0.65 m² panoramic display, running from a standard 13 amp supply on R290 refrigerant with automatic hot gas defrost.

SPECIFICATION 43 facts · tap for all External W × D × H1340 x 814 x 1354 mmWidth1340 mmDepth814 mmGross / net weight226 / 195 kgGross weight226 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 5708181212117site
Product code 20357site
Sub title Ventilated Scoop Ice Cream Displaycatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 814 mmsite
External (W×D×H) 1340 × 814 × 1354 mmcatalogue
External W × D × H 1340 x 814 x 1354 mmsite
Gross / net weight 226 / 195 kgsite
Gross weight 226 kgcatalogue
Height 1354 mmsite
Internal W × D × H 1200 mmsite
Packed (W×D×H) 1410 × 860 × 1455 mmcatalogue
Packed W × D × H 1410 x 860 x 1455 mmsite
Width 1340 mmsite

Capacity3

Display area 0.65 m²site
Gross volume 300 litrescatalogue
Serving capacity / 10 Napoli Pans (5L)site

Performance10

Climate class 7site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 195 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 8030 kWh/yearsite
Energy consumption 22 kWh/24hsite
Energy efficiency index 49.3 %site
Input power 1250 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 castorssite
Exterior finish Whitesite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The ISA Bermuda View RV10 is a ventilated scoop ice cream display freezer built to put tubs on show and sell them. Its 0.65 m² panoramic display area faces product toward the customer, and the white exterior and white interior keep the focus on what is in the pans. With 300 litres gross and 255 litres net capacity, it carries a working scooping range without dominating the counter.

It holds a display temperature of -20 to -14 °C, cold enough to keep scooping ice cream firm through service. Ventilated cooling moves air evenly across the pans for consistent temperature, automatic hot gas defrost clears frost without manual intervention, and an electronic controller manages the cycle. The cabinet runs at 56 dB and carries a climate class of 7. At 8030 kWh a year, running cost is about £2008 a year at 25p/kWh.

The cabinet measures 1340 × 814 × 1354 mm (W×D×H) and packs to 1410 × 860 × 1455 mm for delivery, worth checking against doorways and access routes before it arrives. It weighs 226 kg gross and 195 kg net. Power is a standard 13 amp supply at 220-240 V, drawing up to 1250 W, and it uses R290 refrigerant with a 195 g charge. Energy class D, EEI 49.3%.

BEFORE YOU BUY

Questions, answered straight

It runs a display range of -20 to -14 °C, cold enough to keep scooping ice cream firm and servable. Ventilated cooling spreads the temperature evenly across the pans.

The cabinet is 1340 mm wide, 814 mm deep and 1354 mm high, and ships packed at 1410 × 860 × 1455 mm. Measure your access route against the packed size before delivery.

At 8030 kWh a year, that is about £2008 a year at 25p/kWh. It carries energy class D with an EEI of 49.3%.

A standard 13 amp supply at 220-240 V. It draws up to 1250 W, so no special electrics are needed — a dedicated socket does it.

Gross volume is 300 litres and net volume 255 litres, across a 0.65 m² display area. That is a working scooping range for a parlour or kiosk counter.

Craven Cooling can arrange servicing and support — call 01792 732702. The cabinet uses R290 refrigerant and automatic hot gas defrost, both standard to maintain.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1200 mm
External Dimension (WxDxH): 1340 x 814 x 1354 mm
Packed Dimension (WxDxH): 1410 x 860 x 1455 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 195 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 8030 kWh/year m³
EEI: 49.3 %
Input Power: 1250 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 7
Gross / Net Weight: 226 / 195 kg
Gross / Net Volume: 300 / 255 l
Max Ambient: +35°C, 75% RH
Total Display Area: 0.65 m² m²

Design and Material

Serving Capacity: / 10 Napoli Pans (5L)
Storage capacity (under): / 10 Napoli Pans (5L)
Castors: 4 castors
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: No
If you have any questions about the ISA BERMUDA VIEW RV10 Ventilated Scoop Ice Cream Display then please get in touch.
