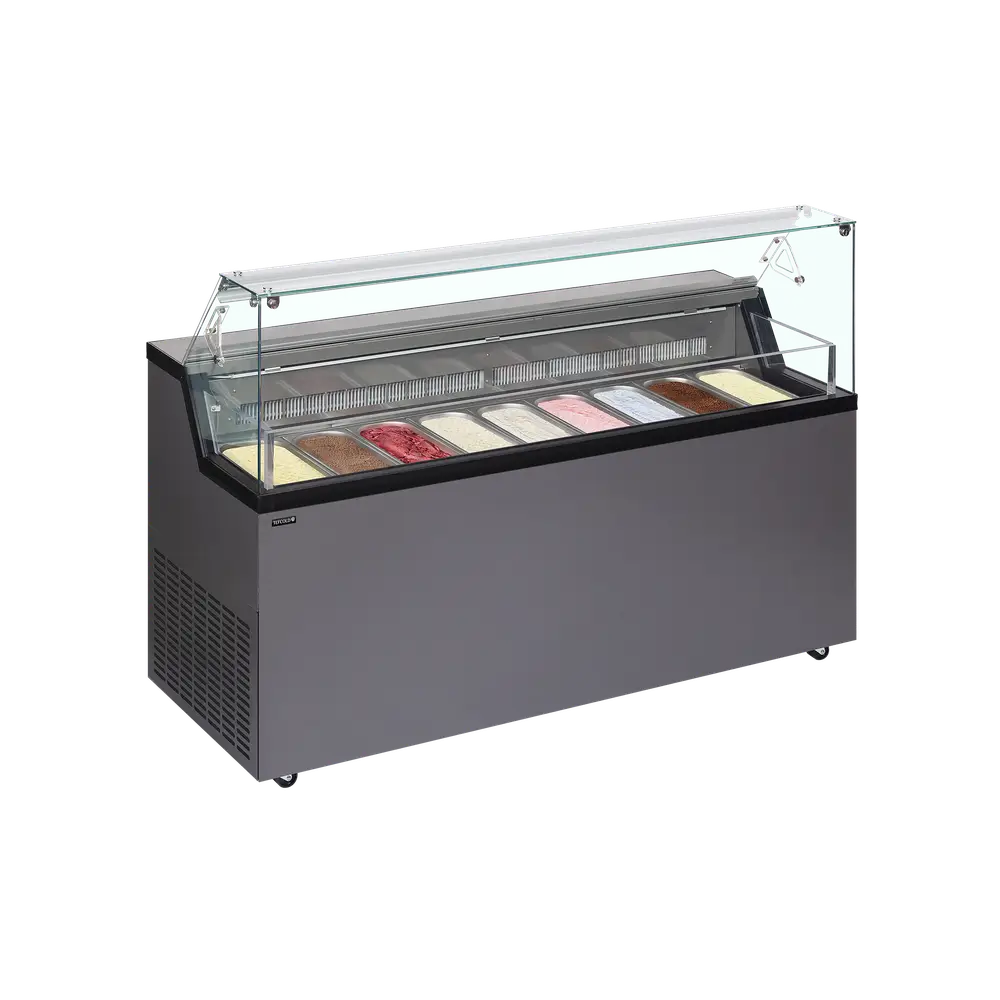

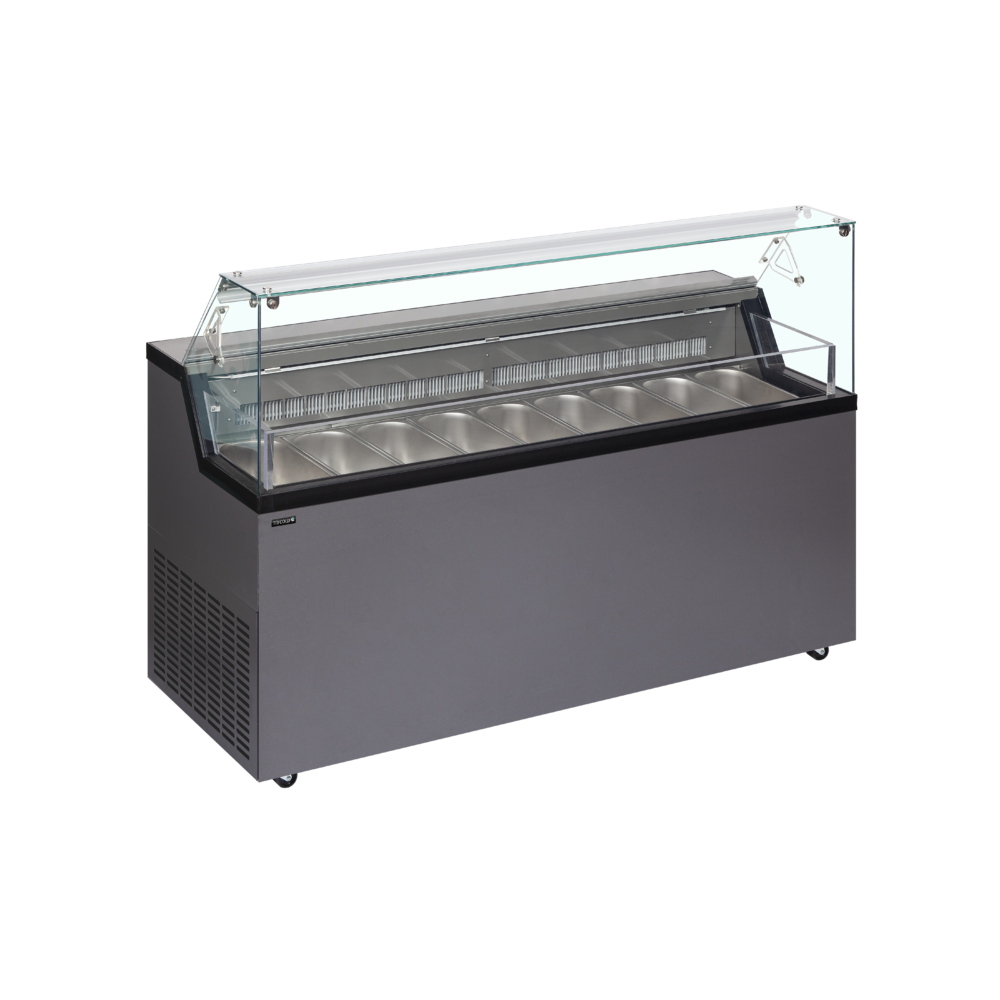

TEFCOLD MIRABELLA 9 Scoop Ice Cream Display

£2,372.00

+vat

- +

Brand:

SKU: 20328

Energy Arrow

Product summary

  • Static cooling
  • Fully automatic
  • Flat glass top
  • Accepts Napoli pans (not supplied)
  • Lift up rear lid (2 can serve)
  • LED interior light with switch
  • Easy access understorage
  • Digital controller and temperature display
  • Castors

Product description

Scoop ice cream freezer with serveover

The Framec Mirabella ice cream scooping display is a leap forward in design and presentation. The Mirabella is designed to hold the ice cream as high as possible in the display giving the easiest view of the product to the customer. Traditional scooping units hold the ice cream further down within the cabinet making it harder (especially for children) to see the ice cream. It also ensures the ice cream is visible from further away, helping to draw customers in. Maximise sales and profits by maximising your display. Available in 6, 7 and 9 pan versions, the Mirabella represents value, proven reliability and a class leading display.

The TEFCOLD MIRABELLA 9 is a static-cooled scoop ice cream display freezer that holds -20 to -5 °C across a 0.53 m² display, measures 1652 mm wide, and runs on a standard 13 A supply with natural R290 refrigerant at a quiet 42 dB.

SPECIFICATION 42 facts · tap for all External W × D × H1652 x 677 x 1190 mmWidth1652 mmDepth677 mmGross / net weight157 / 136 kgGross weight157 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181617578site
Product code 20328site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 677 mmsite
External (W×D×H) 1652 × 677 × 1190 mmcatalogue
External W × D × H 1652 x 677 x 1190 mmsite
Gross / net weight 157 / 136 kgsite
Gross weight 157 kgcatalogue
Height 1190 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1735 × 740 × 1290 mmcatalogue
Packed W × D × H 1735 x 740 x 1290 mmsite
Width 1652 mmsite

Capacity4

Display area 0.53 m²site
Gross volume 439 litrescatalogue
Serving capacity / 9 Napoli Pans (5L)site
Under-counter storage / 21 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 125 gsite
Temperature range -20 to -5site
Thermometer Yessite

Power & energy5

Annual energy consumption 5205 kWh/yearsite
Energy consumption 14.26 kWh/24hsite
Input power 700 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castorssite
Exterior finish Anthracite RAL7016site
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The TEFCOLD MIRABELLA 9 is a scoop ice cream display freezer built as a front-of-house counter feature. Its 0.53 m² display area lays out a spread of flavours for scooping to order, set behind an anthracite (RAL7016) exterior with a grey stainless steel interior that stands up to daily service. An electronic controller manages the temperature.

In use, it holds -20 to -5 °C using static cooling, with automatic defrost handling frost build-up. It is rated to climate class 4, carries an energy class C label and runs at a measured 42 dB, which is quiet enough to sit near seating or a service counter. At the verified 5204.9 kWh a year, running cost is about £1301 a year at 25p/kWh, so match its hours to your trade.

On installation, the cabinet is 1652 mm wide, 677 mm deep and 1190 mm high, and ships packed at 1735 mm wide and 1290 mm high — measure your doorways and route in against those figures before delivery. It plugs into a standard 13 A supply, draws 700 W at 220-240 V/50 Hz and runs on natural R290 refrigerant with a 125 g charge. At 136 kg net (157 kg gross) it needs a two-person lift into position.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -5 °C using static cooling, managed by an electronic controller. Automatic defrost handles frost build-up during service.

The cabinet is 1652 mm wide, 677 mm deep and 1190 mm high, and ships packed at 1735 mm wide and 1290 mm high. Measure your doorways and delivery route against those figures before it arrives.

It has a measured noise level of 42 dB, which is quiet enough to site near seating or a service counter without intruding.

The verified energy figure is 5204.9 kWh a year, which is about £1301 a year at 25p/kWh. It carries an energy class C label. Your real cost depends on your tariff and running hours.

It plugs into a standard 13 A supply and draws 700 W at 220-240 V/50 Hz. It runs on natural R290 refrigerant with a 125 g charge.

Yes. Craven Cooling can arrange servicing and support — call the team on 01792 732702 to talk it through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1652 x 677 x 1190 mm
Packed Dimension (WxDxH): 1735 x 740 x 1290 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 125 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 14.26 kWh/24h
Temperature Range: -20 to -5 °C
Annual Energy Consumption: 5205 kWh/year m³
Input Power: 700 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -20 to -5 °C
Climate Class: 4
Gross / Net Weight: 157 / 136 kg
Gross / Net Volume: 439 / 306 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.53 m² m²

Design and Material

Serving Capacity: / 9 Napoli Pans (5L)
Storage capacity (under): / 21 Napoli Pans (5L)
Castors: 4 castors
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD MIRABELLA 9 Scoop Ice Cream Display then please get in touch.
