Framec SLANT510 Scoop Ice Cream Display

£1,478.00

+vat

- +

Brand:

SKU: 19365

Energy Arrow

Product summary

  • Static cooling
  • Castors
  • Interior light with switch
  • Flat sliding lids
  • Thermometer
  • Easy access understorage

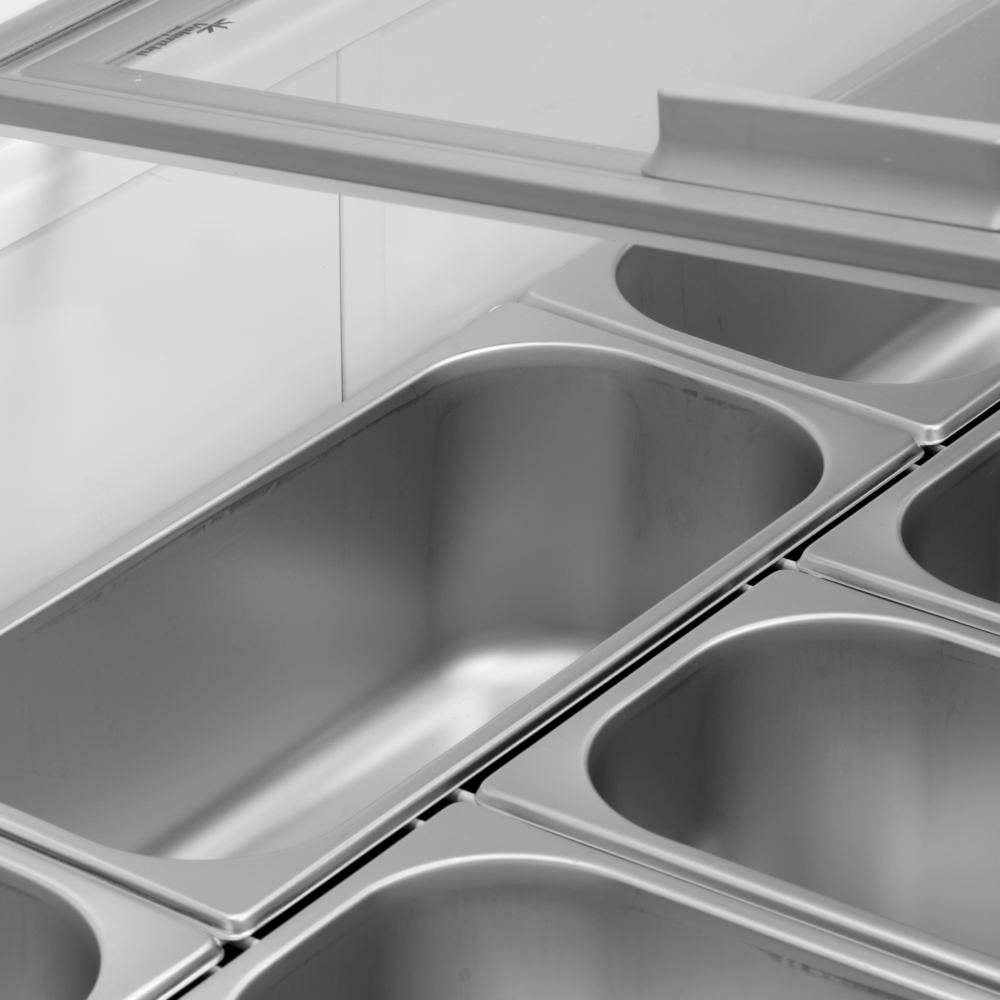

  • Accepts Napoli pans (not supplied)
  • Fan assisted condenser for energy efficiency

Product description

The Slant 510 from Framec is an excellent way to get 10 x 5 litre tubs of ice cream on display in the minimum amount of space. The unit also comes with separate refrigerated understorage (accessed through rear door) and has glass sliding lids to give extra insulation when you’re not serving. A light is mounted into the canopy to create an excellent display of all the best flavours.

The Framec SLANT510 is a static-cooled scoop ice cream display that holds tubs at -20 to -14 °C across a 0.59 m² display area and 342 litres net, runs on a standard 13-amp supply and uses about £467 of electricity a year at 25p/kWh.

SPECIFICATION 45 facts · tap for all External W × D × H1341 x 725 x 1235 mmWidth1341 mmDepth725 mmGross / net weight112 / 103 kgGross weight112 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Framecsite
GTIN / EAN 5708181607784site
Product code 19365site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 725 mmsite
External (W×D×H) 1341 × 725 × 1235 mmcatalogue
External W × D × H 1341 x 725 x 1235 mmsite
Gross / net weight 112 / 103 kgsite
Gross weight 112 kgcatalogue
Height 1235 mmsite
Internal (W×D×H) 1217 × 563 × 295 mmcatalogue
Internal W × D × H 1217 x 563 x 295 mmsite
Packed (W×D×H) 1385 × 730 × 1020 mmcatalogue
Packed W × D × H 1385 x 730 x 1020 mmsite
Width 1341 mmsite

Capacity4

Display area 0.59 m²site
Gross volume 431 litrescatalogue
Serving capacity / 10 Napoli Pans (5L)site
Under-counter storage / 12 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 100 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 1868 kWh/yearsite
Energy consumption 5.12 kWh/24hsite
Energy efficiency index 12 %site
Input power 360 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 double castorssite
Exterior finish Whitesite
Interior light Nosite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The Framec SLANT510 is a scoop ice cream display freezer for serving tubs straight from the cabinet. Its slanted glass front puts a 0.59 m² display area on show at counter height, so customers see the flavours and staff scoop without moving stock, making it suited to parlours and kiosks that sell by the scoop.

It holds a -20 to -14 °C band on static cooling, kept steady by a mechanical controller and the eco-friendly R290 refrigerant, so ice cream stays firm enough to scoop cleanly rather than freezing rock-hard. It carries a B energy rating and runs at 45 dB. Rated at 1,868.8 kWh a year, it costs about £467 a year at 25p/kWh. Defrost is manual, so factor a defrost cycle into your cleaning routine.

Internally the cabinet gives 1,217 × 563 × 295 mm (W×D×H) of usable space and 342 litres net from a 431-litre gross volume, with a white finish inside and out. It weighs 103 kg net, 112 kg as delivered, so plan the delivery route and a solid, level spot for it. It runs on 220-240 V and a standard 13-amp supply with a 100 g R290 charge, and its climate class 4 rating means it is built for warmer ambient conditions.

BEFORE YOU BUY

Questions, answered straight

It runs -20 to -14 °C on static cooling with a mechanical controller. That band is aimed at keeping ice cream firm but scoopable rather than storing it rock-hard.

It carries a B energy rating and is rated at 1,868.8 kWh a year. At 25p/kWh that is about £467 a year, though your real cost depends on your tariff, ambient temperature and how often the lid is open.

No, defrost is manual. Build a defrost and clean-down cycle into your routine so ice build-up does not affect the display or the running temperature.

It gives a 0.59 m² display area and 342 litres net from a 431-litre gross volume, with internal space of 1,217 × 563 × 295 mm (W×D×H) for tubs.

It runs on 220-240 V and a standard 13-amp socket, and uses R290 refrigerant. It weighs 103 kg net, so plan the delivery route and a level, load-bearing floor.

Craven Cooling can arrange servicing and support for Framec cabinets. Call the team on 01792 732702 to book a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1217 x 563 x 295 mm
External Dimension (WxDxH): 1341 x 725 x 1235 mm
Packed Dimension (WxDxH): 1385 x 730 x 1020 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 100 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.12 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 1868 kWh/year m³
EEI: 12 %
Input Power: 360 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 4
Gross / Net Weight: 112 / 103 kg
Gross / Net Volume: 431 / 342 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.59 m² m²

Design and Material

Serving Capacity: / 10 Napoli Pans (5L)
Storage capacity (under): / 12 Napoli Pans (5L)
Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: No
If you have any questions about the Framec SLANT510 Scoop Ice Cream Display then please get in touch.
