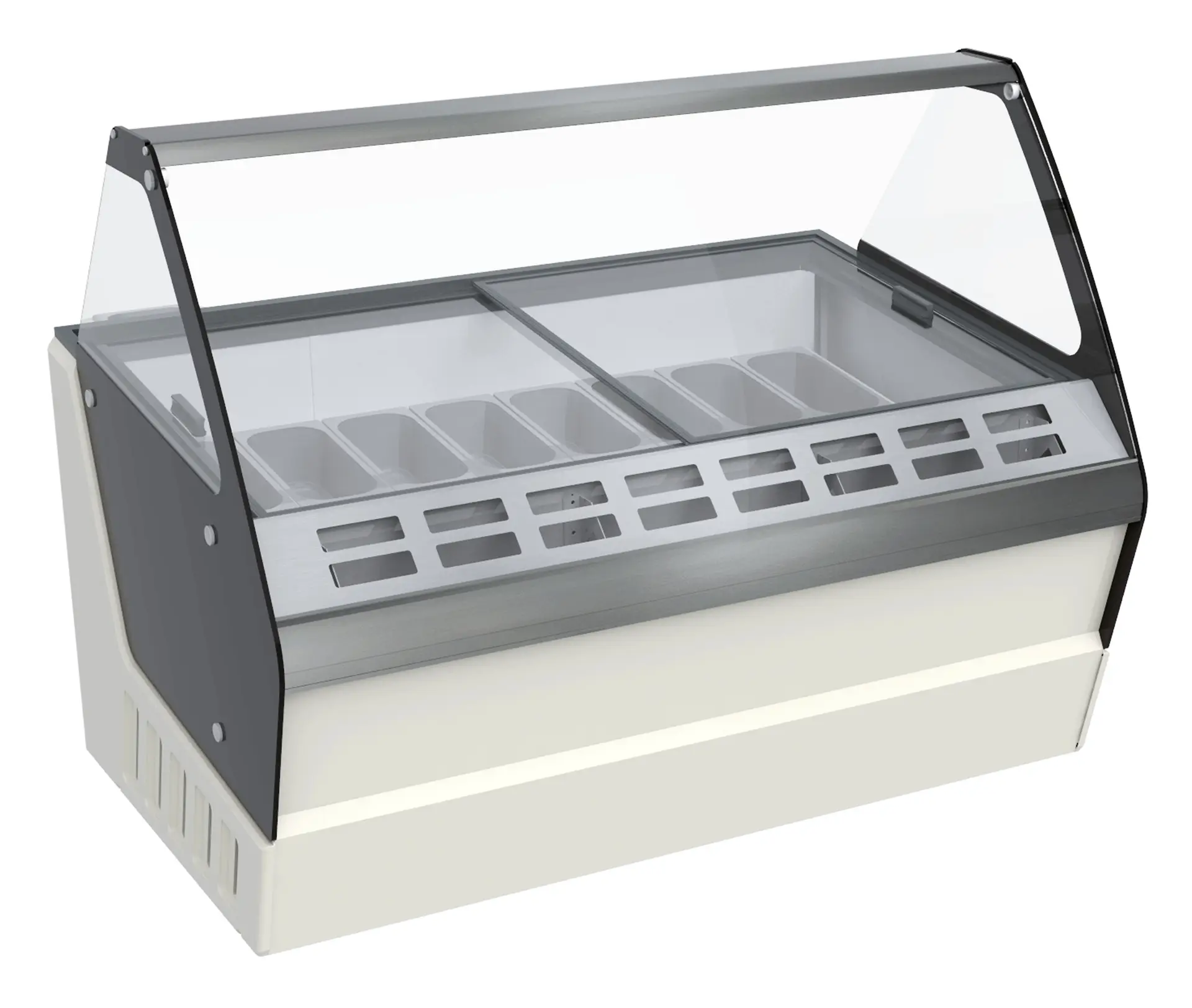

CombiSteel Hawai 16x5L Ice Cream Display Freezer 7472.0115

£3,078.97

+vat

- +

SKU: 7472.0115

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 28 facts · tap for all Width1590 mmDepth1195 mmHeight1335 mmGross / net weight195 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137797746catalogue
Type Static Cooled Ice Cream Display Freezerscatalogue

Size & weight7

Depth 1195 mmsite
External (W×D×H) 1590 × 1195 × 1335 mmcatalogue
Gross / net weight 195 kgsite
Height 1335 mmsite
Internal (W×D×H) 1410 × 770 × 653 mmcatalogue
Internal W × D × H 1410x770x653site
Width 1590 mmsite

Capacity2

Capacity 630 Ltrcatalogue
Gross volume 630 litrescatalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3030 °Ccatalogue
Maximum ambient 3030site
Temperature range -22/-15site

Power & energy5

Frequency 50 Hzcatalogue
Rated input 220 Wcatalogue
Rated power 22 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Colour Whitecatalogue
Insulation 60 mmcatalogue
Interior light Yes, LEDsite

Other stated facts2

Energy consumption 2186.35 kWh/yearcatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

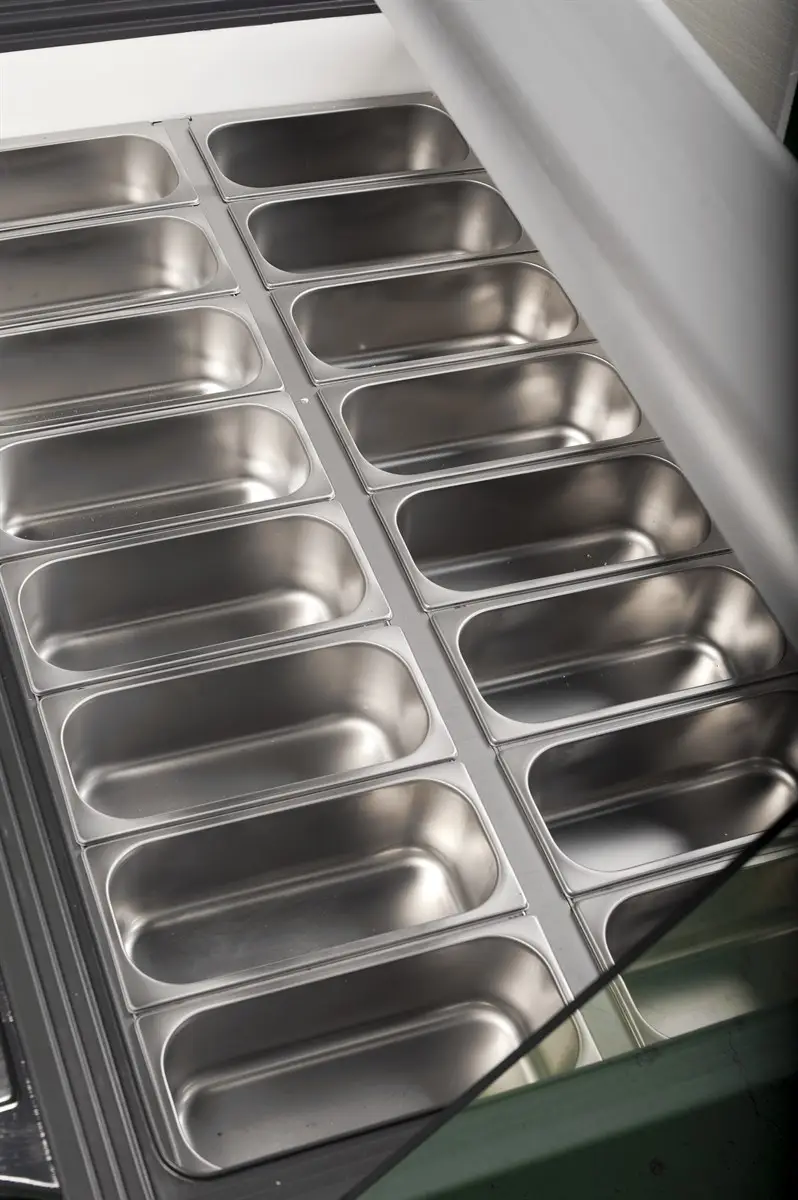

The Combisteel Hawai 7472.0115 is the big service-counter choice in this run: a white static-cooled ice cream display freezer sized for sixteen 5-litre pans. With 630 litres of gross volume and a 1410 × 770 × 653 mm internal space, it gives parlours, cafés and seasonal sites enough display capacity to show a broad flavour range without forcing staff to keep disappearing to back-of-house storage.

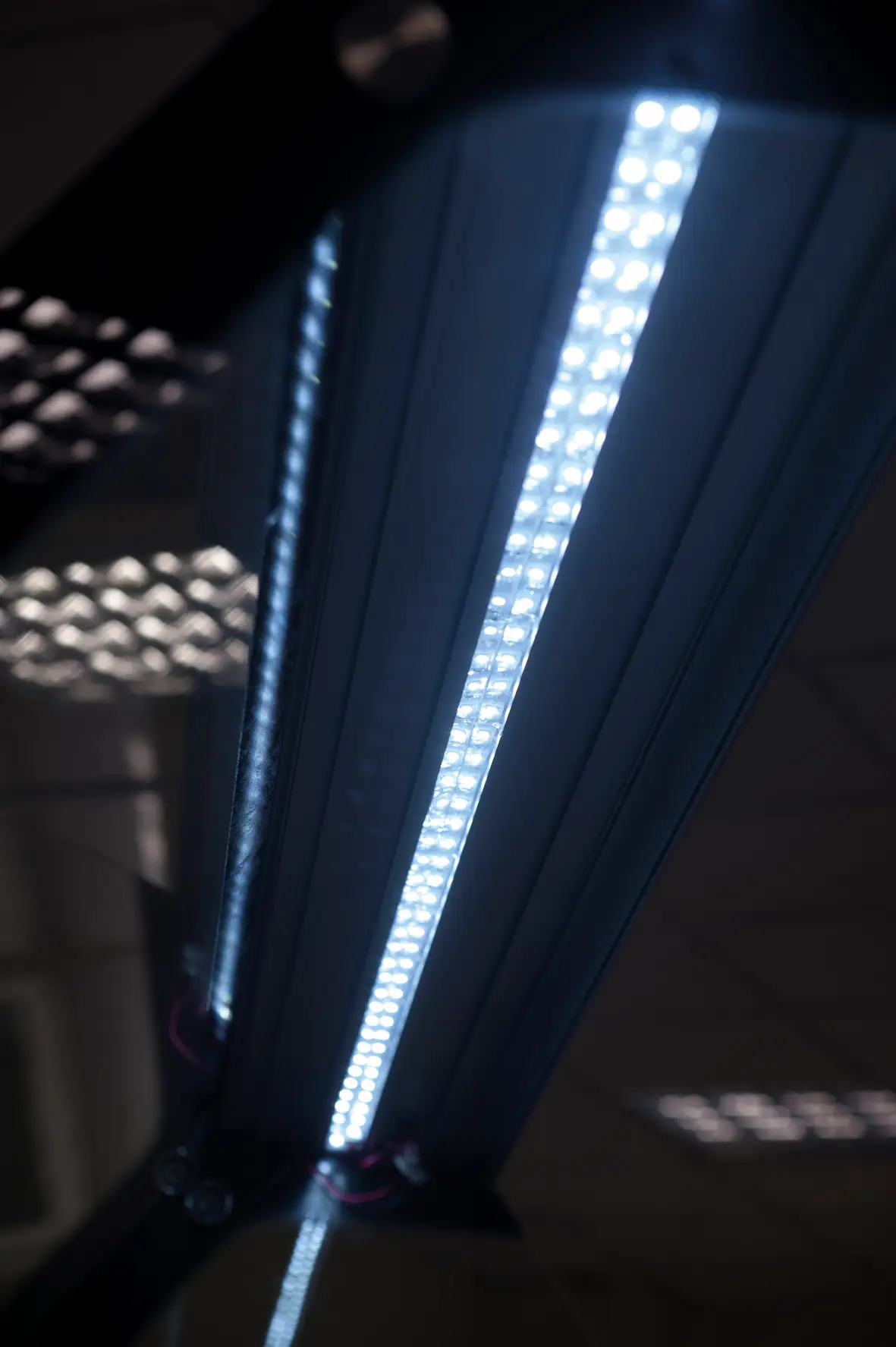

It runs across a -22 to -15 °C range with static cooling, a digital controller and LED interior lighting. That combination suits served-to-order ice cream: the cabinet presents the colours clearly, keeps the range cold for service and avoids fan-blown air across the product surface. Automatic defrost also makes it easier to manage than a manual-defrost cabinet in a busy seasonal operation, though the display still needs routine cleaning and good loading discipline.

It is a serious piece of kit to move and site. The Hawai is 1590 mm wide, 1195 mm deep and 1335 mm high, with a 195 kg gross weight, 60 mm insulation and a 230V, 50Hz connection. It uses R290 refrigerant and is specified for up to 30 °C ambient, so check the access route, floor loading, airflow and exposure to sun before ordering. The product is listed as transport on request, which is exactly the point: talk to Craven Cooling before delivery so the cabinet arrives on a route it can actually travel.

BEFORE YOU BUY

Questions, answered straight

It is a scooping display freezer for served ice cream, sized for sixteen 5-litre pans. The 630 litre gross volume and 1410 × 770 × 653 mm internal dimensions are intended for displaying a broad flavour range at the counter.

The supplier-stated range is -22 to -15 °C. Let the cabinet pull down before loading pans, and remember that scoop feel still depends on recipe, product load and how often the display is opened during service.

Many operators do. The cabinet is specified for a maximum 30 °C ambient, so keep it out of direct sun and away from heat sources, then give it time to reach the -22 to -15 °C range before loading at the start of the season.

This model is listed as transport on request. It is 1590 mm wide, 1195 mm deep, 1335 mm high and 195 kg gross, so talk to us about access, doorways, steps and the final position before delivery is booked.

The supplied specification does not include an annual energy-consumption figure, so we will not invent one. It runs on a 230V, 50Hz supply; running cost depends on usage, ambient temperature and tariff, so use a confirmed energy figure if you need a cost calculation.

Yes. The Hawai has LED interior lighting, a digital controller and automatic defrost, which helps with daily operation on a busy counter.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Hawai 16x5L Ice Cream Display Freezer 7472.0115 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1590 × 1195 × 1335 mm
Interior Dimensions 1410x770x653
Capacity 630 Ltr
Colour / Finish White
Temperature Range -22/-15
Max. Ambient Temp. 30
Refrigerant R 290
Cooling Static
Defrost Automatic
Electrical Power 0.22 kW
Voltage 230V / 50Hz
Mobile Yes
Insulation 60 mm
Weight 195 kg
If you have any questions about the CombiSteel Hawai 16x5L Ice Cream Display Freezer 7472.0115 then please get in touch.
