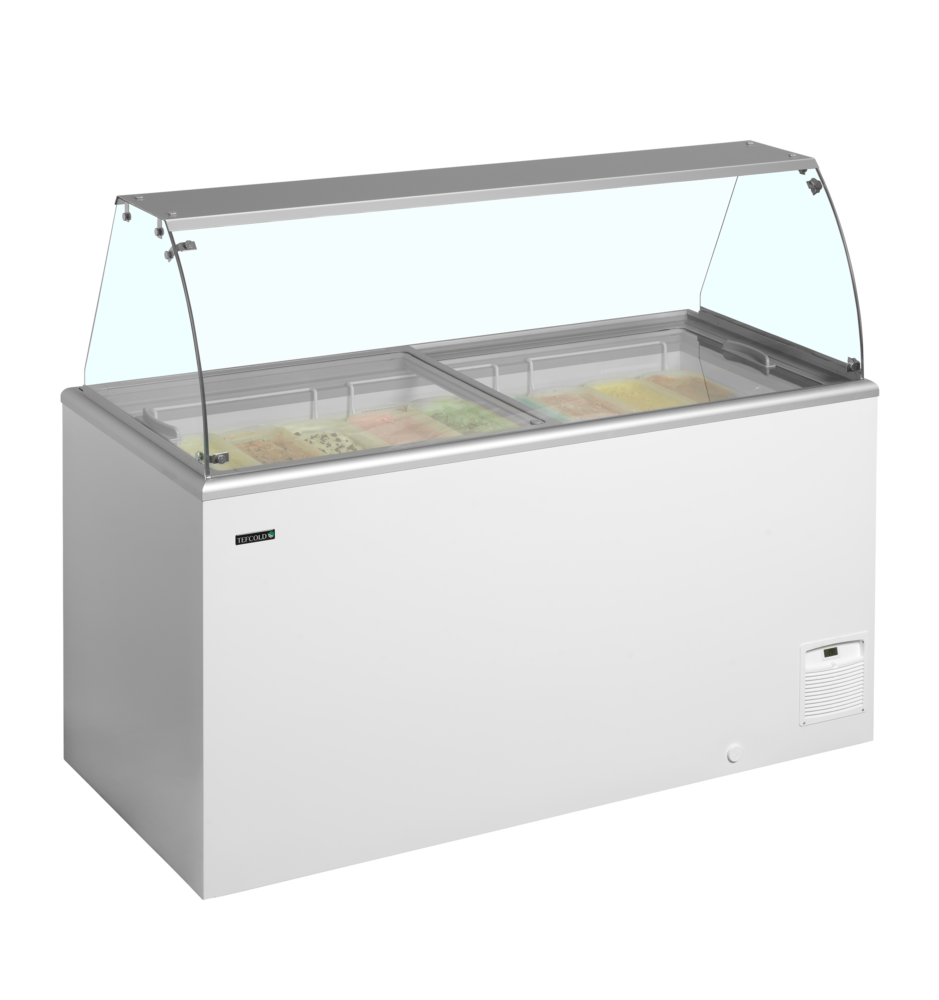

TEFCOLD IDA500-W1+ Scoop Ice Cream Display

£1,405.00

+vat

Brand:

SKU: 67582

Energy Arrow

Product summary

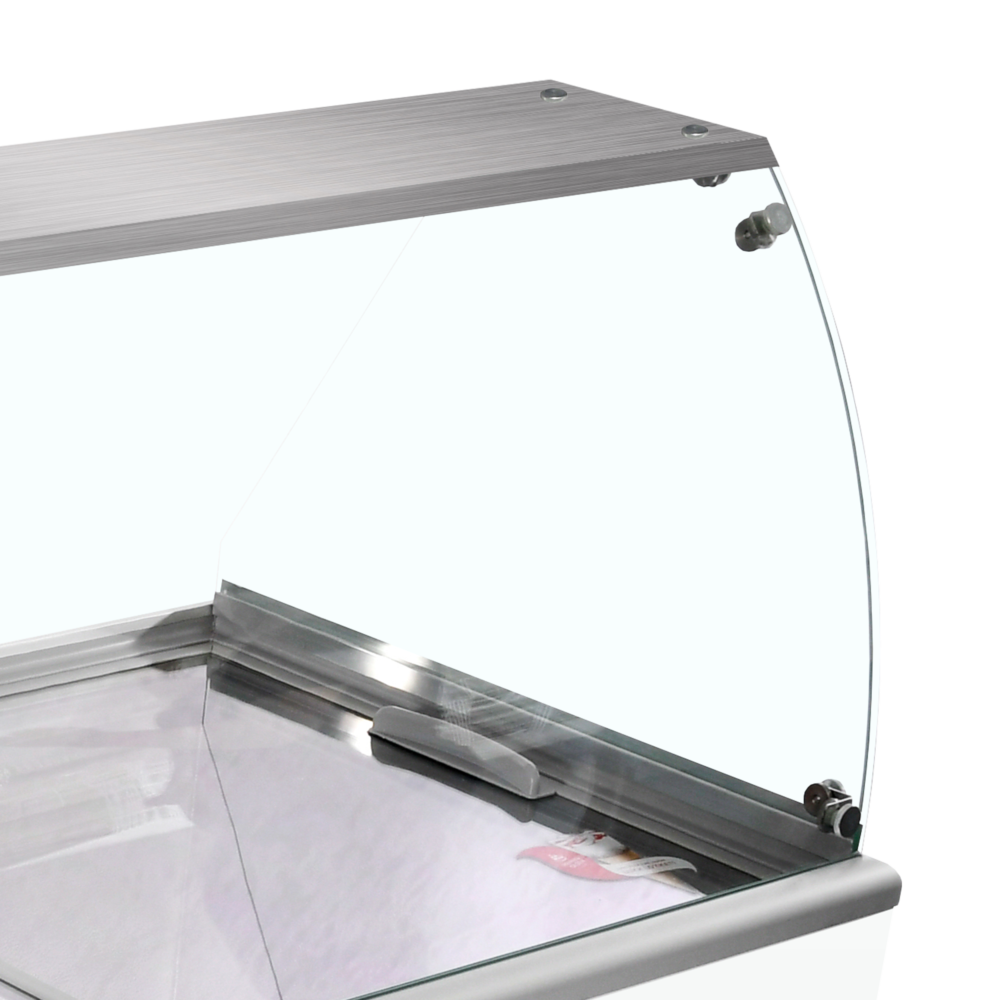

  • Curved glass canopy
  • Sliding glass lids

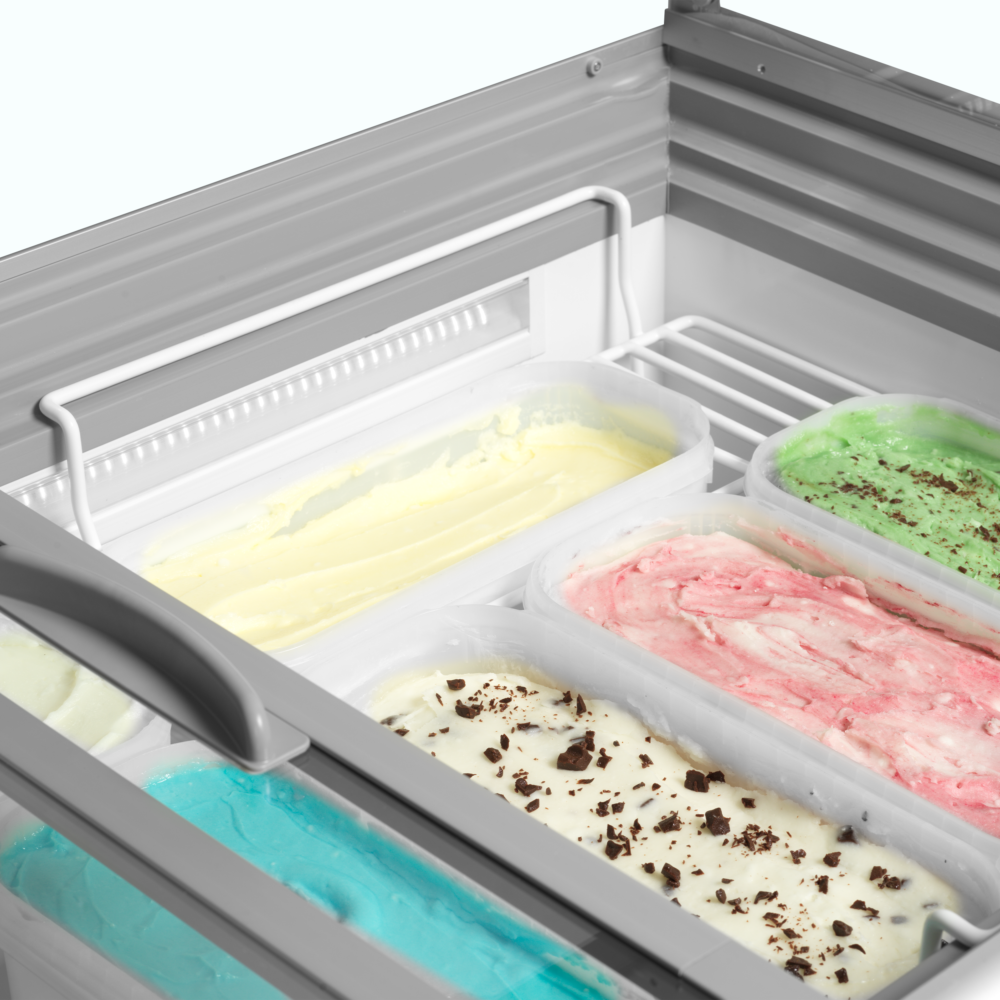

  • Storage under baskets
  • Ideal for branding
  • Internal LED light
  • Strong castors
  • Static cooling

Product description

Static Scoop Ice Cream Freezer

The IDA range are scoop ice cream freezers which provide spacious design, an ideal solution for custom branding. These come at a great competitive price and help you show off your delicious ice-cream flavours and increase sales. Each IDA freezer features flat sliding glass lids, allowing for easy access to ice-cream during serving. This improves insulation of your unit when not in use. Baskets are not included, but are available as accessories.

The TEFCOLD IDA500-W1+ is a scoop ice cream display freezer holding -23 to -16 °C across 1.53 m² of display, with static cooling, R290 refrigerant, a 503-litre gross capacity and energy class D.

SPECIFICATION 45 facts · tap for all External W × D × H1544 x 694 x 1330 mmWidth1544 mmDepth694 mmGross / net weight126 / 119 kgGross weight126 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181752781site
Product code 67582site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 694 mmsite
External (W×D×H) 1544 × 694 × 1330 mmcatalogue
External W × D × H 1544 x 694 x 1330 mmsite
Gross / net weight 126 / 119 kgsite
Gross weight 126 kgcatalogue
Height 1330 mmsite
Internal (W×D×H) 1386 × 536 × 688 mmcatalogue
Internal W × D × H 1386 x 536 x 688 mmsite
Packed (W×D×H) 1590 × 760 × 920 mmcatalogue
Packed W × D × H 1590 x 760 x 920 mmsite
Width 1544 mmsite

Capacity4

Display area 1.53 m²site
Gross volume 503 litrescatalogue
Serving capacity 12 Plastic Tubs (5L)site
Under-counter storage 30 Plastic Tubs (5L)site

Performance10

Climate class 7site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 96 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy6

Annual energy consumption 842 kWh/yearsite
Energy consumption 2.31 kWh/24hsite
Energy efficiency index 38.3 %site
Input power 215 Wsite
Noise level 49 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Wheelssite
Exterior finish White RAL9010site
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The IDA500-W1+ is a scoop ice cream display freezer built to serve and merchandise in one unit. It shows 1.53 m² of product in a clean white RAL9010 finish inside and out, with 503 litres gross and 408 litres net between the display and storage, giving plenty of tubs on show and in reserve.

It holds -23 to -16 °C on static cooling with a mechanical controller, and runs quietly at 49 dB. Defrost is manual, so build a regular defrost into the routine to keep the well clear. The freezer carries energy class D with an EEI of 39.3%, and at its rated 843.1 kWh a year works out at about £211 a year at 25p/kWh.

At 126 kg gross it is a manageable freestanding unit. It draws 215 W on a 220-240 V/50 Hz supply and uses 96 g of R290 natural hydrocarbon refrigerant. Confirm siting and a nearby power point before delivery.

BEFORE YOU BUY

Questions, answered straight

It holds -23 to -16 °C on static cooling, a band suited to scooping ice cream. A mechanical controller manages the temperature.

503 litres gross and 408 litres net between display and storage, across 1.53 m² of display area.

No, defrost is manual, so plan a regular defrost into your routine to keep the well clear of ice build-up.

At its rated 843.1 kWh a year, about £211 a year at 25p/kWh. It carries energy class D with an EEI of 39.3%.

96 g of R290 natural hydrocarbon refrigerant. It draws 215 W on a 220-240 V/50 Hz supply and runs at 49 dB.

Yes. Craven Cooling services commercial refrigeration; call 01792 732702 to arrange servicing or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1386 x 536 x 688 mm
External Dimension (WxDxH): 1544 x 694 x 1330 mm
Packed Dimension (WxDxH): 1590 x 760 x 920 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 96 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.31 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 842 kWh/year m³
EEI: 38.3 %
Input Power: 215 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 49 dB(A)

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 7
Gross / Net Weight: 126 / 119 kg
Gross / Net Volume: 503 / 408 l
Max Ambient: +35°C, 75% RH
Total Display Area: 1.53 m² m²

Design and Material

Serving Capacity: 12 Plastic Tubs (5L)
Storage capacity (under): 30 Plastic Tubs (5L)
Castors: Wheels
Exterior Finish: White RAL9010
Interior Finish: White RAL9010
Interior Light: LED
Lock: No
If you have any questions about the TEFCOLD IDA500-W1+ Scoop Ice Cream Display then please get in touch.
