ISA ISETTA 7LX Scoop Ice Cream Display

£1,974.00

+vat

Brand:

SKU: 20313

Energy Arrow

Product summary

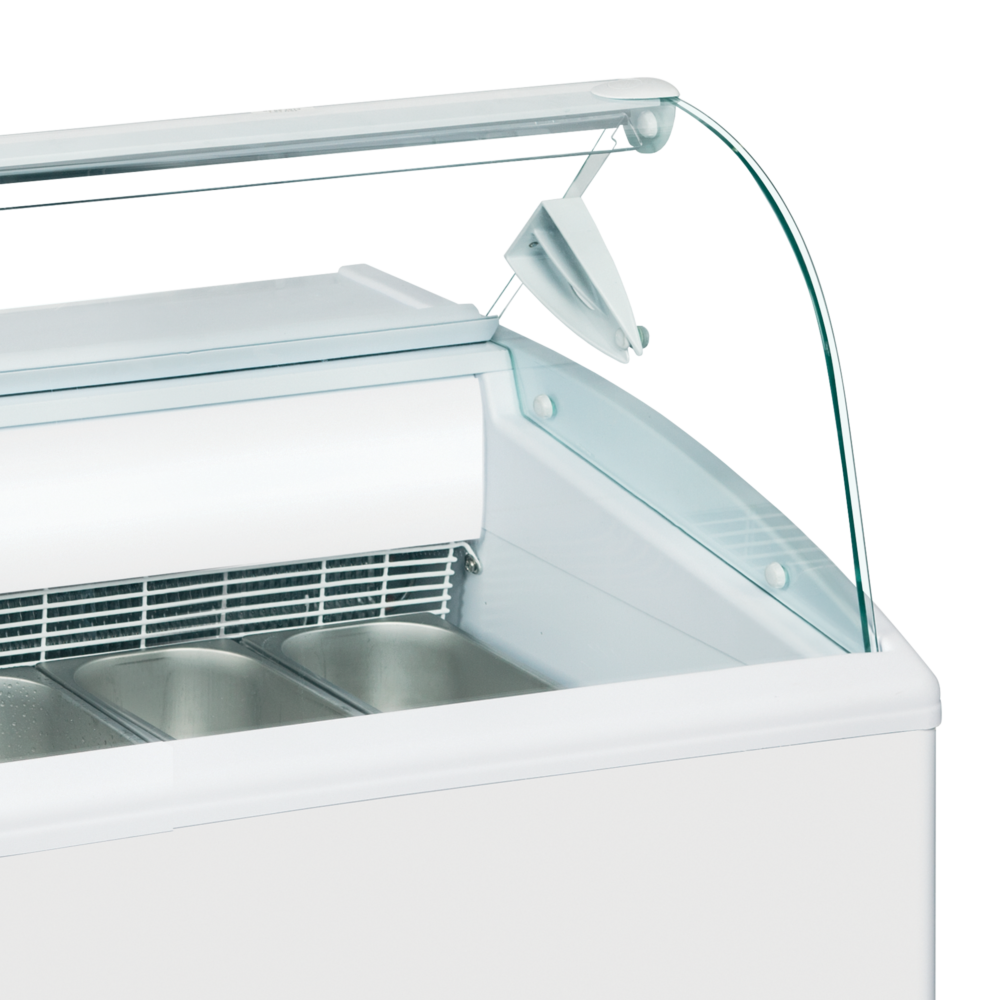

  • Curved glass canopy
  • Lift up rear lid (2 can serve)
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Storage under baskets

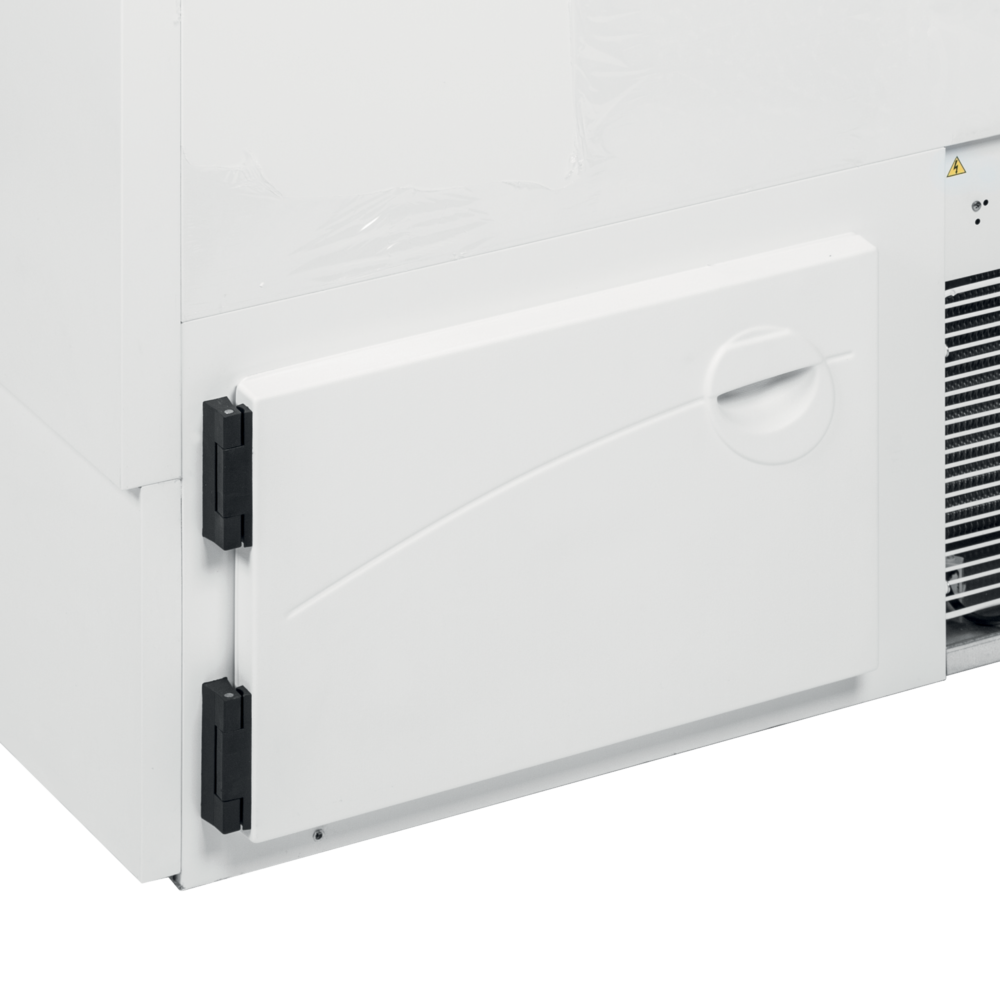

  • Easy access understorage
  • Static cooling
  • Automatic defrost
  • Digital controller and temperature display
  • Castors

Product description

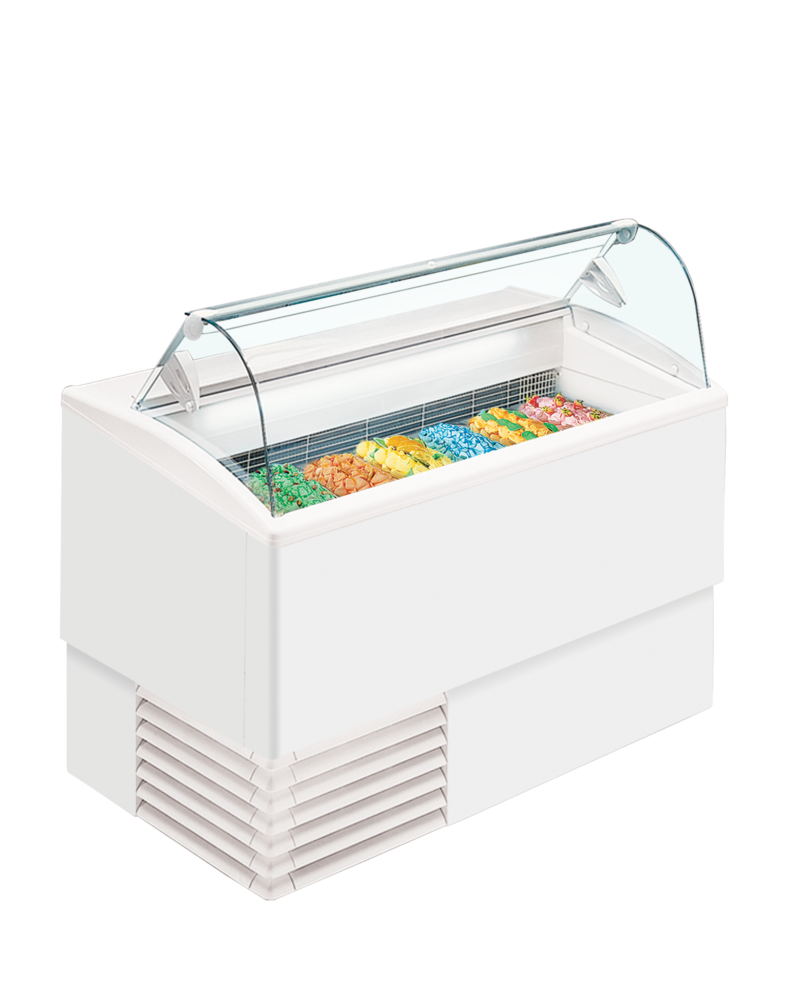

Ice cream display with curved glass canopy

ISA have a superb reputation in the ice cream world for making quality ice cream displays. The Isetta LX comes in 3 different sizes to suit most needs holding between 4 and 7 flavours of ice cream. A curved glass canopy and internal light help create an attractive display and make the most of the ice cream you are selling. Refrigerated under storage can easily be accessed through the rear door (except 4LX).

The ISA ISETTA 7LX is a static-cooled scoop ice cream display freezer that holds a 0.42 m² serving well at -16 to -14 °C, runs from a 13 A supply drawing 820 W, and uses R290 refrigerant with automatic electric defrost.

SPECIFICATION 38 facts · tap for all External W × D × H1354 x 800 x 1176 mmWidth1354 mmDepth800 mmGross / net weight130 / 102 kgGross weight130 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 7026100721213site
Product code 20313site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 800 mmsite
External (W×D×H) 1354 × 800 × 1176 mmcatalogue
External W × D × H 1354 x 800 x 1176 mmsite
Gross / net weight 130 / 102 kgsite
Gross weight 130 kgcatalogue
Height 1176 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1464 × 899 × 1132 mmcatalogue
Packed W × D × H 1464 x 899 x 1132 mmsite
Width 1354 mmsite

Capacity3

Display area 0.42 m²site
Serving capacity / 7 Napoli Pans (5L)site
Under-counter storage / 12 Napoli Pans (5L)site

Performance9

Climate class 4site
Cooling type Staticsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range -16 to -14site
Thermometer Yessite

Power & energy4

Annual energy consumption 2665 kWh/yearsite
Energy consumption 7.3 kWh/24hsite
Input power 820 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The ISETTA 7LX is a floor-standing scoop ice cream display freezer built to put a run of flavours in front of the customer and let the product do the selling. Its 0.42 m² display area gives room to lay out a wide pan spread, and the white exterior and interior keep the focus on the tubs rather than the cabinet. It suits a service point where people choose by sight and expect the ice cream to look freshly filled.

Day to day, the cabinet holds -16 to -14 °C, the working band that keeps scoop ice cream firm enough to portion cleanly without going glassy. Cooling is static and defrost is automatic and electric, so there is no manual defrost cycle to schedule around trading hours. It carries an energy class of B; at the rated 2664.5 kWh a year that works out at about £666 a year at 25p/kWh.

On the electrical side it runs from a standard 13 A supply at 220-240 V, 50 Hz, drawing 820 W, so it does not need a dedicated commercial circuit. Refrigerant is R290 with a 130 g charge, and it is rated to climate class 4. It is a substantial unit at 130 kg gross and 102 kg net, so plan the delivery route and final position before it arrives.

BEFORE YOU BUY

Questions, answered straight

It holds -16 to -14 °C, the band that keeps scoop ice cream firm enough to portion cleanly. Cooling is static and defrost is automatic and electric, so there is no manual defrost to run.

It is energy class B with a rated consumption of 2664.5 kWh a year. At 25p/kWh that is about £666 a year, before any variation for ambient conditions and how often the lid is opened.

It uses R290 with a 130 g charge. R290 is a hydrocarbon refrigerant with a low global warming potential.

A standard 13 A supply at 220-240 V, 50 Hz. The unit draws 820 W, so no dedicated commercial circuit is required.

The display area is 0.42 m², enough to lay out a wide pan spread of flavours for scoop service.

Yes. Craven Cooling can arrange servicing and support — call 01792 732702 to discuss a maintenance visit for the cabinet.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1354 x 800 x 1176 mm
Packed Dimension (WxDxH): 1464 x 899 x 1132 mm

Cooling and Functions

Type of Cooling: Static
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.3 kWh/24h
Temperature Range: -16 to -14 °C
Annual Energy Consumption: 2665 kWh/year m³
Input Power: 820 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -16 to -14 °C
Climate Class: 4
Gross / Net Weight: 130 / 102 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.42 m² m²

Design and Material

Serving Capacity: / 7 Napoli Pans (5L)
Storage capacity (under): / 12 Napoli Pans (5L)
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the ISA ISETTA 7LX Scoop Ice Cream Display then please get in touch.
