ISA ISETTA 4LX Scoop Ice Cream Display

£1,755.00

+vat

Brand:

SKU: 20310

Energy Arrow

Product summary

  • Curved glass canopy
  • Lift up rear lid (2 can serve)
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Storage under baskets
  • Easy access understorage
  • Static cooling
  • Automatic defrost
  • Digital controller and temperature display
  • Castors

Product description

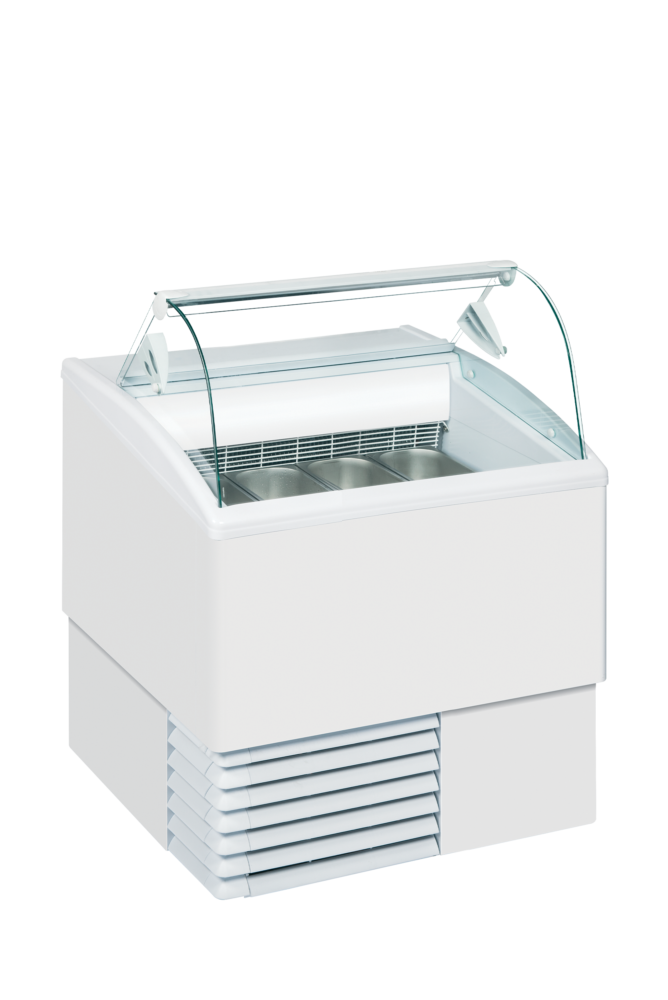

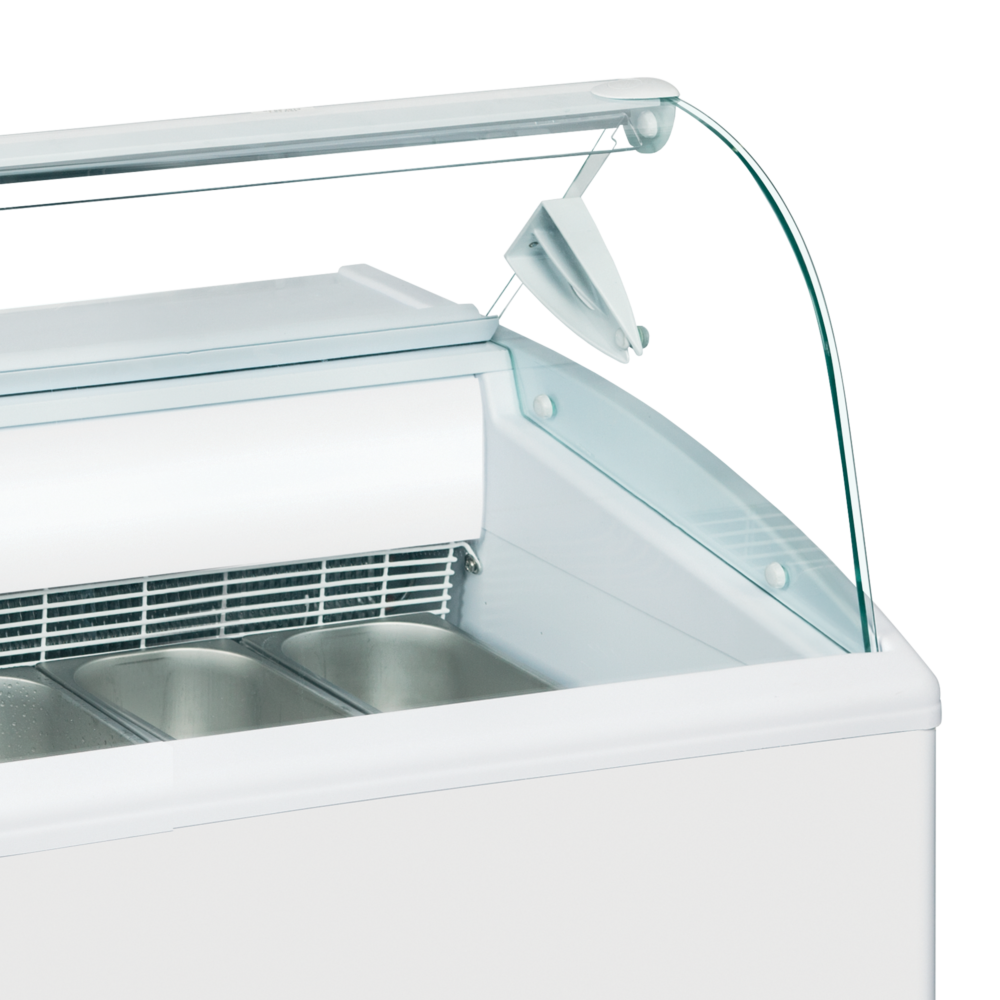

Ice cream display with curved glass canopy

ISA have a superb reputation in the ice cream world for making quality ice cream displays. The Isetta LX comes in 3 different sizes to suit most needs holding between 4 and 7 flavours of ice cream. A curved glass canopy and internal light help create an attractive display and make the most of the ice cream you are selling. Refrigerated under storage can easily be accessed through the rear door (except 4LX).

The ISA ISETTA 4LX is a compact static-cooled scoop ice cream display freezer that holds product at -16 to -14 °C across a 0.24 m² display area, runs on a standard 13 A supply with natural R290 refrigerant, and carries an energy class B rating.

SPECIFICATION 38 facts · tap for all External W × D × H824 x 760 x 1176 mmWidth824 mmDepth760 mmGross / net weight87 / 69 kgGross weight87 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 7026100421200site
Product code 20310site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 760 mmsite
External (W×D×H) 824 × 760 × 1176 mmcatalogue
External W × D × H 824 x 760 x 1176 mmsite
Gross / net weight 87 / 69 kgsite
Gross weight 87 kgcatalogue
Height 1176 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 934 × 879 × 1132 mmcatalogue
Packed W × D × H 934 x 879 x 1132 mmsite
Width 824 mmsite

Capacity3

Display area 0.24 m²site
Serving capacity / 4 Napoli Pans (5L)site
Under-counter storage / No Under Storagesite

Performance9

Climate class 4site
Cooling type Staticsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 90 gsite
Temperature range -16 to -14site
Thermometer Yessite

Power & energy4

Annual energy consumption 2062 kWh/yearsite
Energy consumption 5.65 kWh/24hsite
Input power 810 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The ISA ISETTA 4LX is a compact scoop ice cream display freezer built to present and serve loose ice cream from a front-of-house position. Its 0.24 m² display area suits smaller counters where you want the product visible and scooping to order, without committing floor space to a large cabinet. Finished in white inside and out, it reads clean against most counter setups.

Day to day, the cabinet holds -16 to -14 °C using static cooling, with automatic electric defrost handling frost build-up so staff do not have to. It is rated to climate class 4 and carries an energy class B label. At the verified figure of 2062.2 kWh a year, that works out at about £516 a year at 25p/kWh — worth factoring in before you decide how many hours a day it runs.

On the build side, the 4LX plugs into a standard 13 A socket and draws 810 W at 220-240 V/50 Hz, so no special electrical work is needed for most sites. It uses natural R290 refrigerant with a 90 g charge. Empty net weight is 69 kg (87 kg gross), which one or two people can position on delivery.

BEFORE YOU BUY

Questions, answered straight

It runs at -16 to -14 °C using static cooling, which suits displaying and serving scoop ice cream. Automatic electric defrost manages frost build-up without manual intervention.

The verified energy figure is 2062.2 kWh a year, which is about £516 a year at 25p/kWh. It carries an energy class B label. Your actual cost depends on your tariff and how many hours a day it runs.

It plugs into a standard 13 A socket and draws 810 W at 220-240 V/50 Hz. No special electrical installation is needed on most sites.

It uses natural R290 refrigerant with a 90 g charge. R290 is a hydrocarbon refrigerant with a low global warming potential.

Net weight is 69 kg and gross weight is 87 kg. That is a one- or two-person lift into place on delivery.

Yes. Craven Cooling can arrange servicing and support — call the team on 01792 732702 to talk it through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 824 x 760 x 1176 mm
Packed Dimension (WxDxH): 934 x 879 x 1132 mm

Cooling and Functions

Type of Cooling: Static
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.65 kWh/24h
Temperature Range: -16 to -14 °C
Annual Energy Consumption: 2062 kWh/year m³
Input Power: 810 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -16 to -14 °C
Climate Class: 4
Gross / Net Weight: 87 / 69 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.24 m² m²

Design and Material

Serving Capacity: / 4 Napoli Pans (5L)
Storage capacity (under): / No Under Storage
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the ISA ISETTA 4LX Scoop Ice Cream Display then please get in touch.
