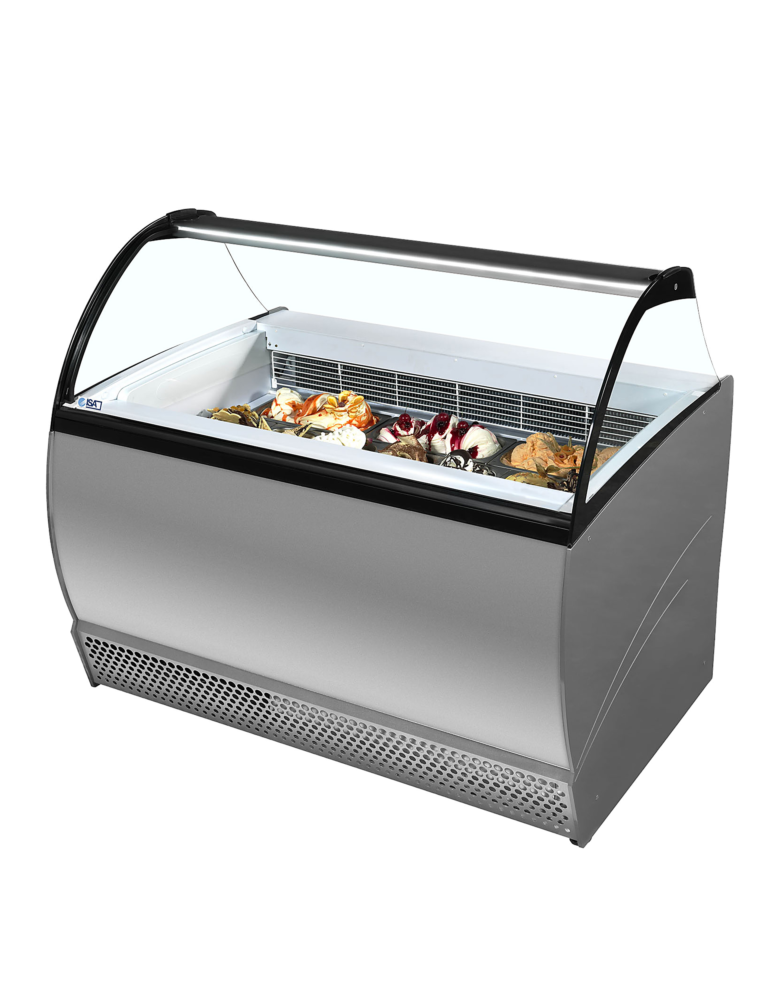

ISA ISABELLA 10LX Scoop Ice Cream Display

£3,207.00

+vat

Brand:

SKU: 20306

Energy Arrow

Product summary

  • Fully automatic
  • Curved glass canopy
  • Accepts Napoli pans (not supplied)
  • Static cooling
  • LED interior light with switch
  • Easy access understorage
  • Digital controller and temperature display
  • Rear night curtain to maintain temperature
  • Castors

Product description

10 scoop static cooled display with understorage

The Isabella range is a spacious ice cream scooping cabinet with 10 or 13 pan options. Its curved glass design creates an eye catching display that delights your customers, and the rear serving shelf is perfect for fast service. With built-in refrigerated under storage, you can easily restock the display with fresh ice cream in busy periods without leaving the cabinet. The cabinet comes with castors as standard for easy mobility and an internal LED light showcases your gelato or ice cream in the best possible light.


The ISA Isabella 10LX is a compact scoop ice cream display freezer that holds product at -16 to -14 °C across a 0.59 m² display area, running on a standard 13 A supply with a grey exterior, white interior and R290 refrigerant.

SPECIFICATION 39 facts · tap for all External W × D × H1317 x 906 x 1372 mmWidth1317 mmDepth906 mmGross / net weight155 / 132 kgGross weight155 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 7025101021004site
Product code 20306site
Sub title Scoop Ice Cream Displaycatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 906 mmsite
External (W×D×H) 1317 × 906 × 1372 mmcatalogue
External W × D × H 1317 x 906 x 1372 mmsite
Gross / net weight 155 / 132 kgsite
Gross weight 155 kgcatalogue
Height 1372 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1418 × 978 × 1450 mmcatalogue
Packed W × D × H 1418 x 978 x 1450 mmsite
Width 1317 mmsite

Capacity2

Display area 0.59 m²site
Serving capacity / 10 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic, hot gassite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range -16 to -14site
Thermometer Yessite

Power & energy5

Annual energy consumption 3504 kWh/yearsite
Energy consumption 9.6 kWh/24hsite
Input power 550 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Greysite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The ISA Isabella 10LX is a compact scoop ice cream display freezer for counters where floor space is tight but you still want product on show. Its 0.59 m² of display area presents tubs behind glass at the front of house, so customers choose by sight before you scoop. The grey exterior and white interior suit a café, deli or kiosk, and the small footprint drops into a serving line without taking over the counter.

The cabinet holds -16 to -14 °C, keeping scoopable ice cream firm and ready to serve. Static cooling and automatic hot gas defrost run the unit steadily under an electronic controller, clearing frost without a manual shutdown. It carries a C energy rating and runs at 54 dB, quiet enough for a compact serving area. On verified consumption of 3,504 kWh a year, that is about £876 a year at 25p/kWh.

The Isabella 10LX measures 1317 × 906 × 1372 mm (W×D×H); packed it is 1418 × 978 × 1450 mm, so it passes through most standard doorways — measure your route to be sure. It runs from a standard 13 A supply at 220–240 V and cools with R290 refrigerant. It is rated to climate class 4. Net weight is 132 kg, making it easier to position than a full-length cabinet.

BEFORE YOU BUY

Questions, answered straight

It runs at -16 to -14 °C, keeping scoopable ice cream firm and ready to serve. An electronic controller holds the setting through the day.

On verified consumption of 3,504 kWh a year, that is roughly £876 a year at 25p/kWh. It carries a C energy rating. Your actual cost depends on your tariff and how hard the cabinet works.

The cabinet is 1317 × 906 × 1372 mm (W×D×H) and ships packed at 1418 × 978 × 1450 mm, so it clears most standard doorways. Measure your access route before delivery to confirm.

A standard 13 A supply at 220–240 V, so it plugs into an ordinary socket. Give it its own socket rather than sharing a busy circuit.

It runs at 54 dB, which suits a compact serving area where staff and customers are close by. Static cooling keeps the running steady.

It uses R290 refrigerant with static cooling and automatic hot gas defrost. For servicing, spares or installation advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1317 x 906 x 1372 mm
Packed Dimension (WxDxH): 1418 x 978 x 1450 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 9.6 kWh/24h
Temperature Range: -16 to -14 °C
Annual Energy Consumption: 3504 kWh/year m³
Input Power: 550 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: -16 to -14 °C
Climate Class: 4
Gross / Net Weight: 155 / 132 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.59 m² m²

Design and Material

Serving Capacity: / 10 Napoli Pans (5L)
Storage capacity (under): / 10 Napoli Pans (5L)
Exterior Finish: Grey
Interior Finish: Grey
Interior Light: LED
If you have any questions about the ISA ISABELLA 10LX Scoop Ice Cream Display then please get in touch.
