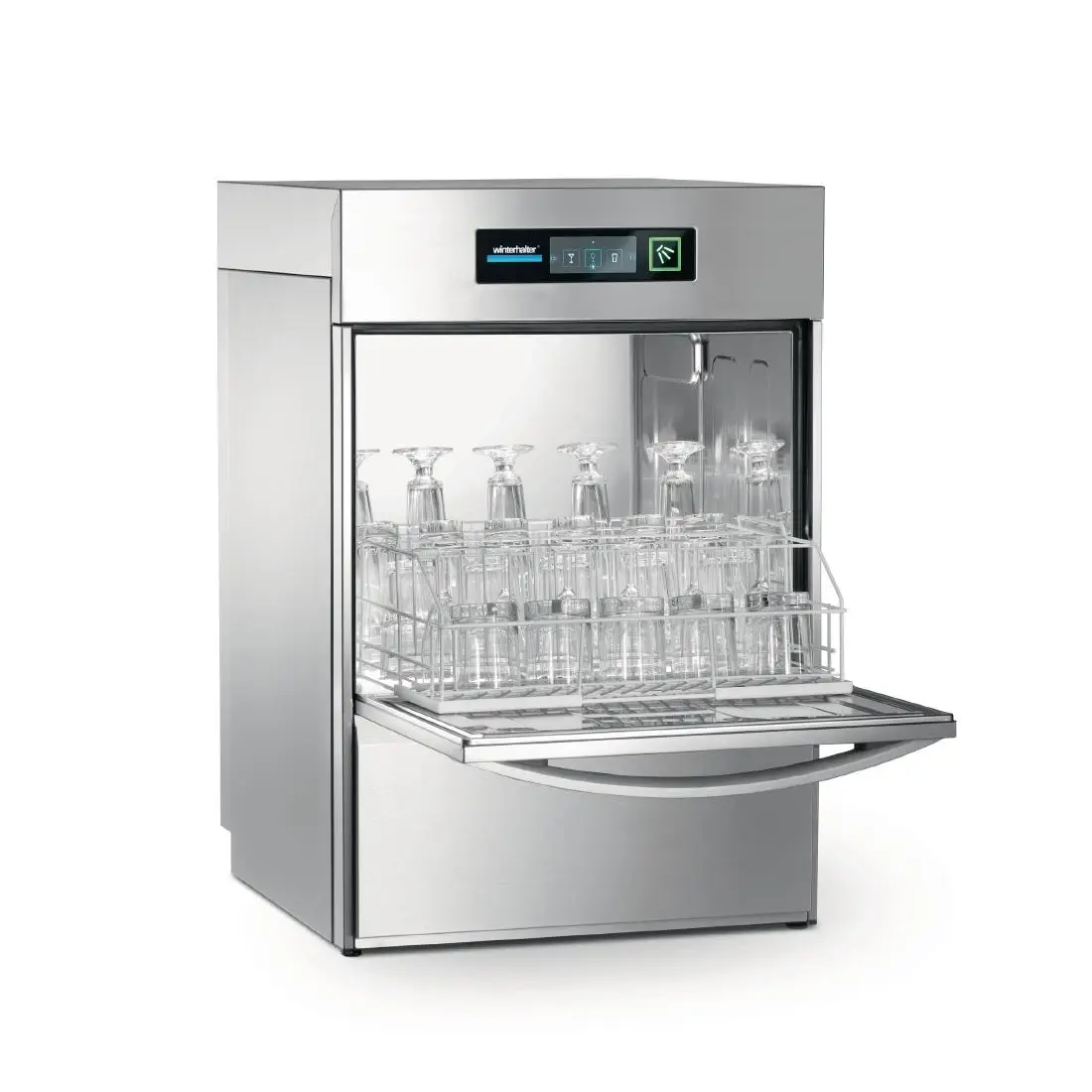

Winterhalter Undercounter Glasswasher UC-XL-E-Energy FC652

£8,549.13

+vat

Availability: 999 in stock

SKU: FC652

Product summary

Energy saving. With drain pump and water softener

Product description

Undercounter glass and dishwashing machines which are economical and easy to operate. Winterhalter UC machines come in four different sizes and are determined by the space onsite and the size of the items being washed (see spec). Wash arms removable for easy cleaning. Energy feature models have an integral air heat recovery system, which uses the steam produced in the washing process to heat up the incoming cold water supply, reducing running costs and improving room atmosphere. Supplied single phase as standard, three-phase available on request.

Useable wash chamber height: 404mm
Up to three programmable wash cycles
Self-cleaning programme ensures maximum hygiene
Highly efficient and designed to significantly reduce water and energy use. Innovative heat exchange saves around 100W per cycle
Precise detergent & rinse aid dosing optimises washes
VarioPower technology adjusts rinse pressure to maximise performance
Minimum requirement of 1.5 bar incoming water pressure
Made in Germany
Quiet mode reduces operating noise
Intuitive Smart Touch digital control panel and display
WRAS compliant air gap

Winterhalter Undercounter Glasswasher UC-XL-E-Energy FC652

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The Winterhalter UC-XL-E-Energy FC652 is part of the UC undercounter range, built for glass and dishwashing where the machine size has to match the site space and the items being washed. This XL Energy model is listed at 895mm high, 600mm wide and 656mm deep, with an 86kg gross weight.

The Energy feature is the key difference stated in the source material: an integral air heat recovery system uses steam produced during washing to heat the incoming cold water supply. Winterhalter describes that as reducing running costs and improving the room atmosphere, useful when the machine is installed under a bar, counter or servery.

Capacity is stated as 32 glass racks or 28 dish racks per hour, with headline output of 860 glasses or 542 plates per hour. The listed temperature range is +40 to +66°C, and the machine includes a drain pump for pumped waste connection.

DELIVERY FITSTATED GEOMETRY

Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 656 × 895 mmstated W × D × H86 kg

THE CRITICAL ANSWERNarrowest straight opening600mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS895 mmCheck corners and landings

YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

Clear widthmmClear heightmm

This checks straight stated geometry only.

FINANCE

Finance from£46.36per month · at £2,000 order value

Weekly equivalent£10.70ex VAT

Initial payment£46.36then 59 monthly payments

Finance detailsView the full breakdown

Configured product total£1,873.00 ex VAT

Cost of finance£781.60

Total over 5 years£2,781.60

Cash kept after initial payment£1,953.64

Payments1 + 59

Payment profile 1+59Rate / £1,000 23.18

Confirm this finance →Finance illustration begins at the workbook’s £2,000 ex-VAT order minimum. Add a warranty or service to see the configured total update.

BUILT FORWhere this machine earns its place.

WHO BUYS IT

Wash-up and laundry rooms across commercial kitchens and sites.

Pubs & bars

Energy heat recovery for undercounter glasswashing where room atmosphere matters

32 glass racks/ 28 dish racks/hr

Clubs & venues

up to 860 glasses per hour from a drain-pump UC glasswasher

variable

Restaurants

one undercounter machine specified for both glass racks and dish racks

3 years on-site parts & labour

Hotels

895 x 600 x 656mm silver unit with single phase standard and three phase by request

service-pace

Explore all 20 sectors ↗

THE WASH-UP LINE31 PRODUCTS

Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

Combisteel DRAIN PUMP FOR GLASS WASHER A£—

SL GLASS WASHER 350 DP WITH DRAIN PUMP £—

Combisteel SL GLASS WASHER 350 DP DDE I£—

SL DISHWASHER FRONTLOADER 500-230 7280.0£—

Combisteel SL DISHWASHER FRONTLOADER 503£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

Combisteel DRAIN PUMP FOR PASS-THROUGH D£—

Combisteel PL PASS-THROUGH DISHWASHER 40£—

PL PASS-THROUGH DISHWASHER 30 PRSE 7280.£—

Combisteel PL PASS-THROUGH DISHWASHER 30£—

Combisteel PL RACK CONVEYOR DISHWASHER£—

PL RACK CONVEYOR DISHWASHER CD 7280.0090£—

Combisteel PL RACK CONVEYOR DISHWASHER A£—

PL RACK CONVEYOR DISHWASHER ASC CD 7280.£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel SL DISHWASHER FRONTLOADER 500£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

Combisteel GLASS WASHER ENT 400-230£—

GLASS WASHER ENT 400-230 DDE WITH DETE£—

Combisteel GLASS WASHER ENT 400-230 DP D£—

DISHWASHER FRONTLOADER ENT 500-230 7082.£—

DISHWASHER FRONTLOADER ENT 500-230 DP £—

DISHWASHER FRONTLOADER ENT 500-230 DP DD£—

PASS-THROUGH DISHWASHER ENT 400 7082.007£—

Combisteel PASS-THROUGH DISHWASHER ENT 4£—YOU'RE HERE

Winterhalter Undercounter Glasswasher UC£—

BEFORE YOU BUY

Questions, answered straight

What does "Energy" add on the UC-XL-E-Energy?+

An integral air heat recovery system that uses steam from the washing process to heat the incoming cold water supply, reducing running costs and improving the room atmosphere.

What's the throughput?+

32 glass racks or 28 dish racks per hour, with listed output of 860 glasses or 542 plates per hour.

What's the wash temperature range?+

The listed temperature range is +40 to +66°C.

What are the dimensions?+

895mm high, 600mm wide and 656mm deep.

How much does it weigh?+

86kg gross.

What's the warranty?+

3 years on-site parts and labour.

The numbers that decide it

Service pace

Output per hour	860 glasses/hr or 542 plates/hr
Basket size	500(W) x 540(D)mm

Water & tank

Drainage

Drain Pump

Chamber & baskets

Capacity

32 glass racks/ 28 dish racks/hr

Power & supply

Voltage	Variable
Fuel type	Single or Three Phase

Format & size

External (W×D×H)	895 × 600 × 656 mm
Width	600 mm
Depth	656 mm
Height	895 mm
Gross weight	86 kg

Build

Colour	Silver
Colour code	Silver

Identifiers

GTIN / EAN	FB775
Brand	Winterhalter
Warranty	3 Years On-Site Parts & Labour
Type	Glasswashers
Range / series	Glasswashers
Extended warranty	3 Years On-Site Parts & Labour
Supplier ref	FC652
Supplier name	Uropa

Safety

Electrical safety notice

Yes

In use

Suitable for

Dishwashers

Performance

Temperature range

+40 to +66 °C

KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

THIS PRODUCT'S QUESTIONDishwasher selectorLoad type and peak racks/hour in — the right machine out.Open the tool →

COUNT THE REAL COSTTrue-cost calculatorHand washing vs machine — labour, water and chemicals compared.Open the tool →

Cleaning schedule generator illustration

YOUR SCHEDULECleaning schedule generatorPrintable HACCP cleaning rotas for the whole kitchen.Open the tool →

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

01792 732702 Browse the range

Winterhalter Undercounter Glasswasher UC-XL-E-Energy FC652 Product Data

Brand	Winterhalter
Type	Glasswashers
Dimensions	895(H) x 600(W) x 656(D)mm
Capacity	32 glass racks/ 28 dish racks/hr
Colour / Finish	Silver
Temperature Range	Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
Power	20A single phase as standard. Please inform us when ordering if you require 3 phase
Voltage	Variable
Fuel / Supply	Single or Three Phase
Suitable For	Dishwashers
Warranty	3 Years On-Site Parts & Labour
Weight	86kg
Manufacturer Ref	UC-XL-E-ENERGY

If you have any questions about the Winterhalter Undercounter Glasswasher UC-XL-E-Energy FC652 then please get in touch.
