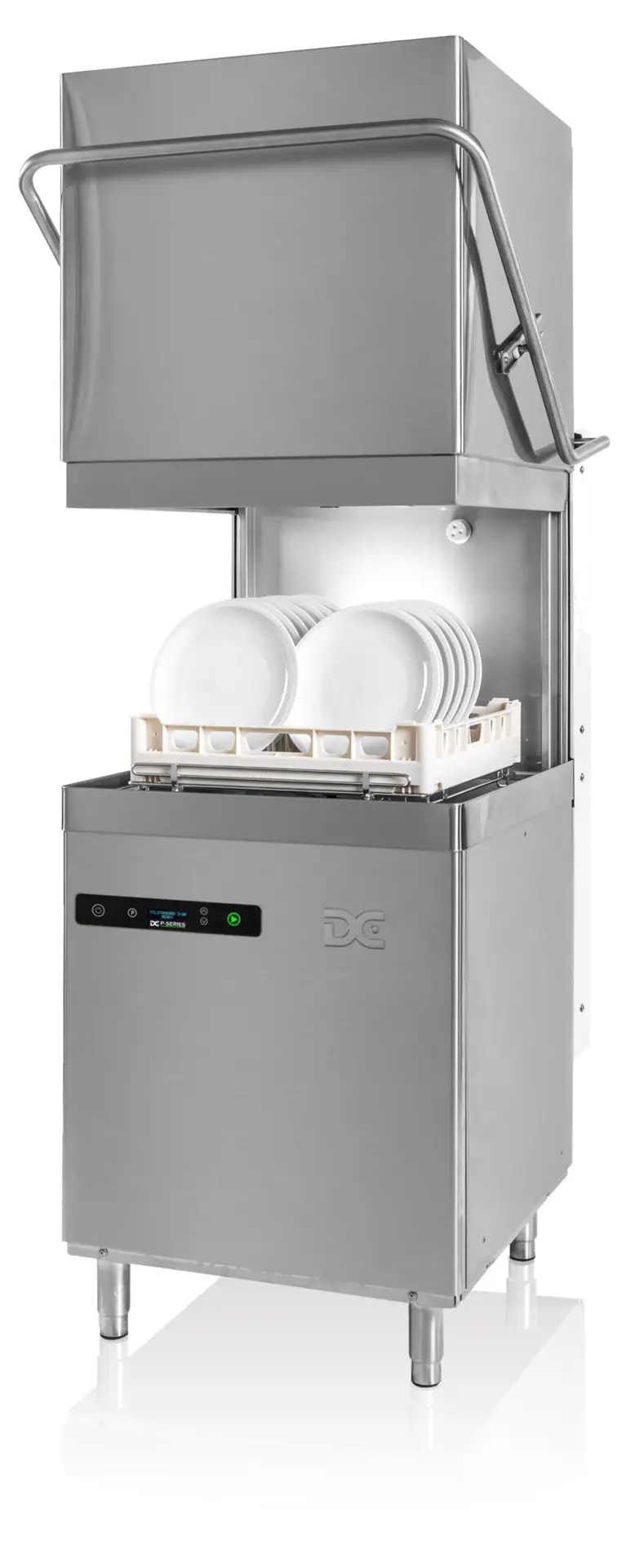

DC PD1300A CP Premium Dishwashers – passthrough 500×500

£3,234.00

+vat

- +

Brand:

SKU: PD1300A CP

Product summary

Product description

LCD display, soft touch controls, four fixed cycles & one adjustable My Wash cycle, colour status button, audio status indicator, selectable stand-by mode & thermo-lock, real time temperature read outs, previous cycle temperature display (for logging), information/fault logs, engineer diagnostic mode, heavy-duty wash pump, increased wash arms, superior peristaltic auto-dosing units (when fitted can be adjusted via control panel), heavy duty wash pump, double skinned hood, low water usage, three baskets, drain pump, integral softener, break tank.

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The PD1300A CP steps up from the base model with an integral softener built in, which means hard water isn't going to wreck your results or drain your chemical budget. If your water is above 200 ppm hardness, this softener earns its keep immediately — you get cleaner ware, better detergent efficiency, and the operator doesn't have to babysit external softening units.

The wash logic is identical to the base: heavy-duty pump, increased wash arms, four fixed cycles plus one tunable My Wash cycle. Four fixed cycles keep the rhythm steady for your standard work. The adjustable cycle lets you dial down for delicate glassware or light loads, or dial up for heavily soiled platters. The peristaltic auto-dosing units scale with your cycle choice, and you can tweak the chemical dose right from the control panel.

The real-time temperature display and previous-cycle logging are built in — one of the key compliance wins. Every wash is recorded with its actual temperature, so audits aren't guesswork. The colour status button and audio indicator keep pace visible without staring, and the thermo-lock stand-by mode holds temperature between services without waste.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

655 × 770 × 1500 mmstated W × D × H
THE CRITICAL ANSWERNarrowest straight opening655mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1500 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

THE WASH-UP LINE31 PRODUCTS
Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

BEFORE YOU BUY

Questions, answered straight

The PD1300A CP adds an integral water softener, which removes hardness minerals that cause spotting and scale. If your water hardness is moderate to high, this pays for itself in detergent savings and ware longevity.

Yes, like any softener, it needs regeneration. Our service team handles that — ring 01792 732702 to set up a maintenance schedule. The machine logs the regeneration cycles, so you'll know when it's due.

Every cycle records and displays the actual rinse temperature, proving that your wash met food-hygiene standards. If an inspector questions your protocol, you have the proof built into the machine instead of relying on paper logs.

The peristaltic auto-dosing units work with both, as long as you set the concentration correctly via the control panel. Our team can advise you on the best detergent type for your water and soil profile.

Like the base model, 40 baskets per hour. Your actual throughput depends on cycle choice and load weight — the adjustable My Wash cycle lets you trade speed for thoroughness if a service calls for it.

The integral drain pump moves water out reliably under its own power, rather than relying on gravity or external drainage. That means you have flexibility in siting the machine and you're not fighting water backing up during the cycle.

The numbers that decide it

Service pace

Basket size 500×500
Cycle times s 90 120 180 300 User Defined
Placeapacity 18

Water & tank

Water per cycle 2.6 L litres
Water pressure min 2-4 bar (28-56 psi)
Water flow min 10 l/min
Wash tank 28 L
Boilerapacity 5 L

Chamber & baskets

Wash height 400 mm
Supplied baskets 1 Dish, 1 Cup, 1 Cutlery

Power & supply

Power supply 32 amp
Totaload 6.75 kW
Wash element 3 kW
Rinse element 6 kW

Format & size

External (W×D×H) 655 × 770 × 1500 mm
Width 655 mm
Depth 770 mm
Height 1500 mm

Build

Double skinned Yes
Filterount 3

Identifiers

Brand DC
Type Commercial Dishwashers
Supplier ref PD1300A CP
Supplier name DC Feed
Drain outlet height 410 mm
KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC PD1300A CP Premium Dishwashers – passthrough 500×500 Product Data

Dimensions (W×D×H) 655 × 770 × 1500 mm
Power supply 32 amp
Basket size 500×500
Capacity (dishes/glasses) 18
Cycle times 90 120 180 300 User Defined
Usable wash height 400 mm
Wash tank capacity 28 L
Boiler 5 L
Water consumption 2.6 L
Wash element 3 kW
Rinse element 6 kW
Total load 6.75 kW
Double skinned Yes
Filters 3
Supplied baskets/racks 1 Dish, 1 Cup, 1 Cutlery
Min. flow rate 10 l/min
Min. water pressure 2-4 bar (28-56 psi)
Drain outlet height 410 mm
If you have any questions about the DC PD1300A CP Premium Dishwashers – passthrough 500×500 then please get in touch.
