Falcon Chieftain 4 Well Heated Servery Counter HS4 GM190

£3,634.60

+vat

Availability: 999 in stock

Brand:

SKU: GM190

Product summary

Width: 1750mm. Capacity: 4x GN 1/1

Product description

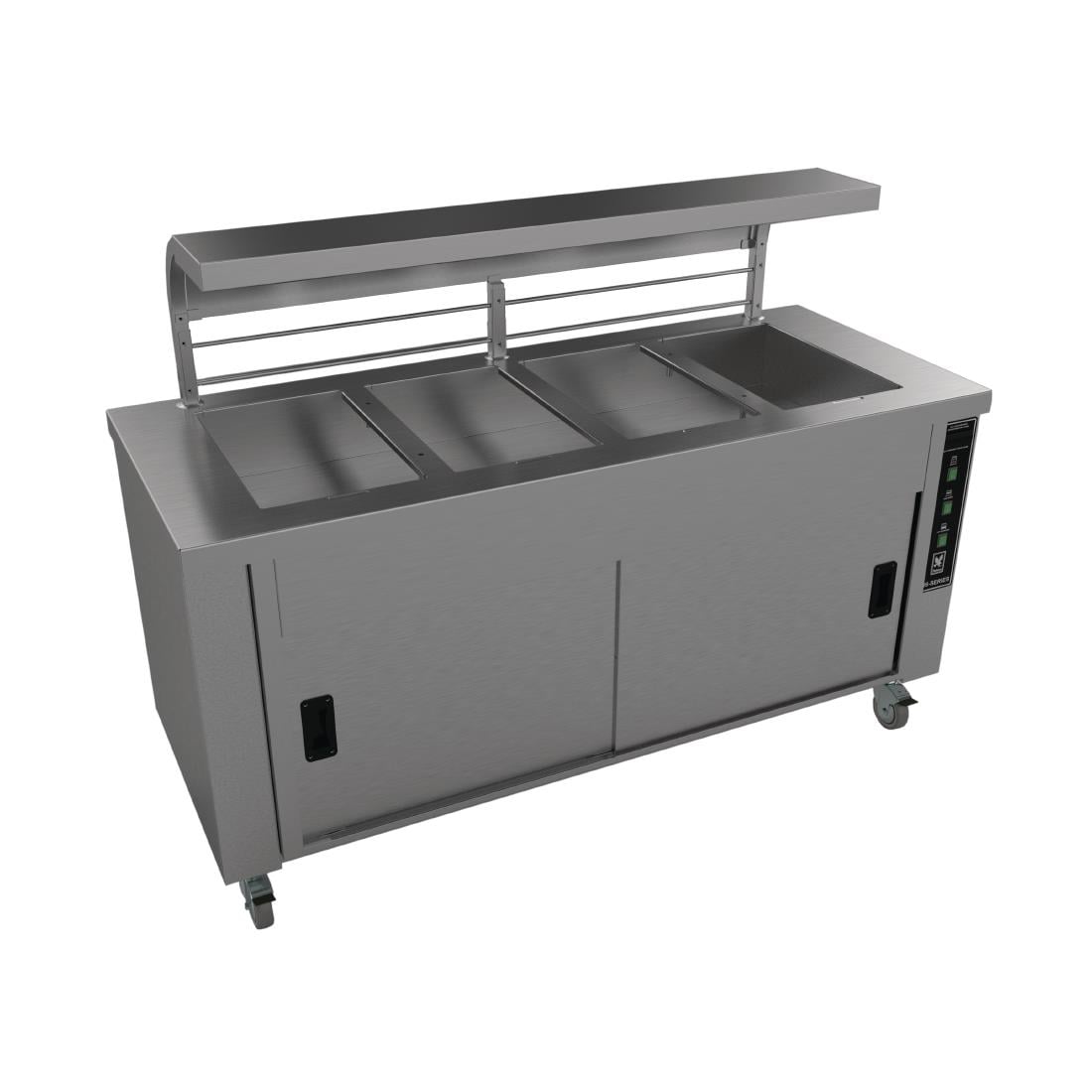

The four well HS4 servery counter with gantry is designed to provide excellent service in even the harshest of environments. Each dry well is heated with independent elements and can accommodate 1/1 gastronorm compatible trays up to 150mm deep. Separating panels to prevent cross-contamination are supplied as standard. Smooth-glide, reversible sliding doors provide easy access to the holding area. Grid protected quartz lamps are fitted to the overhead gantry as standard.

Servery well control preset to 88°C to provide consistent performance
Wells are 1/1 gastronorm compatible so trays can be taken straight from the oven
Overhead gantry is fitted with grid-protected quartz lamps to provide additional heat and light
Hot cupboard below bain marie maintains additional foodstuff at serving temperature
High quality insulation retains heat and reduces energy costs
High performance elements in each well ensures consistent heat distribution
Separating panels which prevents cross contamination are supplied as standard

A large four-well heated servery counter with overhead gantry and quartz lamps, built to hold four 1/1 gastronorm trays with independent heating and food-safe compartment separation.

Downloads

SPECIFICATION 22 facts · tap for all Width1700 mmHeight1270 mmGross weight144 kgVoltage400V (3-phase)Temperature range+30 to +120 °CCapacity4 wells (4 x 1/1 GN)

Identity7

Brand Falconsite
Extended warranty 1 Year Parts Onlycatalogue
Product code GM190site
Range / series Chieftaincatalogue
Seo name Falcon Chieftain 4 Well Heated Servery Countercatalogue
Type Hot Cupboardscatalogue
Warranty 2 Year Parts & Labour (Commercial Only)catalogue

Size & weight5

Depth 700 mmcatalogue
External (W×D×H) 1270 × 1700 × 700 mmcatalogue
Gross weight 144 kgcatalogue
Height 1270 mmcatalogue
Width 1700 mmsite

Capacity2

Capacity 4 wells (4 x 1/1 GN)catalogue
Gastronorm size 1/1 GN fullcatalogue

Performance1

Temperature range +30 to +120 °Ccatalogue

Power & energy3

Fuel type Electric, 32A supply; requires hardwiring to mainscatalogue
Rated input 4400 Wcatalogue
Voltage 400V (3-phase)catalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Mobility Castorscatalogue
THE WORKING VIEW

Why this hot cupboard earns its place

The Falcon Chieftain HS4 is engineered for the demands of high-volume service. It's a statement piece on the servery line—1700 mm wide, 1270 mm tall, and weighing 144 kg. This is substantial equipment, designed to anchor a busy serving area where you're running plated meals or serving banquets. The four independent heated wells sit side by side, each capable of holding a full-size 1/1 gastronorm tray up to 150 mm deep, and each with its own heating element so you control the temperature of each section independently.

The overhead gantry comes fitted with grid-protected quartz lamps as standard—protective grids prevent accidental contact while delivering the radiant heat that keeps food visible and appetising. Separating panels between wells prevent cross-contamination, critical in any serious kitchen operation. Smooth-glide reversible sliding doors on the holding area give your team easy access without reaching over hot surfaces or disrupting the front-of-house appearance.

This is a piece of furniture built for durability. All stainless steel construction inside and out, mounted on castors for mobility. The two-year warranty covers parts and labour on a unit that's designed to work across a full service cycle without drama.

BEFORE YOU BUY

Questions, answered straight

Yes—that's the whole design. Each well has an independent heating element, so you might run one at 75°C for roasted vegetables while another holds gravy at 80°C and another keeps plated meals warm at 65°C. You control each one.

Each well accommodates a 1/1 gastronorm container (530 × 325 mm) up to 150 mm deep. That's your standard catering tray size. Four wells give you 4 × 1/1 GN capacity total.

The separating panels prevent food spillage, steam, and flavour bleed between wells. Critical if you're running allergen-free meals, dietary variants, or keeping gravy separate from veg.

The lamps have protective grids fitted as standard. They prevent direct contact, but remind your team that the whole gantry is hot during service. Standard commercial kitchen safety applies.

Electrical safety notice applies (yes, it has one), so it needs a proper grounded outlet. It's plug-in—no water supply needed. For specifics on your installation, contact 01792

The Chieftain sits on castors, so it's mobile within a kitchen or venue. Once in position, check that the ground is level (it's a heavy unit at 144 kg) and that your electrical outlet is in reach. No plumbing or permanent installation required.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Falcon Chieftain 4 Well Heated Servery Counter HS4 GM190 Product Data

Brand Falcon
Type Hot Cupboards
Dimensions 1270(H) x 1700(W) x 700(D)mm
Capacity 4 wells (4 x 1/1 GN)
Material Stainless Steel
Colour / Finish Silver
Temperature Range 30 – 120°C
Voltage 400V (3-phase)
Fuel / Supply Electric, 32A supply; requires hardwiring to mains
Warranty 2 Year Parts & Labour (Commercial Only)
Weight 144kg
Manufacturer Ref HS4
If you have any questions about the Falcon Chieftain 4 Well Heated Servery Counter HS4 GM190 then please get in touch.
