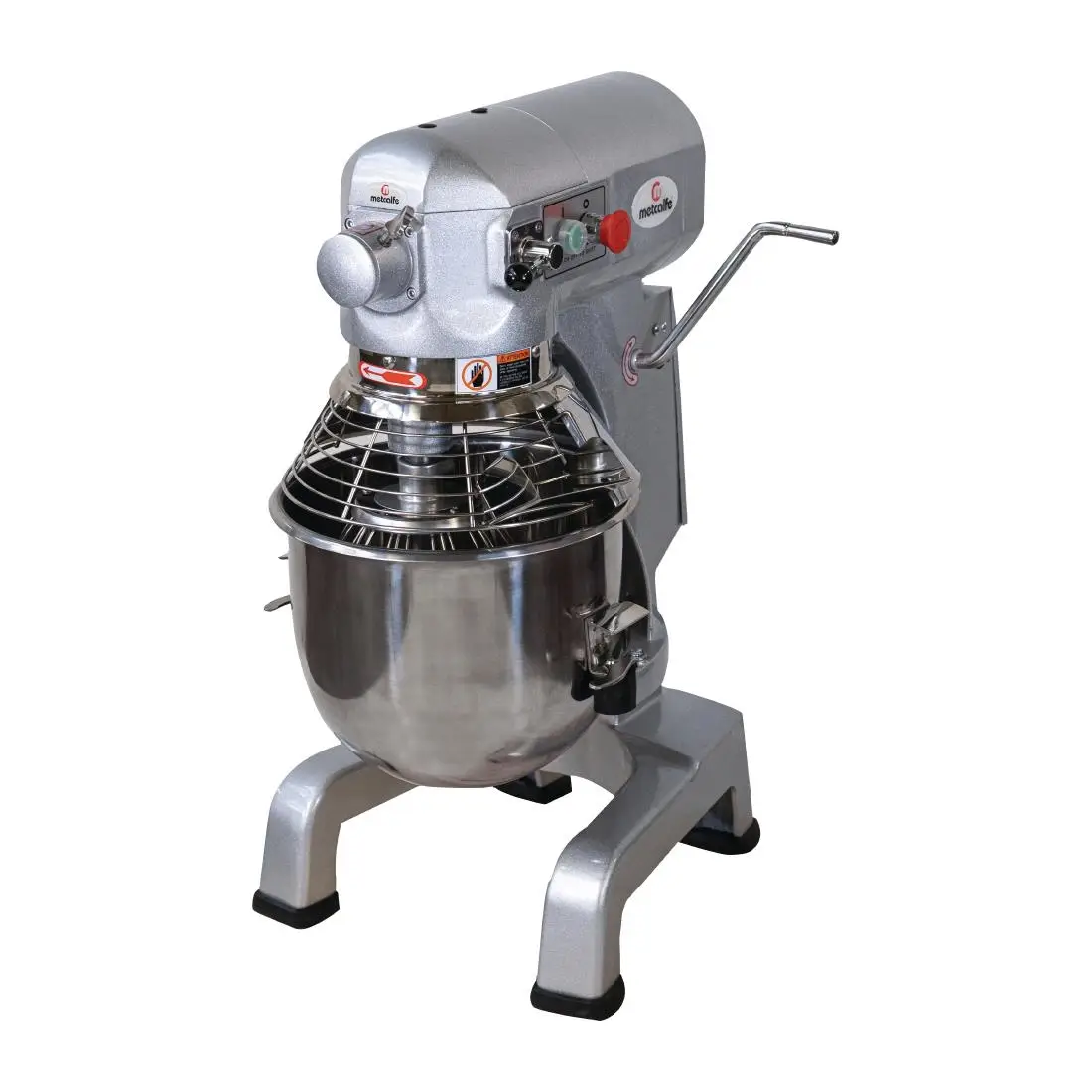

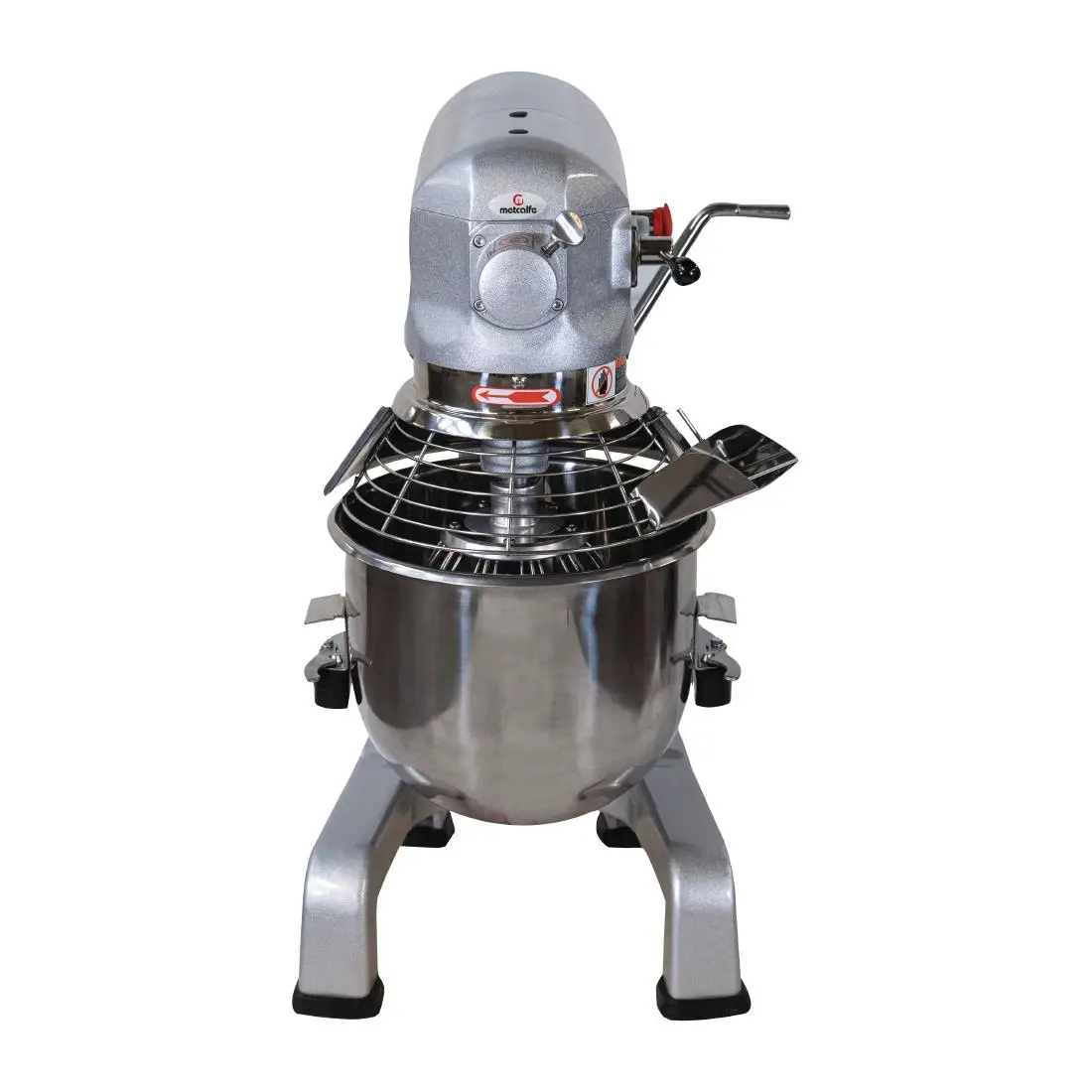

Metcalfe 20Ltr Planetary Mixer MP20 Bench Mounted Single Phase FT913

£2,512.17

+vat

Availability: 999 in stock

- +

Brand:

SKU: FT913

Product summary

Capacity: 20Ltr. 375W. Bench Mounted. Single Phase

Product description

The MP range of planetary mixers are made to exacting specifications with improved, heat treated, hardened steel alloy gears; abrasion resistant transmission design; efficient powerful motors; high torque transmission for heavy loads and long-lasting lubricant for smooth gearbox operation.
Backed up by a 3-year warranty – designed to give the end user years of trouble-free use in harsh foodservice environments.

Mix up to 9.5kg in one go
Heavy duty bench mounted, gear driven mixer with a powerful 3-speed transmission 140,260 and 473rpm
Particularly suitable for bakeries, hotels, restaurants and canteens
Quiet operation, emergency stop, resettable thermal overload
Transmission gears are made of heat treated, hardened steel
High torque transmission for heavy loads
Non-slip rubber feet
Supplied with bowl, beater, whisk, dough hook and attachment hub
Stainless steel revolving safety guard with ingredient chute
Fully CE approved with an electrically interlocked bowl guard and bowl lift
1 year labour and 3 year parts
Free onsite training available, free onsite demo service available at your venue

Downloads

SPECIFICATION 13 facts · tap for all Width456 mmDepth530 mmHeight802 mmGross weight98 kgVoltage220-240VMaterialMetal

Identity4

Brand Metcalfesite
Product code FT913site
Seo name Metcalfe 20Ltr Planetary Mixer MP20catalogue
Type Free Standing Mixerscatalogue

Size & weight5

Depth 530 mmcatalogue
External (W×D×H) 802 × 456 × 530 mmcatalogue
Gross weight 98 kgcatalogue
Height 802 mmcatalogue
Width 456 mmsite

Power & energy1

Voltage 220-240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Metalcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this free standing mixer earns its place

The MP20 bench-mounted is the compact option in the Metcalfe planetary mixer range—built to the same exacting standards as the floor-standing units but at a size that works when wall space is currency and you're not mixing in 30-litre batches. Twenty litres covers most daily prep work: sauce emulsions, dough batches for smaller service, marinades and dressing production without taking on a full-scale floor machine.

At 98 kilograms and mounting directly to a bench, this is genuine catering equipment scaled to real kitchen constraints. The 802 mm height, 456 mm width and 530 mm depth mean it sits on a prep counter or side bench without dominating the work area or requiring floor space. Single-phase 220–240V power plugs it into standard kitchen sockets—no three-phase electrical work, no rewiring.

The build is identical to the larger units: improved, heat-treated hardened steel alloy gears, abrasion-resistant transmission design, and an efficient powerful motor delivering the high torque you need for heavy products. The long-lasting gearbox lubricant runs smooth through years of service, and the three-year warranty backs the whole machine. Beater, whip and hook attachments ship as standard, so you can mix dough, whip cream, and emulsify without reaching for secondary equipment.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

456 × 530 × 802 mmstated W × D × H98 kg
THE CRITICAL ANSWERNarrowest straight opening456mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS802 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

Yes—mount it to the bench surface, and it sits stable at 802 mm height. Ensure the bench is solid and level. The machine bolts down securely and doesn't require a dedicated stand. Single-phase power needs a socket nearby; a standard commercial-kitchen circuit is sufficient.

The working capacity is 20 litres—you can batch at or below that limit. Dough, sauce emulsions, marinades, and prepared toppings all fit comfortably. Don't overload the bowl; the motor is rated for high-torque loads but not for exceeding the capacity.

No. The motor delivers the same high-torque transmission for heavy loads as the larger models. You're trading capacity for footprint, not power or durability. The hardened-steel gears and abrasion-resistant transmission are identical.

Beater, whip and hook are standard. Remove the bowl between batches, hose it down, and dry it—standard kitchen clean. The attachments wash separately. For servicing advice, ring 01792

The MP20 is designed for regular commercial mixing throughout a service period. Product temperature and batch density affect load. The gearbox is engineered for daily use, but don't run it continuously without pausing for heavier products—monitor the motor and let it rest between batches if you're pushing hard.

The FT914 and FT915 offer 30-litre capacity at 185 kg—full floor-standing machines. If your prep volumes grow, those are the upgrade path. The MP20 is designed for the business you're running now.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Metcalfe 20Ltr Planetary Mixer MP20 Bench Mounted Single Phase FT913 Product Data

Brand Metcalfe
Type Free Standing Mixers
Dimensions 802(H) x 456(W) x 530(D)mm
Material Metal
Colour / Finish Silver
Voltage 220-240V
Weight 98kg
Manufacturer Ref 5MP20
If you have any questions about the Metcalfe 20Ltr Planetary Mixer MP20 Bench Mounted Single Phase FT913 then please get in touch.
