Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BS HP543

£15,409.56

+vat

Availability: 999 in stock

- +

Brand:

SKU: HP543

Product summary

With boiler

Product description

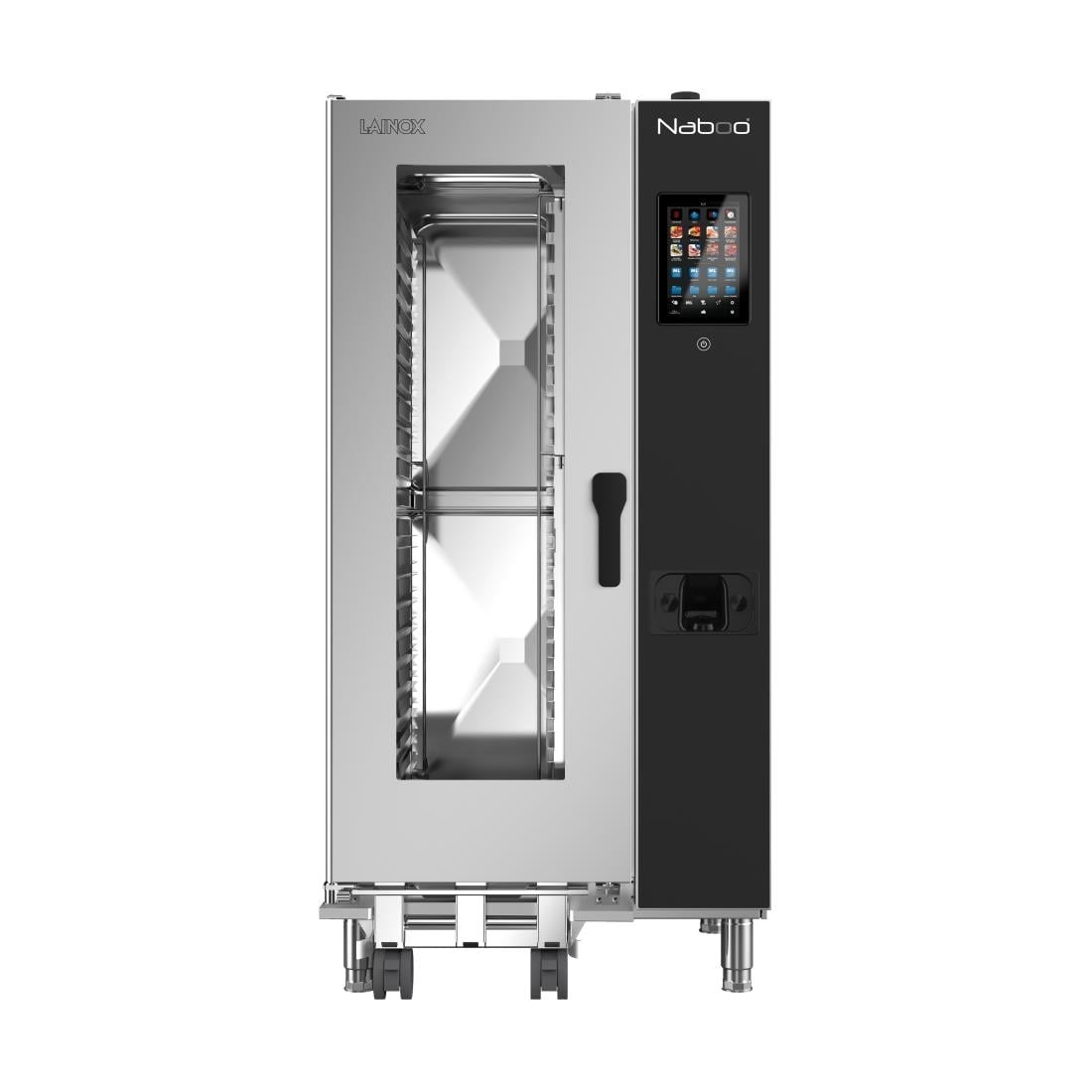

The NAE201BS electric combination oven has a 10″ full colour touch screen that is easy to use and can be configured to suit every kitchen’s requirements. Popular menu items can be placed onto the home screen so can be started with a single touch, while recipes can be organised in folders, making them easier to access for all users. The three cooking modes – convection, steam and combination – can be accessed directly from the home screen too, making it easy to start cooking quickly. Multilevel cooking enables menu items with different cooking times to be cooked at the same temperature, with the oven’s intelligence able to identify other saved recipes that can also be cooked under these parameters.

10″ HD colour touch screen is easy and intuitive to use and can be customised to suit the user’s requirements
Wifi connectivity as standard allows combi to be managed from anywhere – add / adapt recipes, check HACCP data etc
Comes with conversion kit co can be converted to LPG
Multilevel and Just-in-Time cooking modes allow cooking of multiple items at the same time, with oven alerting when each item is ready or when to put each item into the oven so everything is ready at the same time
Automatic washing system with 7 different programs makes it easy to keep the oven chamber clean
Pre-heat temperature of up to 320°C, reducing recovery time and ensures food cooked at a more consistent cooking temperature

Downloads

SPECIFICATION 18 facts · tap for all Width1100 mmDepth1110 mmHeight2040 mmGross weight290 kgVoltage400VMaterialStainless Steel

Identity4

Brand Lainoxsite
Product code HP543site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 1110 mmcatalogue
External (W×D×H) 2040 × 1100 × 1110 mmcatalogue
Gross weight 290 kgcatalogue
Height 2040 mmcatalogue
Width 1100 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Performance1

Controller Programmablecatalogue

Power & energy2

Fuel type Three Phasecatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The NAE201BS is scale. Twenty 1/1 Gastronorm pans—or forty 1/2 pans if you're doing vegetables and sides—cook in a single cycle. For a banqueting kitchen, that's often 60–80 covers per pass. It's tall (2040 mm), but the footprint is narrow (1100 mm wide), so it sits into a professional kitchen line without sprawl. Stainless steel construction withstands high-frequency commercial use, and at 290 kg it needs solid floor mounting—but that's the trade-off for genuine production capacity. Three-phase 400V electric means no gas line, just a standard commercial supply.

The intelligence is in the touch screen. The 10-inch colour display is where recipes live—popular dishes sit on the home screen as one-tap starts, and kitchens that run repeating menus (banquet plates, school meals, contract catering) see the real win: consistency becomes automatic. New staff don't improvise; they press the button. The three cooking modes—convection, steam, and combination—are each one tap away. What's distinctive is multilevel cooking: load the oven with different dishes that need the same temperature but different times (roasts, vegetables, potatoes), set the temperature, and the oven's own logic identifies which recipes can run together, managing each item to finish on schedule. Fuel efficiency and timing precision from a machine, not guesswork.

Warranty covers two years parts and labour, and the boiler and controls are engineered for the use they'll see. Power is three-phase 400V and a mains water line for the steam boiler. For commissioning, servicing, or if something goes wrong during service: 01792 732702.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

1100 × 1110 × 2040 mmstated W × D × H290 kg
THE CRITICAL ANSWERNarrowest straight opening1100mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS2040 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

Yes, if you're loading twenty 1/1 Gastronorm pans (the standard). For banqueting at 3 oz per cover, that's roughly 75–80 covers. For school meals or contract catering, it's often 100+ depends on portion size. One cycle, one precision cook, everything finishes on schedule. That's the whole oven.

2040 mm (about 6 ft 8 in). You need clear headroom above—no shelving or equipment on top. The narrowness (1100 mm wide) means it often fits into tight kitchens once you account for the height.

That's built in. Load roasts and vegetables and potatoes—all at 160°C but different cook times—and the oven figures out which recipes finish together. It reads the saved recipes and staggerers the start points so you plate at one moment, not three. That's multilevel cooking, and it saves labour and fuel.

Three-phase 400V is standard commercial supply, but a 20-pan oven pulls real power. Have an electrician confirm your site can supply it safely. Water line to the boiler is straightforward—mains feed in the back. Call 01792 732702 if there are questions.

Yes. Built-in boiler, plumbed to the mains. Steam on demand for vegetables, bread, pastry—whatever the recipe calls for. The boiler is low-maintenance but benefits from annual servicing on hard-water sites. We can set you up with a schedule.

If you're cooking more than 50 covers per service and the oven is in constant use (not just occasional), the NAE201BS earns its space. If you're under 50 covers, a smaller model might be better. Call 01792 732702 to talk through your volume and menu.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BS HP543 Product Data

Brand Lainox
Type Combination Ovens
Dimensions 2040(H) x 1100(W) x 1110(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 290kg
Manufacturer Ref NAE201BS
If you have any questions about the Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BS HP543 then please get in touch.
