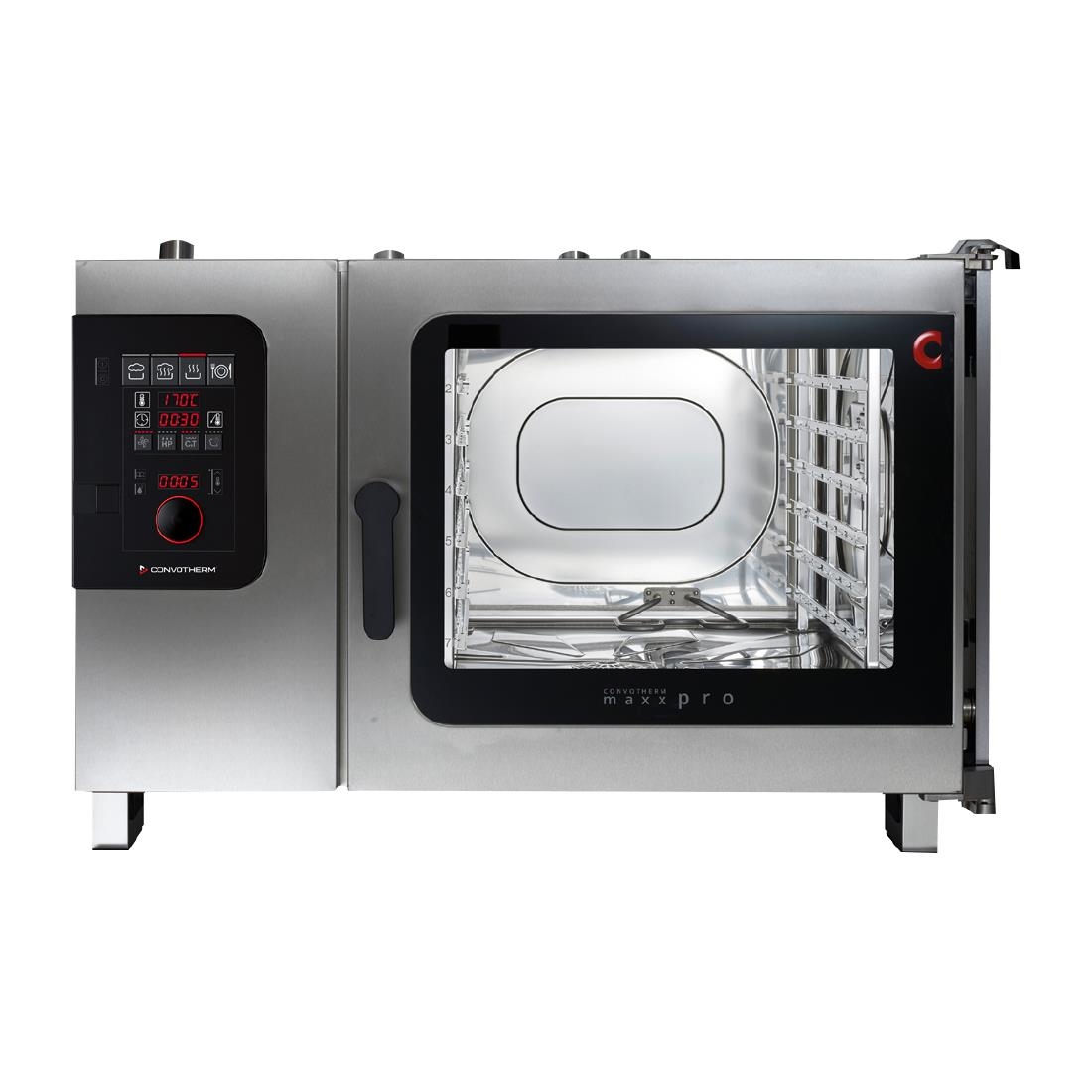

Convotherm Maxx Pro 6.20 EB easyDial Disappearing Door Combi Oven JB244

£7,810.32

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB244

Product summary

19.5kW 3 phase. Capacity: 12+2 x 1/1 GN. Electric Boiler

Product description

The Convotherm Maxx Pro 6.20 EB easyDial combi oven is a superbly reliable 12+2 x 1/1GN capacity combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

Downloads

SPECIFICATION 17 facts · tap for all Width1211 mmDepth992 mmHeight786 mmGross weight152 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB244site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 992 mmcatalogue
External (W×D×H) 786 × 1211 × 992 mmcatalogue
Gross weight 152 kgcatalogue
Height 786 mmcatalogue
Width 1211 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 6catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 19500 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 6.20 EB is purpose-built for kitchens running tight schedules and high covers. At 12+2 x 1/1 GN capacity, it handles roasts, bakes, breads and steamed dishes across a full service without compromise. Three cooking modes let you deliver roasted meats and soft breads in the same load, with the speed and consistency expected in a professional kitchen.

The built-in electric boiler is the technical advantage here. Unlike injection systems that react on demand, a boiler maintains stable steam pressure throughout the cooking cycle. That matters for tender pastries, consistent bread rise and properly cooked poultry. Over hundreds of covers, that stability compounds into reliable results and fewer plate send-backs.

The easyDial interface keeps operation simple. All inputs and functions are set on a single level where staff can see everything at once — no hunting through menus, no mid-service confusion. Training new staff takes days, not weeks. The fully automatic ConvoClean system handles post-service cleaning, saving hours of labour. Stainless steel construction and the disappearing door design maximize space efficiency in compact kitchens.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

1211 × 992 × 786 mmstated W × D × H152 kg
THE CRITICAL ANSWERNarrowest straight opening992mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1211 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

A boiler pre-heats and stores steam, delivering stable pressure throughout cooking. An injection system generates steam on demand. For humidity-sensitive items like bread and pastries, the boiler's consistency produces more reliable results across hundreds of covers.

You can load 12 full-size (1/1 GN) pans plus 2 half-size pans in a single load. That's enough for a full pass of main courses in a plated service, or two trays of baked goods. The 2/1 GN double width fits the same total capacity.

Yes. The three cooking modes and quick-select keys for mixed loads are designed exactly for this. Advanced automatic cooking profiles handle the timing — roast vegetables and hold bread simultaneously without manual adjustment.

This oven needs 400V three-phase at 19.5 kW. That's a dedicated three-phase circuit run from your main board. Your electrician will need to assess your supply; if three-phase isn't available, alternative models may suit better.

The door slides to the side when opened, rather than swinging out into the aisle. That means you need clearance on both sides (the oven is 1211 mm wide), but you don't sacrifice traffic flow when loading. It's a genuine space-saver in compact serveries.

The fully automatic ConvoClean system handles daily cleaning — it automates the heavy work so staff aren't scrubbing chamber walls after service. For your servicing schedule or questions about the boiler system, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 6.20 EB easyDial Disappearing Door Combi Oven JB244 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 786(H) x 1211(W) x 992(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 152kg
Manufacturer Ref MAXXPROED6.20 EB DD
If you have any questions about the Convotherm Maxx Pro 6.20 EB easyDial Disappearing Door Combi Oven JB244 then please get in touch.
