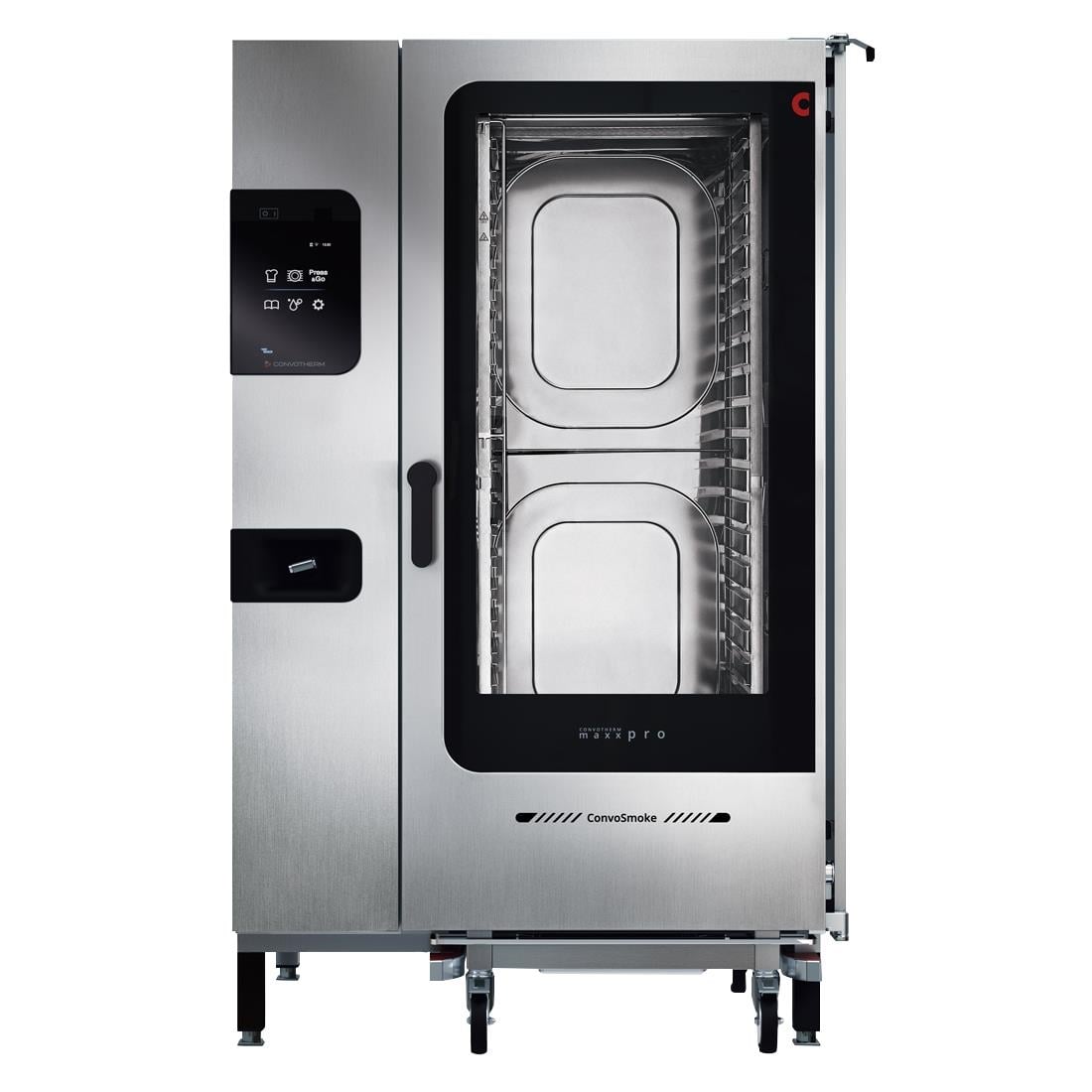

Convotherm Maxx Pro 20.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB287

£22,797.71

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB287

Product summary

ConvoSmoke. 11kW single phase. Capacity: 40 x 1/1 GN

Product description

The Convotherm Maxx Pro 20.20 GB easyTouch combi oven is a superbly reliable freestanding 40 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

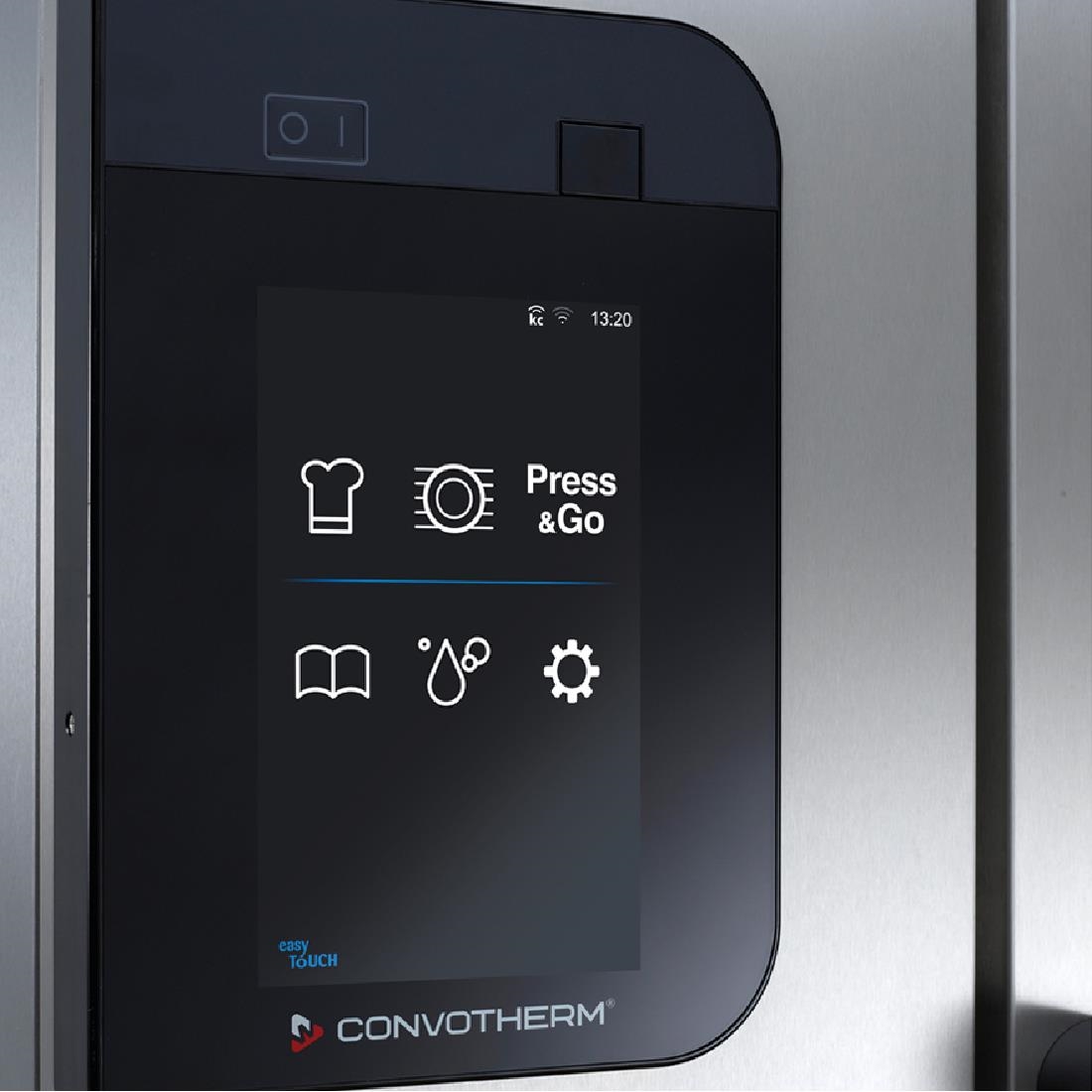

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

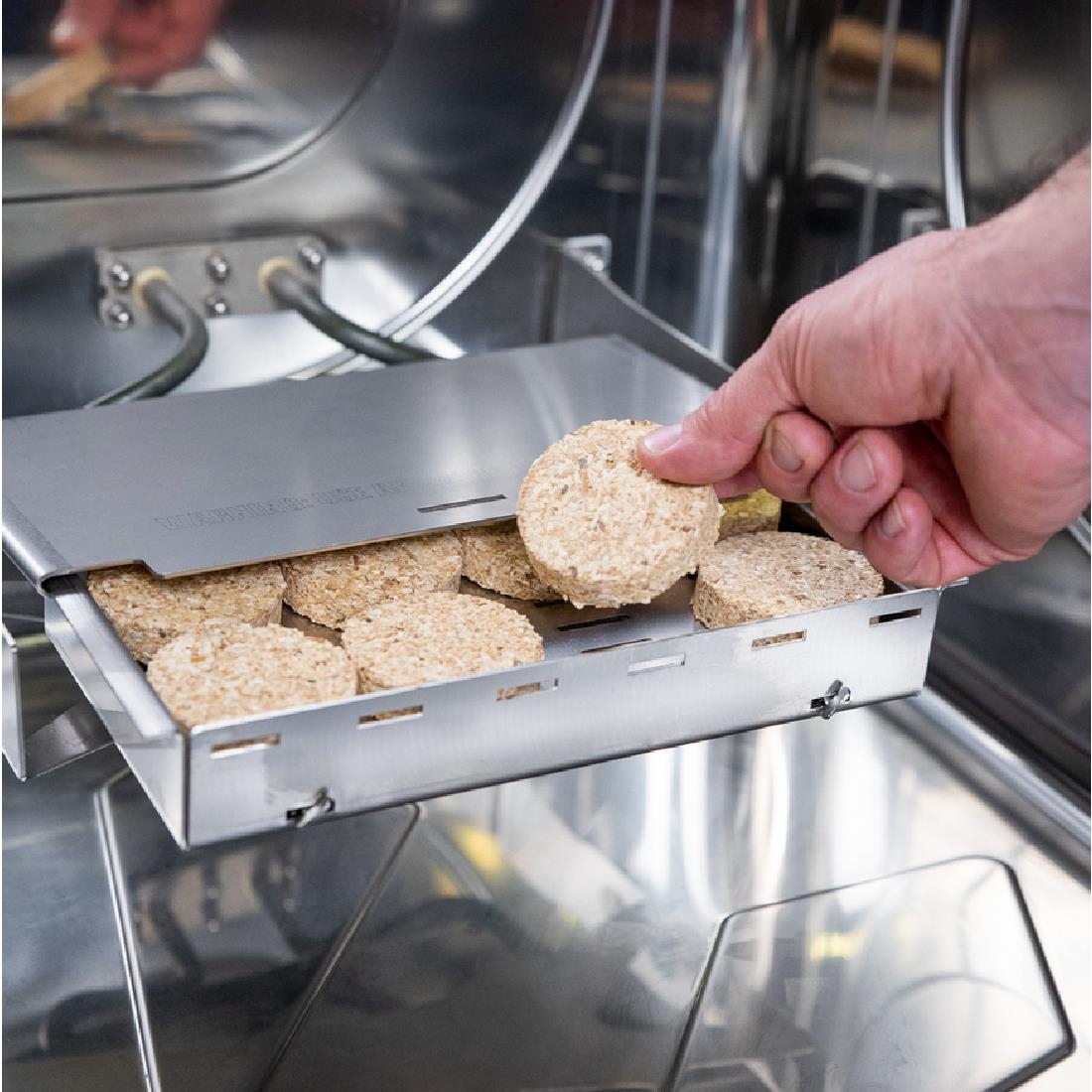

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks. This oven is equipped with the smoke option which is fully integrated into the cooking profiles for maximum smoke flexibility, allowing cold and hot smoking with the use of biscuits.

This model has a built-in gas boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
Fully integrated ConvoSmoke smoker for hot & cold smoking

Downloads

SPECIFICATION 17 facts · tap for all Width1247 mmDepth1020 mmHeight1942 mmGross weight412 kgVoltage230VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB287site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 1020 mmcatalogue
External (W×D×H) 1942 × 1247 × 1020 mmcatalogue
Gross weight 412 kgcatalogue
Height 1942 mmcatalogue
Width 1247 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 20catalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 1100 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 20.20 GB easyTouch with ConvoSmoke is built for kitchens that want smoking as a native cooking skill, not an afterthought. It holds two full-size 1/1 GN pans (40 × 1/1 GN capacity) and delivers three cooking modes with four function management systems, giving you the flexibility to handle regular service and smoking specials from one robust machine. The disappearing door is engineered for tight spaces—it slides to the side when opened, maximising your floor room and keeping workflow smooth even when the oven is working.

The built-in gas boiler ensures consistent steam generation for wet cooking, roasting and holding, while the integrated ConvoSmoke system makes cold and hot smoking a straightforward part of your cooking profile. Using biscuits for smoke generation, the smoking capability is fully wired into the control logic—no fumbling with separate systems. The easyTouch 10" display uses symbol-based controls, so your team works intuitively and training stays quick. This is the oven for kitchens that have smoking on the menu and want it reliable.

Automatic batch keys and quick-select cooking protocols let you move fast without sacrificing consistency. The full ConvoClean automatic cleaning system handles the heaviest work, so your team focuses on service. Stainless steel throughout, backed by a 2-year parts and labour warranty.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

1247 × 1020 × 1942 mmstated W × D × H412 kg
THE CRITICAL ANSWERNarrowest straight opening1020mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1942 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

The ConvoSmoke system is fully integrated into the cooking profiles. You can do both cold smoking and hot smoking using biscuits. It's not a separate mode—it's a native part of the oven's cooking logic, so smoking feels as straightforward as roasting or steaming.

Two full-size 1/1 GN pans (2/1 GN double). This gives you batch capacity for roasts, dishes and smoking runs without swapping trays.

The built-in gas boiler delivers consistent steam generation. It's more robust than injection systems, making it suitable for kitchens that run wet cooking regularly or combine steaming and smoking in the same shift.

The disappearing door slides to the side when opened. You don't need extra floor clearance, which is valuable in compact kitchens or prep areas.

Yes. The ConvoClean system automates the most labour-intensive cleaning. Stainless steel construction means daily wipe-downs are quick, and the machine stays professional-looking.

Service team at 01792 732702. The oven runs on 230V single phase, 1100W. Footprint: 1942 mm tall, 1247 mm wide, 1020 mm deep.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 20.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB287 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1942(H) x 1247(W) x 1020(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Power Electric
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 412kg
Manufacturer Ref MAXXPROET20.20 GB DD SMOKE
If you have any questions about the Convotherm Maxx Pro 20.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB287 then please get in touch.
