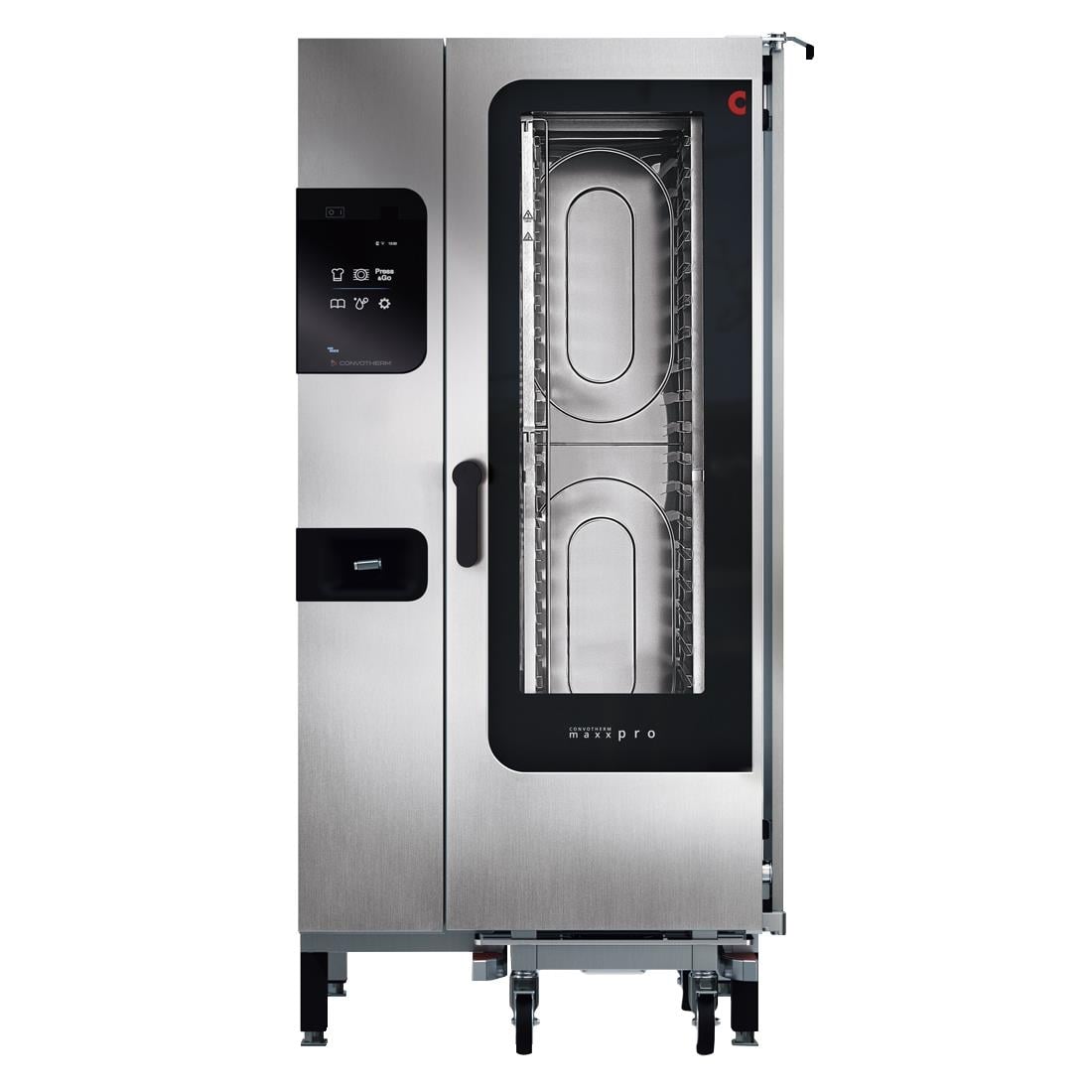

Convotherm Maxx Pro 20.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB266

£14,776.29

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB266

Product summary

ConvoGrill. 38.9kW 3 phase. Capacity: 20 x 1/1 GN

Product description

The Convotherm Maxx Pro 20.10 EB easyTouch combi oven is a superbly reliable freestanding 20 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks. This oven is equipped with a ConvoGrill grease management system which separates off the grease from waste water allowing environmentally friendly disposal and protects the drainage system from clogging.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower

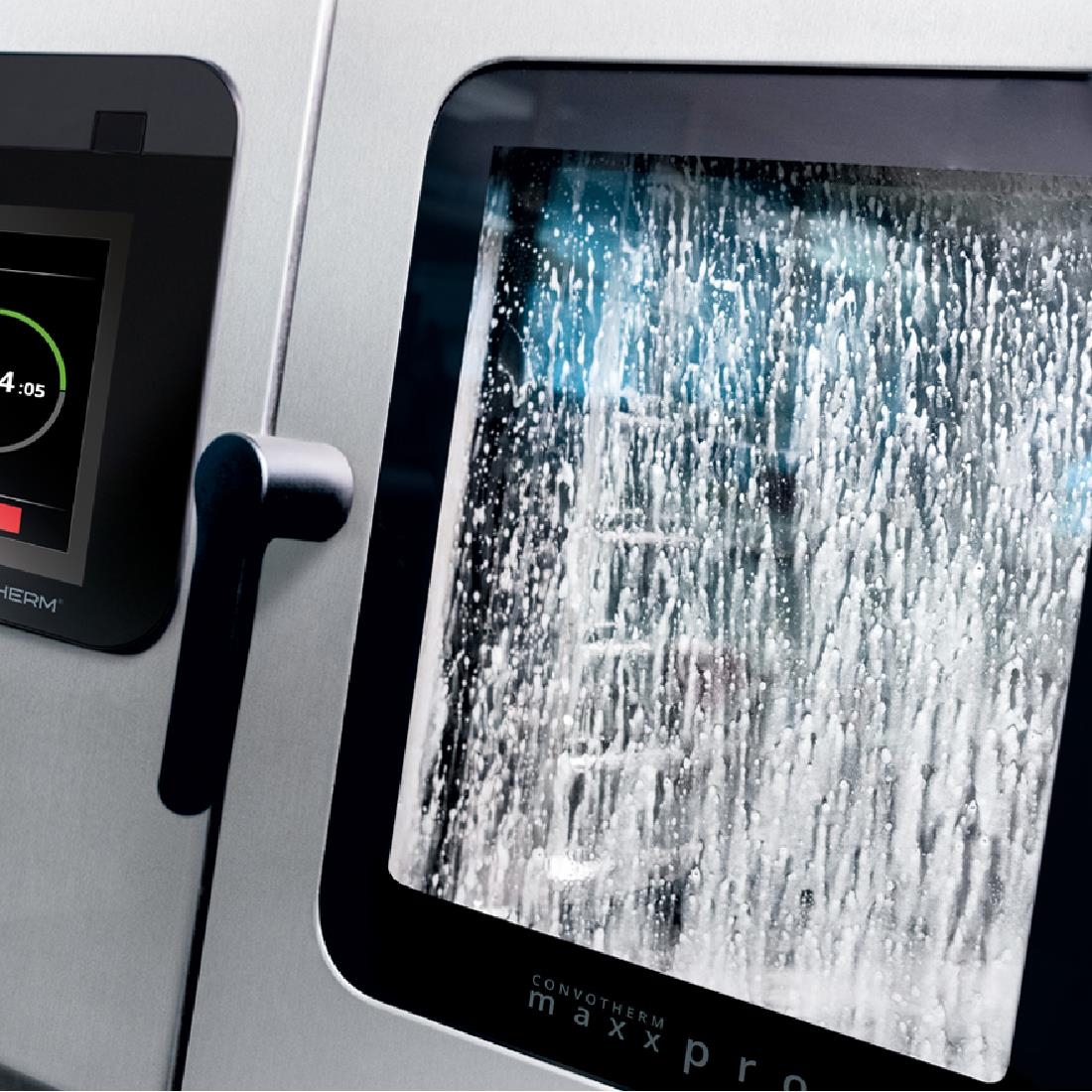

ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
ConvoGrill with fully integrated grease management function

Downloads

SPECIFICATION 17 facts · tap for all Width1002 mmDepth820 mmHeight1942 mmGross weight307 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB266site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 820 mmcatalogue
External (W×D×H) 1942 × 1002 × 820 mmcatalogue
Gross weight 307 kgcatalogue
Height 1942 mmcatalogue
Width 1002 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 38900 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 20.10 EB with ConvoGrill combines two practical upgrades: ConvoGrill grease separation and a built-in electric boiler for steam. The grease system separates cooking oils from wastewater before it hits your drain, which stops blockages, cuts cleaning labour and lets you dispose of grease responsibly. The built-in boiler heats water to generate steam—a straightforward, conventional approach that's reliable and doesn't rely on injection components. For kitchens running high volume, that combination means drainage stays clear and steam generation stays simple.

The oven holds 20 × 1/1 GN pans with the disappearing-door space-saver design. Three cooking modes—roasting, baking, steaming—run on the same platform. Four function management systems let you roast, bake and steam in parallel, each on auto-sequence. The easyTouch 10" symbol-based display cuts training time and holds consistency across shifts; your team learns it visually, not through menus. Quick-select keys store your signature programmes, so once your mise-en-place is dialled in, loading becomes routine. The built-in boiler generates steam on demand—it takes a moment longer than injection systems, but it's simpler to maintain, with fewer moving parts and no nozzles to clear.

ConvoClean automatic cleaning handles the chamber between services. You run the cleaning programme and the oven cycles moisture and heat to shift burnt-on residue and grease residual from smoking. Three-phase 400V power (38,900W) feeds it; standard in every commercial kitchen. Build is stainless steel. Two-year parts and labour warranty covers the whole machine including the grease and boiler systems. Dimensions: 1942 mm tall, 1002 mm wide, 820 mm deep. Weight is 307 kg.

BEFORE YOU BUY

Questions, answered straight

ConvoGrill separates cooking grease from wastewater before it enters your drainage. Grease collects in an easy-to-remove tray under the oven, wastewater runs clean. Result: no blockages, no expensive drain cleaning, and you dispose of grease properly instead of letting it congeal in your pipes. For kitchens running volume—especially pan-roasting and sautéed vegetables—it's a genuine labour saver and a drain saver.

A boiler heats water to generate steam, which is conventional and straightforward. It takes a few seconds longer to arrive than an injection system, but it's simpler—fewer components, no nozzles to maintain, no descaling cycles. For most kitchens, that trade-off favours reliability. If you need instant steam response, the injection models (JB269) are faster.

Depends on your volume—a busy lunch service might fill it partly, a full day of high-volume prep might fill it completely. It's designed to be easy to pull out and drain into a waste container. Most kitchens empty it at end-of-service or overnight. It's faster than dealing with a blocked drain, which can kill a service.

The EB has ConvoGrill for grease separation and a built-in boiler for steam. The ES has electric injection steam (faster response) and no grease system. If your kitchen has heavy grease loads, the EB's ConvoGrill saves drainage problems. If you need fast steam response and grease isn't your main issue, the ES is your choice.

ConvoClean includes a cycle designed to shift grease and oils from the chamber walls after cooking. After a grease-heavy service, run the ConvoClean programme and it handles the cleanup, so the next roast or bake doesn't carry over flavours or residue.

Two years parts and labour, covering everything. The boiler, the ConvoGrill system, the controls, the lot. If something needs service, call 01792 732702 and Convotherm covers the engineer visit and parts.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 20.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB266 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1942(H) x 1002(W) x 820(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 307kg
Manufacturer Ref MAXXPROET20.10 EB DD GRILL
If you have any questions about the Convotherm Maxx Pro 20.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB266 then please get in touch.
