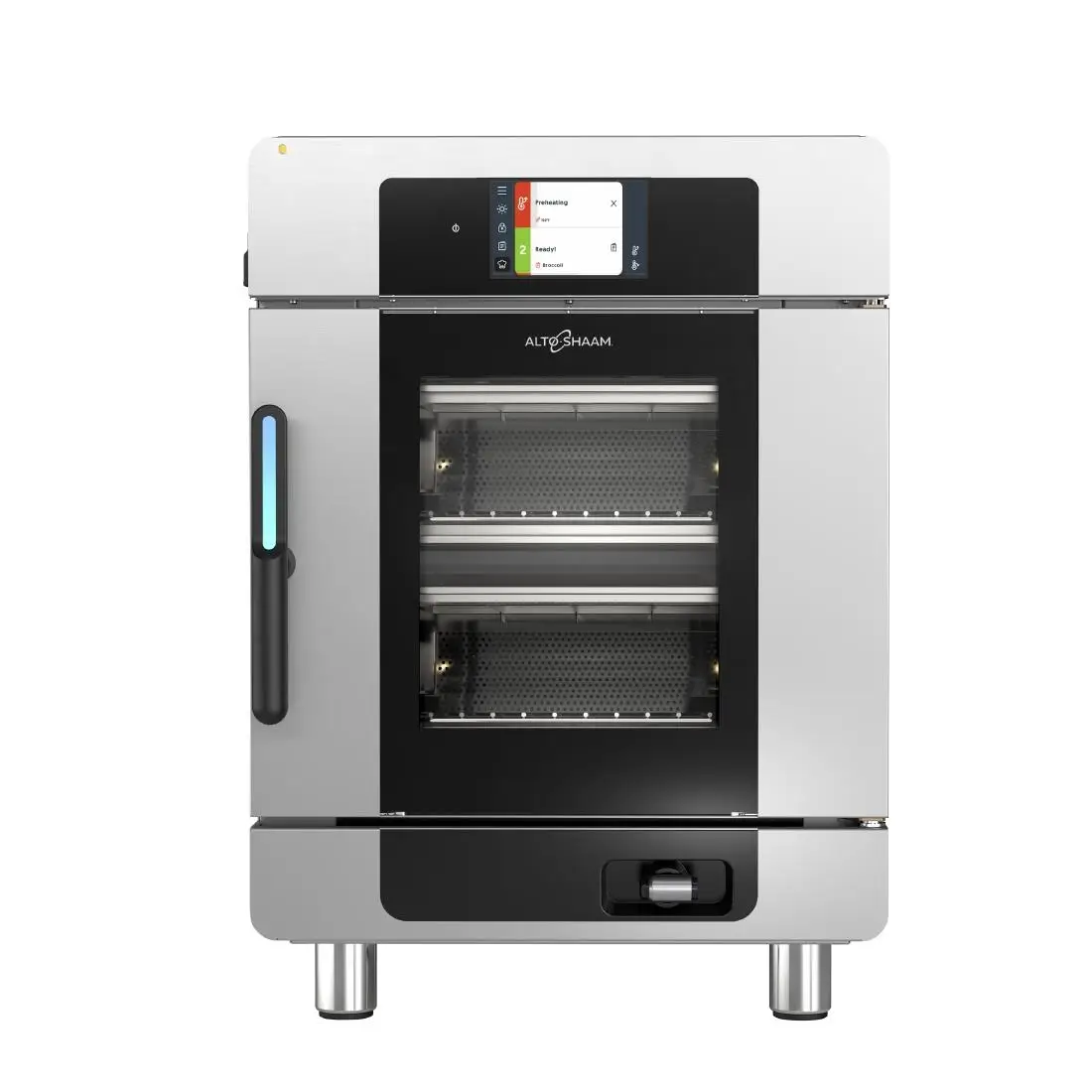

Alto-Shaam Deluxe Control Converge 2-Shelf Multi-Cook Oven CMC-H2H DX FU168

£26,972.39

+vat

Availability: 999 in stock

Brand:

SKU: FU168

Product summary

8.9kW (3PH). Capacity: 2x GN 1/1 or 2x GN 2/3 trays

Product description

The CMC-H2H DX Alto-Shaam Deluxe Control Converge 2-Shelf Multi-Cook Ovens combines the flexibility of a multi-cook oven, the power of Structured Air Technology and versatility of combi cooking in each oven chamber. With these technologies combined, production capacity is increased without increasing labour.

Two independent ovens in one give you the freedom to steam, air fry, bake, grill and more at the same time without flavour transfer – all in a ventless, self-cleaning design. A superb high-technology oven for the modern professional kitchen.

Control the temperature, fan speed, humidity level and cook time in each individual oven chamber. Cooking applications feature Structured Air Technology, controlled humidity or a combination of both
Maximise food quality, texture and yield by selecting any humidity level from 0-100% in each chamber
Execute a variety of cooking applications-all at once-with zero flavour transfer
Guarantee food items are cooked to precise internal temperatures with removable food probes in each chamber
Eliminate the need for employees to watch and rotate pans and the extra labour required to manage the stovetop, oven or grill
Advanced control ensures menu consistency and reduces the need for skilled labour with simple touchscreen navigation and multi-step, programmable recipes
Capacity: 2x GN 1/1 or 2x GN 2/3 trays

A 2-shelf dual-chamber combi oven with steam, air fry, bake and grill in separate zones — ventless and self-cleaning for kitchens that need flexibility and precision without the three-shelf footprint. The Alto-Shaam Converge 2-shelf multi-cook oven gives professional kitchens four independent cooking zones in a ventless, self-cleaning stainless steel cabinet.

Downloads

SPECIFICATION 18 facts · tap for all Width621 mmDepth1023 mmHeight975 mmGross weight138 kgVoltage415VMaterialStainless Steel

Identity4

Brand Alto-Shaamsite
Product code FU168site
Type Multi Cook Ovenscatalogue
Warranty 1 Yearcatalogue

Size & weight5

Depth 1023 mmcatalogue
External (W×D×H) 975(H) x 621(W)mmcatalogue
Gross weight 138 kgcatalogue
Height 975 mmcatalogue
Width 621 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 2catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 8900 Wcatalogue
Voltage 415Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
THE WORKING VIEW

Why this multi cook oven earns its place

The Alto-Shaam Converge Deluxe 2-Shelf is the lean version of the dual-chamber system. Two shelves, each splittable into separate cooking zones, gives you four independent chambers working in parallel — steam, grill, bake and roast running concurrently without flavour transfer or temperature crosstalk. It's built for kitchens that have moved past the idea of one oven doing one thing, but don't need the six-zone depth of the larger model. For a tight restaurant kitchen, a hotel prep area, or a catering base running three different client briefs, this is the oven that scales with your pace without eating the whole line.

Structured Air Technology keeps the humidity and temperature independent per chamber, so you're not managing competing air flows or fighting cross-contamination between steam and grill. The Deluxe control system is touchscreen-based recipe management, which matters when you're running production: you log what worked, dial in consistency, and hand off a predictable process to the next shift. The ventless self-cleaning design means end-of-service cleanup is a heat cycle, not an hour of manual scrubbing. Your kitchen stays neutral on temperature and humidity, which matters when the place is already 32°C on the line.

At 138 kg and 975mm tall, it slots into a standard line height without dominating the kitchen. The 415V three-phase requirement is standard heavy-duty equipment; it draws 8,900 W, lower than the larger model but still substantial. Stainless steel throughout; every working surface is built for the pace of a busy kitchen. This is the oven for kitchens that know what they want to cook and need the tool to keep up without distraction.

BEFORE YOU BUY

Questions, answered straight

Each shelf holds two full GN 1/1 pans, or four GN 1/2 pans. Across two shelves, that's four GN 1/1 spaces total, or the equivalent in smaller pans and trays. It's not the volume of the 3-shelf, but it's genuine production capacity — 16+ portions per batch across multiple menus if you're layering recipes efficiently.

Yes, completely. The Structured Air Technology keeps each chamber independent — steam, grill, bake and roast all happen in isolation. Fish and beef, pastry and vegetables — they share no air, humidity or exhaust, so no smells bleed, no moisture migration. This is essential for contract caterers working multi-client jobs.

415V three-phase, 8,900 W running draw. That's heavy-duty spec but lower than the larger model, so if you've got three-phase in the building, you've almost certainly got capacity. Talk to your electrician before positioning it, but it's a standard commercial install.

None from you. Schedule it for end of service — it runs a heat cycle, burns off residue, you check it the next morning and it's ready. No chemical tanks, no manual soak trays, no scrubbing. Labour is gone, and the oven stays calibrated because you're not stripping it back to bare steel every week.

Steam chamber: 50–100°C for poaching and low-temperature cooking; about 8–10 minutes for chicken breasts, 12–15 for dense vegetables. Dry heat (bake/grill/roast): 50–250°C, with typical recovery between batches being 2–3 minutes. Structured Air means the oven holds temperature precisely, so rework is rare.

621mm wide, 1,023mm deep, 975mm tall. The 2-shelf version is 193mm shorter than the 3-shelf, making it easier to fit into standard line height without overheating the canopy. Needs clear air around it for intake and exhaust; a standard cooking line or prep area is the right spot. Consult your installer on exact placement before committing the counter.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Alto-Shaam Deluxe Control Converge 2-Shelf Multi-Cook Oven CMC-H2H DX FU168 Product Data

Brand Alto-Shaam
Type Multi Cook Ovens
Dimensions 975(H) x 621(W)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 2
Power 8900W
Voltage 415V
Fuel / Supply Three Phase
Warranty 1 Year
Weight 138kg
Manufacturer Ref CMC-H2H DX
If you have any questions about the Alto-Shaam Deluxe Control Converge 2-Shelf Multi-Cook Oven CMC-H2H DX FU168 then please get in touch.
