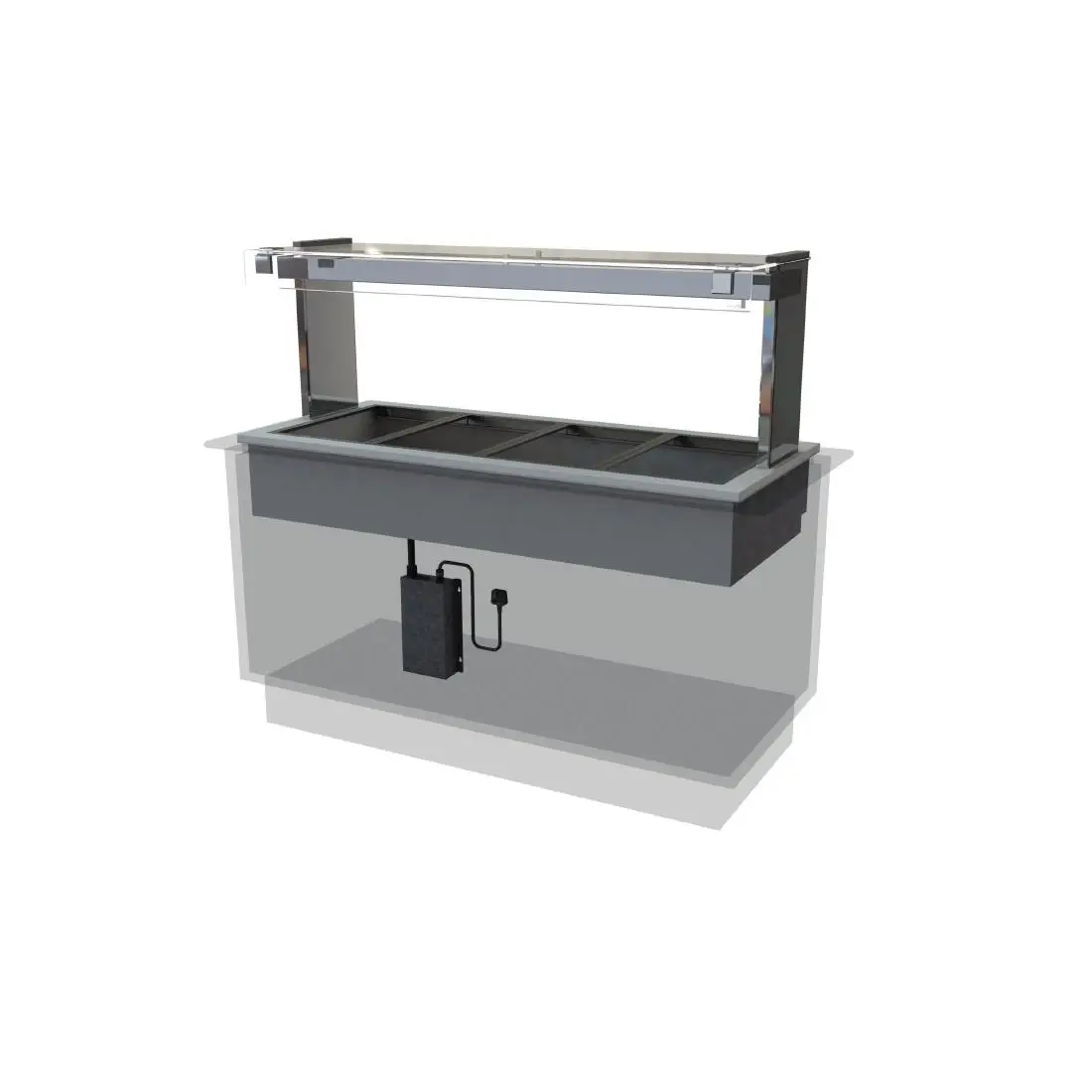

CED Kubus Drop In Dry Heat Bain Marie KHBM4 CW635

£2,542.19

+vat

Availability: 999 in stock

Brand:

SKU: CW635

Product summary

Capacity: 4x 1/1 GN. Self Service. 1525mm Wide

Product description

Display, illuminate, heat and protect pre-cooked food with CED’s rectangular shaped Kubus self help dry heat bain marie drop in display. This 4/1 GN size hot display features a 4/1 GN heated tank area and individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep. The display fits into a pre-formed cut out made in a countertop. The self help superstructure is made from bright polished steel and aluminum rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted and ‘locked’ from the operator side of the gantry, by digital temperature display (control panel) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation and is factory set to hold food core at 85¬∞C. Modular removable heater element covers in the heated well give even heat spread and make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box and plug top on a 2M lead. GN’s Sold Separatley.

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection
24 hour operation as standard
Self help application
Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead
Flat glass profile is designed to complement other units within the Kubus range
Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN section, housed within a rectangular profile gantry
Base heat is provided to each 1/1 GN section by individual heater elements
Supplied with individual 1/1 gastronorm container support collars, which accept various sized GN containers up to 150mm deep

The CED Kubus Drop In Dry Heat Bain Marie KHBM4 CW635 is a 4 x 1/1 GN hot display with illuminated dry heat, adjustable base and surface heat, toughened glass sneeze screen protection and a factory-set 85°C holding temperature.

Downloads

SPECIFICATION 19 facts · tap for all Width1525 mmDepth660 mmHeight540 mmGross weight60 kgVoltage230VTemperature range+85 to +110 °C

Identity5

Brand Kubussite
Product code CW635site
Seo name Kubus Drop In Dry Heat Bain Mariecatalogue
Type Bains Mariecatalogue
Warranty 1 Yearcatalogue

Size & weight5

Depth 660 mmcatalogue
External (W×D×H) 540 × 1525 × 660 mmcatalogue
Gross weight 60 kgcatalogue
Height 540 mmcatalogue
Width 1525 mmsite

Capacity2

Capacity 4 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue

Performance1

Temperature range +85 to +110 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 3000 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Colour code Chrome & Blackcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this bains marie earns its place

CW635 is a drop-in dry heat bain marie for keeping pre-cooked food visible, protected and ready to serve. It is designed for a pre-formed countertop cut-out, measures 540 x 1525 x 660 mm and weighs 60 kg, with a silver finish.

The unit has a 4/1 GN heated tank area and individual 1/1 GN support collars that accept GN containers up to 150 mm deep. CED says the illuminated display uses infra red quartz heat lamps in the gantry, while base heat and surface heat can be adjusted and locked from the operator side with a digital display and dimmer switch.

For everyday operation, CW635 includes a flat toughened glass sneeze screen, modular removable heater element covers and a lifting kit for installation. It is factory set to hold food core at 85°C and is supplied with a concealed control box and a plug top on a 2 m lead.

BEFORE YOU BUY

Questions, answered straight

It has capacity for 4 x 1/1 GN.

It is factory set to hold food core at 85°C, with an adjustable range of +85 to +110 °C.

It fits into a pre-formed cut-out in a countertop and comes with a lifting kit.

Yes, it has flat, toughened glass sneeze screen protection to the customer side.

It uses modular removable heater element covers in the heated well.

No, GN's are sold separately.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Dry Heat Bain Marie KHBM4 CW635 Product Data

Brand Kubus
Type Bains Marie
Dimensions 540(H) x 1525(W) x 660(D)mm
Capacity 4 x 1/1 GN
Colour / Finish Silver
Temperature Range 85°C to 110°C
Power 3kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 60kg
Manufacturer Ref KHBM4
If you have any questions about the CED Kubus Drop In Dry Heat Bain Marie KHBM4 CW635 then please get in touch.
