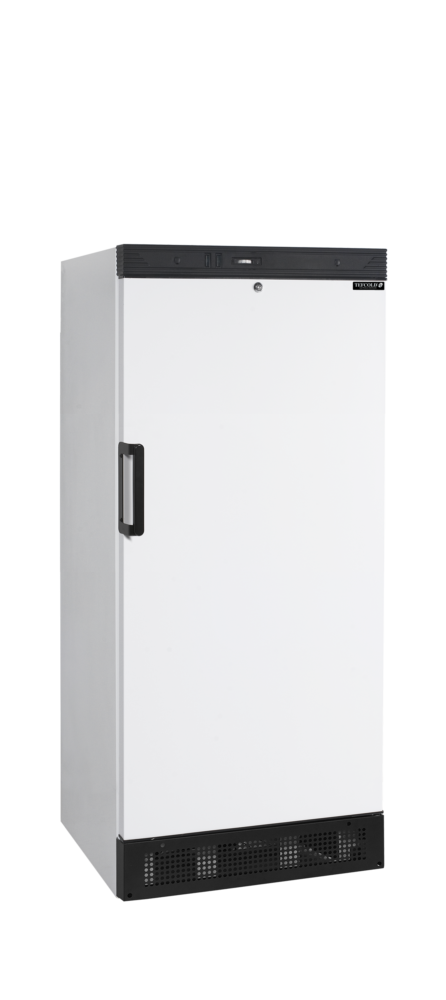

TEFCOLD SD1220 Solid Door Refrigerator

£507.00

+vat

Brand:

SKU: 20173

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • Thermometer

Product description

The SD range of commercial refrigeration units are designed for optimal storage with solid door construction. With a sleek white exterior and interior, these units are both functional and aesthetically pleasing. The fan-assisted cooling system and mechanical controller ensure consistent temperature.

The Tefcold SD1220 is a compact white single-door upright commercial refrigerator holding 190 litres net across three wire shelves, running +2 to +10 °C under mechanical control with automatic off-cycle defrost and drawing about £120 a year at 25p/kWh.

SPECIFICATION 47 facts · tap for all External W × D × H595 x 640 x 1315 mmWidth595 mmDepth640 mmGross / net weight67 / 63 kgGross weight67 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003036site
Product code 20173site
Sub title Solid Door Refrigeratorcatalogue
Type Single Door Upright Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1315 mmcatalogue
External W × D × H 595 x 640 x 1315 mmsite
Gross / net weight 67 / 63 kgsite
Gross weight 67 kgcatalogue
Height 1315 mmsite
Internal (W×D×H) 470 × 440 × 1027 mmcatalogue
Internal W × D × H 470 x 440 x 1027 mmsite
Packed (W×D×H) 680 × 710 × 1410 mmcatalogue
Packed W × D × H 680 x 710 x 1410 mmsite
Width 595 mmsite

Capacity3

Doors 1catalogue
Gross volume 215 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 482 kWh/yearsite
Energy consumption 1.32 kWh/24hsite
Energy efficiency index 80.8 %site
Input power 197 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light Nosite
Max load per shelf 171site
Shelf dimensions 498 x 405 mmsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this single door upright fridge earns its place

The SD1220 is a compact white single-door upright fridge for chilled storage where floor space is limited. Behind one hinged solid door you get 215 litres gross and 190 litres net across three adjustable white wire shelves, so it holds a working day's stock in a footprint that suits a small kitchen, bar or servery. The white cabinet and interior wipe down easily between shifts.

It runs +2 to +10 °C under a mechanical dial controller, keeping temperature setting simple for the whole team, with automatic off-cycle defrost so there is no manual routine to schedule. At 45 dB it is quiet enough to sit near a work area, and it is rated climate class 4 for warm back-of-house ambients. On energy it carries an energy class E label and uses 481.8 kWh a year, about £120 a year to run at 25p/kWh. It uses R600a refrigerant.

The cabinet measures 595 × 640 × 1315 mm, so at 595 mm wide it passes through a standard single doorway on delivery, with a packed size of 680 × 710 × 1410 mm to plan the route for. It weighs 67 kg packed and 63 kg installed, and runs from a standard 13 amp socket at 220-240 V, so no special supply is needed.

BEFORE YOU BUY

Questions, answered straight

It is rated energy class E and uses 481.8 kWh a year, about £120 a year at 25p/kWh. Your actual cost depends on your tariff and how hard the unit is worked.

The SD1220 runs +2 to +10 °C under a mechanical dial controller, covering general chilled storage, with automatic off-cycle defrost.

Yes. The cabinet is 595 mm wide, so it clears a standard single doorway once unboxed. Allow for the packed size of 680 × 710 × 1410 mm when planning delivery.

Gross volume is 215 litres and net usable volume is 190 litres, across three adjustable white wire shelves behind one solid door.

No. It runs from a standard 13 amp socket at 220-240 V, so a single cabinet needs no dedicated circuit.

Yes. Our engineers cover Tefcold refrigeration across the region; call 01792 732702 to book a service visit or set up a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 470 x 440 x 1027 mm
External Dimension (WxDxH): 595 x 640 x 1315 mm
Packed Dimension (WxDxH): 680 x 710 x 1410 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.32 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 482 kWh/year m³
EEI: 80.8 %
Input Power: 197 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 67 / 63 kg
Gross / Net Volume: 215 / 190 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 498 x 405 mm
Max load on Shelves: 171 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD SD1220 Solid Door Refrigerator then please get in touch.
