INOMAK Upright Single Hinged Glass Door Heavy Duty Refrigerator CAP172CR

£1,869.42

+vat

- +

Brand:

SKU: CAP172CR

Product summary

Size: 720 x 905 x 2115

Product description

  • <span style=”font-size: 16px;”>High grade AISI 304 stainless steel exterior & interior</span>
  • <span style=”font-size: 16px;”>3 x GN2/1 shelves per door, shelf size 530 x 650 mm</span>
  • <span style=”font-size: 16px;”>Shelf with denser wires especially designed for storing bottles in an upright position</span>
  • <span style=”font-size: 16px;”>Internal LED lighting</span>
  • <span style=”font-size: 16px;”>Triple glazed door</span>
  • <span style=”font-size: 16px;”>Lock as standard</span>

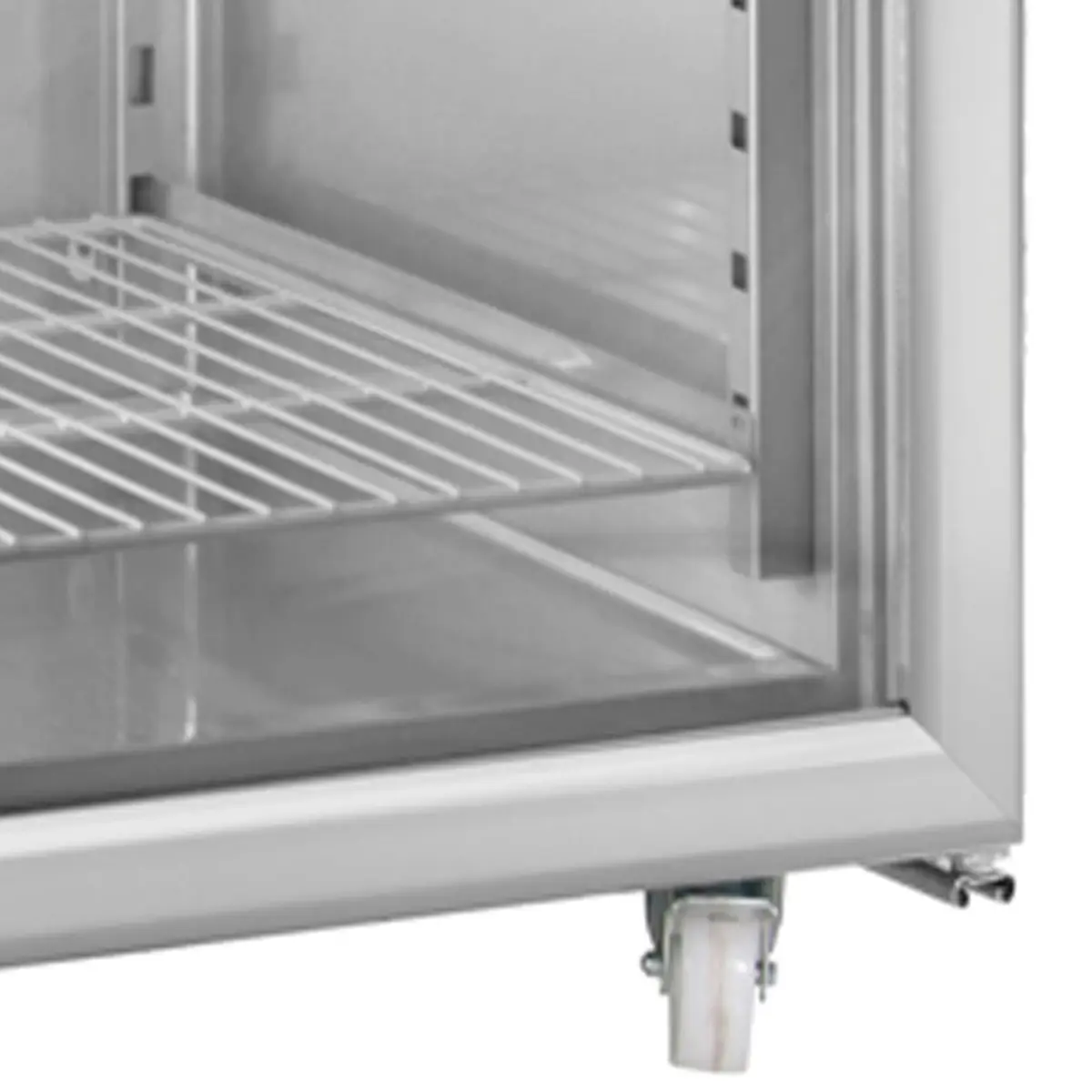

  • <span style=”font-size: 16px;”>Heavy duty castors as standard</span>
  • <span style=”font-size: 16px;”>Replaceable door gasket</span>
  • <span style=”font-size: 16px;”>Hygienically designed interior</span>
  • <span style=”font-size: 16px;”>self-closing door at 90¬∞</span>
  • <span style=”font-size: 16px;”>Forced air circulation technology</span>
  • <span style=”font-size: 16px;”>Clip-On Guides for fast & easy cleaning</span>
  • <span style=”font-size: 16px;”>Embedded controller for easy operation and cleaning</span>
  • <span style=”font-size: 16px;”>Removable magnetic door gasket</span>

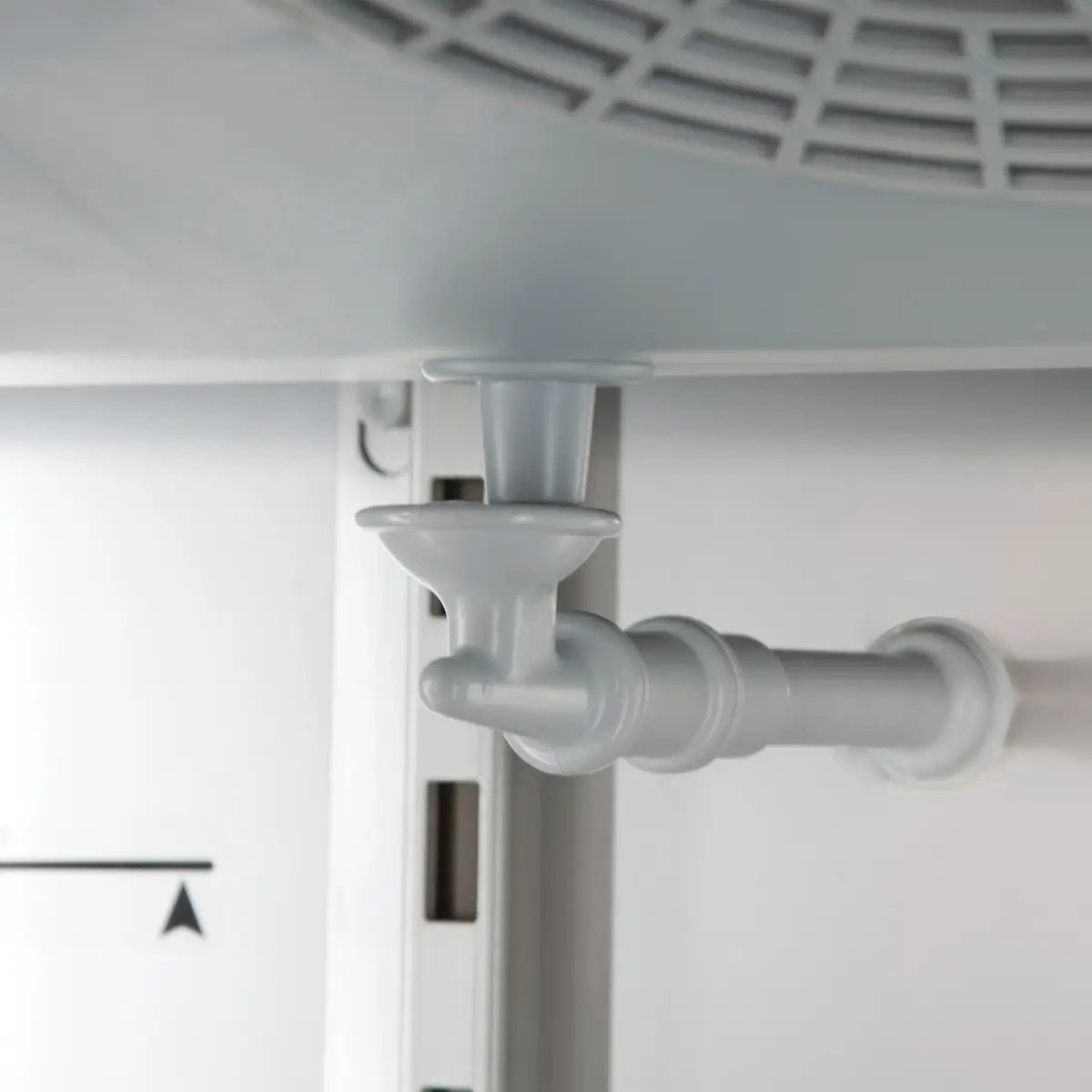

  • <span style=”font-size: 16px;”>Automatic evaporation of condensate water</span>
  • <span style=”font-size: 16px;”>Injected polyurethane foam insulation</span>
  • <span style=”font-size: 16px;”>Automatic defrost</span>
  • <span style=”font-size: 16px;”>Ambient Temperature +32¬∞C</span>
  • <span style=”font-size: 16px;”>Tempered Glass Door</span>
SPECIFICATION 23 facts · tap for all External W × D × H720 x 905 x 2115Width720 mmDepth905 mmHeight2115 mmGross weight160 kgVoltage / frequency636W

Manufacturer documents2

Identity3

Brand INOMAKsite
Product code CAP172CRsite
Type Single Door Upright Fridgescatalogue

Size & weight6

Depth 905 mmsite
External (W×D×H) 720 × 905 × 2115 mmcatalogue
External W × D × H 720 x 905 x 2115site
Gross weight 160 kgcatalogue
Height 2115 mmsite
Width 720 mmsite

Capacity2

Doors 1catalogue
Gross volume 654 litrescatalogue

Performance5

Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -2C / +8Csite

Power & energy3

Input power 13amp supplysite
Rated input 636 Wcatalogue
Voltage / frequency 636Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site
THE WORKING VIEW

Why this single door upright fridge earns its place

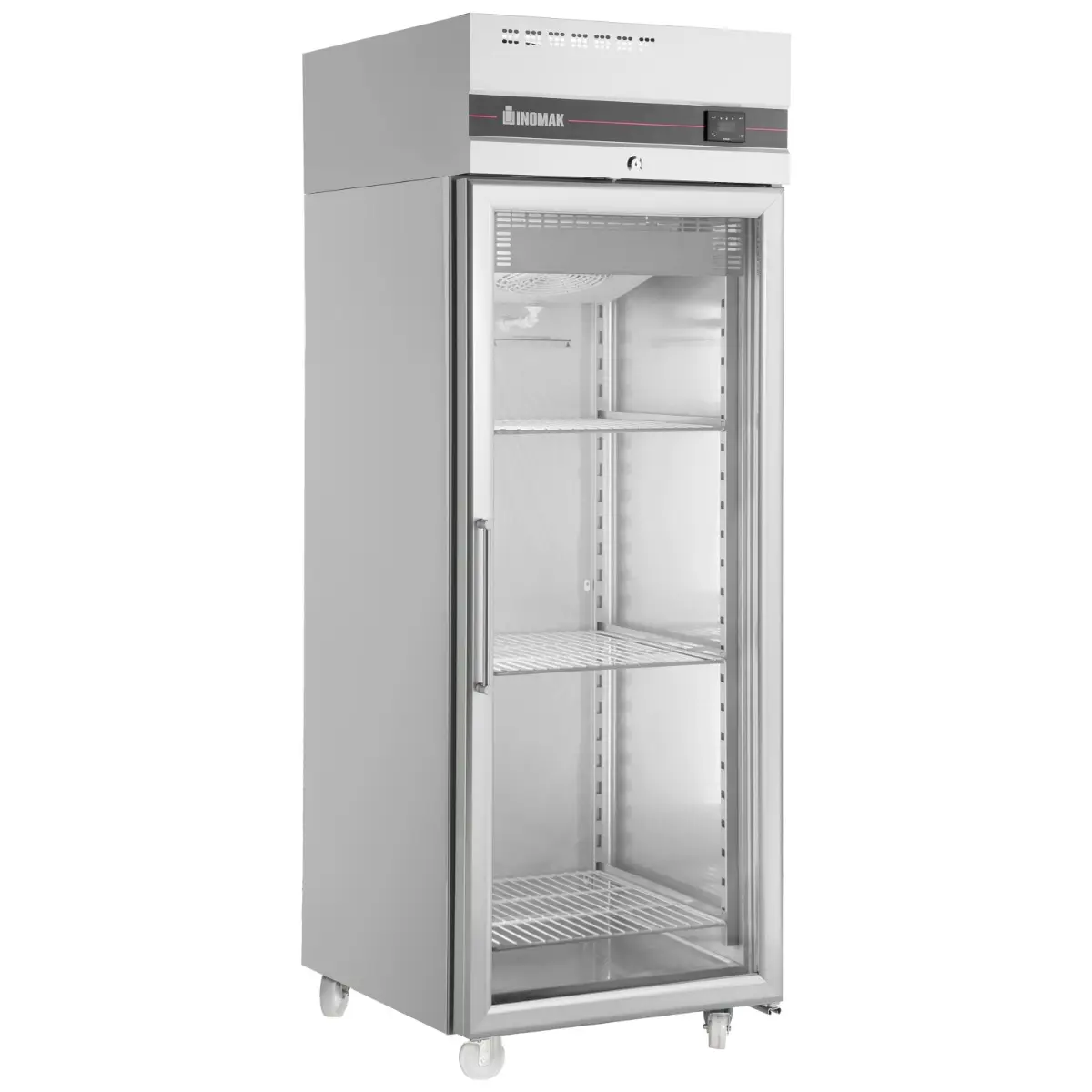

The CAP172CR is a heavy-duty single-door upright refrigerator from Inomak, with a hinged glass door that lets staff read stock levels without opening the cabinet. It gives a narrow floor footprint for chilled storage or front-of-house display.

Automatic defrost keeps the evaporator clear through the day, and the unit runs on R290 refrigerant. Its climate class 4 rating means it's built to hold temperature in the warmer ambient of a working kitchen or busy service area.

The cabinet measures 720 × 905 × 2115 mm (W × D × H), so at just over two metres tall it needs headroom on siting, while the 720 mm width suits a tight gap in a run. It's a heavy-duty build at 160 kg — plan the access route and floor before delivery, and allow front clearance for the hinged door.

BEFORE YOU BUY

Questions, answered straight

At 720 mm wide it should clear most doorways, but check the height too: the cabinet is 720 × 905 × 2115 mm (W × D × H) — a narrow width but over two metres tall, so check headroom and the width of the gap it's going into.

The hinged glass door lets staff check stock levels without opening the cabinet, which suits display or a high-turnover chilled section.

Yes — automatic defrost clears the evaporator without manual intervention during service.

It's a heavy-duty cabinet weighing 160 kg and rated to climate class 4, so it's made to hold temperature under constant use in a warm kitchen.

It runs on R290. Craven Cooling can deliver, site and service it — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 720 x 905 x 2115

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -2C / +8C °C
Input Power: 13amp supply
Voltage / Frequency: 636W

Measures and Content

Temperature Range: -2C / +8C °C
Climate Class: 4
Gross / Net Volume: 654 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INOMAK Upright Single Hinged Glass Door Heavy Duty Refrigerator CAP172CR Product Data

If you have any questions about the INOMAK Upright Single Hinged Glass Door Heavy Duty Refrigerator CAP172CR then please get in touch.
