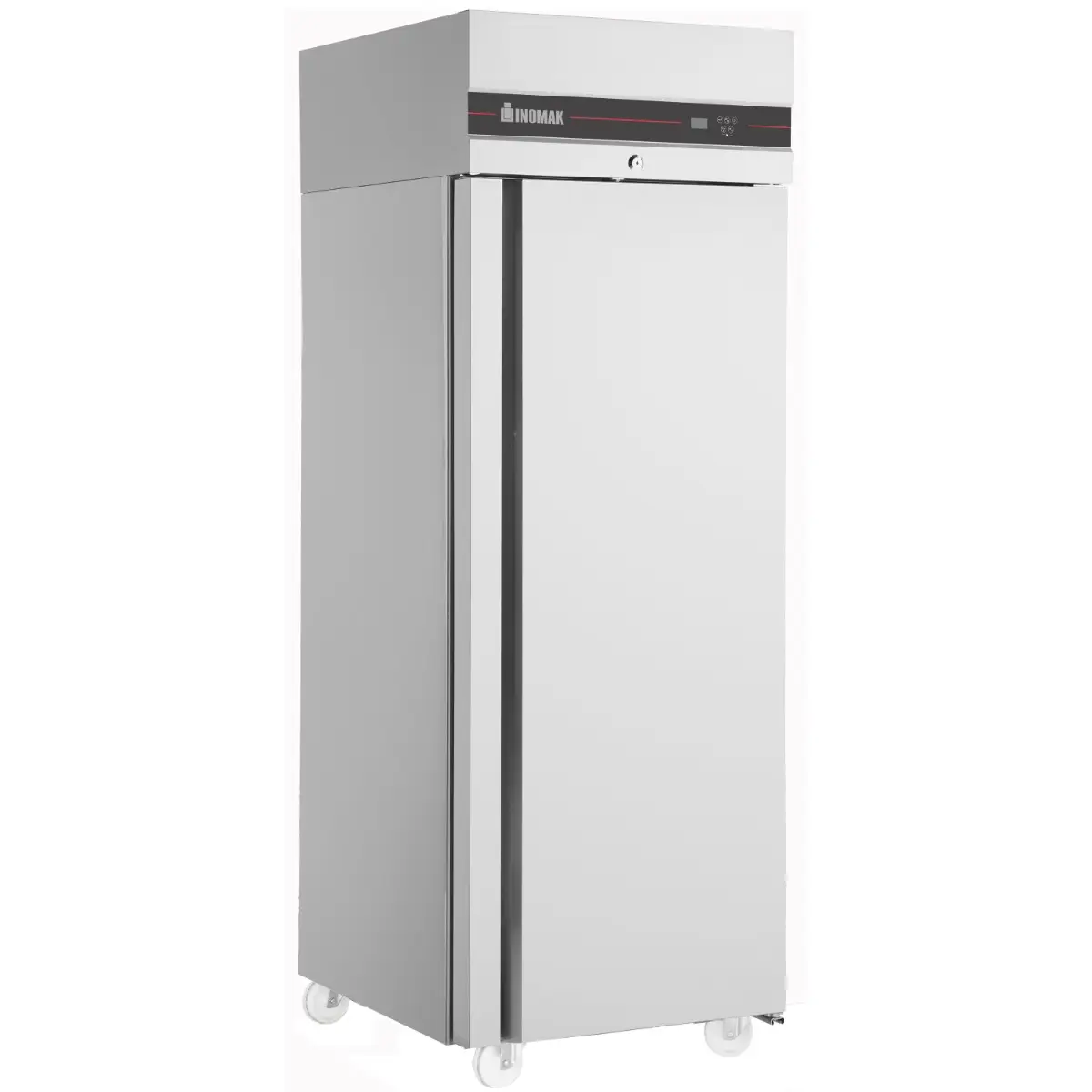

INOMAK Upright 560L Slim Single Hinged Door Refrigerator CAP172SL

£1,671.56

+vat

Brand:

SKU: CAP172SL

Product summary

Size: 720 x 768 x 2115

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Reversible door
  • Heavy duty castors as standard (to be fitted onsite)
  • Epoxy coated evaporator to resist corrosion
  • LED Light System
  • Hygienically designed interior
  • Self-closing door at 90¬∞
  • 3 shelves per door
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • One Lock per door as standard
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Height adjustable stainless-steel legs
  • Compact Dimensions/<strong>Slim</strong>¬†for Smaller Spaces
  • Chiller & Freezer Models Available
  • Ambient temperature +43 C
  • Door thickness 70 mm

The Inomak CAP172SL is a slim single hinged-door upright refrigerator measuring 720 × 768 × 2115 mm (W×D×H) on a 720 mm-wide footprint, running on R290 with automatic defrost and a Climate Class 5 rating for high-ambient kitchens.

SPECIFICATION 25 facts · tap for all External W × D × H720 x 768 x 2115Width720 mmDepth768 mmHeight2115 mmGross weight135 kgVoltage / frequency526W

Manufacturer documents2

Identity3

Brand INOMAKsite
Product code CAP172SLsite
Type Single Door Upright Fridgescatalogue

Size & weight6

Depth 768 mmsite
External (W×D×H) 720 × 768 × 2115 mmcatalogue
External W × D × H 720 x 768 x 2115site
Gross weight 135 kgcatalogue
Height 2115 mmsite
Width 720 mmsite

Capacity2

Doors 1catalogue
Gross volume 560 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -2C/+8Csite

Power & energy3

Input power 13amp supplysite
Rated input 526 Wcatalogue
Voltage / frequency 526Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site

Other stated facts1

Energy consumption 858.92 kWh/yearcatalogue
THE WORKING VIEW

Why this single door upright fridge earns its place

The CAP172SL is a slim single hinged-door upright refrigerator built for kitchens that are tight on floor space. Its 720 mm-wide footprint lets it slot into a galley line or a narrow gap while still giving full-height reach-in storage behind a single solid door.

Day to day it runs unattended: automatic defrost clears the evaporator on its own cycle, so there is no manual routine to fit around service. The Climate Class 5 rating means it is designed to hold temperature in high-ambient kitchens, and it uses R290, a low-GWP hydrocarbon refrigerant.

For installation, the unit is 720 mm wide and 768 mm deep but stands 2115 mm tall, so check doorway and ceiling height as well as the floor gap before delivery. At 135 kg it is a floor-standing cabinet, so plan access and positioning.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 720 mm wide and 768 mm deep, so it suits tight galley lines and narrow gaps. Note it stands 2115 mm tall, so check ceiling and doorway height too.

It carries a Climate Class 5 rating, the highest common commercial band, meaning it is designed to hold temperature in high-ambient conditions.

No. The CAP172SL uses automatic defrost, which clears the evaporator on its own cycle without a manual routine.

It runs on R290, a low-GWP hydrocarbon refrigerant.

It is 720 mm wide and 768 mm deep, which clears most doorways, but at 2115 mm tall you should check the height of the access route. At 135 kg, plan the lift and positioning.

Yes. Craven Cooling handles servicing and breakdown support — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 720 x 768 x 2115

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -2C/+8C °C
Input Power: 13amp supply
Voltage / Frequency: 526W

Measures and Content

Temperature Range: -2C/+8C °C
Climate Class: 5
Gross / Net Volume: 560 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INOMAK Upright 560L Slim Single Hinged Door Refrigerator CAP172SL Product Data

If you have any questions about the INOMAK Upright 560L Slim Single Hinged Door Refrigerator CAP172SL then please get in touch.
