INOMAK Upright 654L Single Hinged Door Gastronorm Refrigerator CAP172

£1,675.96

+vat

- +

Brand:

SKU: CAP172

Product summary

Size: 720 x 868 x 2115

Product description

  • High grade AISI 304 stainless steel exterior & interior

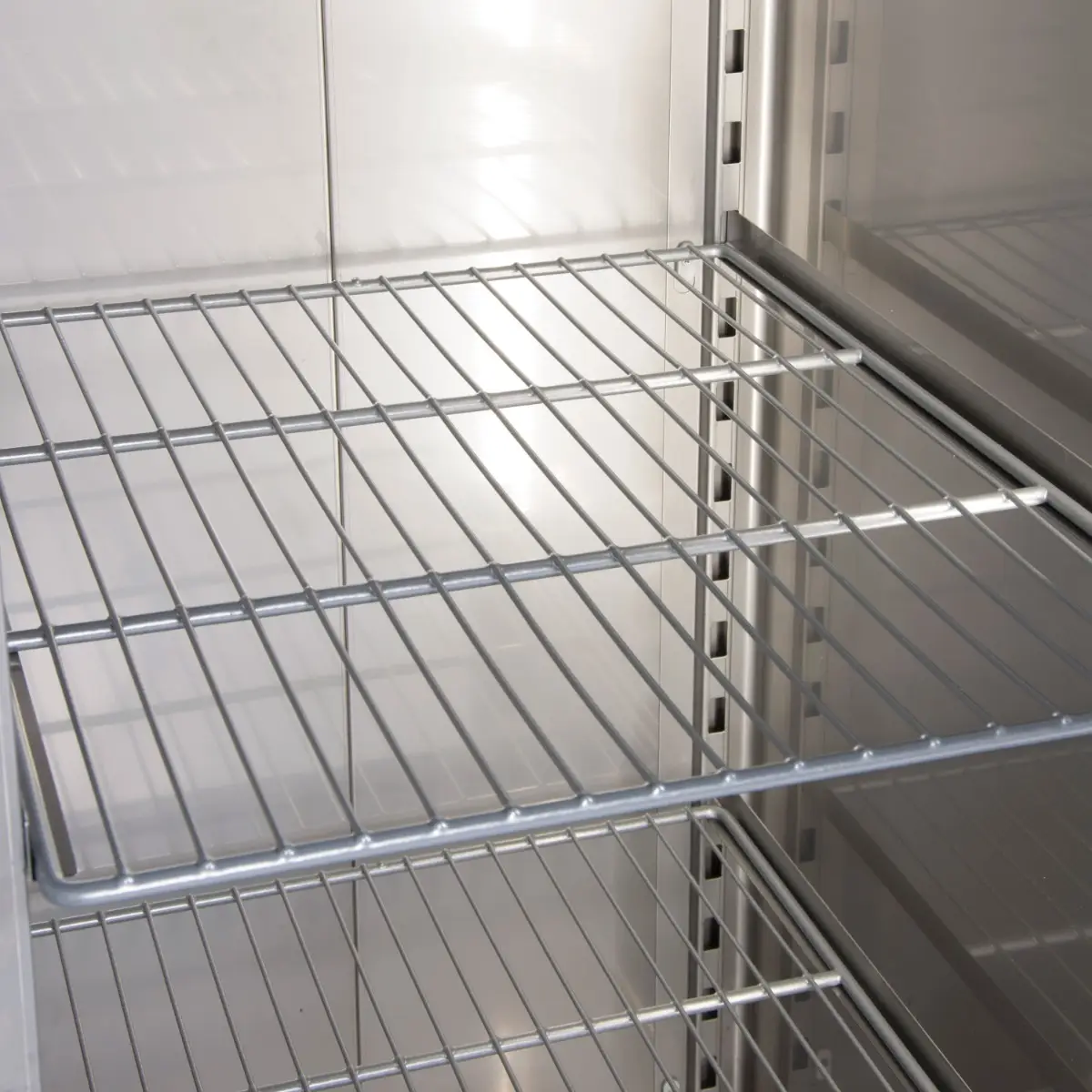

  • 4 x GN2/1 shelves per door, shelf size 530 x 650 mm
  • Self closing door
  • Replaceable door gasket
  • Reversible door
  • Lock as standard
  • Heavy duty castors as standard
  • Epoxy coated evaporator to resist corrosion
  • LED Light System
  • Hygienically designed interior
  • self-closing door at 90¬∞
  • 3 shelves per door
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • One Lock per door as standard
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • GN 2/1 Internal dimensions
  • Door thickness 70 mm
  • Ambient temperature +43 C
SPECIFICATION 24 facts · tap for all External W × D × H720 x 868 x 2115Width720 mmDepth868 mmHeight2115 mmGross weight143 kgVoltage / frequency615W

Manufacturer documents2

Identity3

Brand INOMAKsite
Product code CAP172site
Type Single Door Upright Fridgescatalogue

Size & weight6

Depth 868 mmsite
External (W×D×H) 720 × 868 × 2115 mmcatalogue
External W × D × H 720 x 868 x 2115site
Gross weight 143 kgcatalogue
Height 2115 mmsite
Width 720 mmsite

Capacity2

Doors 1catalogue
Gross volume 654 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -2C / +8Csite

Power & energy3

Input power 13amp supplysite
Rated input 615 Wcatalogue
Voltage / frequency 615Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site
THE WORKING VIEW

Why this single door upright fridge earns its place

The CAP172 is a single-door upright gastronorm refrigerator built for back-of-house bulk storage, holding 654 litres of chilled space across four adjustable gastronorm 2/1 shelves. A single hinged door keeps the whole cabinet reachable from one opening, which suits a kitchen where floor space is tight and stock needs to come out in one motion rather than being split across several smaller compartments. The cabinet maintains −2 to +8 °C and is sized to fit a full-height chilled column into a working kitchen run.

Day to day it runs automatic defrost, so there is no manual defrost cycle to schedule around service — the cabinet manages its own evaporator without staff stepping in to clear it. It also carries a climate class 5 rating, meaning it is rated to hold its set temperature in hotter ambient conditions than a standard cabinet, which matters once a kitchen has been running a full service. Cooling is by natural R290 refrigerant, a low-GWP hydrocarbon, so it aligns with current commercial refrigeration standards.

For install, the fridge measures 720 × 868 × 2115 mm (W×D×H) and weighs 143 kg gross, so check door heights and the delivery route before it arrives — at over two metres tall, it needs a clear path to its final position. Allow clearance around all sides so air can move freely, and confirm your floor can support the weight. The cabinet features a digital controller with temperature display, LED internal lighting, and removable magnetic door gasket for easy cleaning and servicing.

BEFORE YOU BUY

Questions, answered straight

It's a tall unit, so check clearance first — it measures 720 × 868 × 2115 mm (W×D×H) and weighs 143 kg gross. Check door heights and your delivery route before it arrives.

R290, a natural hydrocarbon refrigerant with a low global warming potential.

It carries climate class 5, so it is rated to hold its set temperature in hotter ambient conditions than a standard cabinet.

No. It runs automatic defrost, so there is no manual defrost cycle to schedule.

Yes. Craven Cooling can arrange servicing and support — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 720 x 868 x 2115

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -2C / +8C °C
Input Power: 13amp supply
Voltage / Frequency: 615W

Measures and Content

Temperature Range: -2C / +8C °C
Climate Class: 5
Gross / Net Volume: 654 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INOMAK Upright 654L Single Hinged Door Gastronorm Refrigerator CAP172 Product Data

If you have any questions about the INOMAK Upright 654L Single Hinged Door Gastronorm Refrigerator CAP172 then please get in touch.
