TEFCOLD UD1-3 Dual Temperature Gastronorm Counter

£1,187.00

+vat

Brand:

SKU: 20090

Energy Arrow

Product summary

  • Dual temperature easily switchable between chiller and freezer
  • Fan assisted cooling
  • Digital controller and temperature display
  • High quality catering grade 304 stainless steel
  • Replaceable drawer gasket

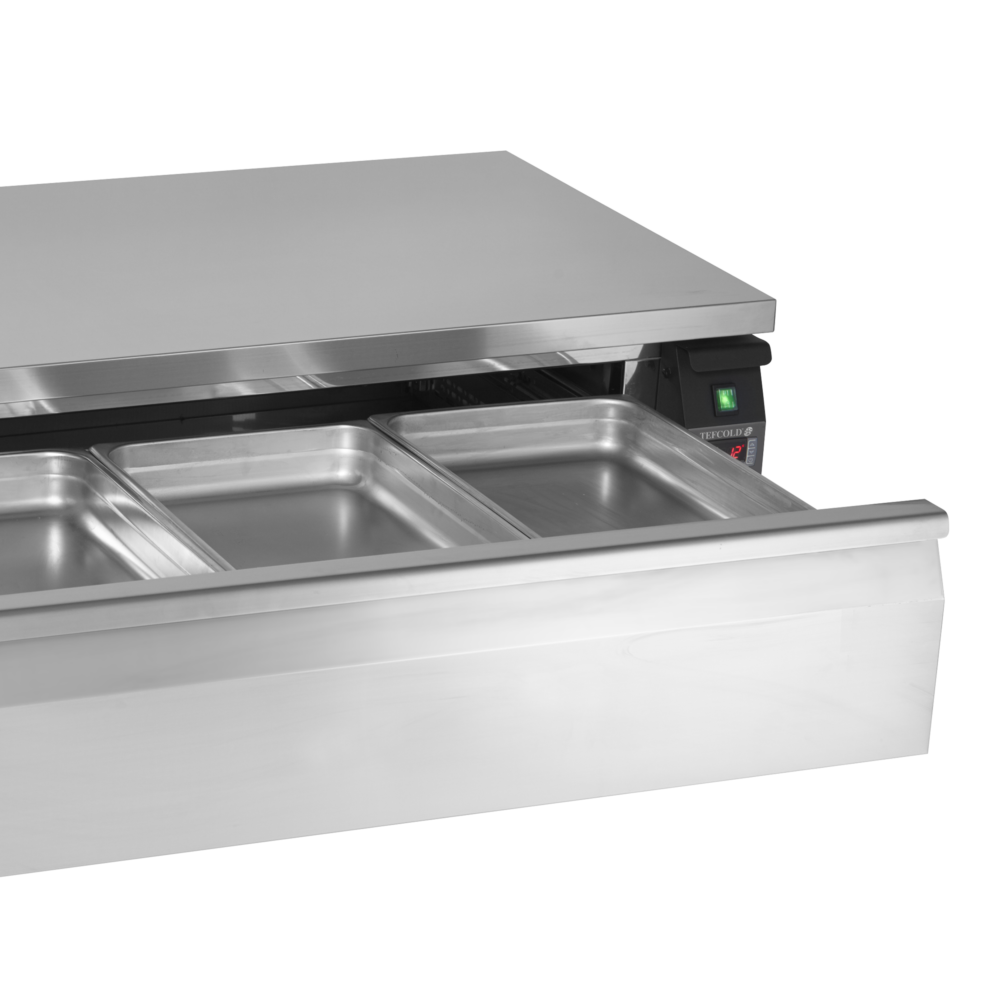

  • Drawer can be used with or without gastronorm pans
  • Max weight per drawer – 50kg. Total weight loading for unit 300kg
  • Castors, 2 lockable

Product description

The TEFCOLD UD1-3 is a dual temperature Gastronorm counter that adds a stainless steel storage base beneath the prep line, holding 116 litres gross (77 litres net) on R290 refrigerant from a standard 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H1230 x 700 x 600 mmWidth1230 mmDepth700 mmGross / net weight105 / 90 kgGross weight105 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181360917site
Product code 20090site
Sub title Dual Temperature Gastronorm Countercatalogue
Type Triple Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1230 × 700 × 600 mmcatalogue
External W × D × H 1230 x 700 x 600 mmsite
Gross / net weight 105 / 90 kgsite
Gross weight 105 kgcatalogue
Height 600 mmsite
Internal (W×D×H) 1000 × 565 × 205 mmcatalogue
Internal W × D × H 1000 x 565 x 205 mmsite
Packed (W×D×H) 1310 × 770 × 740 mmcatalogue
Packed W × D × H 1310 x 770 x 740 mmsite
Width 1230 mmsite

Capacity3

Capacity item specification 3 x GN1/1 pcscatalogue
GN pan capacity 3 x GN1/1site
Gross volume 116 litrescatalogue

Performance10

Climate class 5site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 70 gsite
Temperature range +1 to +4 / -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2208 kWh/yearsite
Energy consumption 6.05 kWh/24hsite
Energy efficiency index 78 %site
Input power 270 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Drawers 1site
Exterior finish Stainless steelsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

The TEFCOLD UD1-3 is a compact dual temperature Gastronorm counter that gives a working line a low under-counter storage base. Stainless steel inside and out, it wipes down between services and holds up in a busy kitchen. With 116 litres gross and 77 litres net across a 1000 × 565 × 205 mm internal space, it keeps Gastronorm stock at the prep station without eating floor area.

Cooling is ventilated for even temperature across the load, and defrost is automatic hot gas, so the evaporator clears itself on cycle with no manual routine. An electronic controller runs the unit, a rated 42 dB keeps it quiet by a service area, and climate class 5 means it holds temperature in a warm kitchen. On its rated 2208.2 kWh a year, at a 270 W input, that is about £552 a year at 25p/kWh, energy class E.

At 1230 × 700 × 600 mm the cabinet's 600 mm height suits installation beneath a prep surface, and it ships at 1310 × 770 × 740 mm packed — check that against your access route. It runs off a standard 13 amp supply at 220-240V on R290 refrigerant with a 70 g charge. At 90 kg net it is a two-person lift to position and level.

BEFORE YOU BUY

Questions, answered straight

Yes — as a Gastronorm counter with a 1000 × 565 × 205 mm internal space, standard GN containers fit directly. That keeps prep and storage in the same pans.

At 1230 × 700 × 600 mm its 600 mm height suits installation beneath a prep surface. Allow clearance for airflow and check the packed size of 1310 × 770 × 740 mm against your access route.

About £552 a year at 25p/kWh on its rated 2208.2 kWh, at energy class E. Your figure will vary with tariff and kitchen load.

A standard 13 amp socket at 220-240V — no special electrical work for single-phase. It runs on R290 refrigerant with a 70 g charge.

No — defrost is automatic hot gas, clearing the evaporator on cycle. Cooling is ventilated for even temperature across the stored load.

Yes, we supply, install and maintain commercial refrigeration across the trade. Call 01792 732702 to arrange a service or report a fault. Stainless steel inside and out keeps cleaning simple.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1000 x 565 x 205 mm
External Dimension (WxDxH): 1230 x 700 x 600 mm
Packed Dimension (WxDxH): 1310 x 770 x 740 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.05 kWh/24h
Temperature Range: +1 to +4 / -24 to -18 °C
Annual Energy Consumption: 2208 kWh/year m³
EEI: 78 %
Input Power: 270 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 3 x GN1/1 pcs
Temperature Range: +1 to +4 / -24 to -18 °C
Climate Class: 5
Gross / Net Weight: 105 / 90 kg
Gross / Net Volume: 116 / 77 l
Max Ambient: +40°C, 40% RH

Design and Material

Drawers: 1
Castors: 4 wheels, 2 with brake
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD UD1-3 Dual Temperature Gastronorm Counter then please get in touch.
