TEFCOLD UC5480 Low Height Gastronorm Counter

£2,020.00

+vat

Brand:

SKU: 22575

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Low height
  • Adjustable feet
  • Digital controller and temperature display
  • High quality catering grade 304 stainless steel
  • Replaceable drawer gasket
  • GN1/1 Drawers

Product description

The UC Low Height Gastronorm Counters offer practical storage with a durable countertop. With drawer options from 4 to 8 enhance kitchen efficiency to fit seamlessly into various spaces and reduce costs. With a digital controller and temperature display. The automatic defrost system prevents ice buildup. Made from 304 stainless steel, these are durable and promote hygiene. Replaceable door gaskets ensure a tight seal, enhancing energy efficiency.

The TEFCOLD UC5480 is a low-height stainless steel Gastronorm counter fridge holding 350 litres net, running +2 to +10 °C on ventilated cooling with automatic defrost and an electronic controller, measuring 2230 × 700 × 670 mm on a standard 13-amp supply.

SPECIFICATION 42 facts · tap for all External W × D × H2230 x 700 x 670 mmWidth2230 mmDepth700 mmGross / net weight160 / 150 kgGross weight160 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181360238site
Product code 22575site
Sub title Low Height Gastronorm Countercatalogue
Type Drawer Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 2230 × 700 × 670 mmcatalogue
External W × D × H 2230 x 700 x 670 mmsite
Gross / net weight 160 / 150 kgsite
Gross weight 160 kgcatalogue
Height 670 mmsite
Internal (W×D×H) 1772 × 530 × 389 mmcatalogue
Internal W × D × H 1772 x 530 x 389 mmsite
Packed (W×D×H) 2260 × 750 × 720 mmcatalogue
Packed W × D × H 2260 x 750 x 720 mmsite
Width 2230 mmsite

Capacity1

Gross volume 370 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 95 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 978 kWh/yearsite
Energy consumption 2.68 kWh/24hsite
Energy efficiency index 43.3 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Drawers 8 GN1/1 drawerssite
Exterior finish Stainless steelsite
Feet / legs 6 adjustable legssite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this drawer fridge earns its place

The UC5480 is a low-height refrigerated Gastronorm counter built for prep-line kitchens where bench height and reach matter. At 670 mm high it sits under a worktop or serves as a standalone prep station, holding 350 litres of net storage behind a stainless steel exterior and interior. The full 2230 mm body gives a working run of chilled storage directly under the section, keeping mise en place cold and within arm's reach through service.

It holds +2 to +10 °C, a general chilled band suited to prepped ingredients and cold storage. Ventilated cooling keeps the temperature even across the interior, and defrost is automatic, so there is no manual routine to schedule. An electronic controller sets and monitors the temperature, and the unit runs at 42 dB. On its verified 978.2 kWh a year, running cost works out at about £245 a year at 25p/kWh, and it carries energy class C.

External dimensions are 2230 × 700 × 670 mm (W×D×H); packed it ships at 2260 × 750 × 720 mm, worth checking against doorways and lift access on delivery. It runs from a standard 13-amp supply at 220-240 V, drawing 300 W, and uses R600a refrigerant with a 95 g charge. Net weight is 150 kg, so plan the siting and any positioning help before it arrives, and the internal usable space measures 1772 × 530 × 389 mm.

BEFORE YOU BUY

Questions, answered straight

It runs +2 to +10 °C, a general chilled band for prepped ingredients and cold storage. An electronic controller sets and holds the temperature, and defrost is automatic.

The unit is 670 mm high, 2230 mm wide and 700 mm deep. Measure your section run and worktop clearance, and note the packed size of 2260 × 750 × 720 mm for the delivery route.

On its verified 978.2 kWh a year, that is about £245 a year at 25p/kWh, and it carries energy class C. Your actual cost depends on your tariff and how hard the unit works.

It runs from a standard 13-amp supply at 220-240 V and draws 300 W, so no special electrics are required.

It runs at 42 dB. Ventilated cooling keeps the interior temperature even, and automatic defrost means there is no manual defrost routine.

It uses R600a refrigerant with a 95 g charge. Craven Cooling can arrange servicing and support — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1772 x 530 x 389 mm
External Dimension (WxDxH): 2230 x 700 x 670 mm
Packed Dimension (WxDxH): 2260 x 750 x 720 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.68 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 978 kWh/year m³
EEI: 43.3 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 160 / 150 kg
Gross / Net Volume: 370 / 350 l
Max Ambient: +30°C, 55% RH

Design and Material

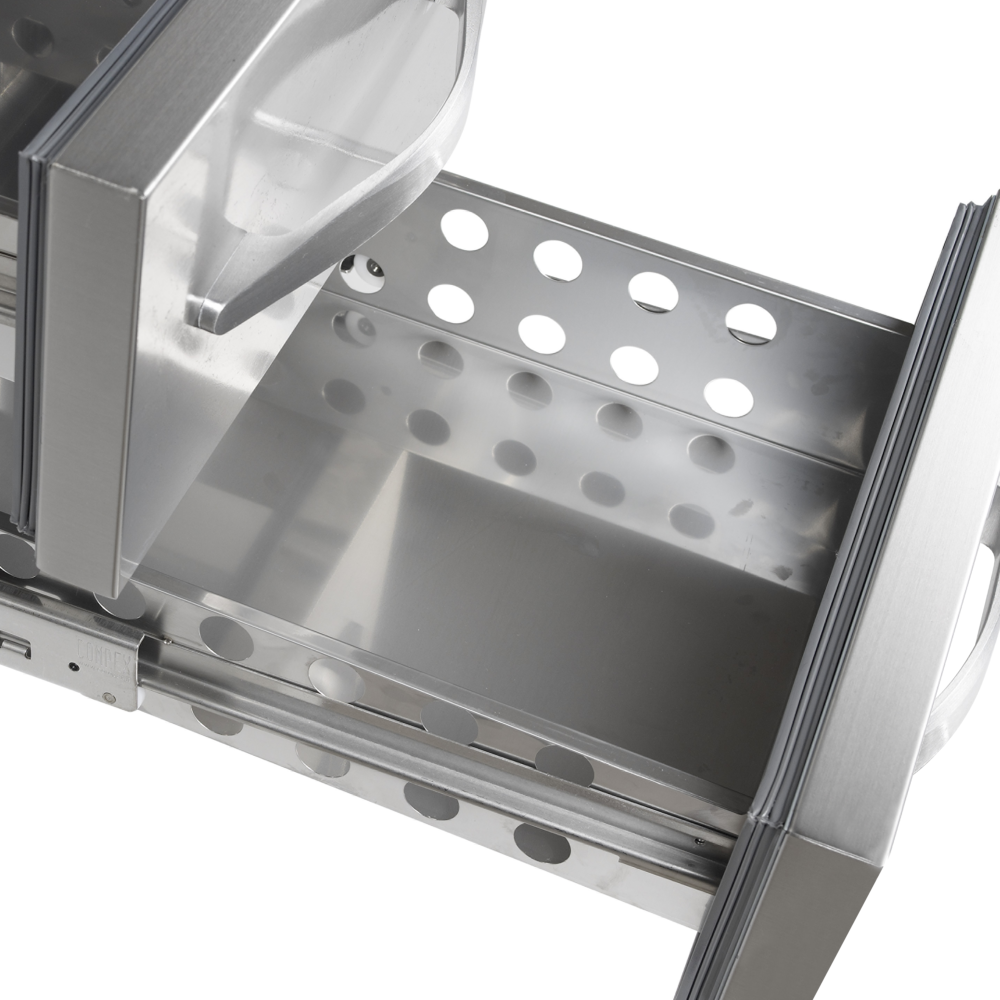

Drawers: 8 GN1/1 drawers

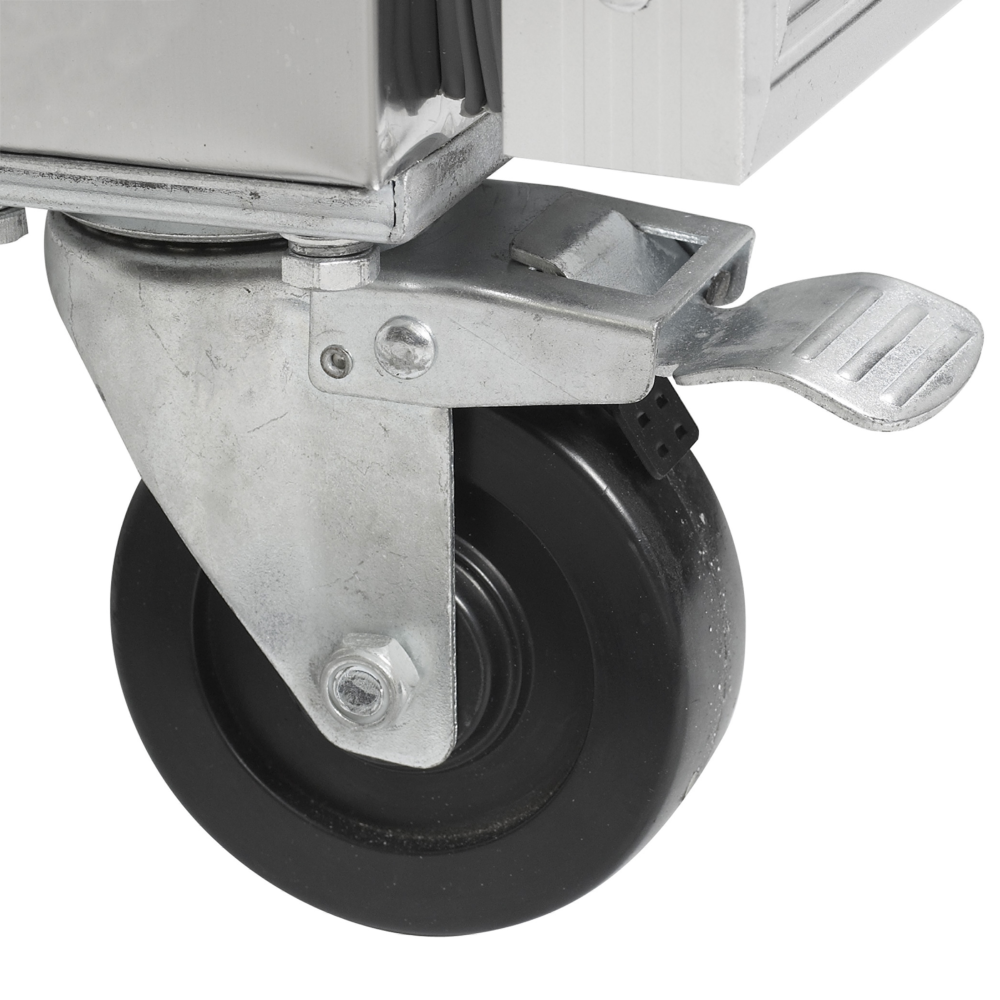

Feet / Legs: 6 adjustable legs
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD UC5480 Low Height Gastronorm Counter then please get in touch.
