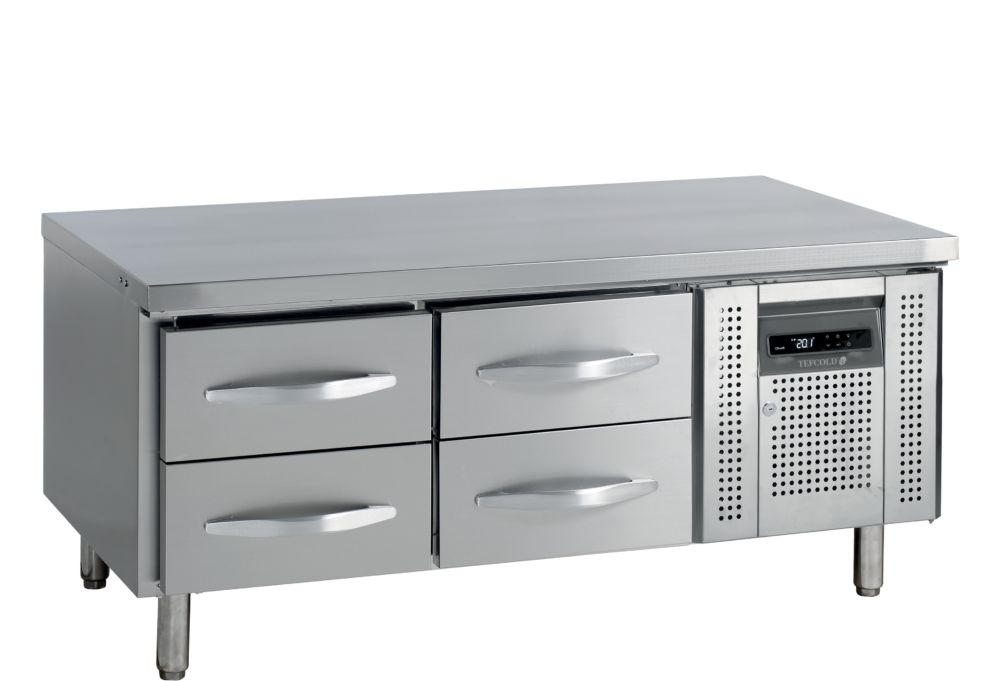

TEFCOLD UC5240 Low Height Gastronorm Counter

£1,251.00

+vat

- +

Brand:

SKU: 22573

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Low height
  • Adjustable feet
  • Digital controller and temperature display
  • High quality catering grade 304 stainless steel
  • Replaceable drawer gasket
  • GN1/1 Drawers

Product description

The UC Low Height Gastronorm Counters offer practical storage with a durable countertop. With drawer options 4, 6 or 8, enhance kitchen efficiency to fit seamlessly into various spaces and reduce costs. With a digital controller and temperature display. The automatic defrost system prevents ice buildup. Made from 304 stainless steel, these are durable and promote hygiene. Replaceable door gaskets ensure a tight seal, enhancing energy efficiency.

The TEFCOLD UC5240 is a low-height stainless steel Gastronorm counter fridge running +2 to +8 °C on ventilated cooling with automatic defrost, using R600a refrigerant and measuring 1360 × 700 × 680 mm on a standard 13-amp supply.

SPECIFICATION 37 facts · tap for all External W × D × H1360 x 700 x 680 mmWidth1360 mmDepth700 mmGross / net weight95 / 82 kgGross weight95 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181756635site
Product code 22573site
Sub title Low Height Gastronorm Countercatalogue
Type Drawer Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 700 mmsite
External (W×D×H) 1360 × 700 × 680 mmcatalogue
External W × D × H 1360 x 700 x 680 mmsite
Gross / net weight 95 / 82 kgsite
Gross weight 95 kgcatalogue
Height 680 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1405 × 750 × 720 mmcatalogue
Packed W × D × H 1405 x 750 x 720 mmsite
Width 1360 mmsite

Performance9

Climate class 4site
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 85 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 785 kWh/yearsite
Energy consumption 2.15 kWh/24hsite
Energy efficiency index 38.8 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this drawer fridge earns its place

The UC5240 is a compact low-height refrigerated counter for prep sections where bench height and footprint both matter. At 680 mm high and 1360 mm wide, it tucks under a worktop or works as a standalone chilled prep station, putting cold storage directly under the section in a stainless steel body. It is a working prep-line unit rather than a display fridge.

It holds +2 to +8 °C, a chilled band suited to prepped and fresh ingredients. Ventilated cooling keeps the interior temperature even, and defrost is automatic, so there is no manual routine to schedule. The unit runs at 42 dB and carries energy class C; on its verified 784.8 kWh a year, running cost works out at about £196 a year at 25p/kWh.

External dimensions are 1360 × 700 × 680 mm (W×D×H), and packed it ships at 1405 × 750 × 720 mm — worth checking against doorways and worktop clearance. It runs from a standard 13-amp supply at 220-240 V, draws 300 W, and uses R600a refrigerant with an 85 g charge. Net weight is 82 kg, so plan siting before delivery, and both exterior and interior are stainless steel for hygiene.

BEFORE YOU BUY

Questions, answered straight

It runs +2 to +8 °C, a chilled band for prepped and fresh ingredients. Ventilated cooling keeps the interior even, and defrost is automatic.

It is 680 mm high, 1360 mm wide and 700 mm deep, and ships packed at 1405 × 750 × 720 mm. Measure your worktop clearance and the delivery route before ordering.

On its verified 784.8 kWh a year, that is about £196 a year at 25p/kWh, and it carries energy class C. Your actual cost depends on your tariff and how hard the unit works.

It runs from a standard 13-amp supply at 220-240 V and draws 300 W, so no special electrics are required.

It runs at 42 dB with ventilated cooling, quiet enough for a working prep section, and automatic defrost means there is no manual defrost routine.

It uses R600a refrigerant with an 85 g charge. Craven Cooling can arrange servicing and support — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1360 x 700 x 680 mm
Packed Dimension (WxDxH): 1405 x 750 x 720 mm

Cooling and Functions

Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.15 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 785 kWh/year m³
EEI: 38.8 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 95 / 82 kg
Gross / Net Volume: / 92 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD UC5240 Low Height Gastronorm Counter then please get in touch.
