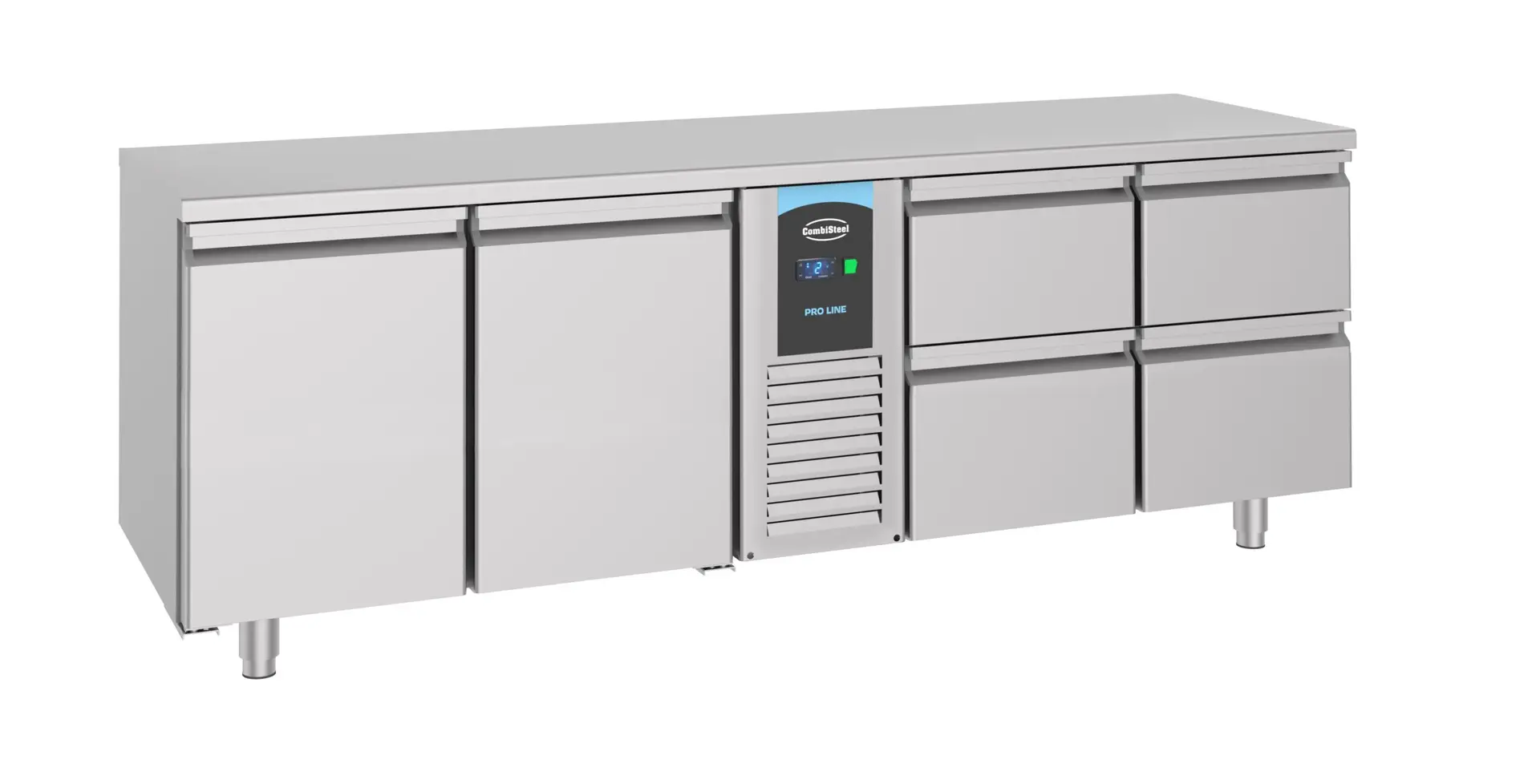

CombiSteel 700 Series Refrigerated Counter Double Door and 4 Drawers Monoblock Energy Line 7489.5370

£2,814.00

+vat

Brand:

SKU: 7489.537

Product summary

Size W/D/H (mm) 2270 x 700 x 850

Product description

The Refrigerated Counter 2 Doors and 4 Drawers Monoblock Energy Line (7489.5370) holds 632 litres across two doors and four drawers under one worktop, with a self-contained Monoblock refrigeration system, for a back-of-house line that needs both bulk and portioned chilled storage. Two doors handle bulk and tray stock; four drawers keep portioned mise organised — one counter covers the full prep run for high-volume kitchens.

Downloads

SPECIFICATION 30 facts · tap for all Width2270 mmDepth700 mmHeight850 mmGross / net weight205 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7435137842897catalogue
Range / series Pro Linecatalogue
Type Four Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 2270 × 700 × 850 mmcatalogue
Gross / net weight 205 kgsite
Height 850 mmsite
Width 2270 mmsite

Capacity4

Capacity 632 Ltrcatalogue
Gastronorm size 2x 1/1catalogue
Gross volume 632 litrescatalogue
Shelves 2catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,308site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 308 Wcatalogue
Rated power 308 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Drawers 4site
Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

The Refrigerated Counter 2 Doors and 4 Drawers Monoblock Energy Line combines door and drawer storage in a single refrigerated prep counter. At 2270 mm wide and 632 litres capacity, two doors take bulk trays and taller stock; four drawers hold portioned mise-en-place, all under one worktop on the prep line.

Built in stainless steel 430 with 60 mm insulation, the Monoblock refrigeration system is a single self-contained module that runs at -2 to +8 °C, which keeps servicing straightforward — the refrigeration block can be worked on as one unit. It runs as a chilled refrigerated counter, not a freezer; the automatic defrost system keeps temperature stable through service.

This is a back-of-house counter for a prep run, not an under-worktop fit, so measure your run and doorway access first. Weight (205 kg) and external dimensions are on the live spec sheet. Craven Cooling handles installation and servicing.

BEFORE YOU BUY

Questions, answered straight

The drawers and cabinet are built for commercial prep use, but exact GN pan fit depends on the drawer kit and shelving fitted. Confirm the current internal spec before ordering and we can check it against your pans.

This is a back-of-house counter for a prep run, measuring 2270 mm wide × 700 mm deep × 850 mm high, not an under-worktop unit. Measure your run and every doorway on the delivery route — this is the widest counter in the range — and check the external dimensions and weight (205 kg) on the live spec sheet before you commit.

It's a refrigerated counter for chilled storage, not a freezer. For the exact temperature band and thermostat range, see the current spec sheet — we can confirm it against the stock you plan to hold.

Running cost depends on the unit's energy rating and your electricity tariff. Use our energy label decoder to turn the energy class and annual kWh from the current label into a pounds-per-year figure.

Wipe the worktop, cabinet and drawer fronts down daily and keep door seals and drawer runners clear. For planned servicing or a breakdown, call Craven Cooling on 01792 732702 — we cover installation and ongoing maintenance.

The two doors take bulk trays and taller stock while the four drawers hold portioned mise-en-place, so one counter covers both ends of the prep line. The Monoblock refrigeration system is a single module, which keeps servicing straightforward.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Double Door and 4 Drawers Monoblock Energy Line 7489.5370 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 2270 × 700 × 850 mm
Capacity 632 Ltr
GN Capacity 2x 1/1
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.308 kW
Voltage 230V / 50Hz
Mobile No
Lockable No
Noise Level 40 dB
Insulation 60 mm
Weight 205 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Double Door and 4 Drawers Monoblock Energy Line 7489.5370 then please get in touch.
