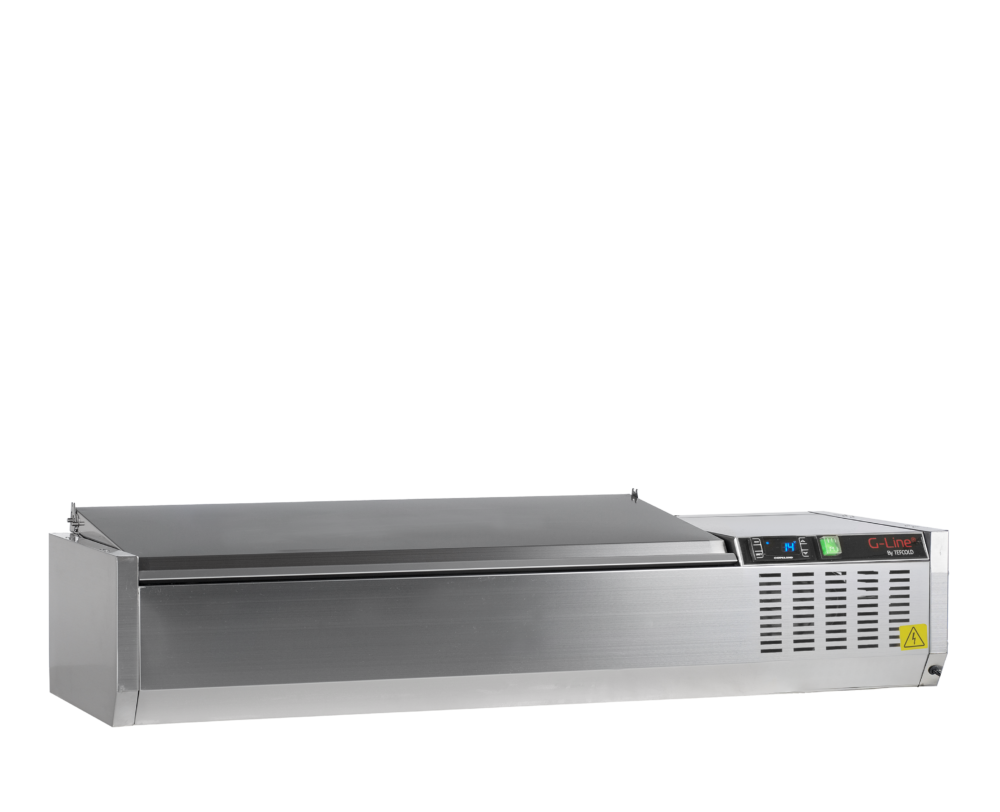

G-Line by TEFCOLD GVC33-120 S/S Gastronorm Topping Shelf With Lid

£332.00

+vat

- +

SKU: 30828

Product summary

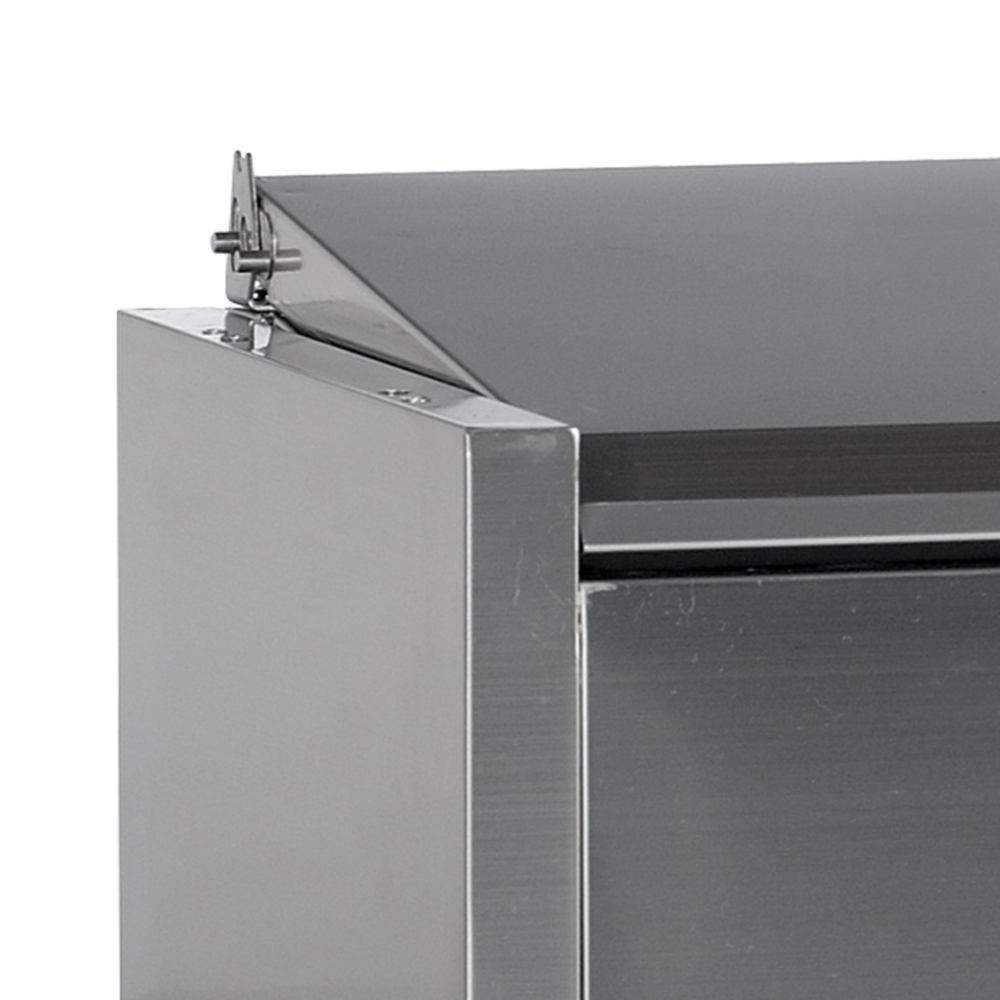

  • Stainless steel lid
  • Stainless steel

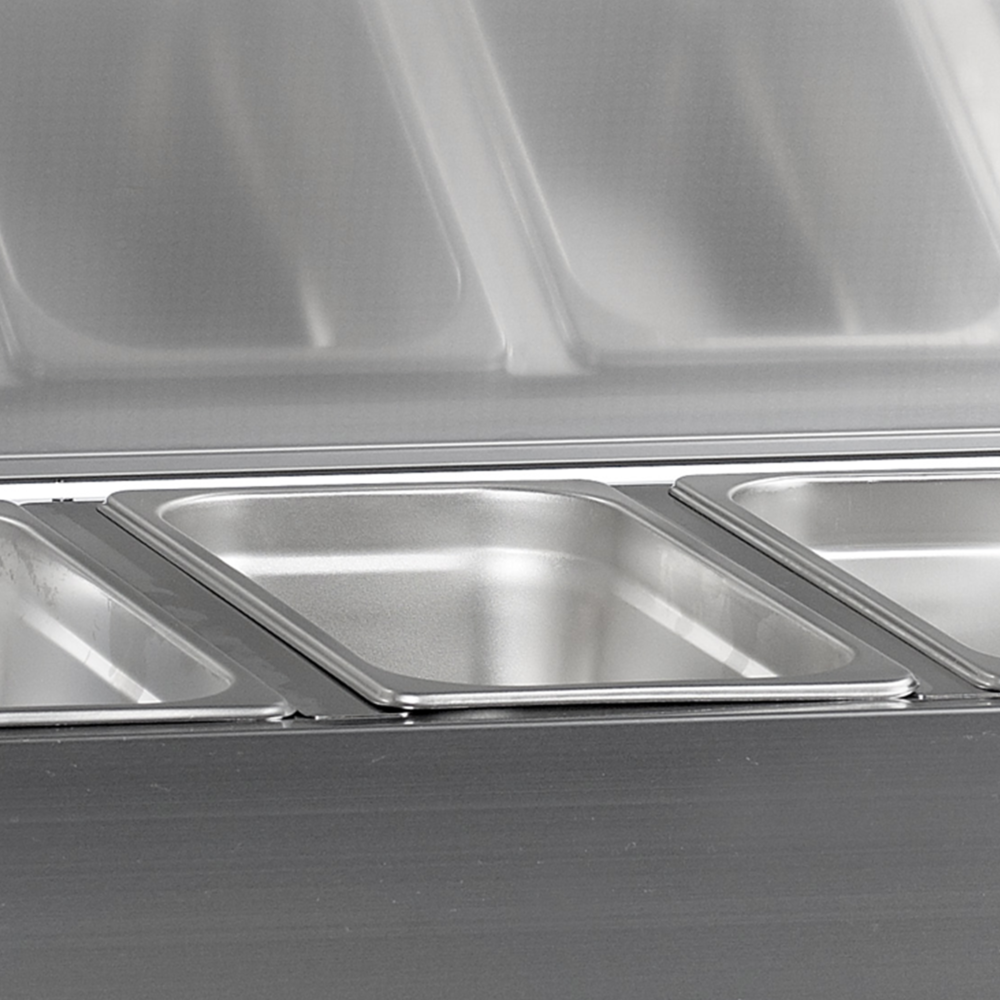

  • Accepts GN1/4 pans (Not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet
  • Height with lid open 533mm

Product description

Refrigerated Topping Shelf for Gastronorm Pans

Boost your catering business with the GVC Topping Shelfs. Perfectly crafted for food service, these boast advanced features to streamline your operations. Easily organise and display toppings at ideal temperatures for quick prep. Fully automatic, it offers a static cooling system, maintaining 2°C to 8°C to keep ingredients fresh. The manual defrost feature prevents ice build-up. Adjust temperatures with the digital controller.

The G-Line by TEFCOLD GVC33-120 is an 850 mm-wide stainless steel gastronorm topping shelf with lid, chilling ingredient pans at +2 to +8 °C under electronic control on R600a, running on a 13 A supply at 40 dB.

SPECIFICATION 38 facts · tap for all External W × D × H1200 x 335 x 288.5 mmWidth1200 mmDepth335 mmGross / net weight29 / 25 kgGross weight29 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181365356site
Product code 30828site
Sub title Gastronorm Topping Shelf With Lidcatalogue
Type Stainless Lid Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 335 mmsite
External (W×D×H) 1200 × 335 × 288 mmcatalogue
External W × D × H 1200 x 335 x 288.5 mmsite
Gross / net weight 29 / 25 kgsite
Gross weight 29 kgcatalogue
Height 288.5 mmsite
Internal (W×D×H) 850 × 245 × 150 mmcatalogue
Internal W × D × H 850 x 245 x 150 mmsite
Packed (W×D×H) 1300 × 375 × 330 mmcatalogue
Packed W × D × H 1300 x 375 x 330 mmsite
Width 1200 mmsite

Capacity3

Capacity item specification 5 x GN1/4 pcscatalogue
GN pan capacity 5 x GN1/4site
Gross volume 31 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 964 kWh/yearsite
Energy consumption 2.64 kWh/24hsite
Input power 110 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this stainless lid topping unit earns its place

The GVC33-120 is a refrigerated gastronorm topping shelf that sits above a prep counter and keeps ingredient pans chilled at the point of assembly. The chilled well runs 850 × 245 × 150 mm internally, taking gastronorm pans so toppings, garnishes and made-up ingredients stay to hand and to temperature through service. The lid holds the cold in when the line is quiet.

It holds a +2 to +8 °C band under electronic control. Defrost is manual, so build a short defrost into the cleaning routine rather than leaving it to run continuously. At 40 dB it is quiet enough for an open pass, and on its verified figure of 963.6 kWh a year it costs about £241 a year to run at 25p/kWh.

The unit is finished in SS201 stainless steel inside and out, which wipes down for back-of-house hygiene between shifts. It runs on a standard 13 A supply and the sealed system uses R600a refrigerant, so no special electrical or plumbing installation is required beyond a suitable socket and a level surface.

BEFORE YOU BUY

Questions, answered straight

It sits above a prep counter and keeps ingredient pans chilled at the point of assembly. The GVC33-120 has an 850 × 245 × 150 mm well that takes gastronorm pans held at +2 to +8 °C.

It maintains a +2 to +8 °C band under electronic control, suited to chilled toppings, garnishes and made-up ingredients on the line.

No, defrost is manual on this unit. Build a short defrost into your cleaning schedule rather than relying on an automatic cycle.

On its verified figure of 963.6 kWh a year, that is about £241 a year at 25p/kWh. It runs at 40 dB.

It runs on a standard 13 A supply and the sealed system uses R600a refrigerant. No special installation is required beyond a suitable socket.

Yes, our engineers service Craven Cooling equipment across the region. Call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 850 x 245 x 150 mm
External Dimension (WxDxH): 1200 x 335 x 288.5 mm
Packed Dimension (WxDxH): 1300 x 375 x 330 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.64 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 964 kWh/year m³
Input Power: 110 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 5 x GN1/4 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 29 / 25 kg
Gross / Net Volume: 31 / 26 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC33-120 S/S Gastronorm Topping Shelf With Lid then please get in touch.
