G-Line by TEFCOLD GVC38-200 Gastronorm Topping Shelf GN1/3

£421.00

+vat

SKU: 66888

Product summary

  • Stainless steel
  • Glass structure for protection of food
  • Accepts GN1/3 pans (Not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet

Product description

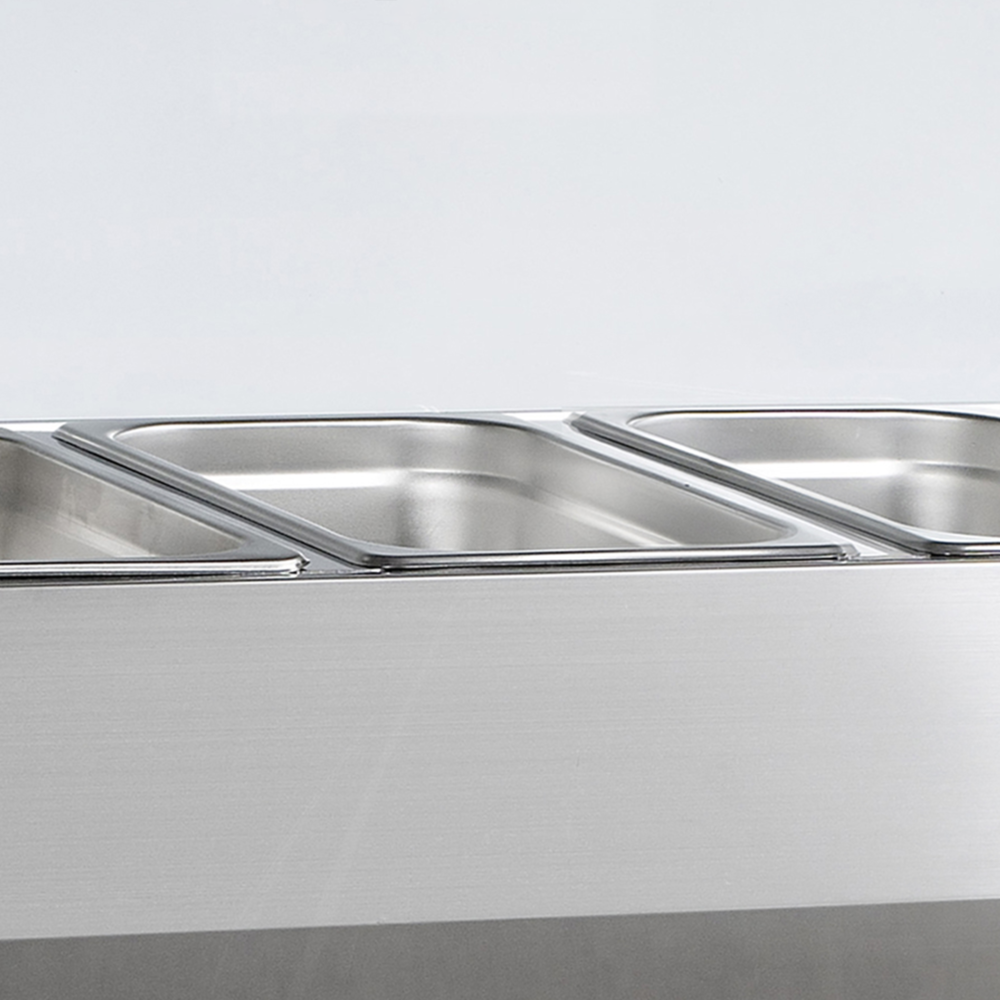

Topping Shelf for Gastronorm Pans

Elevate your catering business with the GVC Gastronorm Topping Shelves. These are specifically designed for food service and allow you to enhance your operations with plenty of advanced features. With glass guard ensuring hygiene and visibility. Organise and display toppings at optimal temperatures for quick food prep. Fully automatic, it maintains temperatures from 2°C to 10°C via a static cooling system, preserving freshness. Manual defrost prevents ice build-up.

The G-Line by Tefcold GVC38-200 is a refrigerated gastronorm topping shelf for GN1/3 pans, holding chilled ingredients at +2 to +8 °C with static cooling, an electronic controller and R600a refrigerant, drawing 122 W from a standard 13-amp supply at 40 dB.

SPECIFICATION 38 facts · tap for all External W × D × H2000 x 395 x 448 mmWidth2000 mmDepth395 mmGross / net weight42.5 / 37 kgGross weight42.5 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181751920site
Product code 66888site
Sub title Gastronorm Topping Shelf GN1/3catalogue
Type Glass Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 395 mmsite
External (W×D×H) 2000 × 395 × 448 mmcatalogue
External W × D × H 2000 x 395 x 448 mmsite
Gross / net weight 42.5 / 37 kgsite
Gross weight 42.5 kgcatalogue
Height 448 mmsite
Internal (W×D×H) 1650 × 305 × 150 mmcatalogue
Internal W × D × H 1650 x 305 x 150 mmsite
Packed (W×D×H) 2100 × 435 × 280 mmcatalogue
Packed W × D × H 2100 x 435 x 280 mmsite
Width 2000 mmsite

Capacity3

Capacity item specification 9 x GN1/3 pcscatalogue
GN pan capacity 9 x GN1/3site
Gross volume 75.4 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1069 kWh/yearsite
Energy consumption 2.93 kWh/24hsite
Input power 122 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this glass topping unit earns its place

This is a refrigerated topping shelf that sits above a prep counter or service line, keeping GN1/3 gastronorm pans of garnishes, toppings and cold ingredients chilled and on display within arm's reach. It takes the pans that would otherwise mean a trip to the fridge and puts them at the point of assembly, so a line can plate and finish without breaking the cold chain. Both the exterior and interior are SS201 stainless steel for wipe-down hygiene through a busy shift.

In use it holds +2 to +8 °C using static cooling and an electronic controller, with manual defrost. It runs at 40 dB, quiet enough for a front-of-house prep area, and is rated at 1069.5 kWh a year — about £267 a year at 25p/kWh. Keeping toppings at a food-safe chill temperature at the pass supports your HACCP records without a separate under-counter unit.

The unit draws 122 W at 220-240 V, 50 Hz and runs from a standard 13-amp supply, so no special electrical provision is needed. It uses R600a refrigerant with a 45 g charge. Net weight is 37 kg and gross weight 42.5 kg for handling and delivery; full internal dimensions and packed dimensions are listed in the specification table on this page for planning the counter space and access route.

BEFORE YOU BUY

Questions, answered straight

It holds +2 to +8 °C using static cooling and an electronic controller. Defrost is manual, so build a defrost step into your cleaning routine.

It is a gastronorm topping shelf built for GN1/3 pans, so ingredients sit in standard GN1/3 containers across the shelf and drop out for washing and swapping.

It is rated at 1069.5 kWh a year, which is about £267 a year at 25p/kWh. Your actual cost depends on your tariff and how hard the unit works in your kitchen.

It draws 122 W at 220-240 V, 50 Hz and runs from a standard 13-amp supply, so no dedicated electrical work is usually required.

It runs at 40 dB, which is quiet enough for most prep areas and service lines within earshot of customers.

It uses R600a refrigerant with a 45 g charge. For servicing or a fault, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1650 x 305 x 150 mm
External Dimension (WxDxH): 2000 x 395 x 448 mm
Packed Dimension (WxDxH): 2100 x 435 x 280 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.93 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1069 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 9 x GN1/3 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 42.5 / 37 kg
Gross / Net Volume: 75.4 / 63.9 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC38-200 Gastronorm Topping Shelf GN1/3 then please get in touch.
