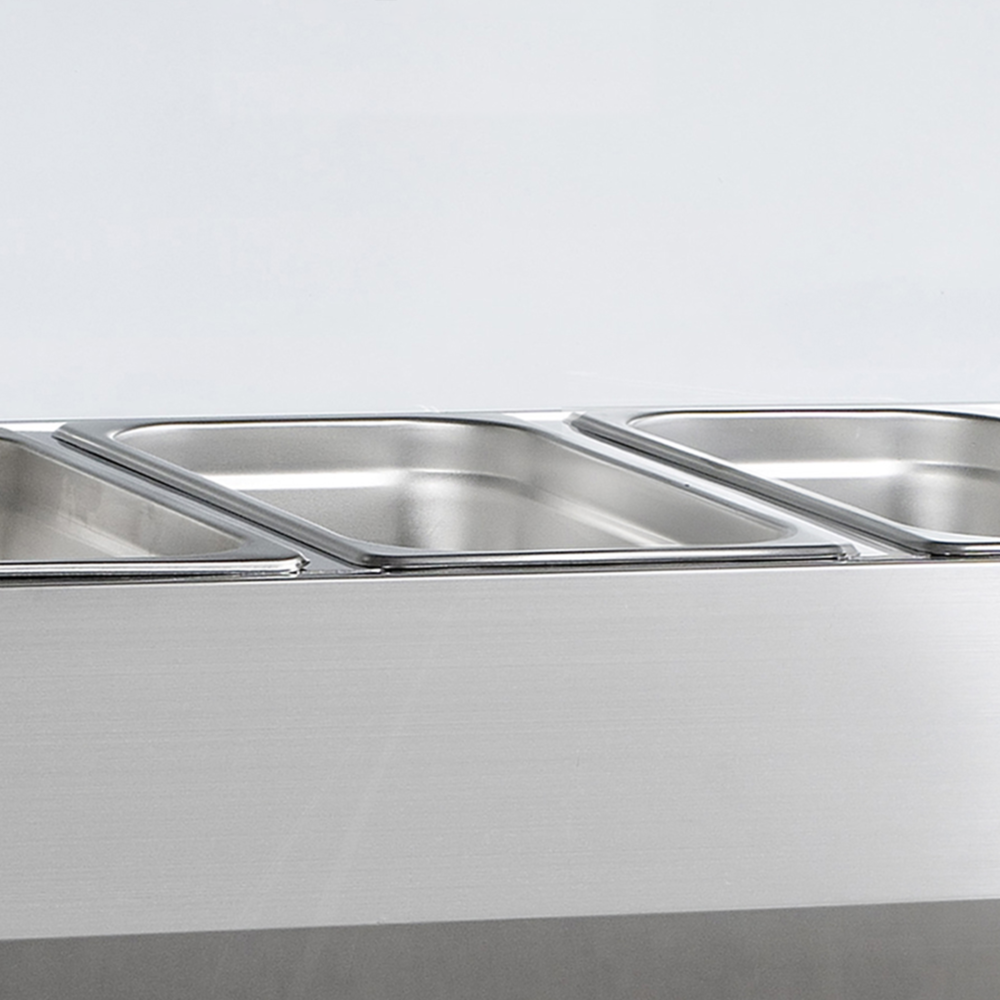

G-Line by TEFCOLD GVC38-150 Gastronorm Topping Shelf GN1/3

£390.00

+vat

- +

SKU: 66887

Product summary

  • Stainless steel
  • Glass structure for protection of food
  • Accepts GN1/3 pans (Not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet

Product description

Topping Shelf for Gastronorm Pans

Elevate your catering business with the GVC Gastronorm Topping Shelves. Specifically designed for food service, these enhance your operations with a multitude of advanced features. With the glass guard offering enhanced hygiene and visibility. Organise and display toppings at optimal temperatures for quick and easy food prep. Fully automatic, it maintains temperatures via a static cooling system, preserving freshness. Manual defrost helps prevent ice build-up.

The G-Line by TEFCOLD is a refrigerated gastronorm topping shelf holding GN 1/3 pans at +2 to +8 °C on static cooling with R600a, drawing 963.6 kWh a year — about £241 at 25p/kWh.

SPECIFICATION 38 facts · tap for all External W × D × H1500 x 395 x 448 mmWidth1500 mmDepth395 mmGross / net weight35.5 / 31 kgGross weight35.5 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181751913site
Product code 66887site
Sub title Gastronorm Topping Shelf GN1/3catalogue
Type Glass Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 395 mmsite
External (W×D×H) 1500 × 395 × 448 mmcatalogue
External W × D × H 1500 x 395 x 448 mmsite
Gross / net weight 35.5 / 31 kgsite
Gross weight 35.5 kgcatalogue
Height 448 mmsite
Internal (W×D×H) 1150 × 305 × 150 mmcatalogue
Internal W × D × H 1150 x 305 x 150 mmsite
Packed (W×D×H) 1600 × 435 × 280 mmcatalogue
Packed W × D × H 1600 x 435 x 280 mmsite
Width 1500 mmsite

Capacity3

Capacity item specification 6 x GN1/3 pcscatalogue
GN pan capacity 6 x GN1/3site
Gross volume 52.6 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 964 kWh/yearsite
Energy consumption 2.64 kWh/24hsite
Input power 110 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this glass topping unit earns its place

This G-Line topping shelf is a refrigerated unit built to the gastronorm format, sized for GN 1/3 pans. Its job is to keep prepped toppings, garnishes and cold ingredients chilled and within arm's reach above a prep line, so a busy section keeps its mise en place cold rather than sitting out during service. It is finished in SS201 stainless inside and out for a wipe-down, back-of-house build.

In daily use it holds +2 to +8 °C on static cooling, with manual defrost — the operator clears it down as part of the cleaning routine rather than it cycling automatically. It runs quietly at 40 dB, which keeps it unobtrusive over a prep station, and uses R600a refrigerant with a 45 g charge under an electronic controller. It draws 963.6 kWh a year, about £241 at 25p/kWh.

On install it is a low-draw unit: a 220–240 V 50 Hz supply on a 13 A circuit, drawing 110 W. It weighs 31 kg net and 35.5 kg gross, sitting above the counter to keep chilled pans presented and to hand without taking prep space below.

BEFORE YOU BUY

Questions, answered straight

It draws 963.6 kWh a year, which is about £241 at 25p/kWh. It runs on R600a refrigerant with a 45 g charge.

It holds +2 to +8 °C on static cooling, with an electronic controller to set and hold the band. It is intended for chilled display of prepped ingredients, not for freezing.

No — defrost is manual, so it is cleared down as part of the cleaning routine rather than cycling on its own. Building that into the schedule keeps it holding temperature.

It connects to a 220–240 V 50 Hz supply on a 13 A circuit and draws 110 W, so it is a low-draw unit to add above a prep counter.

It runs at 40 dB and is finished in SS201 stainless inside and out for a wipe-down back-of-house build. It weighs 31 kg net, 35.5 kg gross.

Yes. Craven Cooling can arrange servicing and support on 01792 732702 to keep the unit holding temperature over its working life.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1150 x 305 x 150 mm
External Dimension (WxDxH): 1500 x 395 x 448 mm
Packed Dimension (WxDxH): 1600 x 435 x 280 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.64 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 964 kWh/year m³
Input Power: 110 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 6 x GN1/3 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 35.5 / 31 kg
Gross / Net Volume: 52.6 / 42.6 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC38-150 Gastronorm Topping Shelf GN1/3 then please get in touch.
