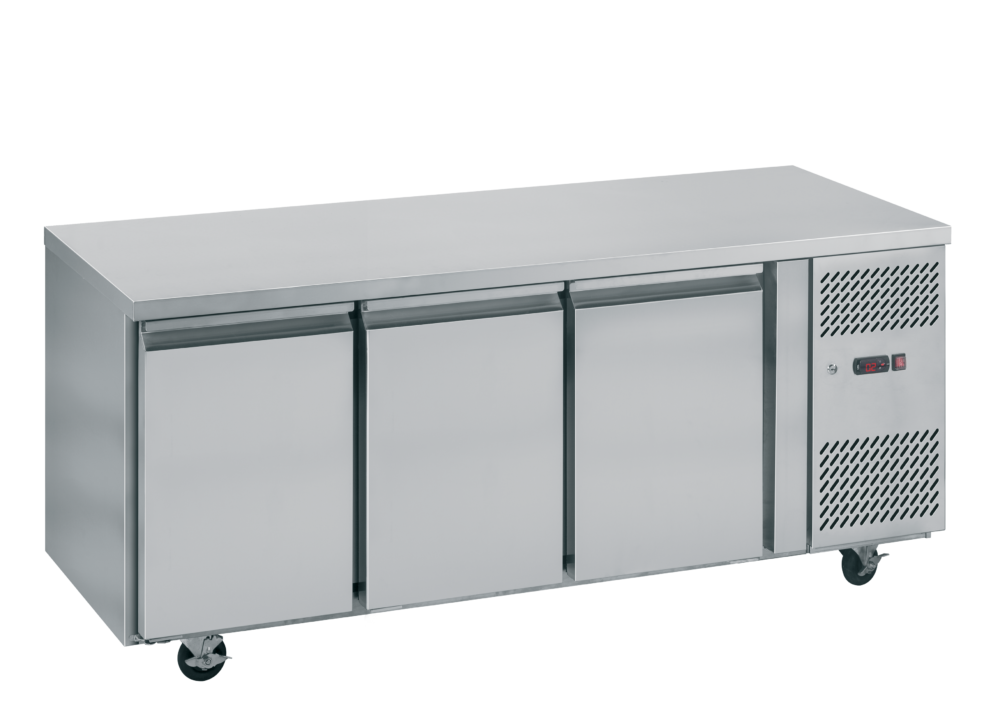

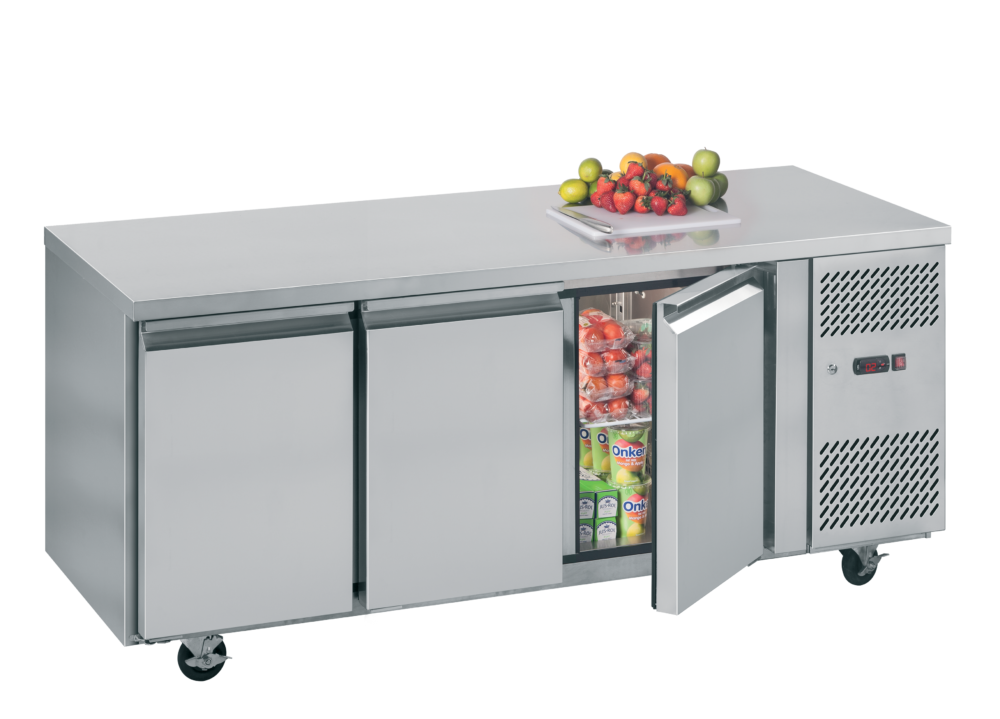

TEFCOLD PH30 Gastronorm Counter

£1,174.00

+vat

- +

Brand:

SKU: 20252

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Digital controller and temperature display
  • Self-closing doors
  • High quality catering grade 304 stainless steel
  • Replaceable door gasket
  • 1/1 Gastronorm cupboards
  • Accepts Gastronorm pans (not supplied)
  • Castors, 2 lockable

Product description

The PH Gastronorm Counter range offers efficiency and versatility for professional kitchens. These refrigeration units feature a spacious capacity, accommodating GN1/1 pans. Constructed with durable stainless steel, the PH range is built to last. Including fan-assisted cooling, digital temperature display and self-closing doors. Ideal for maintaining food quality in a busy kitchen environment.

The TEFCOLD PH30 is a three-door stainless steel under-counter refrigerator that chills stock at the line while doubling as a prep worktop, holding 334 litres net at -2 to +8 °C from a standard 13 A supply.

SPECIFICATION 37 facts · tap for all External W × D × H1795 x 700 x 840 mmWidth1795 mmDepth700 mmGross / net weight190 / 170 kgGross weight190 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991401site
Product code 20252site
Sub title Gastronorm Countercatalogue
Type Triple Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 840 mmcatalogue
External W × D × H 1795 x 700 x 840 mmsite
Gross / net weight 190 / 170 kgsite
Gross weight 190 kgcatalogue
Height 840 mmsite
Internal (W×D×H) 1257 × 570 × 580 mmcatalogue
Internal W × D × H 1257 x 570 x 580 mmsite
Packed (W×D×H) 1900 × 750 × 890 mmcatalogue
Packed W × D × H 1900 x 750 x 890 mmsite
Width 1795 mmsite

Capacity2

Gross volume 420 litrescatalogue
Shelves 3catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range -2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 631 kWh/yearsite
Energy consumption 1.73 kWh/24hsite
Input power 400 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

The PH30 is a three-door under-counter refrigerator that runs chilled storage along the line while giving you a stainless steel prep surface above. It holds 420 litres gross (334 litres net) behind three hinged solid doors, with three shelves to organise stock, and an 840 mm worktop height that sits under a standard kitchen run. Stainless steel inside and out handles daily commercial use and wipe-down cleaning.

It holds a -2 to +8 °C chilled band with automatic off-cycle defrost, so the evaporator clears without manual work. The R290 system draws 400 W and the unit is rated climate class 4, so it holds temperature in a warm, busy kitchen. Energy use is 631.5 kWh a year at energy class A — about £158 a year at 25p/kWh — and it runs at 65 dB.

The unit has a footprint of 1795 × 700 mm and stands 840 mm high to sit under a worktop run; it ships packed at 1900 × 750 × 890 mm and weighs 190 kg gross, 170 kg net. It runs from a standard 13 A supply on 220–240 V, so no special electrical provision is needed, and carries a 130 g R290 charge.

BEFORE YOU BUY

Questions, answered straight

It offers 420 litres gross and 334 litres net, with three shelves behind its three doors. It sits under the counter while giving you a stainless worktop above.

It holds a -2 to +8 °C chilled band. It uses automatic off-cycle defrost, so the evaporator clears without manual intervention.

It stands 840 mm high with a footprint of 1795 × 700 mm, sized to sit under a standard run. It ships packed at 1900 × 750 × 890 mm and weighs 190 kg gross, so check delivery access.

It uses 631.5 kWh a year at energy class A, which is about £158 a year at 25p/kWh. It runs at 65 dB.

No. It runs from a standard 13 A supply on 220–240 V, so no dedicated electrical provision is needed.

It uses R290 with a 130 g charge. For servicing or spares, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1257 x 570 x 580 mm
External Dimension (WxDxH): 1795 x 700 x 840 mm
Packed Dimension (WxDxH): 1900 x 750 x 890 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.73 kWh/24h
Temperature Range: -2 to +8 °C
Annual Energy Consumption: 631 kWh/year m³
Input Power: 400 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -2 to +8 °C
Climate Class: 4
Gross / Net Weight: 190 / 170 kg
Gross / Net Volume: 420 / 334 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD PH30 Gastronorm Counter then please get in touch.
