CombiSteel 700 Series Refrigerated Counter Triple Door Energy Line 7489.5505

£1,425.55

+vat

- +

Brand:

SKU: 7489.5505

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 28 facts · tap for all Width1865 mmDepth700 mmHeight850 mmGross / net weight175 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242935958catalogue
Range / series Energy Linecatalogue
Type Triple Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1865 × 700 × 850 mmcatalogue
Gross / net weight 175 kgsite
Height 850 mmsite
Width 1865 mmsite

Capacity5

Capacity 474 Ltrcatalogue
Doors 3catalogue
Gastronorm size 1/1catalogue
Gross volume 474 litrescatalogue
Shelves 2catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,227site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 227 Wcatalogue
Rated power 227 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings2

Exterior finish Stainless steel 430site
Insulation 50 mmcatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

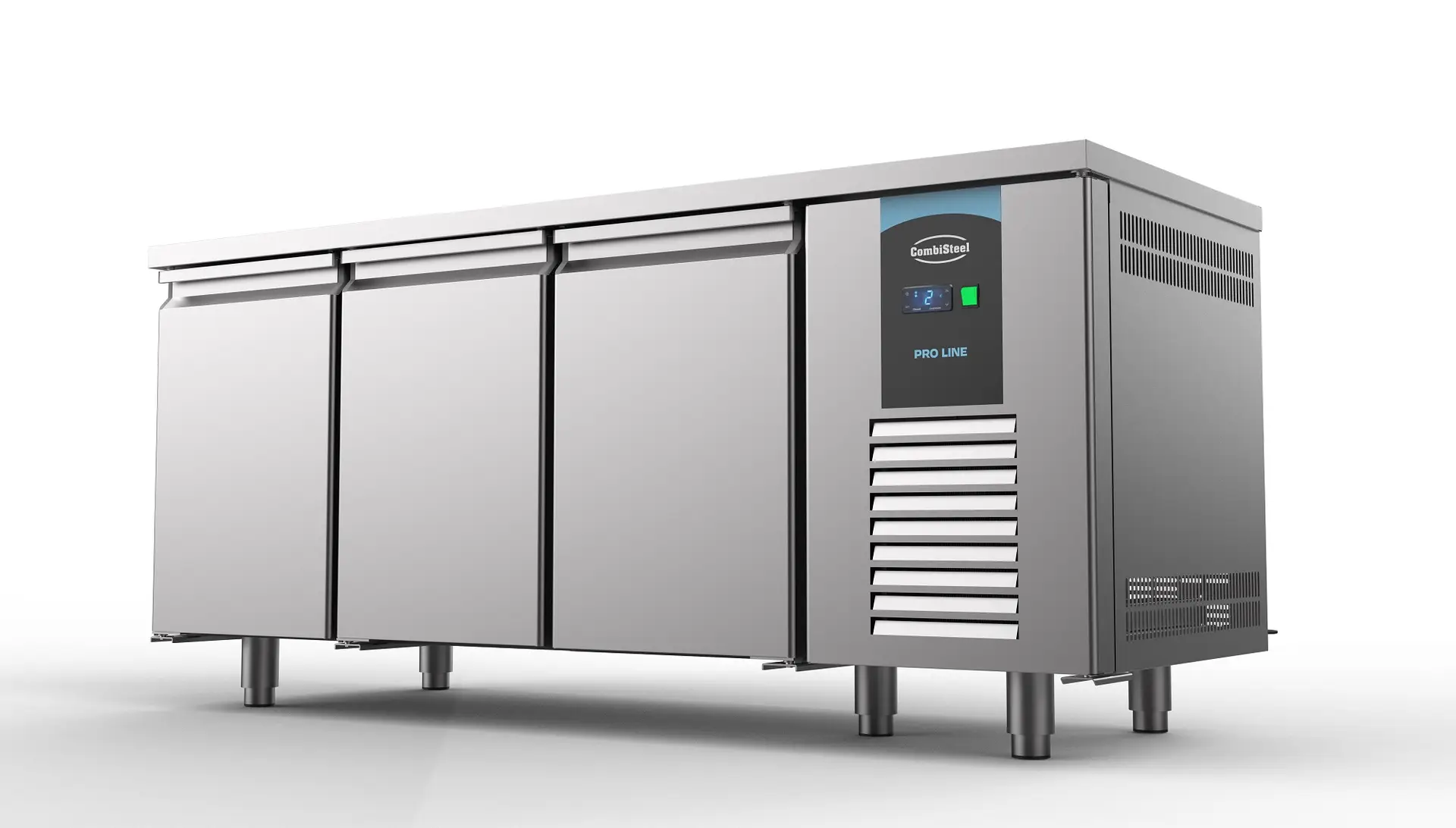

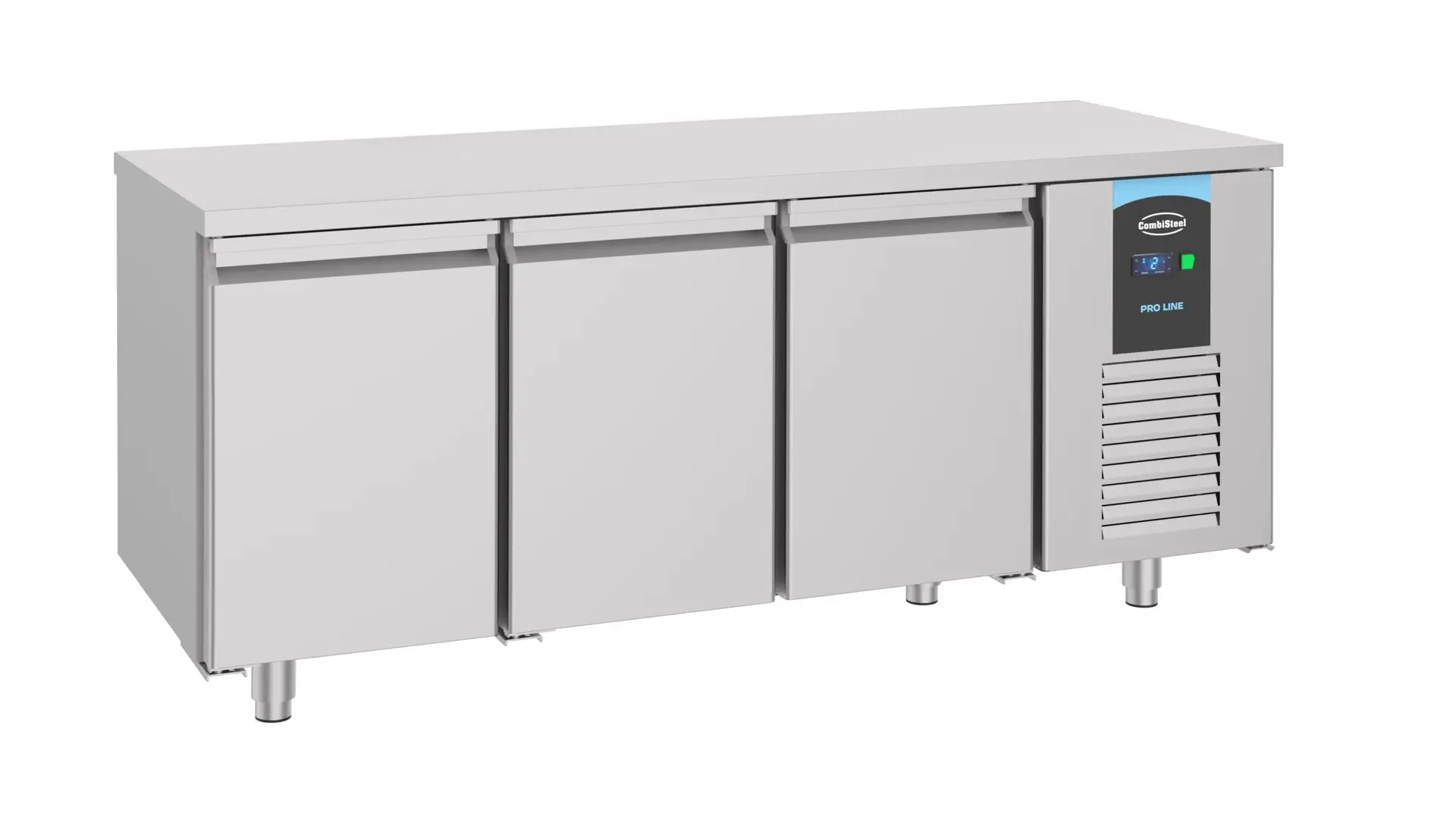

This Energy Line three-door refrigerated counter combines a long working surface with 474 litres of chilled storage underneath. At 1865 mm wide, 700 mm deep and 850 mm high, it gives a commercial kitchen a proper counter run rather than a token underbench fridge, with three door sections for splitting prep by station, course or cook.

The ventilated cooling system holds a -2 to +8 °C temperature range, with automatic defrost and R290 refrigerant, so it is built for chilled mise en place through service. A 43 °C maximum ambient rating gives it useful headroom in hot commercial kitchens, while the 40 dB(A) noise figure keeps it unobtrusive on the line.

The cabinet is stainless steel 430 with 50 mm insulation, so it is made for daily wipe-downs and steady cold holding. At 175 kg gross weight it needs a planned delivery route and final position before arrival, especially in basement kitchens or tight prep rooms. Craven Cooling can help check siting, access and ventilation before installation.

BEFORE YOU BUY

Questions, answered straight

Yes. It is built as a refrigerated counter, so the 1865 mm wide top gives a working surface with chilled stock directly underneath. Ingredients and prep space stay in the same footprint.

The three doors give bulk chilled holding rather than small divided drawer runs. With 474 litres of gross volume, it suits a line that turns over stock quickly and needs sections divided by cook or menu area.

The supplier-stated operating range is -2 to +8 °C. Use it for chilled ingredients and log cabinet temperatures as part of your normal HACCP checks.

The external size is 1865 mm wide, 700 mm deep and 850 mm high, with a 175 kg gross weight. Check the full route into the kitchen as well as the space on the line.

Running cost depends on your tariff, usage pattern and kitchen conditions. Use the energy label decoder with the available rating data, and ask us to sanity-check the supplier electrical figures if you are planning the supply.

Wipe the stainless steel 430 worktop and interior as part of your daily HACCP routine, keep the condenser clear and include the automatic-defrost system in planned maintenance. Craven Cooling's service team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Triple Door Energy Line 7489.5505 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 1865 × 700 × 850 mm
Capacity 474 Ltr
GN Capacity 1/1
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 2
Electrical Power 0.227 kW
Voltage 230V / 50Hz
Noise Level 40 dB
Insulation 50 mm
Weight 175 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Triple Door Energy Line 7489.5505 then please get in touch.
