CombiSteel 600 Series Refrigerated Counter Triple Door 7950.5225

+vat

Brand:

SKU: 7950.5225

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 29 facts · tap for all External W × D × H1795 x 600 x 850Width1795 mmDepth600 mmHeight850 mmGross / net weight120 kgVoltage / frequency230 volts / hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017431653655site
Product code 7950.5225site
Type Triple Door Counter Fridgescatalogue

Size & weight8

Depth 600 mmsite
External (W×D×H) 1795 × 600 × 850 mmcatalogue
External W × D × H 1795 x 600 x 850site
Gross / net weight 120 kgsite
Height 850 mmsite
Internal (W×D×H) 1234 × 480 × 564 mmcatalogue
Internal W × D × H 1234x480x564site
Width 1795 mmsite

Capacity2

Capacity 339 Ltrcatalogue
Gross volume 339 litrescatalogue

Performance5

Cooling Ventilatedcatalogue
Defrost Automaticcatalogue
Max ambient 43 °Ccatalogue
Refrigerant R 290catalogue
Temperature range 43site

Power & energy4

Rated input 230 Wcatalogue
Rated power 23 kWcatalogue
Voltage 230Vcatalogue
Voltage / frequency 230 volts / hzsite

Build & fittings4

Doors 3site
Exterior finish Stainless steel 18/8site
Insulation 60 mmcatalogue
Interior finish Stainless steel 201site

Other stated facts2

Energy consumption 1195 kWh/yearcatalogue
Lockable Nocatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

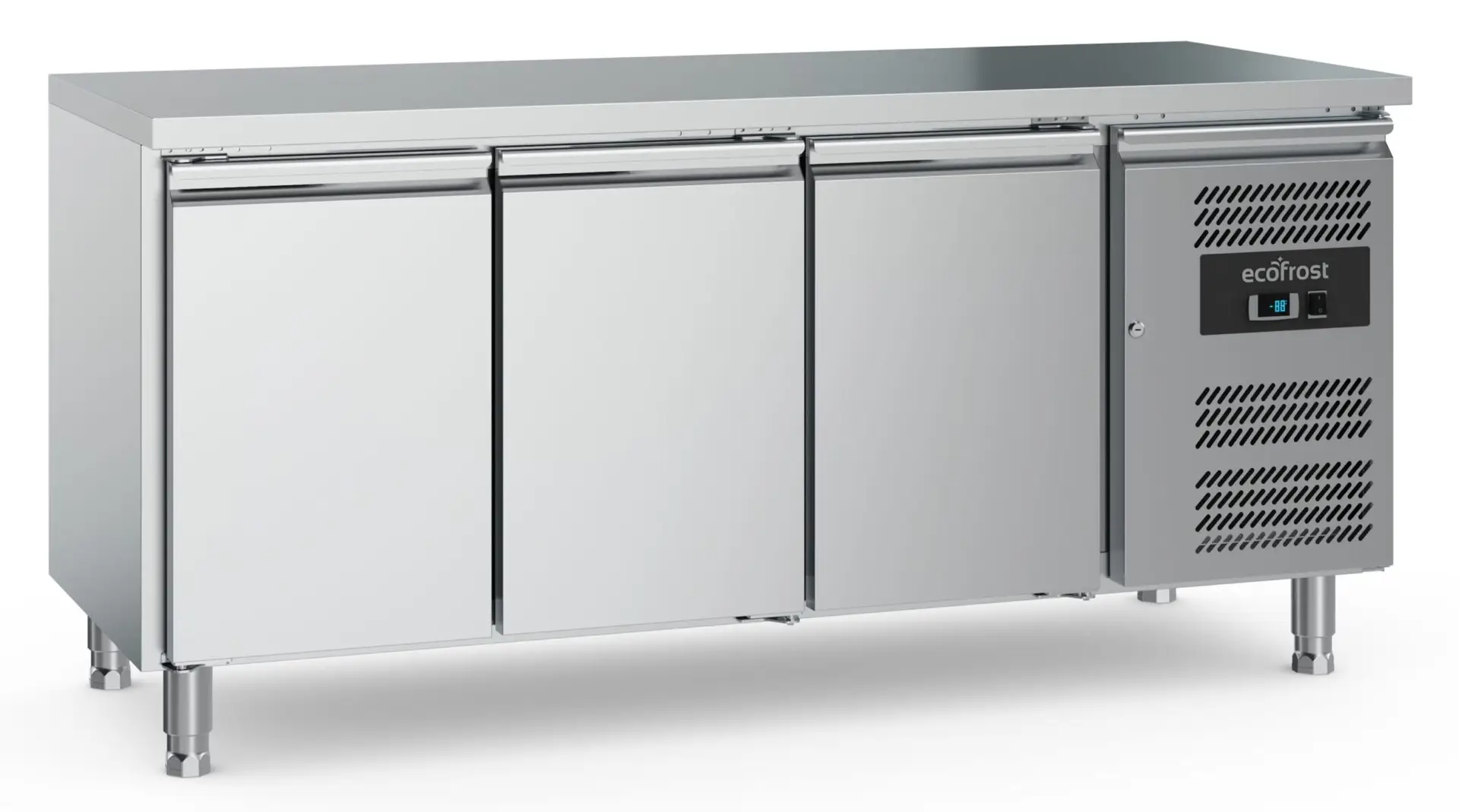

The 7950.5225 is a three-door refrigerated counter from Combisteel, holding 339 litres in 1/1 gastronorm compatible compartments beneath a continuous worktop. Built in stainless steel 18/8 with 60 mm insulation, it maintains +2 to +8°C using R290 refrigerant with automatic defrost, so a kitchen gets cold storage and a prep surface in one bench.

Through service the cabinet keeps prepped and raw stock chilled while the top stays clear for prep and plating. Three doors let a team section stock by product or shift and work without leaving the line. The unit is 1795 mm wide, 600 mm deep and 850 mm tall, weighing 120 kg on a 230V single-phase supply.

It is a floor-standing counter for a standard prep run. Measure doorways and the delivery route against the external dimensions in the spec table, and allow clearance for airflow and servicing access. Use the calculators below to size and cost it.

BEFORE YOU BUY

Questions, answered straight

It is a three-door counter, so the refrigerated cabinet below the worktop divides into three sections for separating stock by product or by shift.

It maintains +2 to +8°C, the standard chilled band for ready-to-eat stock and prepared components. The exact operating band and performance are in the specification table on this page.

It is a floor-standing counter, so measure your doorways, corridors and access route against the external dimensions in the spec table before you order.

It is rated at 23 kW on 230V single phase. Put the spec-table figures into the energy label decoder or finance calculator below for pounds per year on your tariff.

Keep the ventilation grilles clear and clean the interior and door seals on a regular schedule to hold performance. Craven Cooling covers installation and servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 600 Series Refrigerated Counter Triple Door 7950.5225 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1795 × 600 × 850 mm
Interior Dimensions 1234x480x564
Capacity 339 Ltr
Material Stainless steel 18/8
Interior Material Stainless steel 201
Temperature Range +2 / +8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3
Electrical Power 0.23 kW
Voltage 230V
Lockable No
Insulation 60 mm
Weight 120 kg
If you have any questions about the CombiSteel 600 Series Refrigerated Counter Triple Door 7950.5225 then please get in touch.
