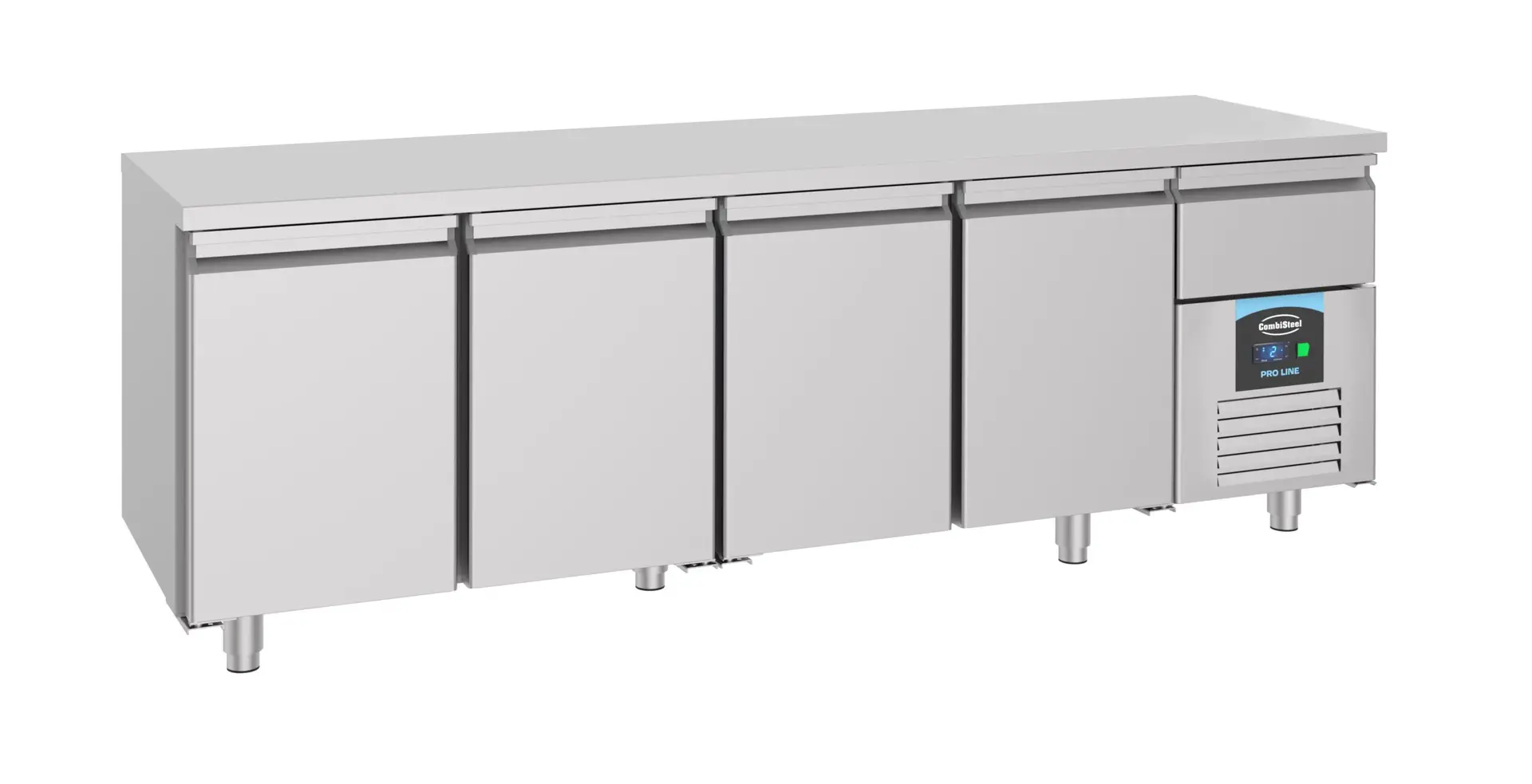

CombiSteel 700 Series Refrigerated Counter 4 Door 7489.5167

£2,124.00

+vat

Brand:

SKU: 7489.5167

Product summary

Size W/D/H (mm) x x

Product description

The Combisteel 7489.5167 is a 2330 mm wide, four-door refrigerated counter with 632 litres of chilled storage, a stainless steel AISI 304 body and ventilated R290 cooling for -2 to +8 °C service-line storage.

Downloads

SPECIFICATION 29 facts · tap for all Width2330 mmDepth700 mmHeight850 mmGross / net weight195 kgVoltage / frequency23050/60Voltage230V / 50/60Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017443572548catalogue
Range / series Pro Linecatalogue
Type Four Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 2330 × 700 × 850 mmcatalogue
Gross / net weight 195 kgsite
Height 850 mmsite
Width 2330 mmsite

Capacity4

Capacity 632 Ltrcatalogue
Gastronorm size 1/1catalogue
Gross volume 632 litrescatalogue
Shelves 4catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,45site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 450 Wcatalogue
Rated power 45 kWcatalogue
Voltage 230V / 50/60Hzcatalogue
Voltage / frequency 23050/60site

Build & fittings2

Exterior finish Stainless steel Aisi 304site
Insulation 50 mmcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

A refrigerated counter is chilled storage built into the height of a worktop, so a kitchen gets cold stock and a working surface in the same run. This four-door Combisteel model is the long version of the 700 series: 2330 mm wide, 700 mm deep and 850 mm high, with 632 litres of refrigerated volume beneath the top. It turns a full line-side run into usable cold storage for prep, service and backup ingredients.

Four doors split the cabinet into working sections, so staff open only the part they need while the rest stays closed. Ventilated cooling and a digital controller hold the cabinet in the -2 to +8 °C chilled band, with automatic defrost to reduce daily intervention. R290 refrigerant, 50 mm insulation and a 43 °C maximum ambient rating make it a serious hot-kitchen counter rather than a light-duty prep fridge.

The stainless steel AISI 304 build suits the clean-down rhythm of a commercial line, and the listed 40 dB(A) noise level keeps it relatively quiet for a cabinet of this size. At 195 kg gross weight it needs a planned delivery route, a measured final position and clearance for the door swing, airflow and servicing access. Confirm the 230 V, 50 Hz supply with your installer before it lands on site.

BEFORE YOU BUY

Questions, answered straight

A refrigerated counter is chilled storage built into worktop height, giving a kitchen cold stock and a working surface in one run. This model has four doors, 632 litres of gross volume and an 850 mm working height.

Four doors split the 2330 mm wide cabinet into separate access points, so staff can work from different sections of the line without opening one large space every time.

Yes. The counter is 850 mm high, so it works as a line-side prep surface with refrigerated storage directly beneath.

The stated operating range is -2 to +8 °C, controlled digitally with ventilated R290 cooling and automatic defrost.

It is a long floor-standing counter, 2330 mm wide by 700 mm deep. Plan the delivery route, doorways and corner turns, and leave clearance for doors, airflow and servicing access.

The stainless steel AISI 304 body wipes down as part of the daily clean. For servicing, spares or advice on the right counter for your line, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter 4 Door 7489.5167 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 2330 × 700 × 850 mm
Capacity 632 Ltr
GN Capacity 1/1
Material Stainless steel Aisi 304
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 4
Number of Grids/Shelves 4
Electrical Power 0.45 kW
Voltage 230V / 50/60Hz
Mobile No
Lockable No
Noise Level 40 dB
Insulation 50 mm
Weight 195 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter 4 Door 7489.5167 then please get in touch.
