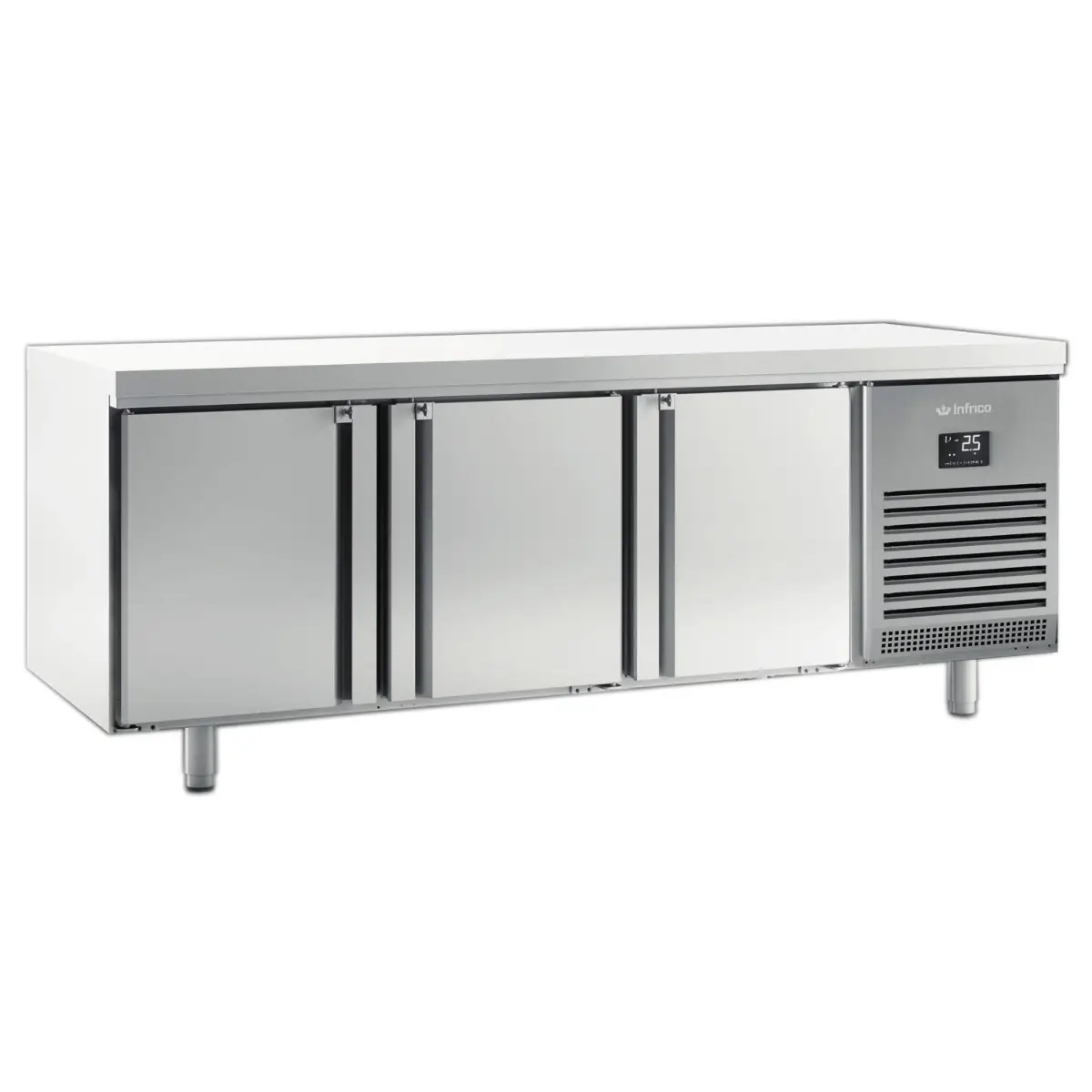

INFRICO Triple Hinged Door Freezer Counter MR2190BT

£3,558.76

+vat

Brand:

SKU: MR2190BT

Product summary

Size: 2185 x 800 x 850

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Rounded internal corners and internal drain for easy cleaning
  • Supplied with one shelf per door 600mm x 400mm
  • Adjustable legs
  • Glass door option with LED lighting available POA
  • Replaceable door gasket
  • Automatic defrost
  • Ventilated cooling system
  • Fully automatic operation
  • Electronic controller
  • Digital temperature display
  • Door gaskets are replaceable

The INFRICO MR2190BT is a 625-litre triple-door freezer counter in AISI 304 stainless steel, holding -18 to -22 °C across a 2185 × 800 × 850 mm footprint with ventilated R290 cooling and automatic defrost.

Downloads

SPECIFICATION 23 facts · tap for all External W × D × H2185 x 800 x 850Width2185 mmDepth800 mmHeight850 mmGross weight218 kgVoltage / frequency690W

Manufacturer documents1

Identity3

Brand INFRICOsite
Product code MR2190BTsite
Type Triple Door Counter Freezerscatalogue

Size & weight6

Depth 800 mmsite
External (W×D×H) 2185 × 800 × 850 mmcatalogue
External W × D × H 2185 x 800 x 850site
Gross weight 218 kgcatalogue
Height 850 mmsite
Width 2185 mmsite

Capacity1

Gross volume 625 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temp displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -18C/-22Csite

Power & energy3

Input power 13amp supplysite
Rated input 690 Wcatalogue
Voltage / frequency 690Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 3site

Other stated facts1

Energy consumption 4069 kWh/yearcatalogue
THE WORKING VIEW

Why this triple door counter freezer earns its place

The INFRICO MR2190BT is the freezer version of Infrico's wide triple-door counter: frozen storage built into a working 850 mm-high counter run rather than pushed to a separate upright. It gives you 625 litres of gross freezer volume behind three doors, with one 600 × 400 mm shelf per door for organised back-of-house frozen stock.

The cabinet is specified with high-grade AISI 304 stainless steel inside and out, rounded internal corners and an internal drain, so the storage space is designed for the cleaning routines a commercial kitchen actually has to keep up with. Replaceable door gaskets, adjustable legs and a digital temperature display make the counter easier to set up, check and maintain in service.

Performance is firmly freezer territory: -18 to -22 °C, ventilated cooling, R290 refrigerant, automatic defrost and climate class 4. The rated input is 690 W on a 13amp supply, and the 218 kg gross weight means the 2185 × 800 × 850 mm body needs a properly planned delivery route and final position.

BEFORE YOU BUY

Questions, answered straight

The specified operating range is -18 to -22 °C, with ventilated cooling, R290 refrigerant and a digital controller with temperature display.

The gross volume is 625 litres. The counter has three doors and is supplied with one 600 × 400 mm shelf per door.

The external size is 2185 × 800 × 850 mm. Measure the final counter run, delivery route, doorway clearances and any tight turns against those dimensions.

Yes. Automatic defrost is specified, alongside fully automatic operation and an electronic controller.

The MR2190BT is listed for a 13amp supply with a rated input of 690 W. Site electrical checks should be made before installation.

Craven Cooling can discuss the installation route and service access on 01792 732702. Have the 2185 × 800 × 850 mm size and 218 kg gross weight ready.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 2185 x 800 x 850

Cooling and Functions

Type of Controller: Digital controller with temp display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -18C/-22C °C
Input Power: 13amp supply
Voltage / Frequency: 690W

Measures and Content

Temperature Range: -18C/-22C °C
Climate Class: 4
Gross / Net Volume: 625 ltr l

Design and Material

Shelves Number & Type: 3
Exterior Finish: Stainless Steel

INFRICO Triple Hinged Door Freezer Counter MR2190BT Product Data

If you have any questions about the INFRICO Triple Hinged Door Freezer Counter MR2190BT then please get in touch.
