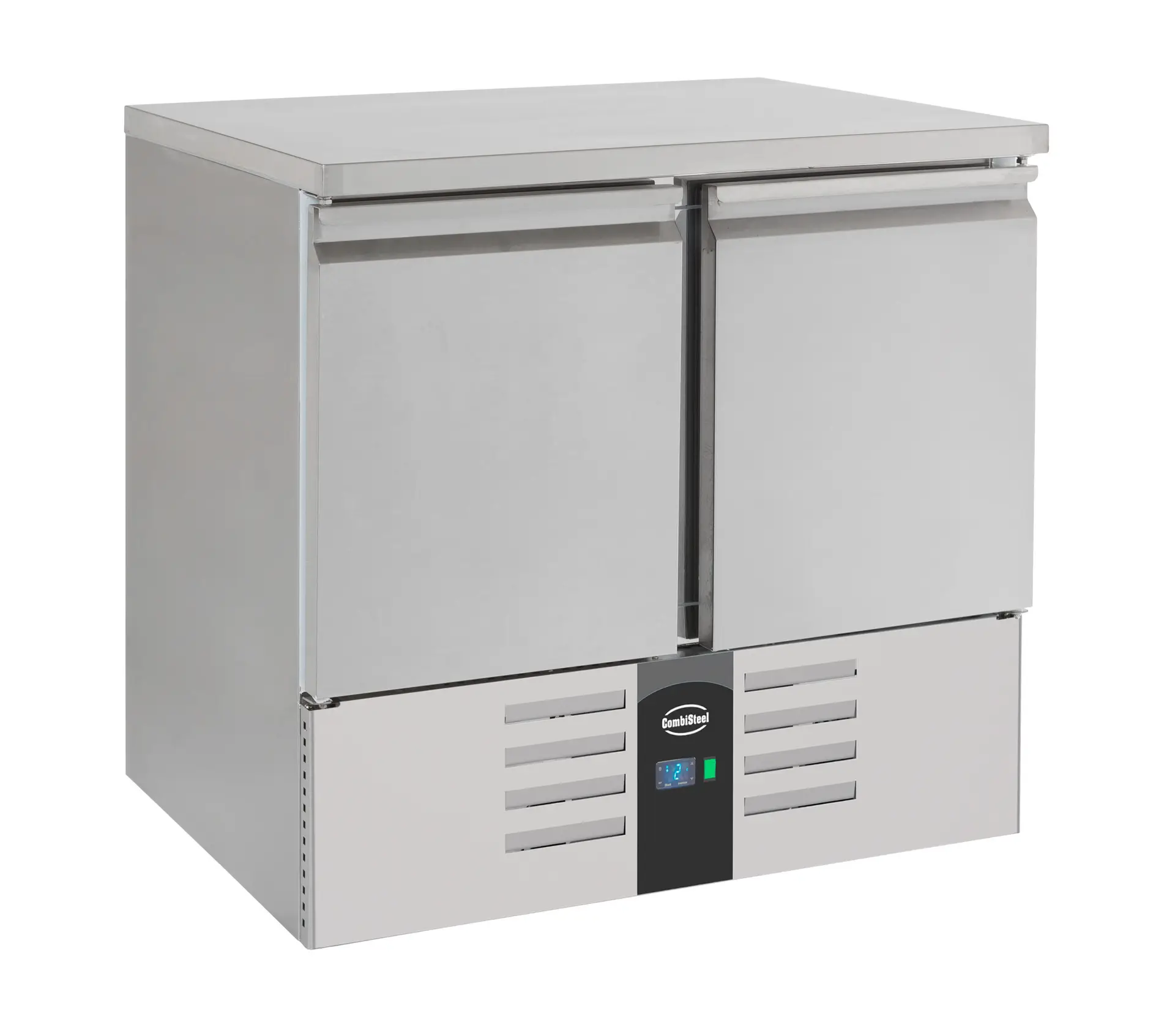

CombiSteel Refrigerated Negative Counter Double Door 7450.0079

£994.82

+vat

- +

Brand:

SKU: 7450.0079

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 31 facts · tap for all Width943 mmDepth700 mmHeight855 mmGross / net weight96 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137811862catalogue
Type Double Door Counter Freezerscatalogue

Size & weight7

Depth 700 mmsite
External (W×D×H) 943 × 700 × 855 mmcatalogue
Gross / net weight 96 kgsite
Height 855 mmsite
Internal (W×D×H) 830 × 595 × 411 mmcatalogue
Internal W × D × H 830x595x411site
Width 943 mmsite

Capacity3

Capacity 257 Ltrcatalogue
Gross volume 257 litrescatalogue
Shelves 2catalogue

Performance5

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 32 °Ccatalogue
Temperature range -10 / -20site

Power & energy7

Energy consumption 0.34site
Frequency 50 Hzcatalogue
Noise level 5050site
Rated input 340 Wcatalogue
Rated power 0.34 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings5

Colour Stainless steelcatalogue
Exterior finish Stainless steel 18/8site
Insulation 55 mmcatalogue
Interior finish Stainless steel 201site
Temperature display Yes, digitalcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this double door counter freezer earns its place

This is a two-door negative counter: a worktop-height freezer that sits in the line rather than a separate cabinet parked against a back wall. "Negative" means it runs at freezer temperatures for frozen storage, and the counter format puts that frozen stock right where the kitchen works — under the pass, within reach of the section. Two doors let you split the interior into zones so you open only the side you need. At 943 mm wide and 855 mm tall, it is notably compact — the narrowest option for tight kitchen runs. Built from stainless steel 18/8 with 55 mm insulation and automatic defrost, it maintains -10 to -20 °C with static cooling and digital control at 50 dB(A). It holds 257 litres and weighs just 96 kg, the lightest negative counter in the range.

Day to day it holds frozen stock at the point of service so the line is not walking to a back freezer mid-shift. Work it as your on-the-line frozen store: bases, portioned proteins, frozen prep, whatever the section pulls under pressure. The static cooling arrangement means it works well in stable ambient conditions (up to 32 °C); check the operating band in the spec panel against your kitchen environment and set your thermometer and HACCP logging to match the -10 to -20 °C range.

Before ordering, check the external dimensions in the spec panel against your worktop height, the run it will slot into and your doorways — a counter has to line up with the surfaces either side of it. At 0.34 kW, it draws a modest load from a standard 230 V mains supply. Craven Cooling can advise on siting and delivery access, and back the unit with UK-based servicing and support.

BEFORE YOU BUY

Questions, answered straight

It is a negative counter, meaning it runs at freezer temperatures for frozen storage rather than chilled holding. The exact temperature band is in the spec panel — check it against what you intend to freeze.

Check the external dimensions in the spec panel against your worktop height, the run it will sit in and your doorways before ordering. A counter has to line up with the surfaces either side. Craven Cooling can advise on access and siting.

As a counter-format unit it sits at worktop height in the line. Confirm the top and dimensions in the spec panel suit your prep before ordering, and follow the maker's guidance on loading and use.

Use the capacity calculator in the tools below to turn your menu into the frozen litres you need, then compare that against the volume figure in the spec panel.

Running cost depends on the energy rating and your electricity tariff. Use the energy label decoder in the tools below with the figures from the spec panel to estimate the annual cost on your own tariff.

Craven Cooling provides UK-based servicing and support. Call 01792 732702 to book a visit or discuss a fault before it takes the counter out of service.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Negative Counter Double Door 7450.0079 Product Data

Brand CombiSteel
Dimensions (W×D×H) 943 × 700 × 855 mm
Interior Dimensions 830x595x411
Capacity 257 Ltr
Material Stainless steel 18/8
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range -10 / -20
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Static
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2x 1/1GN
Electrical Power 0.34 kW
Voltage 230V / 50Hz
Mobile No
Lockable No
Noise Level 50 dB
Insulation 55 mm
Weight 96 kg
If you have any questions about the CombiSteel Refrigerated Negative Counter Double Door 7450.0079 then please get in touch.
