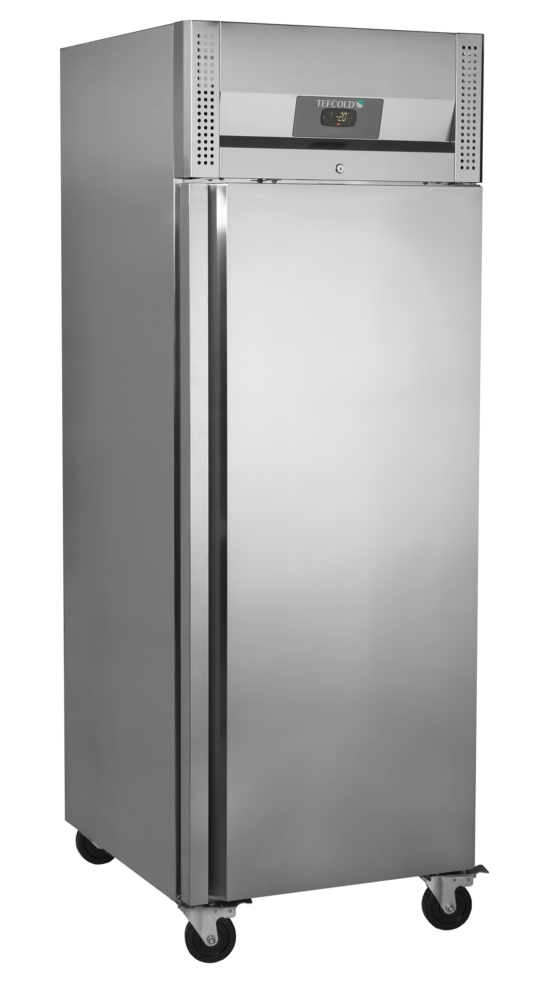

TEFCOLD RF710X1 Gastronorm Upright Freezer

£1,298.00

+vat

- +

Brand:

SKU: 54330

Energy Arrow

Product summary

  • Stainless steel cabinet

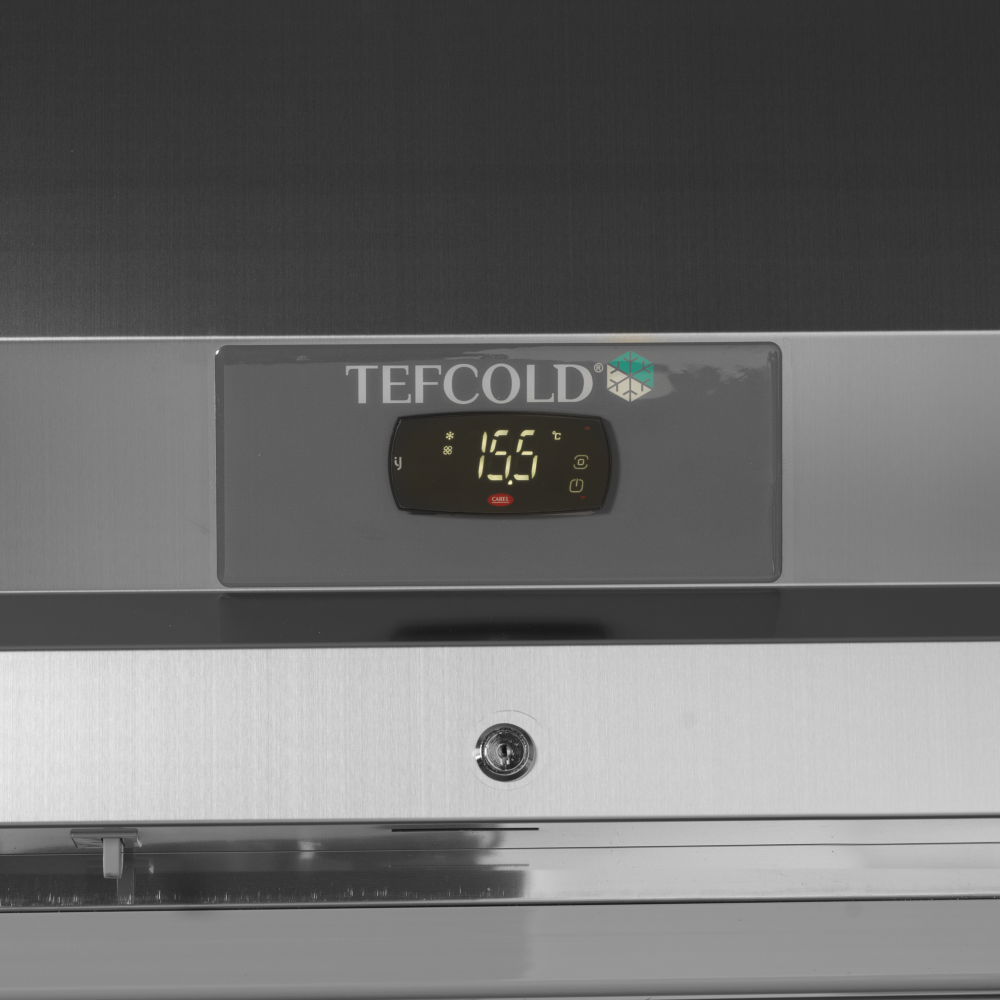

  • Controller with Bluetooth and NFC connectivity
  • HACCP compliant data export
  • Ventilated cooling
  • Self-closing doors
  • Adjustable shelves GN2/1
  • Maintenance free condenser
  • Strong wheels
  • Lock

Product description

Stainless steel single-door freezer tailored for commercial kitchens.

The RF-X range of GN upright freezers with 1 or 2 solid doors is created for professional kitchens and have adjustable shelves in GN2/1 dimensions. It is made from high quality catering grade SS304 stainless steel and has strong wheels for mobility. Ventilated cooling ensures an optimal temperature, which can be set on a digital thermostat – complete with Bluetooth for easy monitoring via an app. We also have a RF range for smaller spaces, but this does not have GN dimensions.

SPECIFICATION 44 facts · tap for all External W × D × H740 x 875 x 2090 mmWidth740 mmDepth875 mmGross / net weight153 / 148 kgGross weight153 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739416site
Product code 54330site
Sub title Gastronorm Upright Freezercatalogue
Type Single Door Commercial Upright Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 875 mmsite
External (W×D×H) 740 × 875 × 2090 mmcatalogue
External W × D × H 740 x 875 x 2090 mmsite
Gross / net weight 153 / 148 kgsite
Gross weight 153 kgcatalogue
Height 2090 mmsite
Internal (W×D×H) 533 × 700 × 1501 mmcatalogue
Internal W × D × H 533 x 700 x 1501 mmsite
Packed (W×D×H) 760 × 905 × 2150 mmcatalogue
Packed W × D × H 760 x 905 x 2150 mmsite
Width 740 mmsite

Capacity3

Doors 1catalogue
Gross volume 559 litrescatalogue
Shelves 3catalogue

Performance8

Climate class 5site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range -22 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1062 kWh/yearsite
Energy consumption 2.9 kWh/24hsite
Energy efficiency index 30.5 %site
Input power 380 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Castors 4 castorssite
Exterior finish SS304site
Interior light LEDsite
Max load per shelf 70site
Shelf dimensions 530×650site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

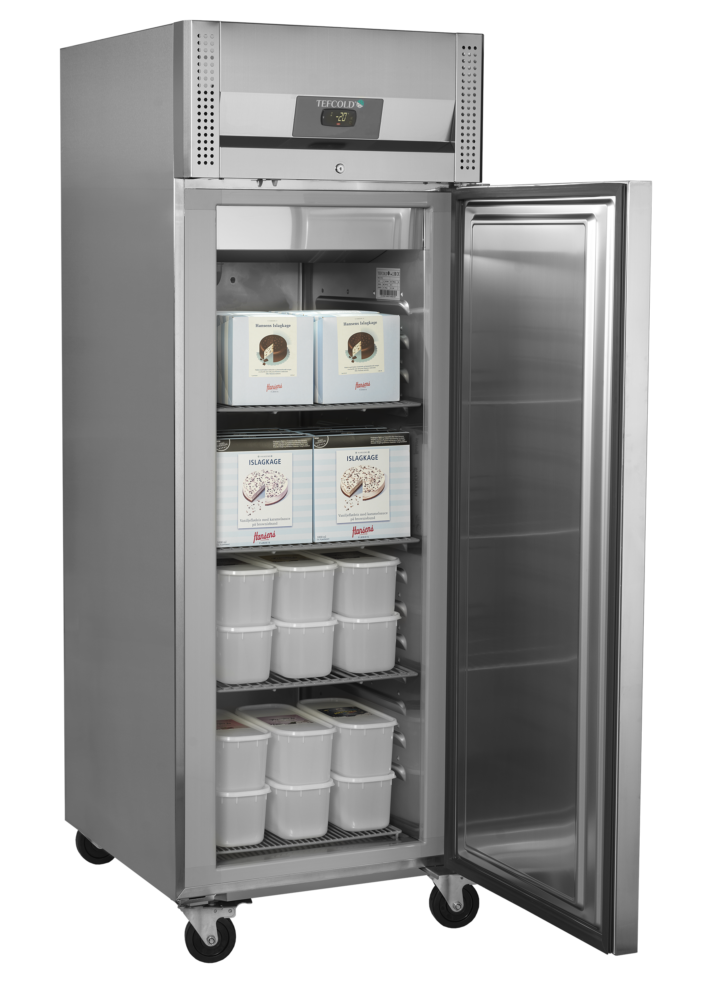

The RF710X1 is a single-door upright freezer for gastronorm storage, holding stock at -22 to -18 °C in a commercial kitchen. It offers 559 litres gross and 408 litres net capacity across three grey wire shelves behind a self-closing hinged solid door, keeping frozen ingredients ordered and within reach on the line. Built in AISI 304 stainless steel inside and out, it stands up to daily kitchen use and wipes down for hygiene.

In service an electronic controller holds the -22 to -18 °C band, cooling is ventilated for even temperature across the shelves, and defrost is automatic and electric so frost does not build between cleans. The self-closing door helps hold temperature during a busy line. Rated noise is a low 48 dB. On verified energy use of 1058.5 kWh a year, running cost is about £265 a year at 25p/kWh, with an energy class B rating.

The cabinet measures 740 × 875 × 2090 mm externally, so it passes through a standard doorway upright; internal space is 533 × 700 × 1501 mm. It runs on a 220–240 V/50 Hz, 13 A supply, draws 380 W and uses R290 refrigerant with a 130 g charge. Net weight is 148 kg and gross weight 153 kg.

BEFORE YOU BUY

Questions, answered straight

It offers 559 litres gross and 408 litres net capacity across three grey wire shelves. The internal space measures 533 × 700 × 1501 mm and takes gastronorm stock.

The freezer holds -22 to -18 °C, controlled electronically with automatic electric defrost. Ventilated cooling keeps the temperature even across the shelves.

The cabinet is 740 × 875 × 2090 mm externally and stands upright, so it clears most standard commercial doorways. Check the height and your access route before delivery; net weight is 148 kg.

On verified energy use of 1058.5 kWh a year, it costs about £265 a year at 25p/kWh and carries an energy class B rating. Actual cost depends on your tariff and how the freezer is used.

The cabinet is AISI 304 stainless steel inside and out — a durable, hygienic grade that wipes clean and resists corrosion in a working kitchen.

Yes. We can arrange servicing and technical support for the RF710X1; call 01792 732702 to book a visit or ask a question.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 533 x 700 x 1501 mm
External Dimension (WxDxH): 740 x 875 x 2090 mm
Packed Dimension (WxDxH): 760 x 905 x 2150 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.9 kWh/24h
Temperature Range: -22 to -18 °C
Annual Energy Consumption: 1062 kWh/year m³
EEI: 30.5 %
Input Power: 380 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -22 to -18 °C
Climate Class: 5
Gross / Net Weight: 153 / 148 kg
Gross / Net Volume: 559 / 408 l

Design and Material

Door Reversible: Yes
Shelf Color: Grey
Shelf Dimensions: 530×650
Max load on Shelves: 70 kg/m²
Castors: 4 castors
Exterior Finish: SS304
Interior Finish: SS304
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD RF710X1 Gastronorm Upright Freezer then please get in touch.
