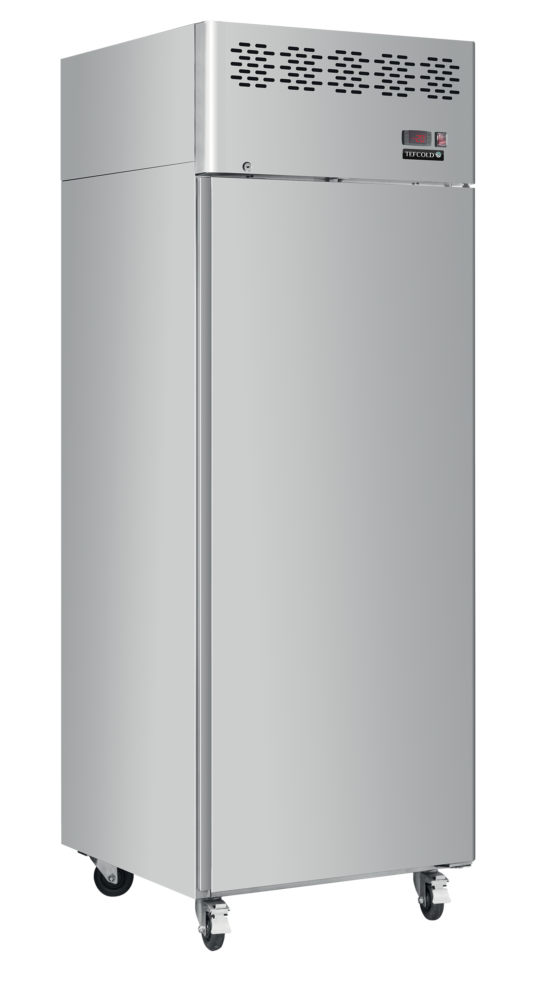

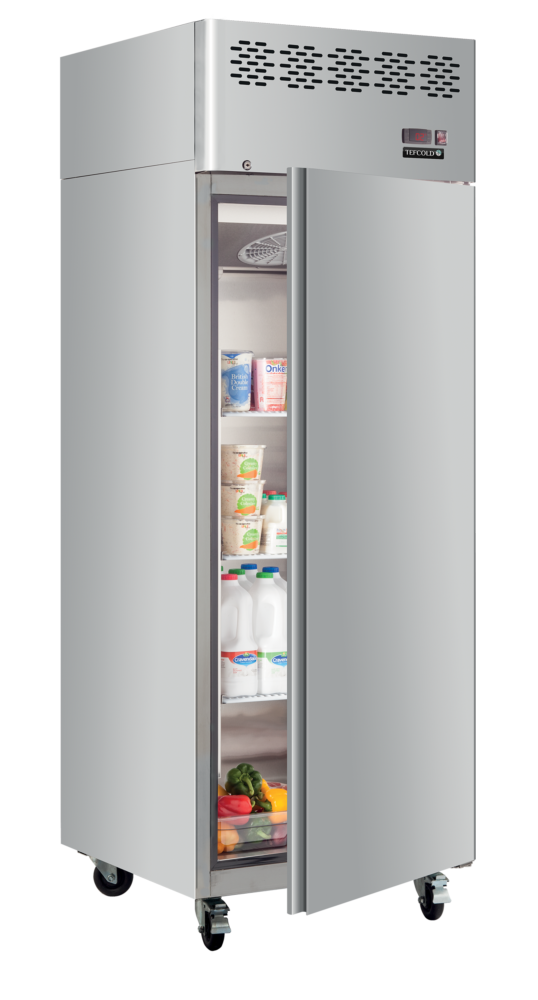

TEFCOLD CAF650 Gastronorm Upright Freezer

£1,928.00 £1,043.00

+vat

- +

Brand:

SKU: 20301

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Castors, 2 lockable
  • Interior light
  • Digital controller and temperature display
  • Self closing doors with stay open feature for ease of loading
  • High quality catering grade 304 stainless steel
  • Replaceable door gasket
  • Accepts 2/1 Gastronorm shelves/pans

Product description

The CAF range are solid door upright freezers designed for superior freezing in commercial environments. Crafted with robust materials, these freezers withstand the demands of busy kitchens and storage facilities. These work efficiently in up to 30°C ambient temperatures (Climate Class 4). These freezers maintain temperatures from -22 to -17°C, ideal for various food products.

Sale!
SPECIFICATION 40 facts · tap for all External W × D × H730 x 845 x 2130 mmWidth730 mmDepth845 mmGross / net weight140 / 120 kgGross weight140 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991043site
Product code 20301site
Sub title Gastronorm Upright Freezercatalogue
Type Single Door Commercial Upright Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 845 mmsite
External (W×D×H) 730 × 845 × 2130 mmcatalogue
External W × D × H 730 x 845 x 2130 mmsite
Gross / net weight 140 / 120 kgsite
Gross weight 140 kgcatalogue
Height 2130 mmsite
Internal (W×D×H) 610 × 635 × 1540 mmcatalogue
Internal W × D × H 610 x 635 x 1540 mmsite
Packed (W×D×H) 770 × 885 × 2150 mmcatalogue
Packed W × D × H 770 x 885 x 2150 mmsite
Width 730 mmsite

Capacity3

Doors 1catalogue
Gross volume 670 litrescatalogue
Shelves 3catalogue

Performance8

Climate class 4site
Defrost type Automatic, hot gassite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range -22 to -17site
Thermometer Yessite

Power & energy5

Annual energy consumption 1821 kWh/yearsite
Energy consumption 4.98 kWh/24hsite
Input power 600 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Stainless steelsite
Reversible doors Nosite
Shelf dimensions GN2/1site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

The TEFCOLD CAF650 is a single-door upright freezer for frozen commercial storage, giving 670 litres gross and 455 litres usable behind one hinged solid door. Three wire shelves organise frozen stock in a stainless steel cabinet sized for back-of-house use. It holds ingredients, batch-cooked stock and frozen deliveries at deep-freeze temperature through the working day.

The cabinet runs from -22 to -17 °C, cold enough for long-term frozen storage, with automatic hot-gas defrost that clears the evaporator quickly and returns the freezer to temperature. Rated to climate class 4 for a warm kitchen, it operates at 65 dB. Stainless steel construction inside and out handles daily commercial cleaning.

It measures 730 × 845 × 2130 mm externally and weighs 140 kg, shipping packed at 770 × 885 × 2150 mm — check the packed height against your doorway before delivery. The freezer draws 600 W from a standard 13-amp supply at 220-240 V and is charged with 120 g of R290 hydrocarbon refrigerant.

BEFORE YOU BUY

Questions, answered straight

It runs from -22 to -17 °C, cold enough for long-term frozen storage. Automatic hot-gas defrost clears the evaporator quickly and returns the cabinet to temperature.

670 litres gross and 455 litres usable, organised across three wire shelves behind a single hinged solid door. The interior is stainless steel throughout.

It is energy class C and uses 1817.7 kWh a year, about £454 a year at 25p/kWh. Actual cost moves with your tariff.

The freezer is 730 mm wide, 845 mm deep and 2130 mm high, and ships packed at 770 × 885 × 2150 mm. Check the packed height against your doorway and route before delivery.

A standard 13-amp socket at 220-240 V; it draws 600 W. No special electrical supply is required.

It uses R290 refrigerant with a 120 g charge and automatic hot-gas defrost, so routine servicing is straightforward. For servicing or spares call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 610 x 635 x 1540 mm
External Dimension (WxDxH): 730 x 845 x 2130 mm
Packed Dimension (WxDxH): 770 x 885 x 2150 mm

Cooling and Functions

Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.98 kWh/24h
Temperature Range: -22 to -17 °C
Annual Energy Consumption: 1821 kWh/year m³
Input Power: 600 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -22 to -17 °C
Climate Class: 4
Gross / Net Weight: 140 / 120 kg
Gross / Net Volume: 670 / 455 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Dimensions: GN2/1
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CAF650 Gastronorm Upright Freezer then please get in touch.
