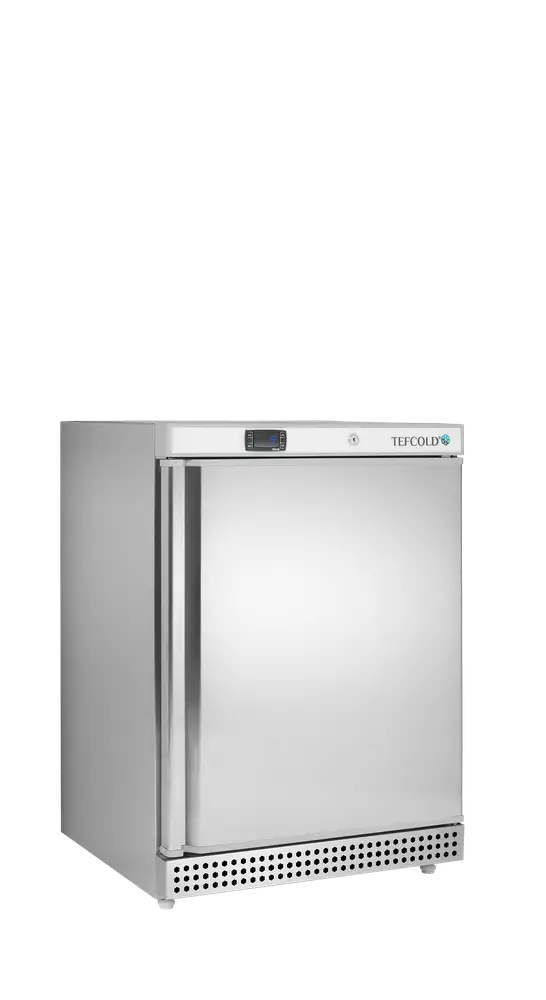

TEFCOLD UF200S Undercounter Freezer

£625.00 £398.00

+vat

- +

Brand:

SKU: 33640

Energy Arrow

Product summary

  • Stainless steel cabinet
  • Integrated handle
  • Electronic thermostat
  • Fixed freezing shelves

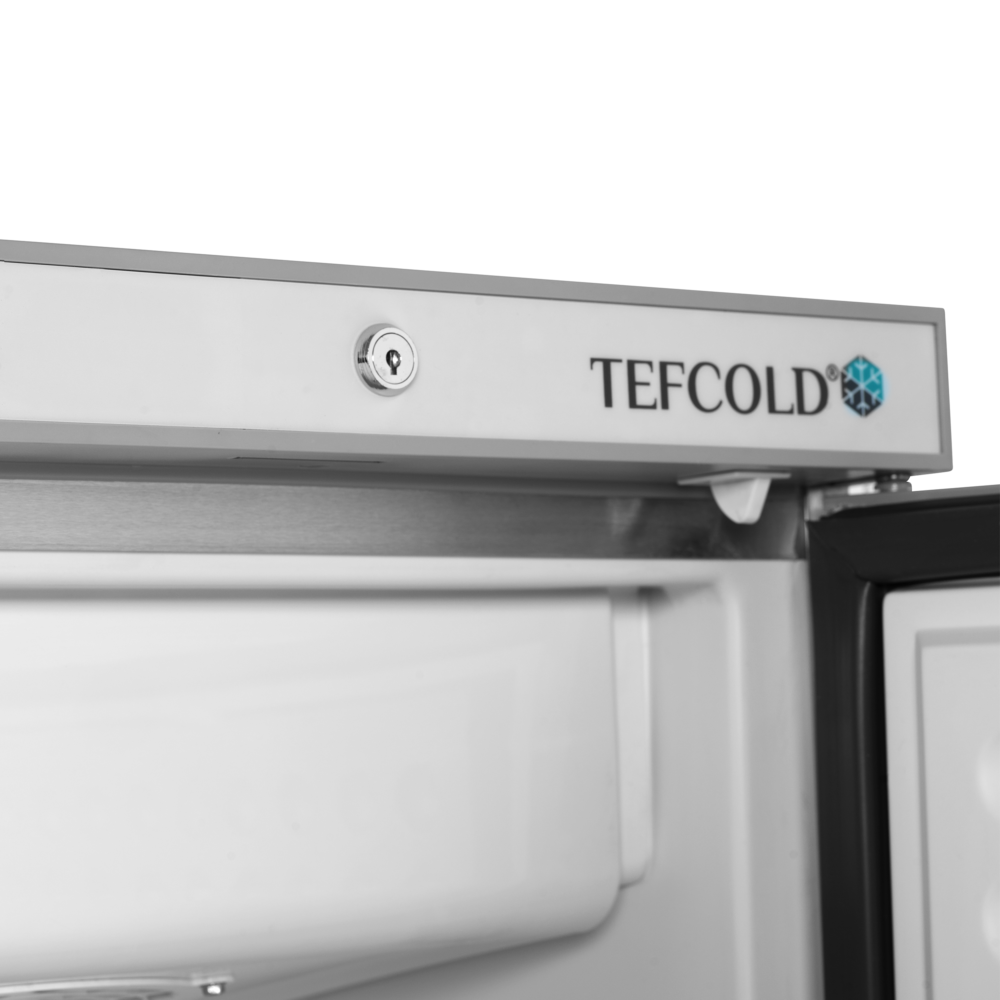

  • Lock
  • Adjustable feet with rollers to rear

Product description

The UF-S range of storage freezers is the stainless steel version of our UF cabinets. They offer high quality and reliability at a competitive price. It comes in varioussizes that all have a clean design with an integrated full-length door handle. The standard freezer cabinet comes with fixed freezing shelves, which helps ensure an even temperature throughout the cabinet. Set the temperature on the easy-to-use digital thermostat display.

The TEFCOLD UF200S is a single-door undercounter freezer holding a -24 to -10 °C band across 120 litres of net storage in a 600 mm-wide cabinet, with an SS430 stainless exterior, static cooling and R600a refrigerant on a 13 A supply.

Sale!
SPECIFICATION 44 facts · tap for all External W × D × H600 x 585 x 855 mmWidth600 mmDepth585 mmGross / net weight52 / 47 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994075site
Product code 33640site
Sub title Undercounter Freezercatalogue
Type Commercial Under Counter Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 855 mmcatalogue
External W × D × H 600 x 585 x 855 mmsite
Gross / net weight 52 / 47 kgsite
Gross weight 52 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 484 × 470 × 620 mmcatalogue
Internal W × D × H 484 x 470 x 620 mmsite
Packed (W×D×H) 690 × 650 × 910 mmcatalogue
Packed W × D × H 690 x 650 x 910 mmsite
Width 600 mmsite

Capacity3

Doors 1catalogue
Gross volume 200 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 60 gsite
Temperature range -24 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 438 kWh/yearsite
Energy consumption 1.2 kWh/24hsite
Input power 105 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish SS430site
Feet / legs 4 adjustable feetsite
Interior light Nosite
Max load per shelf 110site
Shelf dimensions 490 x 380 mmsite
THE WORKING VIEW

Why this commercial under counter freezer earns its place

The UF200S is a single-door undercounter freezer that slots frozen storage into a workbench run where floor space is tight. At 600 mm wide it sits under a counter or against a wall, giving a kitchen a dedicated pocket of frozen stock without committing to an upright or a walk-in. It holds 120 litres of net storage on two fixed freezing shelves, enough for a working reserve of frozen product close to the prep area.

It holds a -24 to -10 °C freezer band under an electronic controller, using static cooling behind a single hinged solid door. Defrost is manual, so the cabinet is switched off and cleared as part of the cleaning routine rather than cycling automatically. As climate class 4 it is built to hold temperature in demanding kitchen ambients, and at 40 dB it runs quietly. On its verified figure of 438 kWh a year, running cost works out at about £110 a year at 25p/kWh.

The cabinet measures 600 × 585 × 855 mm externally with a 484 × 470 × 620 mm interior, and ships packed at 690 × 650 × 910 mm — an easy fit through a standard doorway, but worth checking against a tight undercounter gap. It weighs 47 kg net and 52 kg boxed. The exterior is SS430 stainless steel with a white ABS interior, it plugs into a standard 13 A supply at 220–240 V, and cooling uses R600a refrigerant with a 60 g charge.

BEFORE YOU BUY

Questions, answered straight

It holds a -24 to -10 °C freezer band under an electronic controller, using static cooling. As climate class 4 it is built to keep that temperature in demanding kitchen ambients.

Net capacity is 120 litres (200 litres gross) on two fixed freezing shelves behind a single hinged solid door. That gives a working reserve of frozen stock beside the prep area.

No, defrost is manual. You switch the unit off and clear it as part of your cleaning routine, rather than it running an automatic defrost cycle.

The cabinet is 600 × 585 × 855 mm and ships packed at 690 × 650 × 910 mm. Check the 855 mm height and 600 mm width against your undercounter gap before delivery.

On its verified figure of 438 kWh a year, that is about £110 a year at 25p/kWh. It draws 105 W at 40 dB; actual cost depends on your tariff and how hard it works.

It cools with R600a refrigerant (60 g charge) on a standard 13 A supply. Craven Cooling supports the units it supplies — call the service team on 01792 732702 to arrange maintenance.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 484 x 470 x 620 mm
External Dimension (WxDxH): 600 x 585 x 855 mm
Packed Dimension (WxDxH): 690 x 650 x 910 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.2 kWh/24h
Temperature Range: -24 to -10 °C
Annual Energy Consumption: 438 kWh/year m³
Input Power: 105 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -24 to -10 °C
Climate Class: 4
Gross / Net Weight: 52 / 47 kg
Gross / Net Volume: 200 / 120 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 490 x 380 mm
Max load on Shelves: 110 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: SS430
Interior Finish: SS430
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD UF200S Undercounter Freezer then please get in touch.
